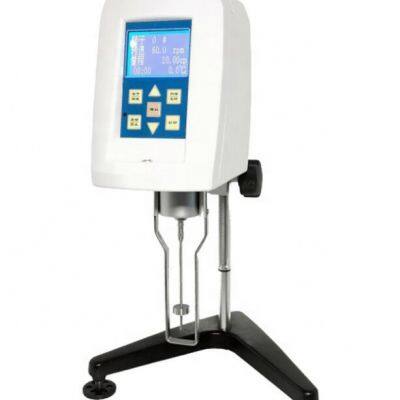

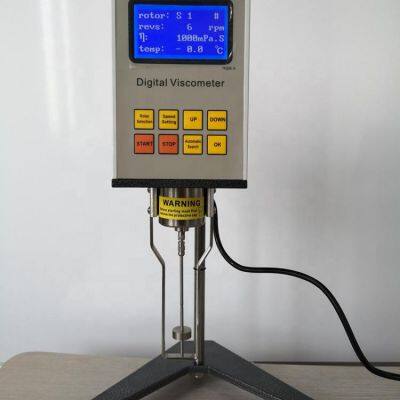

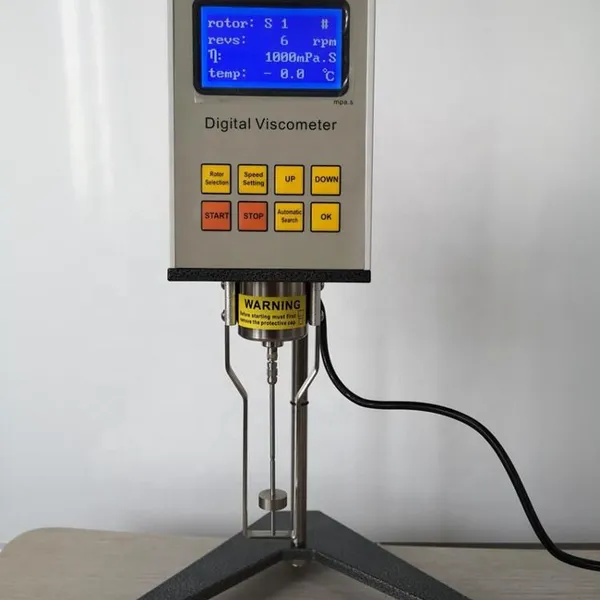

NDJ-5S NDJ-8S DV-1 Viscosity Meter Tester Rotary Laboratory Brookfield Rotational Digital Viscometer

1#, 2#, 3#, 4# rotors

Measure Range

10 - 100,000 mpa.s/cps

10 - 2,000,000 mpa.s/cps

Display

LCD

Spindles Specification

No. 0, 1, 2, 3, 4  ( Note: No. 0 is optional, test: 0.1-100 mpa.s)

Speed of Spindles

6 / 12 / 30 / 60 rpm/min.

0.3 / 0.6 / 1.5 / 3 / 6 / 12 / 30 / 60 rpm/min.

Optional

RS232

(1). RS232 Interface

(2).  Edit Software

(3). Temperature probe (0-100 degree)

RS232

(1). RS232 Interface

(2).  Edit Software

(3). Temperature probe (0-100 degree)

Automatic Switch

free selection of proper rotating speed or spindles number.

Stable Cursor

Strip-type cursor fully charged displayed when reading basically stable

Measure Tolerance

<= ± 2%

<= ± 2%

Measure Repeatability

<= ± 1%

<= ± 1%

Power

AC 100-240V/50-60 HZ

Working Condition

Temperature 5-40 degree;    Relative humidity no more than 80%

Outline Dimension

370×325×280 mm

Packing

400×360×310 mm

Net / Gross Weight

6.8 kg / 9kg

H.S. Code

90278099
