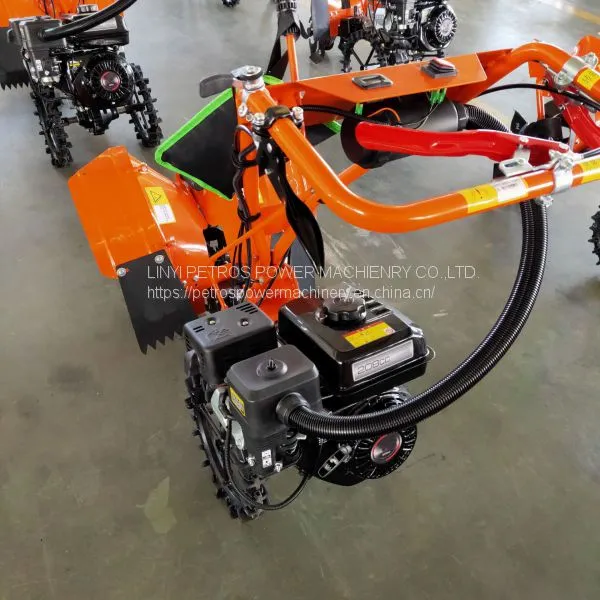

Self-propelled Field machine Mini Tiller Weeding, dry-land loosening 3TGQ-4ll
You May Like
Product Description
Product features:

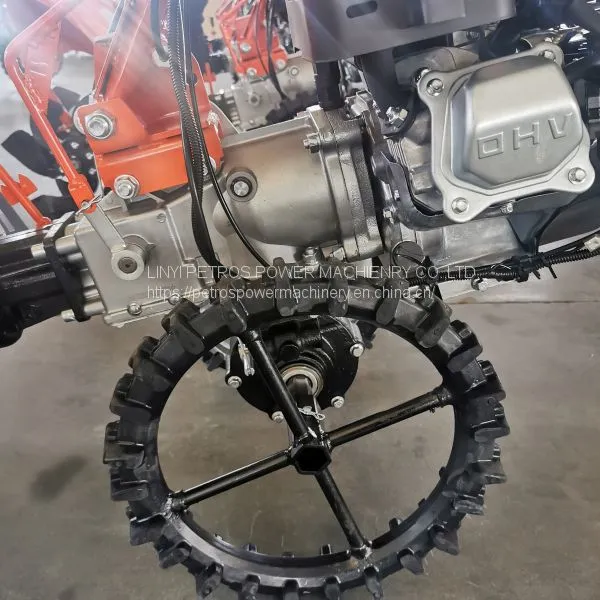

Walking wheel belt drive: no manual push and pull is needed for work and transfer.
Walking pulley differential speed: easy to operate, easy to turn.
Tool rotation (gear box) according to functional requirements are divided into three grades: Rotary Tilling 320r/min (weeding effect improved) , ditching 160r/min (maximum torque ditching, powerful power) and neutral (Used for starting and handling and protecting the engine) .
The gearbox is divided into four gears.
Complete machine standard timer (can display engine speed, record the actual work of the machine with maintenance prompt function)
170F power, stable output, quality assurance.
The mudguard can adjust the installation position according to the different soil quality in different areas to ensure the effect of ditching and throwing away soil.
Casting six wrong cutter head, stable and reliable.
Handle Height adjustable, easy to operate.
Product parameters:
project | unit | Design value |
Model | / | 3TGQ-4Ⅱ |
Structure（Uni axial/Bi axial；Caterpillar track/Wheel type） | / | Uni axial；Wheel type |
Dimensions (L x W x H)） | mm | 1600x830x870 |
Handlebars horizontal adjustment（Adjustable/Non-adjust ability） | / | Non-adjust ability |
Handlebars Up and down adjustment（Adjustable /Non-adjust ability） | / |
Adjustable
|
Engine output drive | / | Gear drive |
Main Clutch type | / | Oil-immersed friction plate |
Rated power | kW | 4.0 |
Rated speed | r/min | 3600 |
Type of matching ditching device | / | Rotary knife type |
Maximum working width of matching ditching device | mm | 260 |
Type of matching earthing device | / | Rotary knife type |
Maximum working width of matching earthing device | mm | 300 |
Type of fertilizer trencher for supporting fertilizer application device | / | / |
If you are interested in our product or have any question, please call+86-17864751595
Looking forward to serve for you.
