Rotary Table Bearing ZKLDF180 Axial Angular Contact Ball Bearing

otary table bearing ZKLDF180 axial angular contact ball bearing ZKLDF180 precision: P4(runout≤4μm); P2(runout≤2um)
Rotary table bearing ZKLDF180 axial angular contact ball bearing ZKLDF180 advantages: High speed, High precision, High rigidity, High load

Rotary table bearing ZKLDF180 axial angular contact ball bearing ZKLDF180 (HONBbearing05)

Model: ZKLDF180
ID(Inner diameter):180mm
OD(Outer diameter):280mm
Thickness(Height):43mm
Axial dynamic load rating(Ca):85KN
Axial static load rating(Coa):440KN
Limiting speed:1700r/min

Bearing friction torque:3Nm

Mass(Weight):8KG

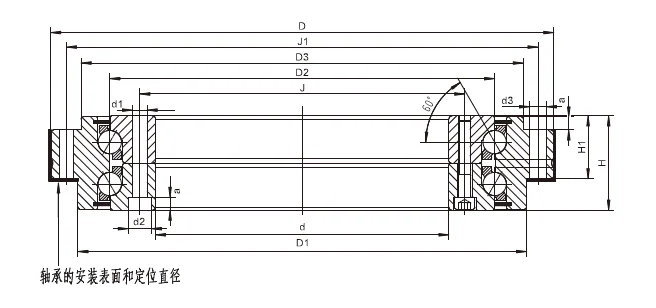

ZKLDF axial angular contact ball bearing series have a unity outer ring, two inner ring, two rows of ball rollers and cage assembly, and contact angle is 60. the outer rings and inner rings have fitting holes and easy to fit by joint bolt. the unit is located by means of retaining screws for the safety of transport and handling.(HONBbearing05)

ZKLDF bearing is a kind of high speed bearing, rolling element is ball.

ZKLDF axial angular Contact ball bearing series have double side sealing covers which can against dirt, impurities and avoid grease leak.

ZKLDF axial angular Contact ball bearing series using complex barium-base grease, you can add the Grease through grease hole. ZKLDF Axial angular contact ball bearing series are designed with 60 contact angle and two Rows of ball rollers, which can support radial load, double axial loads and tilting moments. Due to the special design with copper cages, the bearing have higher strength and lower Friction torque. so this kind of bearings are especially Appliated to the situation with super speed, long time running, high stiffness and High precision.(HONBbearing05)

Rotary table bearing ZKLDF180 axial angular contact ball bearing ZKLDF180 application: Widely applied on the rotary tables, Milling heads, 5 axis CNC machine tools, Medical equipments, Radar, Precision testing machines.

1. Industrial Neutral Packing,Package as your requirements.

2. Small size Bearings:Plastic vacuum packaging bag+Paper Box/Neutral Carton

3.Large size Bearings:Plastic film+Brown paper+Roll tape+Wooden Box
