628 ZrO2 Full ceramic bearing 8x24x8mm for LCD wel equipment China

FOB Price

USD $5 - $2000 / Set

10 Sets(Min.Order)

Supply Ability 10000 Piece / Pieces per Month
Port Luoyang
Payment Terms:T/T Credit Card Escrow
Delivery Detail:7 days

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Brand Name:	YDPB	Place of Origin:	China	Model Number:	628
Number of Row:	Single Row	Seals Type:	no	Outside Diameter:	7, 120
Bore Size:	3, 85

Product Description

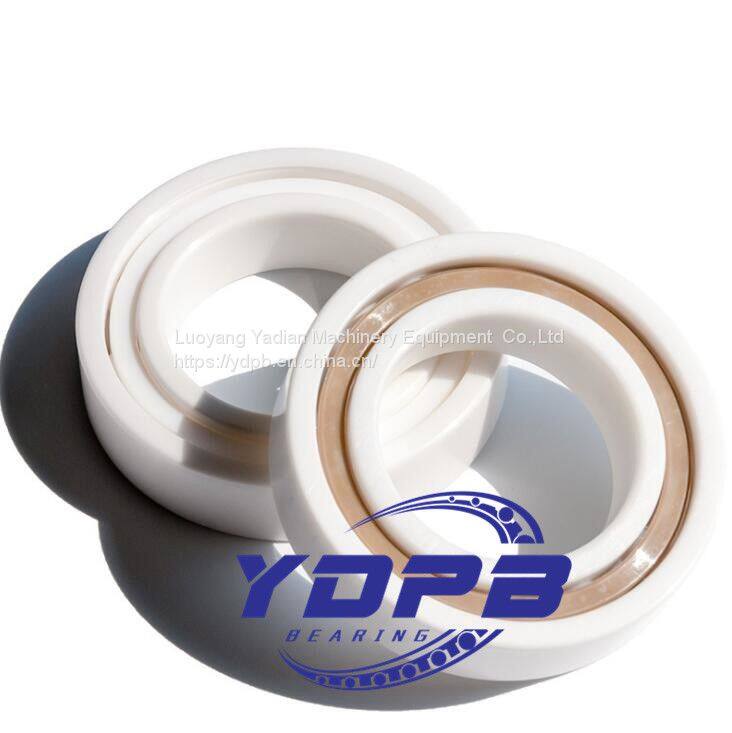

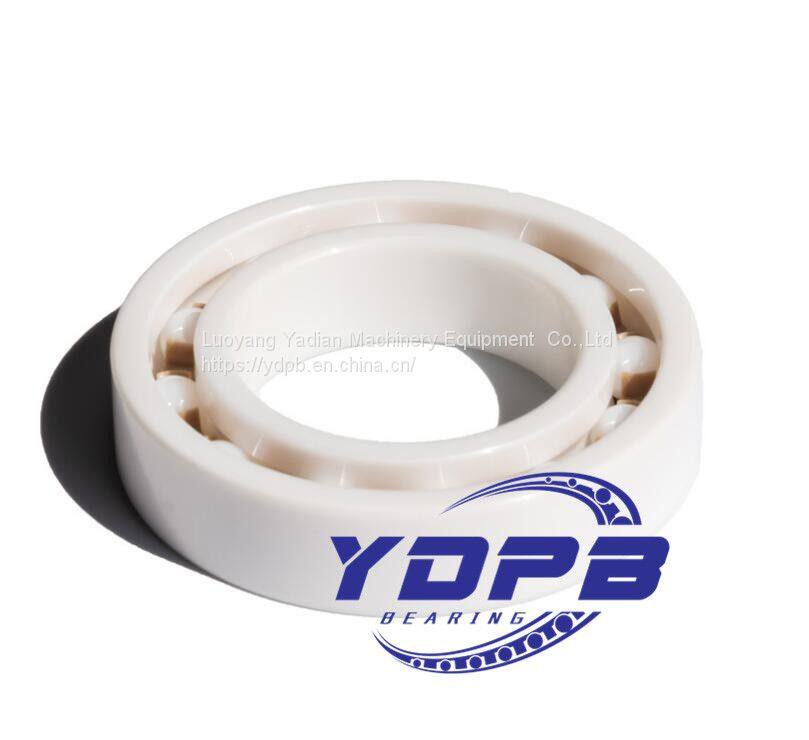

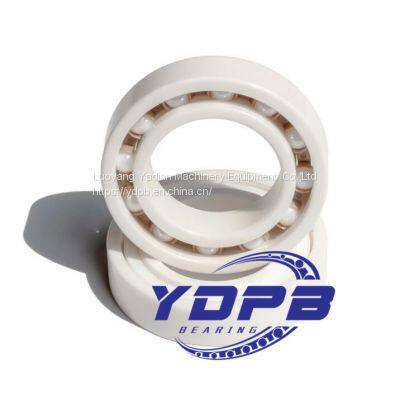

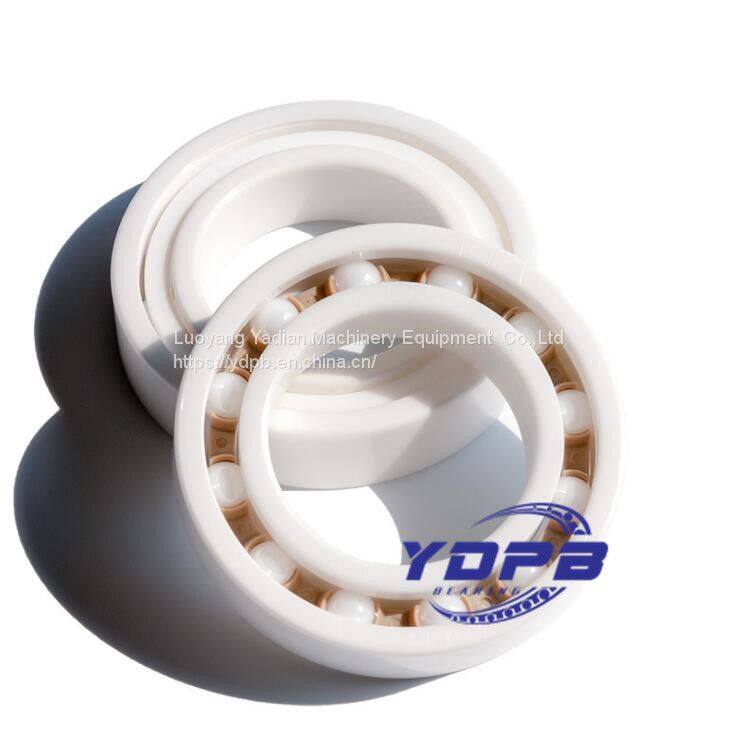

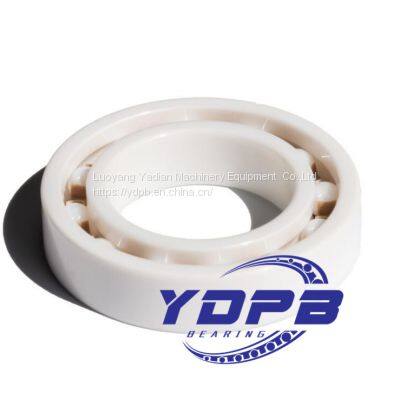

Full ceramic bearing ZrO2 material

Full ceramic bearing of Zro2 materials has perfect properties such as high and low temperature resistance, high pressure resistance,corrosion resistance,anti-magnetic insulation and self lubrication, Therefore, it can work in special environment in which hybrid ceramic bearing and earing steel are not applicable

Parameters

Model	Basic dimension（mm)					Mounting dimension（mm）			Weight
	ID	OD	H	r	da	da	Da	ra	Ref.（kg)
	ID	OD	H	r	min	max	max	max	ZRO2	SI3N4
688CE	8	16	4	0.2	9.6	/	14.4	0.2	0.0025	0.0014
698CE		19	6	0.3	10	/	17	0.3	0.0056	0.0030
608CE		22	7	0.3	10	/	20	0.3	0.0093	0.0050
628CE		24	8	0.3	10	/	22	0.3	0.0130	0.0072
638CE		28	9	0.3	10	/	26	0.3	0.0220	0.0120
689CE	9	17	4	0.2	10.6	/	15.4	0.2	0.0027	0.0015
699CE		20	6	0.3	11	/	18	0.3	0.0065	0.0035
609CE		24	7	0.3	11	/	22	0.3	0.0110	0.0060
629CE		26	8	0.3	11	/	24	0.3	0.0150	0.0081
639CE		30	10	0.6	13	/	26	0.6	0.0280	0.0150

More information ,pls contact us
