Home > Products > Reducer > [ACT] Auto Gas Cylinder CNG Car Engine Spare Parts Auto Gas Kit Act12 Cng Reducers

[ACT] Auto Gas Cylinder CNG Car Engine Spare Parts Auto Gas Kit Act12 Cng Reducers

FOB Price

Negotiable

1 (Min. Order)

Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Description

[ACT] auto gas cylinder CNG car engine spare parts auto gas kit act12 cng reducers

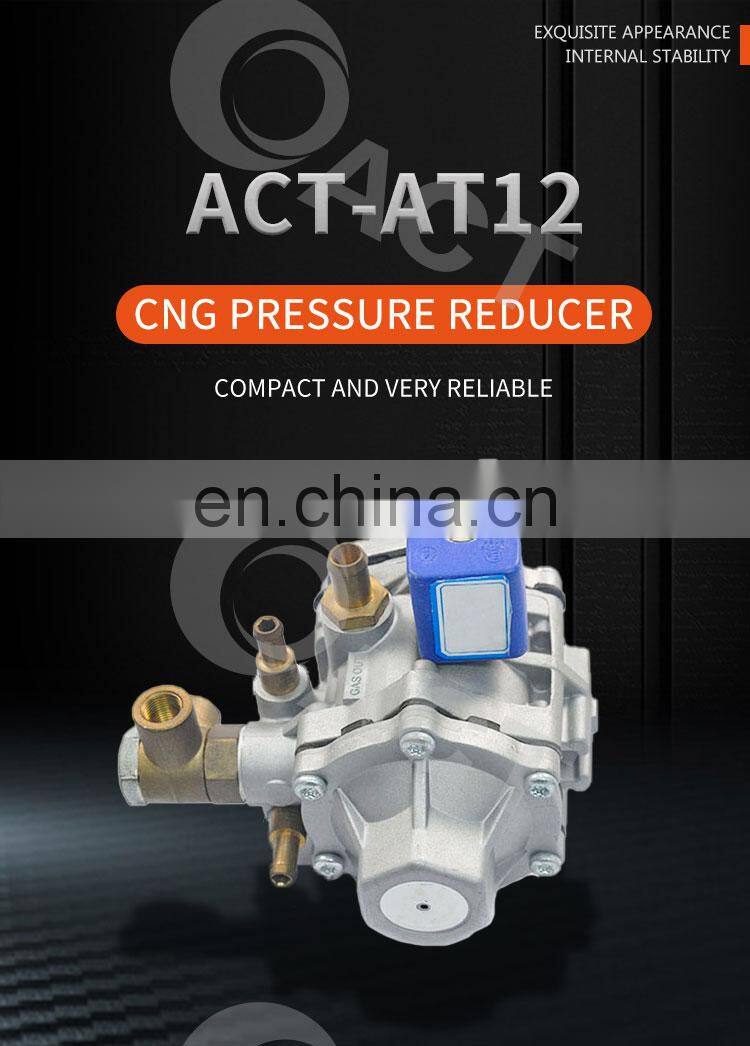

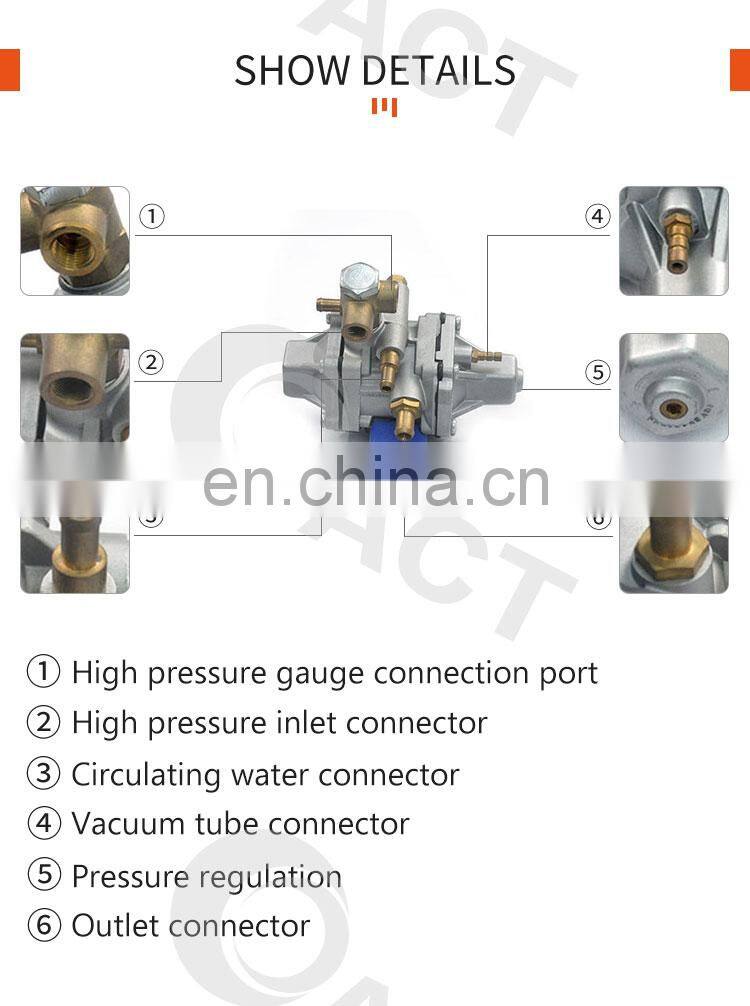

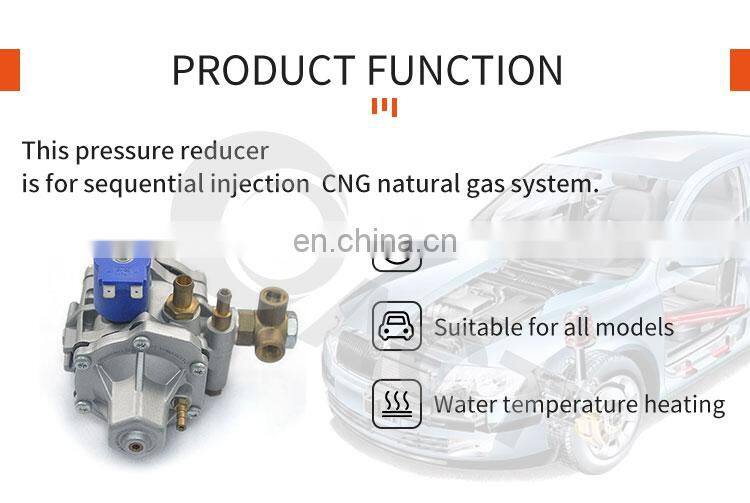

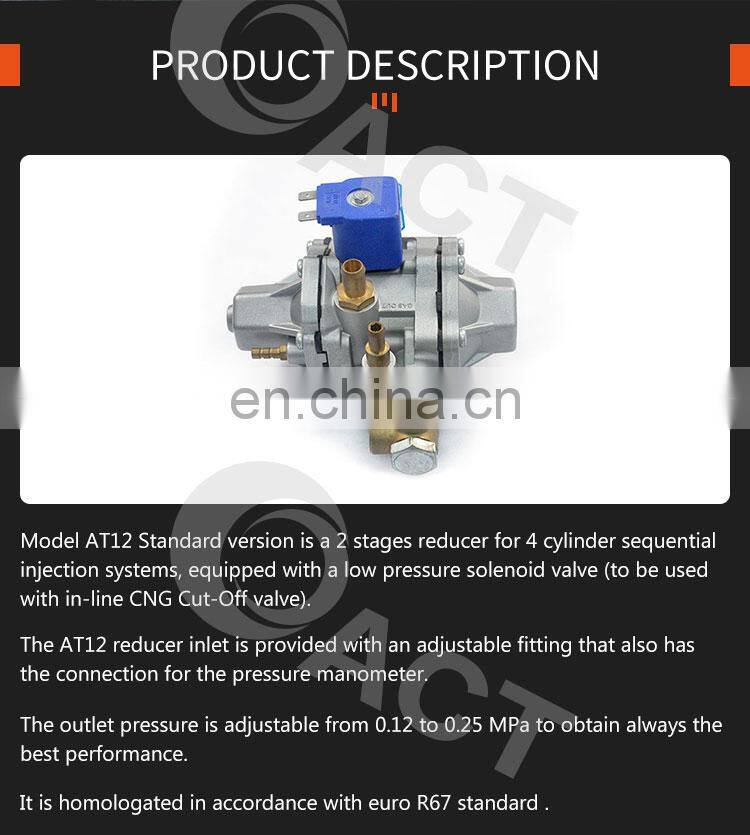

Model AT12 Standard version is a 2 stages reducer for 4 cylinder sequential injection systems, equipped with a low pressure solenoid valve (to be used with in-line CNG Cut-Off valve). The outlet pressure is adjustable from 0.12 to 0.25 MPa to obtain always the best performance. The reducer inlet is provided with an adjustable swivel fitting, which has the connection for pressure manometer. Compact and very reliable, it is homologated in accordance with euro R67 standard .

SPECIFICATIONS FOR AT12 AT12 MEDIUM PRESSURE REDUCER
Product details	FUEL TYPE:	CNG		LPG
		CYLINDER TYPE:	4/6 cylinder
		OUTLET PRESSURE :	120-250 kpa
	Main parameters	COIL POWER:	17 W		2.5 ms
		OUTLET CONNECTION:	Swivel fitting 12.5 mm		1.8 ms
		INLET CONNECTION:	Swivel ftting M12*1 pipe 6 mm		0.5~2.5 bar
	Package details	MAX. INLET PRESSURE:	26 Mpa (260 bar)		0.040 CBM

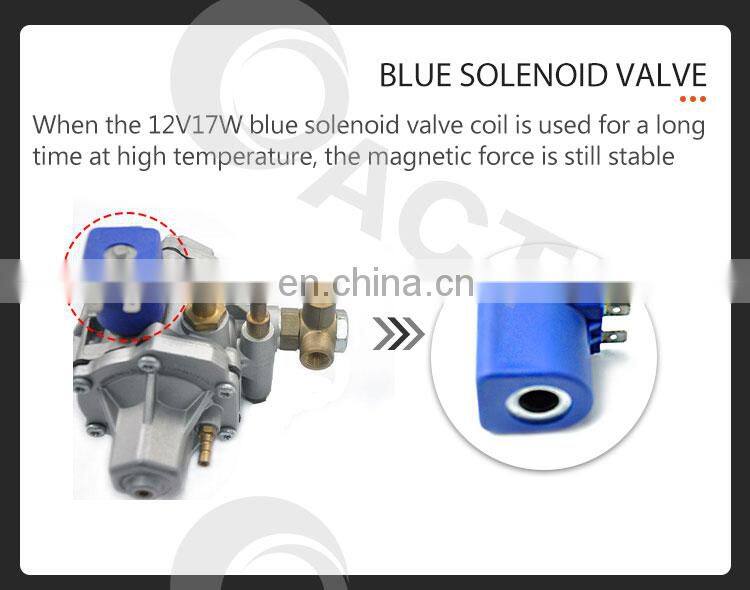

		COIL VOLTAGE:	12 V DC
		OUTLET PRESSURE :	adjustable from 120 to 250 kPa
		COIL CONNECTION:	Amp Minitimer
		WORKING TEMPERATURE:	-40°C/+120°C
		HORSE POWER :	up to 340 HP
		CNG FLOW RATE (CH4):	70 KG/H

1. The pressure reducer has been debugged and tested before leaving the factory. Users should not disassemble it at will to avoid safety accidents. Please contact our shop for quality problems. If there is any malfunction during use, please go to a professionalrepair shop for repair. 2. Routine maintenance: every time before driving, check whether the parts are loose or dew (smell smell). If so, please close the cylinder valve and go to a professional repair point for repair . 3. Monthly maintenance: check whether the parts are loose,whether the gas cylinders, pipelines, and pressure reducers are leaking (can be detected by a gas leak detector), and whether the electrical wiring connections are reliable. 4. The filter should be replaced every 15,000 kilometers of the car, and the pressure reducer and various flling/cylinder valves should be checked. 5 The natural gas system should be overhauled every 25,000 kilometers, and all wearing parts should be replaced in time. 6. Except for routine maintenance by the driver, items3, 4, and 5 should all be carried out in a professional repair shop.

Packaging

A:Common Packing: Plastic bag + Label + Inner Box+Export Carton

B:Customized Packing: OEM Label, Inner Box,etc.

C:Package will be processed after all the tests finished.

Transportation

(1)By sea,by air,or by express (TNT,Fedex,UPS,DHL,EMS etc);

(2)We can provide freight services or deliver the goods to your designated forwarder.

(3)We support most inlan dport, such as Shanghai ,Guangdong .

FAQ

Why choose us?.................................................................

1)Top Quality. Every product is made through strictly production process and quality testing, which has pass the test of BV,ISO, CE and GOST, and been accepted by clients spreading over 43 countries even including Italy and Poland.

2)2-year Warranty. All products enjoying 2 years free of equipment maintainence warranty.

3)Free Sample. If you order a set of products for testing, we will return the freight to you from your next normal order;if you order a component for testing, we will return the sample charge to you.

4)Cost Saving. We provide long-life, shock-resistant autogas equipment with excellent quality and better performance, resulting in cost saving.

5)Quick Delivery. We promise to ship your goods with 3 days after confirming your order, or we would like to return your payment if you asked.

Can your factory supply OEM serive?.........................................

Yes, we can. Send us the sample or the detailed speicifications of the products you want to clone →calculate the cost of opening model →start to produce the sample for testing →continue to produce according to your feedback.

What's your MOQ, payment terms?............................................

Our MOQ :1 piece for sample order,5 pieces for normal order.

Our payment terms: T/T, D/P, L/C, Paypal, Westernunion.
