Home > Products > Reducer > ACT 09 Reducer/ACT 09 Regulator/LPG Car Conversion Regulator

ACT 09 Reducer/ACT 09 Regulator/LPG Car Conversion Regulator

FOB Price

Negotiable

1 (Min. Order)

Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Description

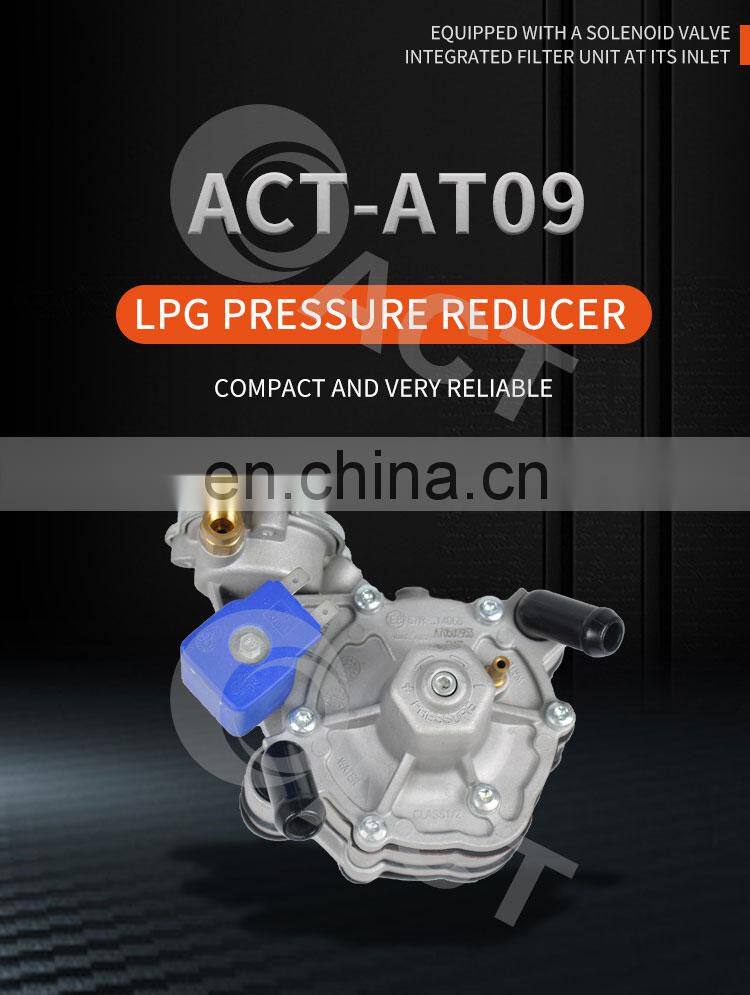

ACT 09 reducer/ACT 09 regulator/LPG car conversion regulator

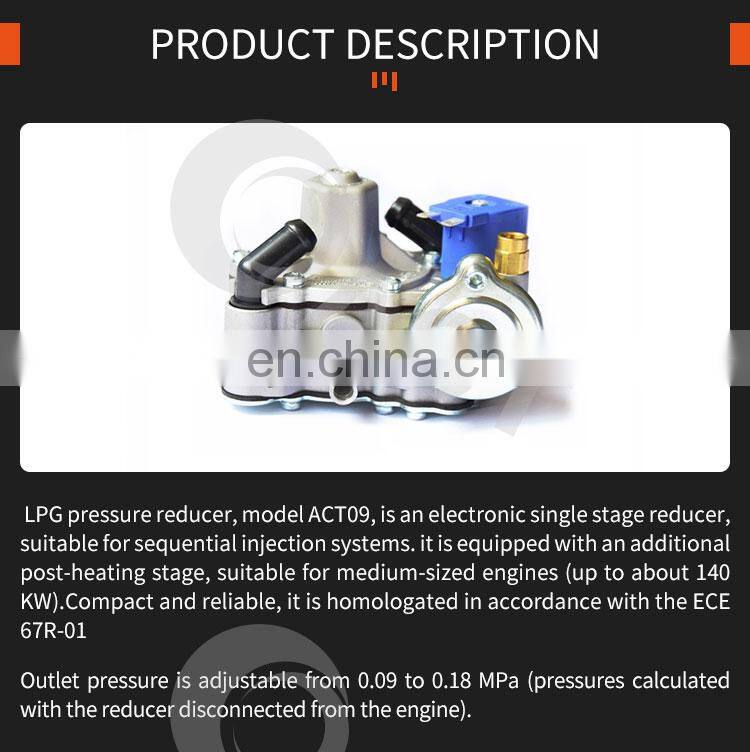

LPG pressure reducer, model ACT09, is an electronic single stage reducer, suitable for sequential injection systems. it is equipped with an additional post-heating stage, suitable for medium-sized engines (up to about 140 KW).Compact and reliable, it is homologated in accordance with the ECE 67R-01 This reducer is equipped with a solenoid valve and an integrated filter unit at its inlet, in order to reduce the overall costs and permit an easier and faster installation. Outlet pressure is adjustable from 0.09 to 0.18 MPa (pressures calculated with the reducer disconnected from the engine).

SPECIFICATIONS FOR ACT09 REDUCER
Product details	Regulated media	LPG		LPG
		Material:	Aluminium, Copper
		Maximum input pressure:	22000KPa（220bar）
	Main parameters	Maximum output pressure:	110KPa（1.1bar）		2.5 ms
		Maximum flow:	More than15Nm3/h		1.8 ms
		Horse power:	108 HP		0.5~2.5 bar
	Package details	Working pressure:	Less than20Mpa (200bar)		0.040 CBM
		Working voltage:	DC 12 V
		Coil Power:	17 W (solenoid)
		Max. Flow:	9±1 m3/h
		Weight	1.8KG
		DIMENSIONS:	120125105 MM
		Product model：	ACT 09

1. The pressure reducer has been debugged and tested before leaving the factory. Users should not disassemble it at will to avoid safety accidents. Please contact our shop for quality problems. If there is any malfunction during use, please go to a professionalrepair shop for repair. 2. Routine maintenance: every time before driving, check whether the parts are loose or dew (smell smell). If so, please close the cylinder valve and go to a professional repair point for repair . 3. Monthly maintenance: check whether the parts are loose,whether the gas cylinders, pipelines, and pressure reducers are leaking (can be detected by a gas leak detector), and whether the electrical wiring connections are reliable. 4. The filter should be replaced every 15,000 kilometers of the car, and the pressure reducer and various flling/cylinder valves should be checked. 5 The natural gas system should be overhauled every 25,000 kilometers, and all wearing parts should be replaced in time. 6. Except for routine maintenance by the driver, items3, 4, and 5 should all be carried out in a professional repair shop.

Chengdu ACT Technology Co.,LTD

Located in Chengdu city, Sichuan province, China. With eighteen years development, one of largest CNG LPG kits manufacturers in China, mainly specializing in R&D, manufacturing CNG/LPG conversion kits for vehicles.

Our products have passed by ISO9001, ISO16949 certification of production management ,and BV, CE, CNAS inspection and certification of quality.

ACT has powerful productivity, excellent equipment, advanced technology and perfect quality testing system, so ACT products have been exported to many countries. ACT is well acknowledged by customers and end users for its high qualified products and excellent services.

Until now, we have participated in well-known foreign exhibitions as scheduled. Such as SUFGAS in Russia , Peru FIGAS in Peru , ALTFUELS in Mexico etc . , we have sold our products more than 60 countries around the world already. We are committed to promoting our products to the world , leads green world , better environment !

Top SMD Equipment

By High Presicion Machine

OEM&ODM Customized Service

We could provide customized products and OEM&ODM technology service. ACT pressure reducers and injector rails are processed via high-precision CNC machines,electronic components of ECU Kits are imported from international famous brands,and manufactured by top level SMD equipments.

In addition, ACT can provide installation support for full cng/lpg kits,and technical support services-after sales.Welcome to visit us,and looking forward to cooperating with you sincerely .

Packing & Delivery

Packaging

A:Common Packing: Plastic bag + Label + Inner Box+Export Carton
B:Customized Packing: OEM Label, Inner Box,etc.

C:Package will be processed after all the tests finished.

Transportation

(1)By sea,by air,or by express(TNT,

Fedex,UPS,DHL,Aramex,EMS etc);

(2)We can provide freight services or deliver the goods to your designated forwarder. We will do best to save your freight !

(3)We support most inlan dport, such as Shanghai ,Guangdong ,Chongqing ，ningbo..

FAQ

Why choose us?.................................................................

1)Top Quality. Every product is made through strictly production process and quality testing, which has pass the test of BV,ISO, CE and GOST, and been accepted by clients spreading over 43 countries even including Italy and Poland.

2)2-year Warranty. All products enjoying 2 years free of equipment maintainence warranty.

3)Free Sample. If you order a set of products for testing, we will return the freight to you from your next normal order;if you order a component for testing, we will return the sample charge to you.

4)Cost Saving. We provide long-life, shock-resistant autogas equipment with excellent quality and better performance, resulting in cost saving.

5)Quick Delivery. We promise to ship your goods with 3 days after confirming your order, or we would like to return your payment if you asked.

Can your factory supply OEM serive?.........................................

Yes, we can. Send us the sample or the detailed speicifications of the products you want to clone →calculate the cost of opening model →start to produce the sample for testing →continue to produce according to your feedback.

What's your MOQ, payment terms?............................................

Our MOQ :1 piece for sample order,5 pieces for normal order.

Our payment terms: T/T, D/P, L/C, Paypal, Westernunion.
