GLP Single Point System ACT 07 Regulator Reducer

FOB Price

Negotiable

1 (Min. Order)

Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Description

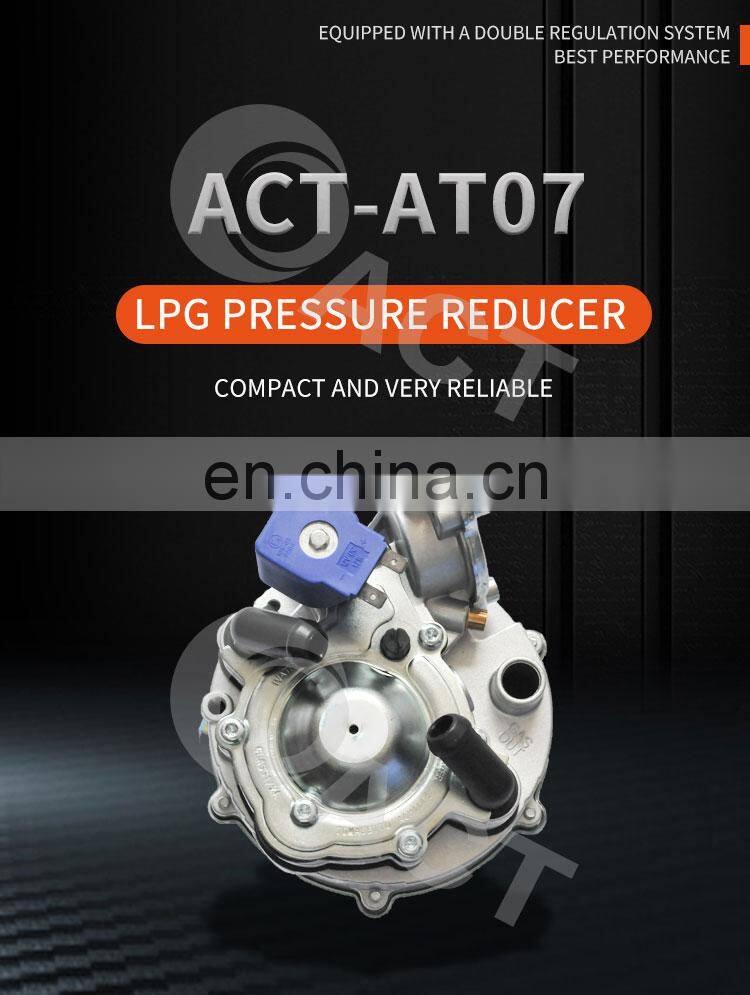

GLP single point system ACT 07 regulator reducer

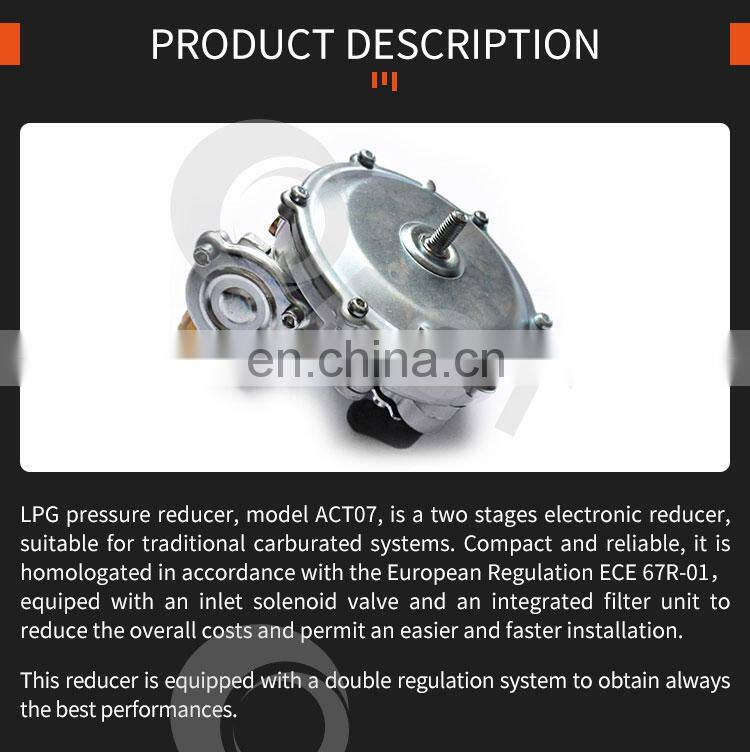

LPG pressure reducer, model ACT07, is a two stages electronic reducer, suitable for traditional carburated systems. Compact and reliable, it is homologated in accordance with the European Regulation ECE 67R-01，equiped with an inlet solenoid valve and an integrated filter unit to reduce the overall costs and permit an easier and faster installation.

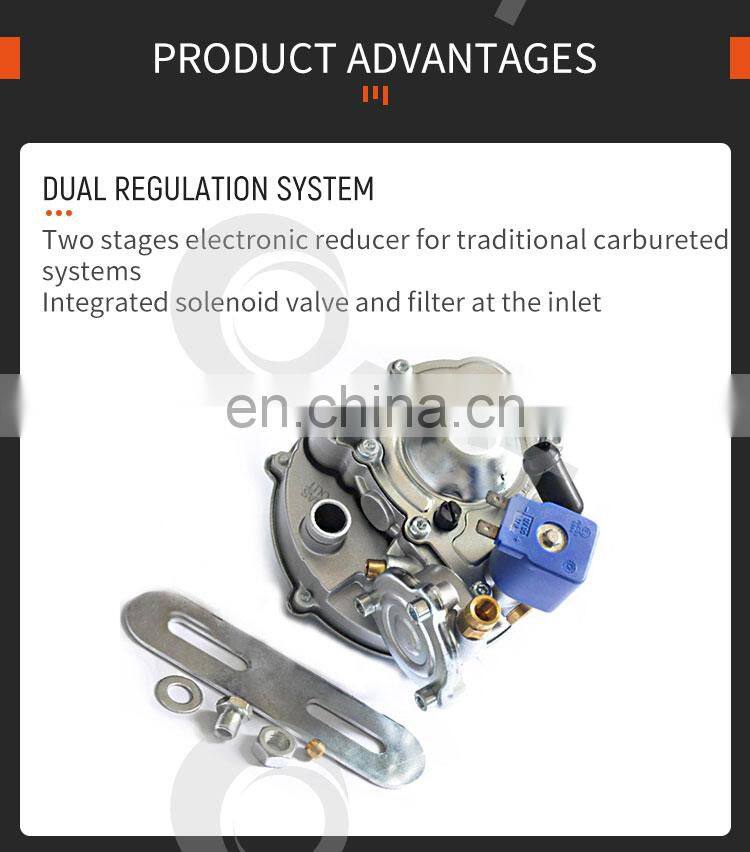

This reducer is equipped with a double regulation system to obtain always the best performances.

SPECIFICATIONS FOR ACT07 reducer
Product details	Applicable medium：	LPG		LPG
		Cylinder type:	4 cylinders
		Outlet pressure:	Depending on the mixer
	Main parameters	Outlet connection:	Fixed fitting ∅20 mm		2.5 ms
		Inlet connection:	Swivel fitting M12*1 pipe ∅6 mm		1.8 ms
		Max. Inlet pressure:	26 Mpa (260 bar)		0.5~2.5 bar
	Package details	Coil voltage:	12 V		0.040 CBM
		Horse power:	140 HP
		Working Voltage:	8~16 V
		Working Temperature:	-40℃---120℃
		Dimensions:	155190110 MM
		Weight:	1.8KG
		Product model：	LPG ACT07 reducer

1. The pressure reducer has been debugged and tested before leaving the factory. Users should not disassemble it at will to avoid safety accidents. Please contact our shop for quality problems. If there is any malfunction during use, please go to a professionalrepair shop for repair. 2. Routine maintenance: every time before driving, check whether the parts are loose or dew (smell smell). If so, please close the cylinder valve and go to a professional repair point for repair . 3. Monthly maintenance: check whether the parts are loose,whether the gas cylinders, pipelines, and pressure reducers are leaking (can be detected by a gas leak detector), and whether the electrical wiring connections are reliable. 4. The filter should be replaced every 15,000 kilometers of the car, and the pressure reducer and various flling/cylinder valves should be checked. 5 The natural gas system should be overhauled every 25,000 kilometers, and all wearing parts should be replaced in time. 6. Except for routine maintenance by the driver, items3, 4, and 5 should all be carried out in a professional repair shop.

Packaging

A:Common Packing: Plastic bag + Label + Inner Box+Export Carton

B:Customized Packing: OEM Label, Inner Box,etc.

C:Package will be processed after all the tests finished.

Transportation

(1)By sea,by air,or by express (TNT,Fedex,UPS,DHL,EMS etc);

(2)We can provide freight services or deliver the goods to your designated forwarder.

(3)We support most inlan dport, such as Shanghai ,Guangdong .

FAQ

Why choose us?.................................................................

1)Top Quality. Every product is made through strictly production process and quality testing, which has pass the test of BV,ISO, CE and GOST, and been accepted by clients spreading over 43 countries even including Italy and Poland.

2)2-year Warranty. All products enjoying 2 years free of equipment maintainence warranty.

3)Free Sample. If you order a set of products for testing, we will return the freight to you from your next normal order;if you order a component for testing, we will return the sample charge to you.

4)Cost Saving. We provide long-life, shock-resistant autogas equipment with excellent quality and better performance, resulting in cost saving.

5)Quick Delivery. We promise to ship your goods with 3 days after confirming your order, or we would like to return your payment if you asked.

Can your factory supply OEM serive?.........................................

Yes, we can. Send us the sample or the detailed speicifications of the products you want to clone →calculate the cost of opening model →start to produce the sample for testing →continue to produce according to your feedback.

What's your MOQ, payment terms?............................................

Our MOQ :1 piece for sample order,5 pieces for normal order.

Our payment terms: T/T, D/P, L/C, Paypal, Westernunion.
