Sigbari Hot Selling Tri-band Repeater 2g 3g 4g 900 1800 2100MHz LCD Display Booster

Sigbari Hot Selling Tri-band Repeater 2g 3g 4g 900 1800 2100MHz LCD Display Booster thumbnail-1
Sigbari Hot Selling Tri-band Repeater 2g 3g 4g 900 1800 2100MHz LCD Display Booster thumbnail-2
Sigbari Hot Selling Tri-band Repeater 2g 3g 4g 900 1800 2100MHz LCD Display Booster thumbnail-3
Sigbari Hot Selling Tri-band Repeater 2g 3g 4g 900 1800 2100MHz LCD Display Booster thumbnail-4
Sigbari Hot Selling Tri-band Repeater 2g 3g 4g 900 1800 2100MHz LCD Display Booster thumbnail-5
Sigbari Hot Selling Tri-band Repeater 2g 3g 4g 900 1800 2100MHz LCD Display Booster photo-1

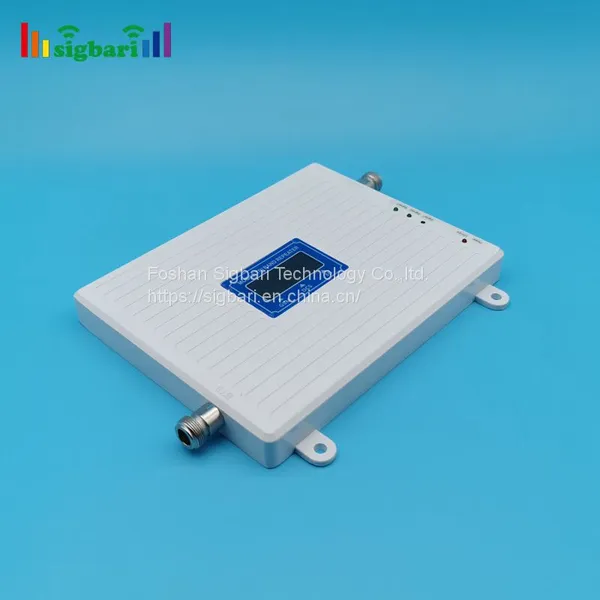

Sigbari Hot Selling Tri-band Repeater 2g 3g 4g 900 1800 2100MHz LCD Display Booster photo-2

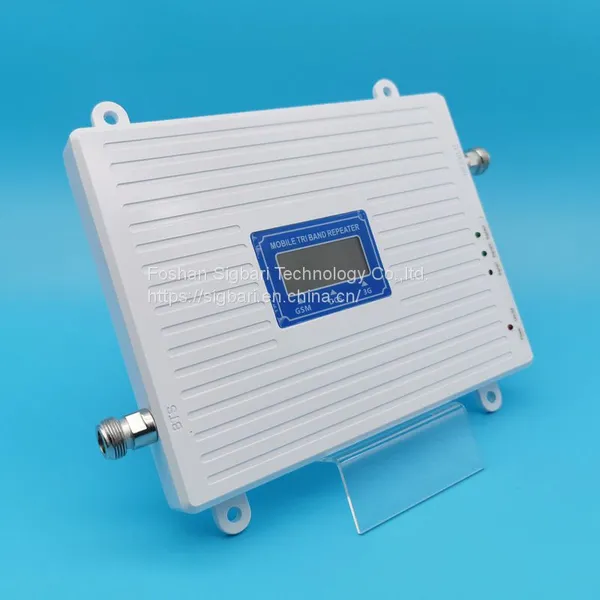

Sigbari Hot Selling Tri-band Repeater 2g 3g 4g 900 1800 2100MHz LCD Display Booster photo-3

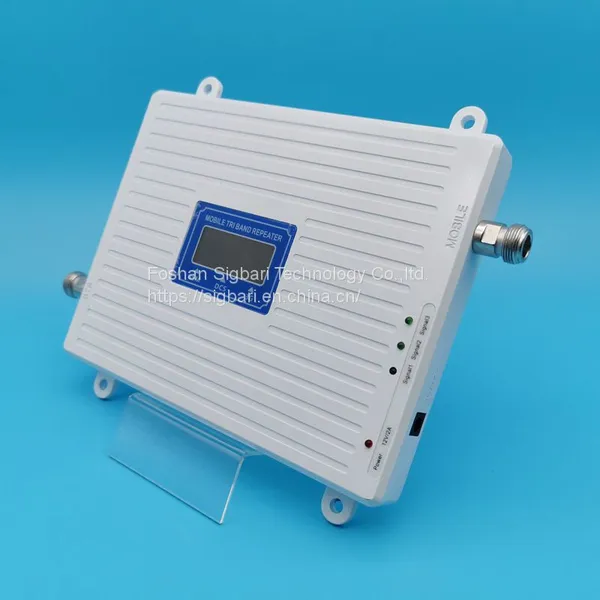

Sigbari Hot Selling Tri-band Repeater 2g 3g 4g 900 1800 2100MHz LCD Display Booster photo-4
Sigbari Hot Selling Tri-band Repeater 2g 3g 4g 900 1800 2100MHz LCD Display Booster photo-5
US$ 45 - 55 MOQ: 10 Pieces
Key Specifications
Get Latest Price
Brand Name:
Sigbari
Place of Origin:
China
Model Number:
SG-9/18/21-65-20
Contact Supplier Request Quote Chat Now
Foshan Sigbari Technology Co.,ltd.
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzheng
Delivery Detail:
3 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name Sigbari
Place of Origin China
Model Number SG-9/18/21-65-20

Sigbari Hot Selling tri-band repeater 2g 3g 4g 900 1800 2100MHz LCD display Booster

Our Mobile Signal Booster is a top of the line product that supports frequency bands (Band8&Band3&Band1 GSM 900MHz & DCS LTE 1800MHz & 3G 2100MHz). The adjustable controls all you to change your signal preferences for smoother voice and data transmissions. Experience improved signal strength regardless of your phone's present coverage strength or frequency band!

Our products are rigorously tested and offer a perfect 5-bar signal wherever you are. Our quick installation kit recommended easy for install with instructions and takes less than 15 minutes to set up. Our products are also completely harm-free.

Please do not hesitate to contact our staff of highly trained professionals available 24/7 should you experience any problems with your booster. Satisfaction guaranteed!

Technical Sheet
Coverage Use Band Frequency Number of simultaneous users Up-link Down-link
up to 300sqm Home, b8 & b3 & b1 900+1800+2100 MHz 100 890-915MHz  935-960MHz
office room, 1710-1785MHz 1805-1880MHz
bedroom, packing, 1920~1980MHz 2110~2170MHz
Voltage Dimensions Weight
AC 100~240V, output DC 12V/2A 235*180*20mm 1.1KG
FAQ
1. How do I determine the best place to set up my booster?
using your mobile phone to check the good signal places from outside or top roof or other empty space, if you still cannot find a good place, you can contact us through chat or by email and we will help you with the setup.
2. Should I check the location of my network provider`s nearest tower?
Yes! The standard antenna can accept signal from within 170 degrees. If towers are located on the opposite side of your property than your antenna, you may need to upgrade your system by adding a second antenna so you can receive signal from all locations.
3. How many users will one booster support?
using your mobile phone to check the good signal places from outside or top roof or other empty space, if you still cannot find a good place, you can contact us through chat or by email and we will help you with the setup.
Coverage in square metres Number of supported users
Up to 150 sq m Up to 50 users
Up to 300 sq m Up to 100 users
Up to 600 sq m Up to 150 users
Up to 1500 sq m Up to 200 users
Features:
1. Compact size with stable performance.
2. Support antenna isolation detection.
3. Designed for indoor application.
4. lcd display available for both uplink and downlink.
5. Low interference & Oscillation prevention.
6.Cost-effective for practical solutions.
7.Extend phone battery life.
s for gsm dcs umts lte 2g 3g 4g signals.


Specification


Specifications:


Items Uplink Downlink
Frequency Range GSM 900mhz 890 ~ 915MHz 935 ~ 960MHz
DCS & LTE 1800mhz 1710 ~ 1785MHz 1805 ~ 1880MHz
WCDMA 2100mhz 1920 ~ 1980MHz 2110 ~ 2170MHz
Operation Bandwidth (-3dB) Wide Band
Maximum Gain ≥65dB ≥65dB
Output Power ≥20dBm ≥20dBm
Spurious Emission 9KHz~1GHz
1GHz~12.75GHz
Noise Figure  ≤ 6dB
VSWR
Group Delay  ≤1μs
RF Connector N-Female
Impedance 50Ω
Power Consumption
Power Supply Input: AC 110~240V; Output: DC 12V/2A
Operating Temperature -10ºC~50ºC
Environment Conditions IP30
Dimensions (D x W x H ) 235*180*20mm
Weight ≤1.2KG
Kit accessories recommend:
1x repeater
1x indoor antenna
1x outdoor LPDA antenna

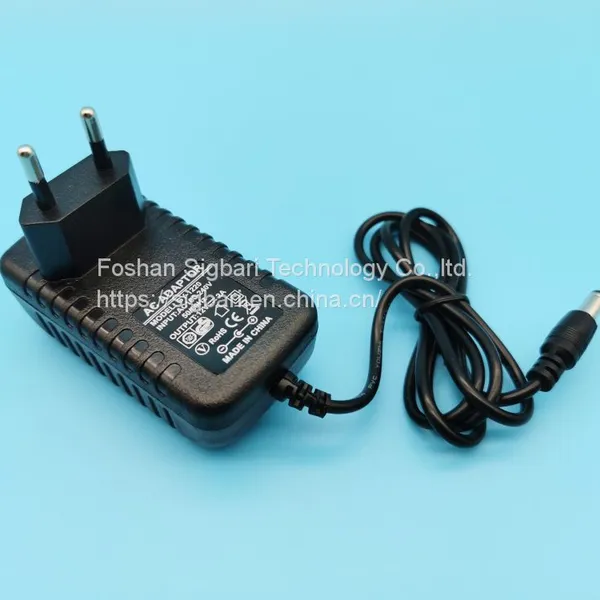

1x power adapter
1x 10 meters cable
1 x 5 meters cable

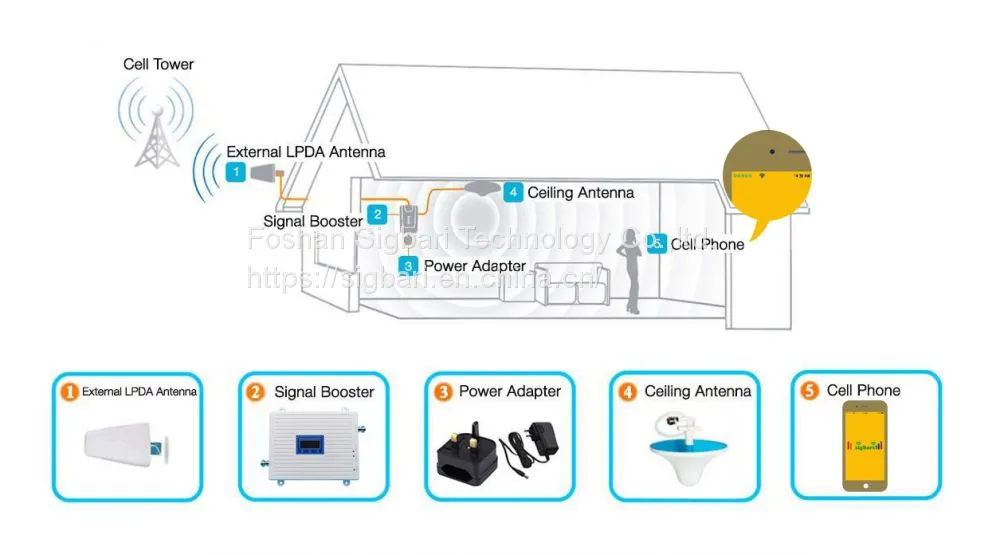

How it works?

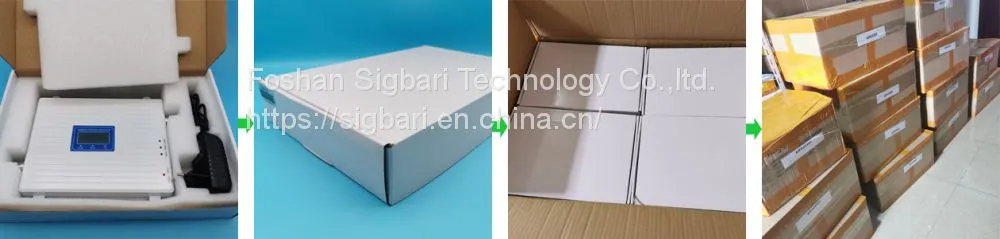

Package


if any questions or problems please feel free to contact me, Send me email or chat with me directly for your requirements!

Thx for inquiring-Sigbari!
& you are welcome to visit us!

Product Tags: Mobile Signal Repeater , 2g 3G 4G signal Booster , gsm amplifier , Tri-Band Repeater , gsm Repeater , GSM 3G UMTS Booster , GSM 4G Lte Booster , GSM 3G 4G Booster , Mobile Signal Booster
