Acrel ATE100M passive wireless temperature sensor magnetic type powered by battery temperature monitoring system

Name: Acrel ATE100M passive wireless temperature sensor magnetic type powered by battery temperature monitoring system
Price: Negotiable

FOB Price

Negotiable

1 (Min.Order)

Supply Ability 1000 per Month
Payment Terms:T/T Credit Card

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Description

Solutions & Applications

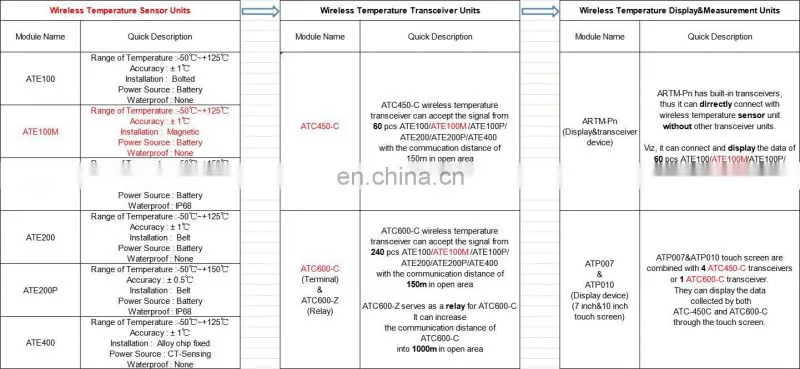

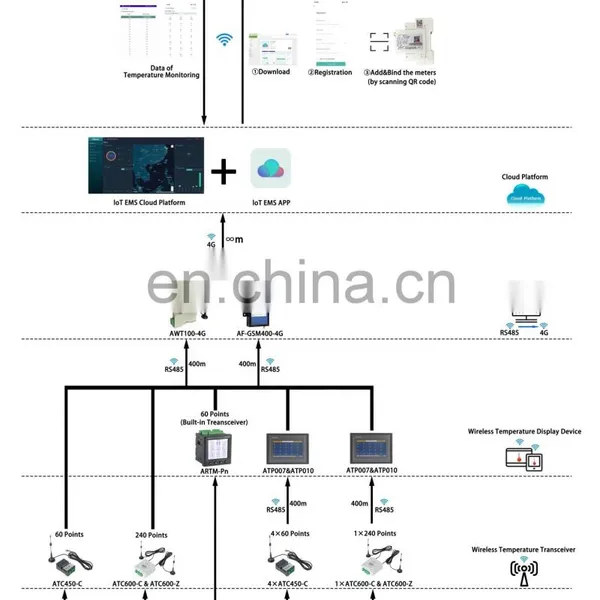

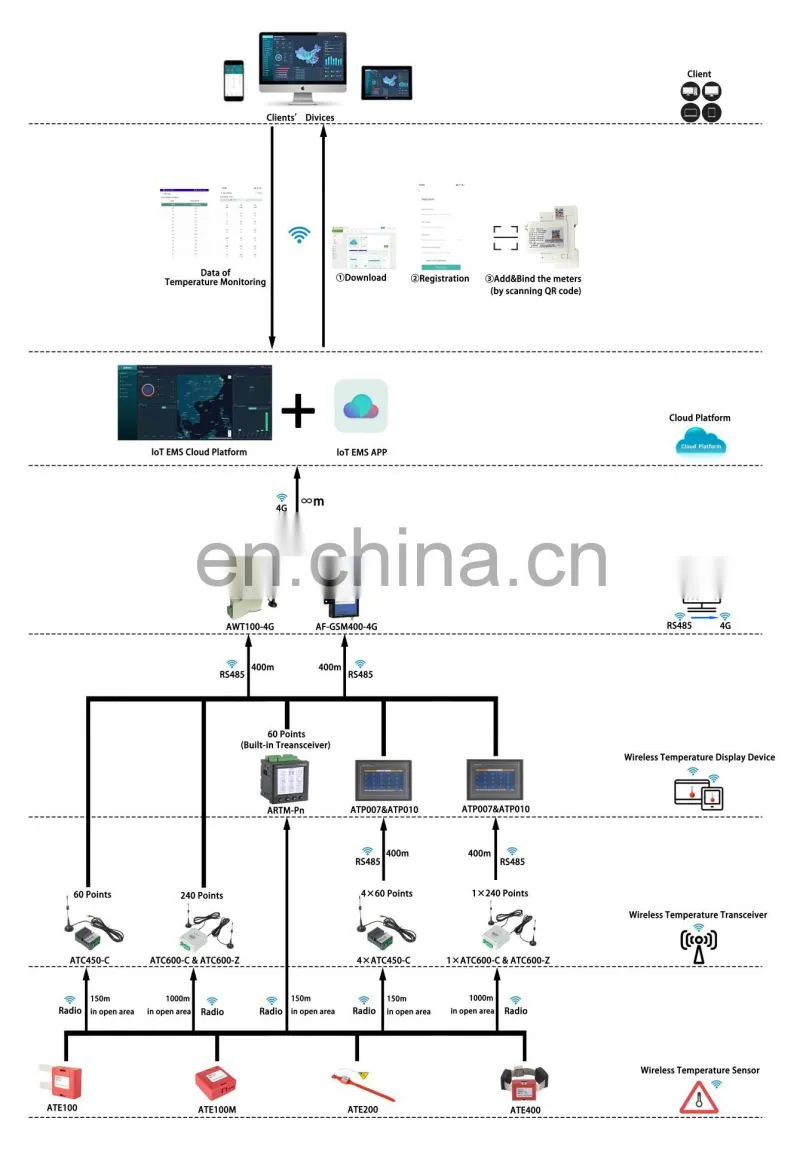

Wireless Temperature Monitoring System

Related Products

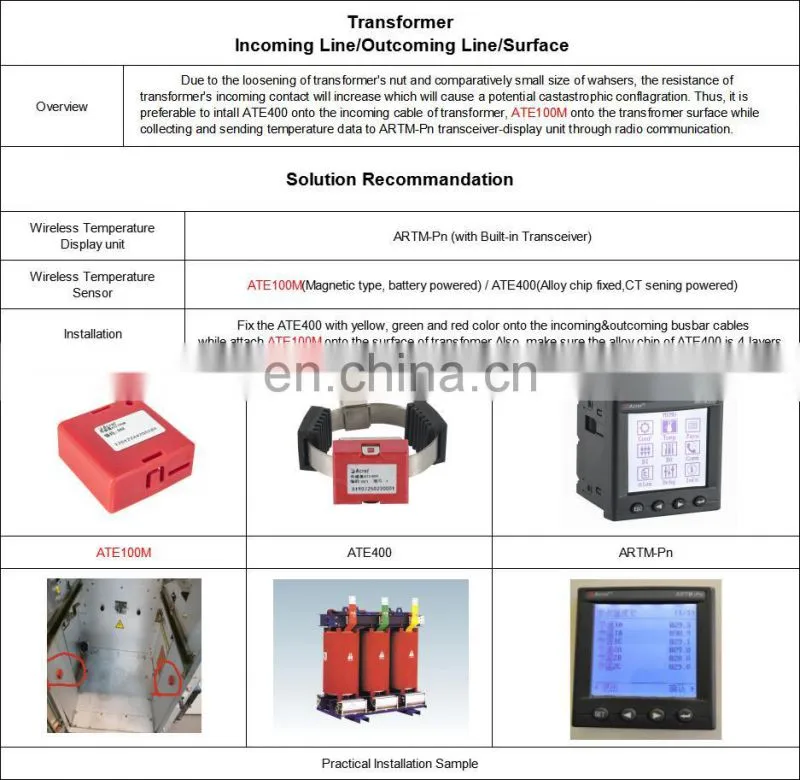

Practical Application Sample

Products Description

ATE100M

ATE series wireless temperature measuring sensor has been developed in compliance with Specification for Wireless Temperature Measuring equipment, NB/T 42086-2016. It is suitable for 3-35kV indoor switchgears, including built-in switchgears, handcart switchgears, fixed switchgears and loop-net switchgears. It is also suitable for 0.4kV low-voltage switchgears such as fixed switchgears and drawer switchgears. The wireless temperature sensors can be installed at any heating point in switchgears, the device utilizes the wireless data transmission technology for real-time transmission of monitored temperature data. In addition, it can be transmitted to display device or remote intelligent monitoring system.

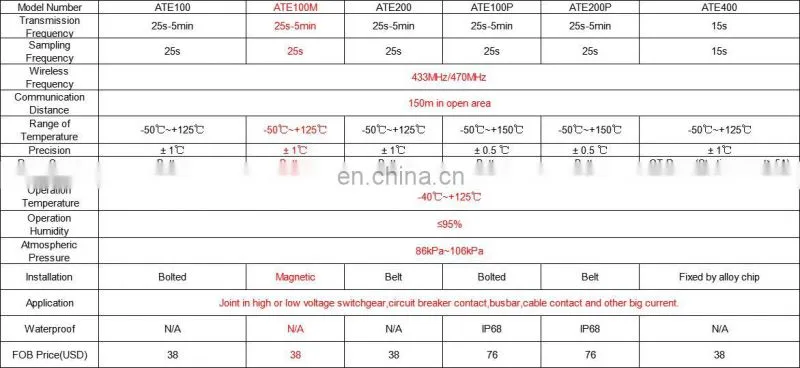

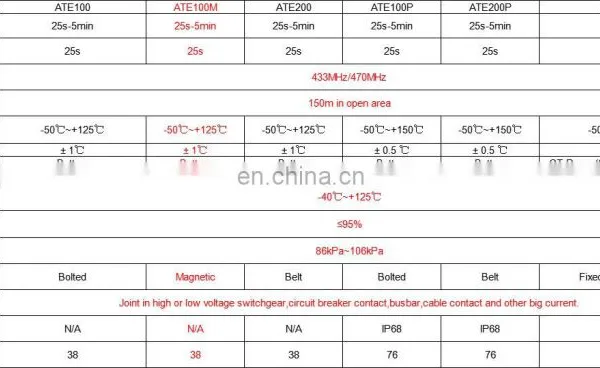

Function & Parameter

Dimension & Installation

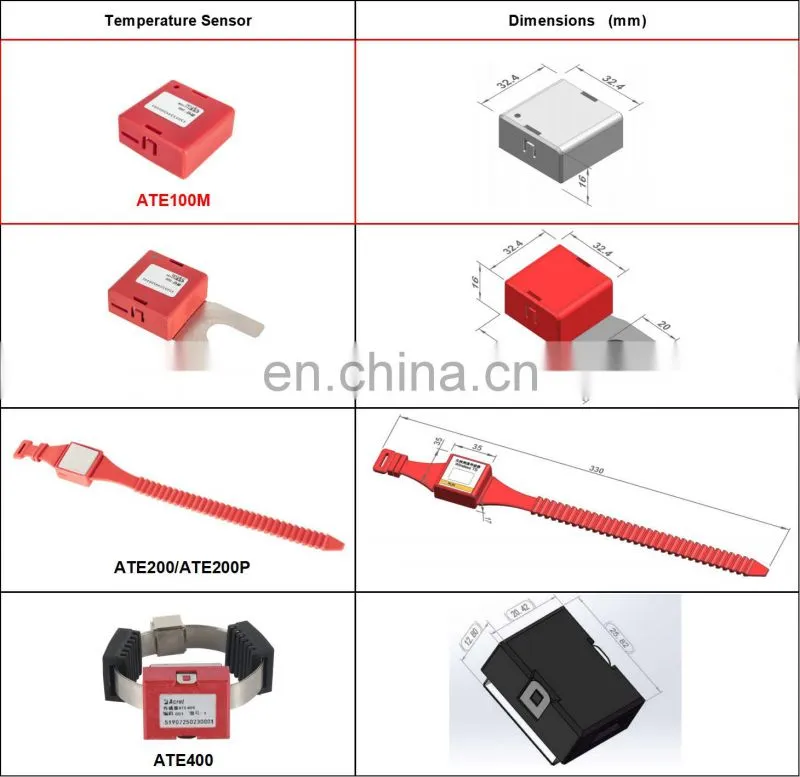

Hull Dimension

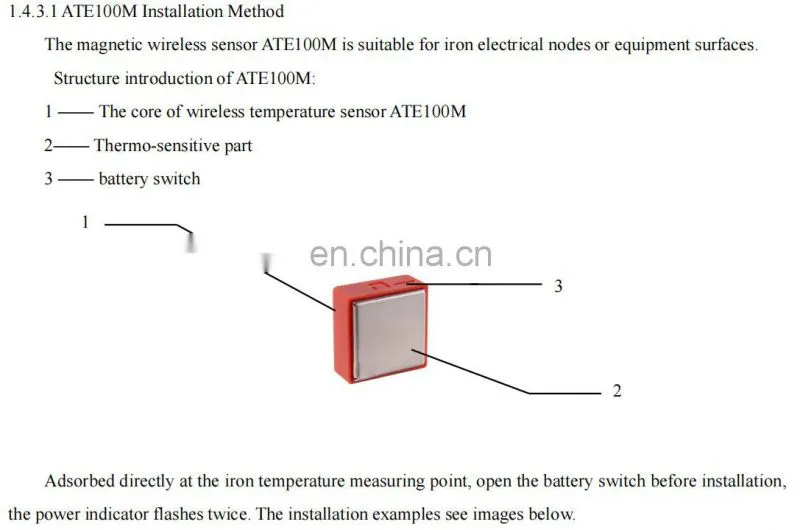

Installation

Company Profile

Acrel Co., Ltd. [Stock Code : 300286. SZ] is a high-tech enterprise concentrating on research, production, sales and services. It mainly provides systemic solutions of energy efficiency management and electrical safety for users. ‘Acrel’ is equipped with the complete production lines from cloud platform software to sensors. Until now, it has more than 8000 sets systemic solutions used in China to help users to realize energy visual management ,supply energy data services and improve electrical efficiency and safety. ‘Acrel’ has maintained steady growth since its listing in 2012. The company will adhere to the concept of ‘innovation,high-efficiency,unity and honesty’ and it provides more high-quality solutions,products and service for power system users and micro-grid.

Payment & Delivery

1.Payment: T/T 100% in advance, credit card, western union, in cash and etc. T/T 30% as deposit and the balance before shipment or against copy of B/L is acceptable with enough MOQ.

2.Delivery Arriving Time: in 3-7 working days after payment received.

3.Ways of Delivery: By sea, air, train or international courier like Fedex, TNT, DHL and UPS.

FAQ

Q: Why us ?
A: We are the leading company in China major in electronic equipment and meters manufacture. Since our company is particularly
proud of the quality of products, every single piece of commodity will be made elaborately

Q: Where to find us ?
A: Our company's headquarter located in Shanghai, the jewelry of China. And our factory was located in Jiangyin, Jiangsu Province.

Q: What is your lead time ?
A: Sample will be sent in 3days and mass production which is more than 500pcs will be arrived in 10~20days.

Q: How to pay the price ?
A: Usually by T/T credit card, wester union, in cash and etc. And there is another option that you can pay 30% as desposit and the balance before shipment or against copy of B/L under large order circumstances

Q: Other logo options for products (OEM) ?
A: Of course we can provide other logo options but the MOQ for OEM should be at least 100pcs. Meanwhile, we may also need logo AI Format or EPS provided by you.
