Industrial 4g Modem Router for Remote Site Networking

Xiamen Alotcer Communication Technology Co., Ltd.
Industrial 4g Modem Router for Remote Site Networking thumbnail-1
Industrial 4g Modem Router for Remote Site Networking thumbnail-2
Industrial 4g Modem Router for Remote Site Networking thumbnail-3
Industrial 4g Modem Router for Remote Site Networking thumbnail-4
Industrial 4g Modem Router for Remote Site Networking thumbnail-5
Industrial 4g Modem Router for Remote Site Networking photo-1
Industrial 4g Modem Router for Remote Site Networking photo-2
Industrial 4g Modem Router for Remote Site Networking photo-3
Industrial 4g Modem Router for Remote Site Networking photo-4
Industrial 4g Modem Router for Remote Site Networking photo-5
US$ 125 - 130 MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
Alotcer
Place of Origin:
China
Model Number:
AR7088H
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Xiamen
Delivery Detail:
7 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name Alotcer
Place of Origin China
Model Number AR7088H
Type Wireless
Certification ISO9001, CE, Sgs
Function Firewall, QoS, VPN
Products Status Stock
Application Enterprise
WAN Ports 1
LAN Ports 3

Product Description

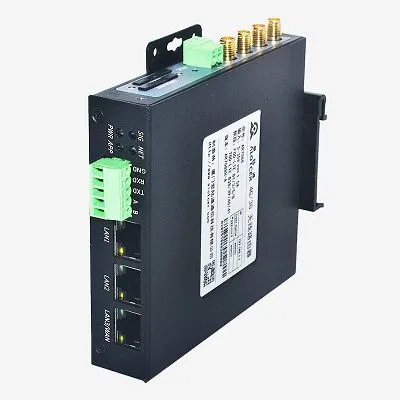

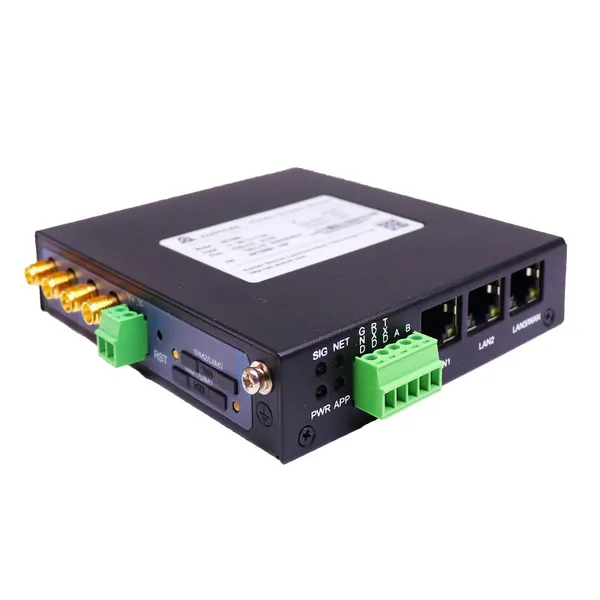

3 Lan AR7088H router
► 3 lan ports, dual serial ports, dual cards, support DIN rail and mount kit installation
► 7 mode full band, China Mobile, China Unicom, and China Telecom are fully compatible
► 5G/4G network to meet big data communication transmission
► Wired multi-channel backup to make transmission more secure
► Efficient and stable VPN channel to ensure data security and reliability
► High standard industrial design, -40 °C ~ 80 °C cold resistance, high temperature resistance , anti-interference
► 24 hours uninterrupted work, ensuring smooth communication links
► Industry innovative user configuration information anti-lost mechanism, more stable operation
► Efficient remote device management, easy to install and user-friendly interface
► State Grid network encryption, GPS, Lora, BDS and other hardware and software customization and services

► Cloud services, support operation and maintenance of itself and remote terminal

Specification

Items
Contents
Hardware System
CPU
Industrial 32 bits CPU
FLASH
16MB (Extendable to 64MB)
SDRAM
128MB

Interface
Serial
1 RS232 and 1 RS485, 15KV ESD protection
Serial port: 5 PIN industrial terminal, 3.5mm pitch
Data bits: 5, 6 ,7, 8
Stop bits: 1, 1.5(optional), 2
Parity: none, even, odd, space, mark
Baud rate: 110~230400 bps
Large serial port data cache:10MB
WAN/LAN
1 10/100Mbps WAN(RJ45,can configurable as LAN) port, auto MDI/MDIX, 1.5KV magnetic isolation protection
LAN
2 10/100Mbps Ethernet ports(RJ45), auto MDI/MDIX, 1.5KV magnetic isolation protection
Antenna
Cellular/GPS: Standard SMA female interface, 50 ohm
WIFI: Standard SMA male interface, 50 ohm
SIM/UIM
Standard 3V/1.8V user card interface, 15KV ESD protection
Power
2 PIN industrial terminal, 3.81mm pitch, reverse- voltage and over voltage protection
Reset
Press this key for 8 seconds to restore the Router to its original factory default settings
Indicator
“PWR”、”SIG”、”NET”、”APP” 、”Link”(RJ45)

Network
Wireless Network
GSM/GPRS/EDGE: 850/900/1800/1900MHz
CDMA: 800/1900MHz
WCDMA/HSUPA/HSPA+: 850/900/1900/2100MHz
CDMA2000 1x/ EVDO Rev. A: 800/1900MHz
TD-SCDMA: 1880-1920/2010-2025MHz(A/F)
TDD-LTE:Band 38/39/40/41& Band 61/62 (Private Network)
FDD-LTE:Band1/2/3/4/5/7/8/12/13/17/18/19/20/21/25/26/28/66
PPP Protocol
Support PPP Protocol
PPP Heartbeat
Maintaining links with the cellular network to prevent forced sleep, to ensure the stability of dial-up link.
Network Authentication
Support CHAP/PAP Authentication
TCP Heartbeat
Monitor the server connection
Highlights
Related Products

Company Profile

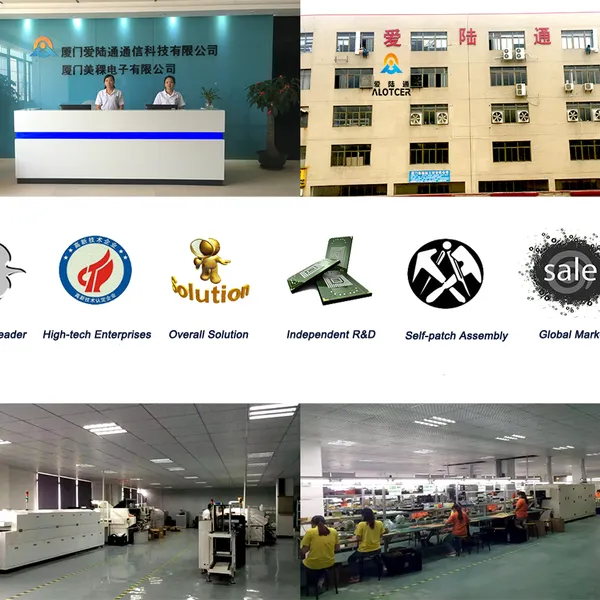

Xiamen Alotcer Communication Technology Co., Ltd.

As a senior networking experts, Xiamen Alotcer Communication Technology Co., Ltd. is a professional M2M, Things communications products and solutions provider. Deep rooted Networking Wireless Communications for many years, both from the quality of the product and the company's scale are in the industry-leading level. We have obtained SGS certification and are ISO9001 certified, along with CE, FCC, EMC, ROHS, environmental testing and National Network Center certifications.

Our Srevices

Our service:
---Any inquiry will be replied in 24 hours
---OEM&ODM, We can customize products according to your requirements;
---Monthly output over 10,000 pcs;
---All of our products provide a 2 years warranty.

About sample:
---Sample is available;
---Sample lead time: 2-3 working days, 4-5 days with customized logo;
---More details, please contact with us.

Payment methods:
---Payment Type: T/T, L/C, D/P D/A, MoneyGram, Credit Card, PayPal, Western Union, Cash, Escrow;
---Payment Currency: USD, EUR, JPY, CAD, AUD, HKD, GBP, CNY, CHF;

Shipping & Delivery terms:
---Shipping methods: By sea, air, or UPS, FEDEX, EMS, DHL, TNT, etc;
---Delivery Terms: FOB, CFR, CIF, EXW, FAS, CIP, FCA, CPT, DEQ, DDP, DDU, Express Delivery, DAF, DES；
---Delivered time: 2-3 business days for sample, 20-25 days for mass order.

FAQ

1. who are we?
We are based in Fujian, China, start from 2014,sell to Domestic Market(55.00%),Southeast Asia(10.00%),Central America(8.00%),Southern Europe(7.00%),South Asia(5.00%),South America(5.00%),Western Europe(3.00%),North America(1.00%),Oceania(1.00%),Africa(1.00%),Northern Europe(1.00%),Eastern Europe(1.00%),Mid East(1.00%),Eastern Asia(1.00%). There are total about 201-300 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Industrial Cellular Router,Industrial embedded Cellular Router,Industrial IP Modem,Industrial Modem,Monitoring Platform

4. why should you buy from us not from other suppliers?

Main industrial router vendor for China National Power Grid. Industrial 5G/4G cellular router/Modem Manufacturer for Worldwide. Alotcer have passed ISO9001. Product have CE certification.

More than 200 people with more than 30% RD and technical.


5.Do you....?

Maybe, why don't contact us now! Inquring us to see if we can, or if we do, to see if we can suprise you!
