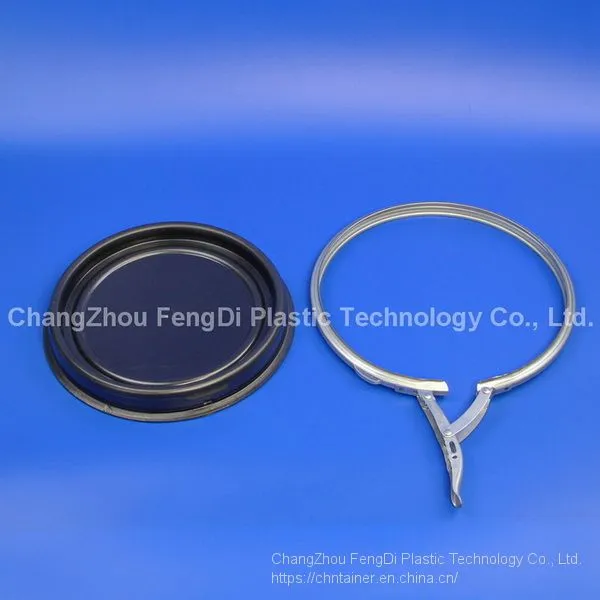

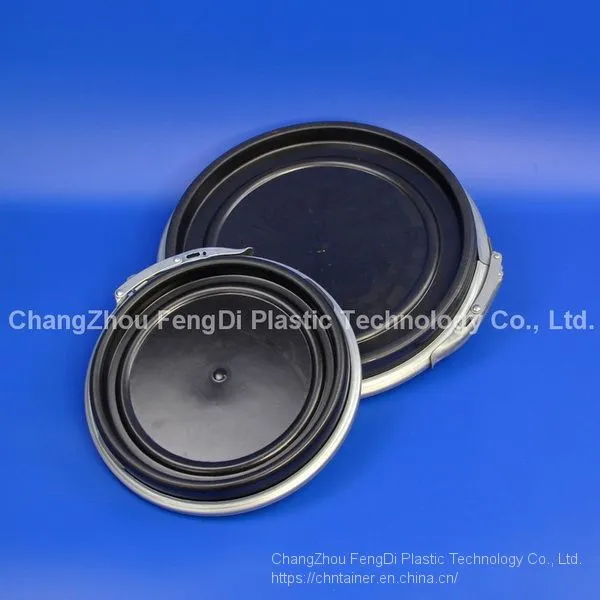

lever Locking ring lid for 30L open top plastic drums

CFDPLAS are manufacturer and supplier of lever Locking Rings closures used for open top plastic drums 30L,60L to 220L.

These removable locking ring lids are made using combination quality raw materials,modern machines and qualified professionals to ensure superior quality of products.

Technical Specification of the metal locking ring lids/covers for 30L open top plastic drums

Model Number: CFD-LRC-0030

Level Locking Ring Material: GP and CRC Strip

locking ring Thickness: 0.8 MM to 2.5 MM depending on type of ring

Zinc coating: 5-8 micron

Range: used on 30L open top plastic drum

Locking System: Clamp type,Nut & Bold type upon request.

Gasket: EPDM gasket seal or customer made

Removable Top Lids& Covers: HDPE, black color or customer made

Height of Lids: 35.5mm

Outer Diameter of Lids: 285mm

Inner Diameter of lids:261mm

Weight of locking ring lid: 650 g/PC;

Used on: open top Plastic Drums and open top steel drums

Packing: Bundles of 10 sets of ring covers with wire tie up and in pp sleeves,Bags,Cartons,Pallets,or as per your demand.

Transportation: By sea or By air

The plastic removable lid is fitted for open top drums are fitted with galvanized lever lock ring

Open Top Plastic Drums are suitable for packaging,storing and transporting of liquids (in a bag), solid, powders and pasty products.Open top plastic barrel with removable plastic lid which is secured with galvanised steel ring lever closure.
