Qingdao Chenyu Rubber Technology Co.,Ltd is a comprehensive enterprise engaged in the production and processing of rubber conveyor belts and conveying equipment.
We have comprehensive conveyor belt production plant and conveyor equipment production base in Linyi, have more than 20 years of experience in the conveyor belt and system, including long-term international production.
We have advanced production equipment, focus on the production of various types of conveyor belts; The company has advanced testing and inspection equipment to fully ensure product quality and meet national and industry standard requirements and customer needs.
Quick Details
Applicable Industries: Construction works , Energy & Mining
After Warranty Service: Video technical support, Online support
Local Service Location:None
Showroom Location:None
Condition:New
Material: Rubber
Structure: rubber belt
Place of Origin: Shandong, China
Power: none
Warranty: 1 Year
After-sales Service Provided: Online support
Width or Diameter: 300mm-2400mm
Machinery Test Report: Provided
Video outgoing-inspection: Provided
Marketing Type: New Product 2021
Warranty of core components: 1 Year
Core Components: rubber conveyor belt
Product Name: rubber conveyor sidewall belt

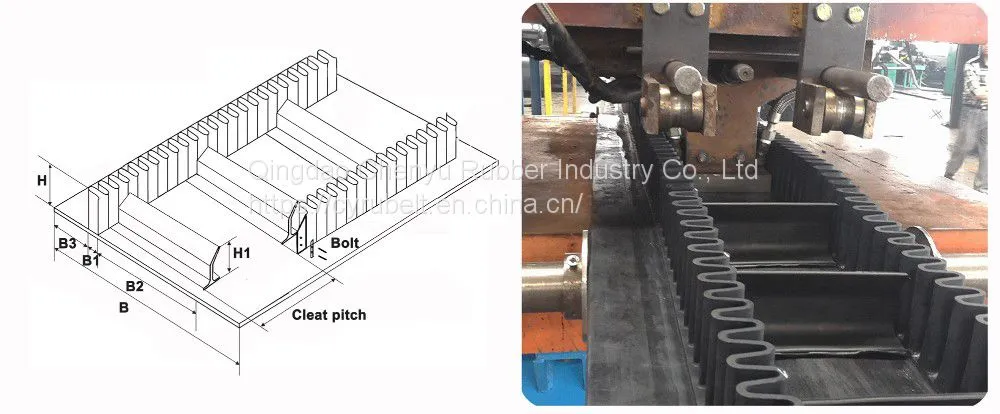

Based belt width(B): 300-1400mm
Sidewall height(H):40-400mm
Cleat height(H1): 35-360mm
Bottom width of sidewall(B1): 25-100mm
Cleat width(B2): 120-830mm
Empty width(B3): 35-210mm
Cleat type: t/ts/tc/tcs
Key Words: rubber conveyor sidewall belt
Application: Mining
Product description

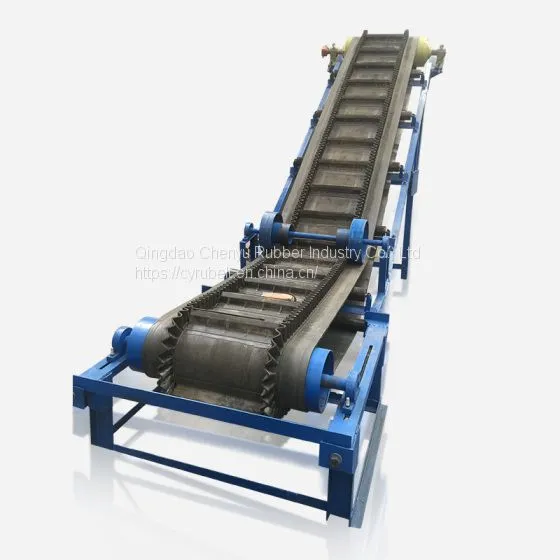

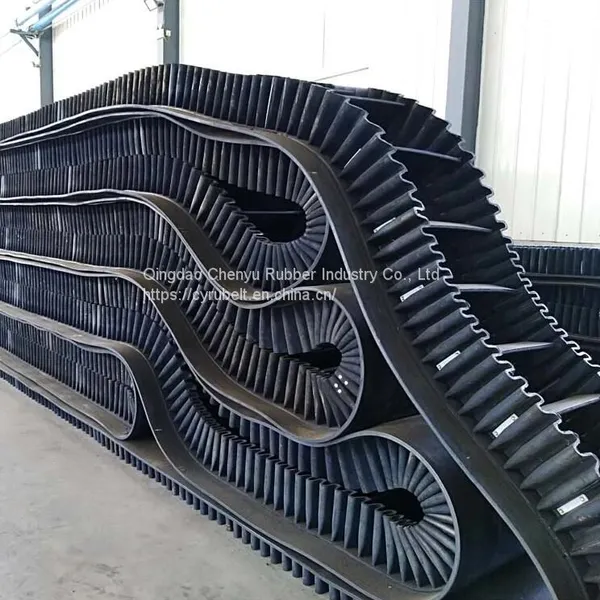

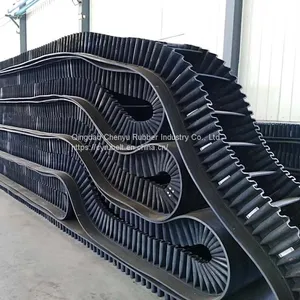

Sidewall conveyor belt is one of the most effective ways of elevating materials in a confined space,the economy is achieved by single belt operation,wide range material can be handled, less space requirement,no transfer point, low maintenance and big capacity. Corrugated sidewall belt can be designed into a set of complete transportation system according to application.
Property

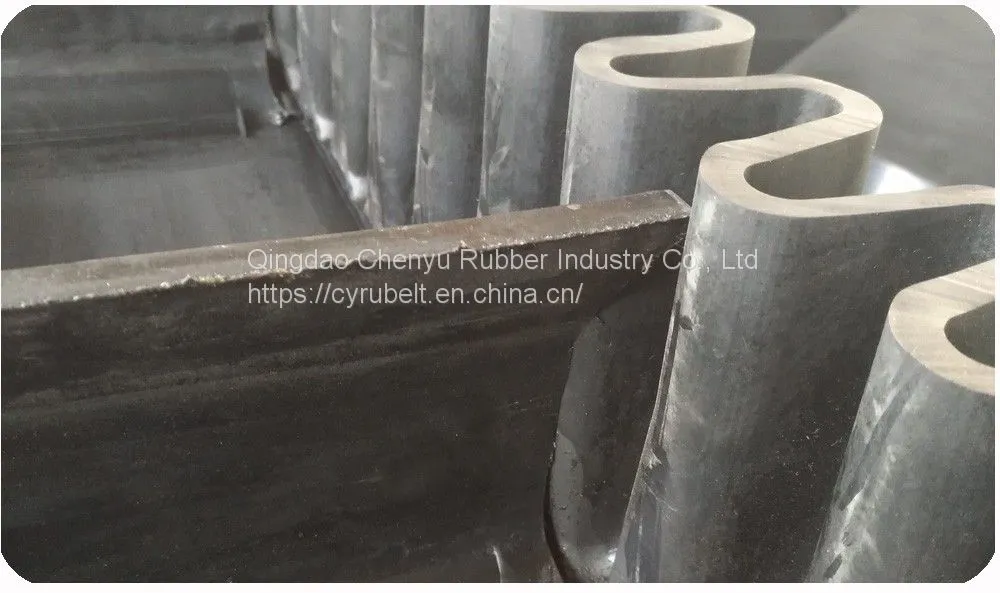

-- Sidewall conveyor belts are composed of three parts:base belt,sidewall and cleats
-- Possible to convey at steep angle with big capacity in a limited space
Property-- Special treated steel mesh inserted into both top cover and bottom cover,creating an excellent combination of longitudinal flexibility and transverse rigidity.
-- The entire steep angle conveyor belts are highly durable,low elongation and long lasting

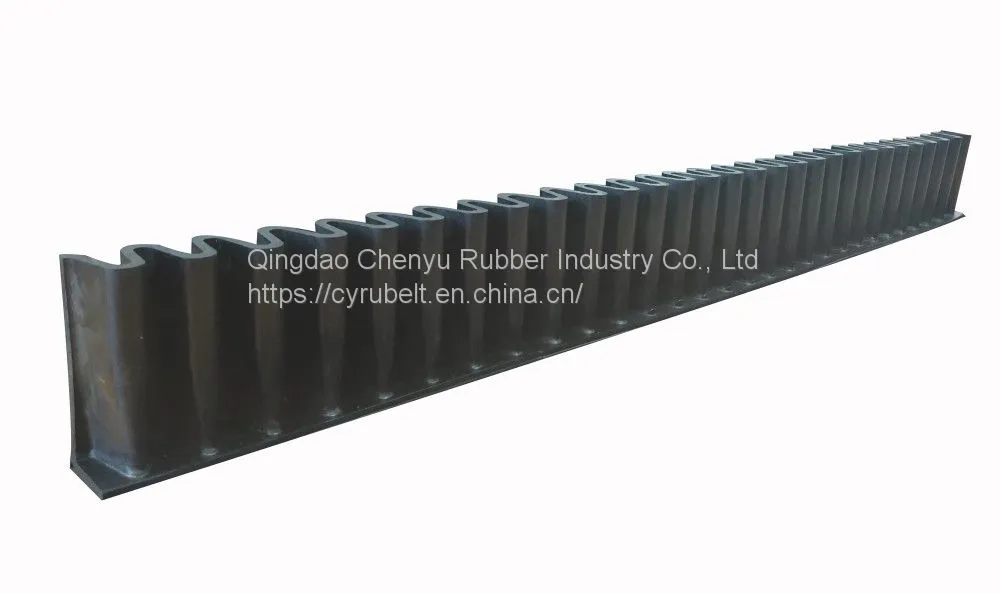

Sidewall

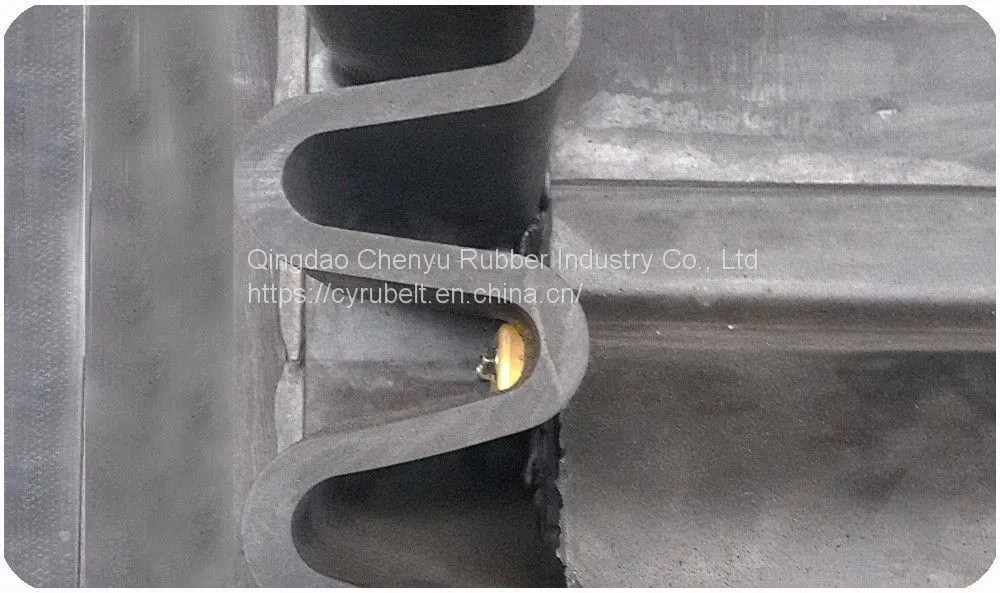

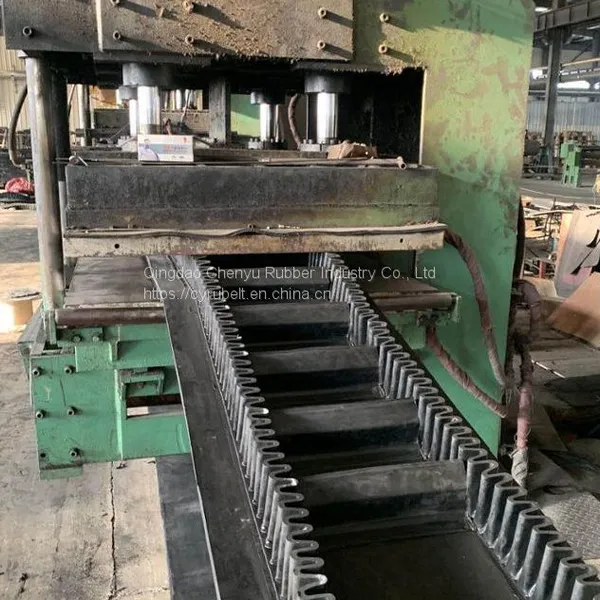

--Sidewall is hot vulcanized on the base belt
-- High quality rubber to guarantee sidewall withstand highly stress and repeated flexing
Sidewall

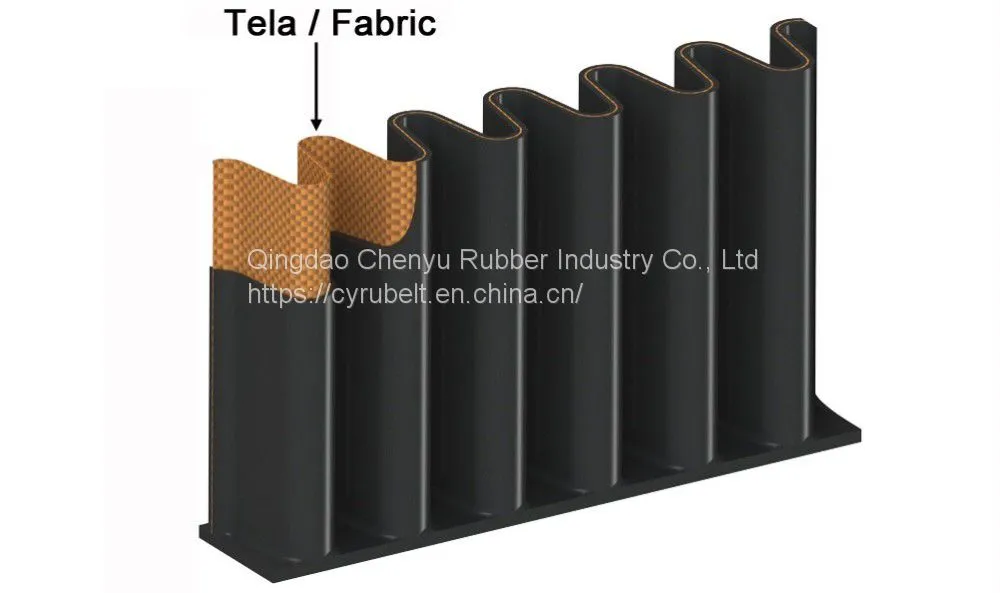

-- Fabric inside sidewall perfectly combine flexibility and strength to effectively avoid torn
-- Sidewall height ranges from 40mm to 400mm

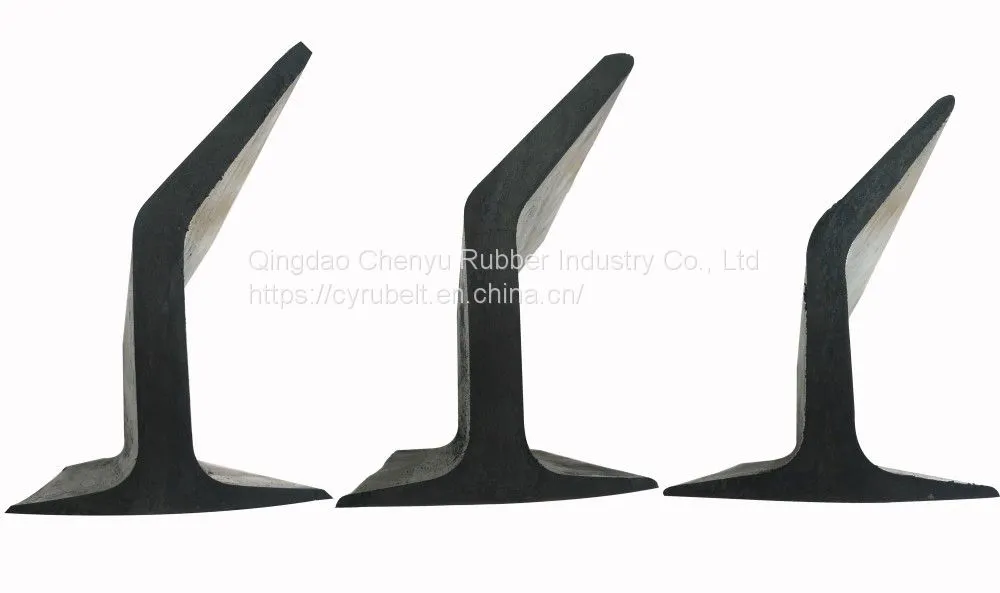

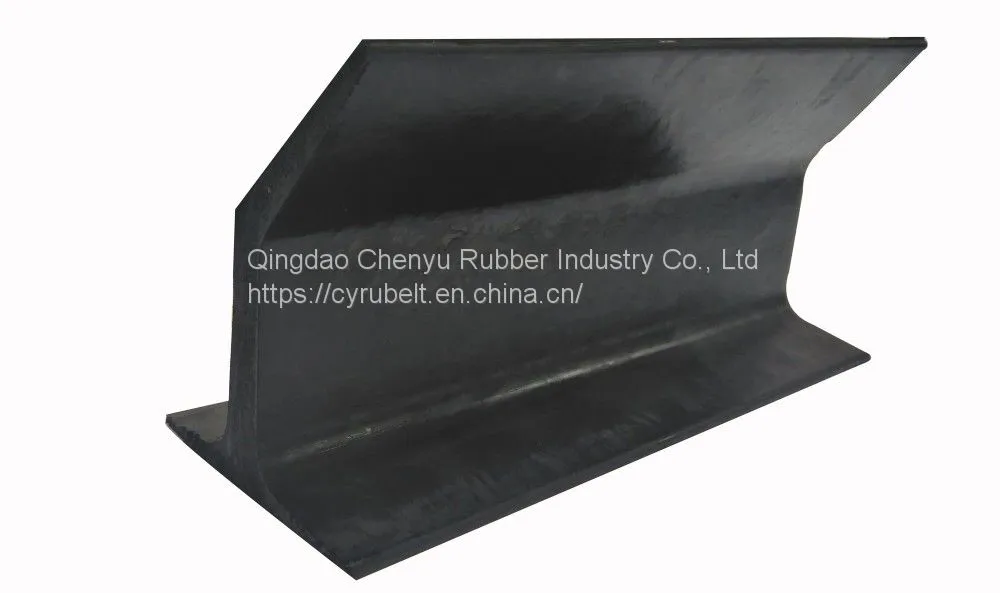

Cleat
-- Cleats are also hot vulcanized on the base belt
-- Fabric inside cleats protect cleats from deformation caused by impact.
Cleats
-- Cleats are the main part to carry materials in a high capacity and steep angle
-- Available with TC or TCS type
-- Special compounds to extremely avoid deformation caused by impact.

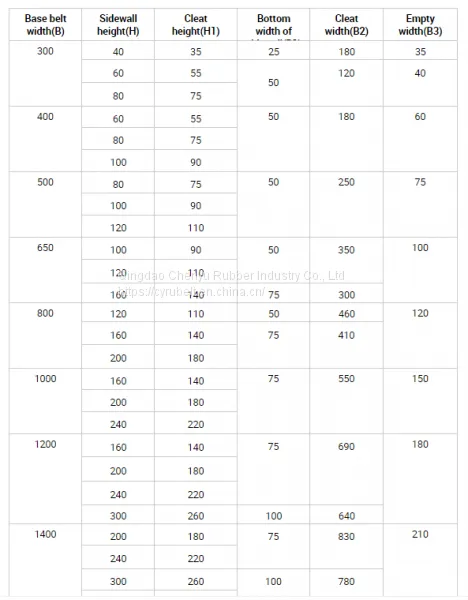

Specification
