Pear- Shaped Sling, C-type Fast Shackle

FOB Price

US$ 35 - 300 / Piece

1 Piece(Min. Order)

Port China port
Payment TermsT/T Cash
Delivery Detail5 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Model Number	C-type fast shackle		Material	Steel
Size	29-56		Type	Hose

Product Description

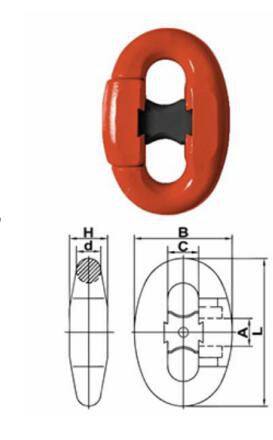

Item No.	(mm) SWL(t)	ID	d	Dimensions (mm)					(Kg) Weight
Item No.	(mm) SWL(t)	ID	d	L	B	H	A	C	(Kg) Weight
QC11O9	10	9	29	174	116	44	34	37	3
QC11O10	12.5	10	32	192	128	48	37	41	4
QC11O11	14	11	35	210	140	53	40	44	6
QC11O12	16	12	38	228	152	57	43	46	7
QC11O13	21	13	41	246	164	62	46	51	9
QC11O14	25	14	44	264	176	68	so	54	12
QC11O15	32	15	47	282	188	71	52	58	14
QC11O16	45	17	56	3J4	220	84	66	68	23

the C shape fast shackles (fast connection rings) series developed by our company: specification 6.3 t ≤ 45 t, alloy steel die forging, ultrasonic testing of forgings grade I qualified, Quenching and tempering hardness: the safety factor of HB350-380, is 4 times, which is mainly characterized by locking the tuxedo slot at both ends in its structure, which makes up for the phenomenon that the cable buckle is easy to fall off in the traditional structure. It is widely used in the rapid replacement of grab, hook, crane and so on because of rapid disassembly. Pear rope sleeve / quick release buckle can be used to increase the lifting height through a wide slot pulley. The connection mode is generally used in combination of cable joint C type fast shackle high strength shackle guard sleeve high strength lifting chain and so on.
