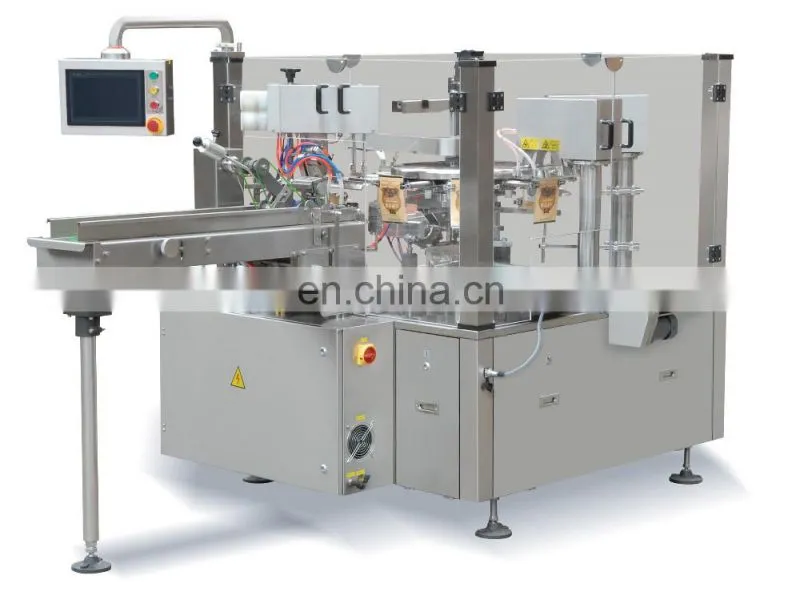

Rotary Bag-Given Filling And Sealing Packing Machine For Dry Food
Product Application
1.Solid: leisure food(candy chocolate)etc.
2. Grain: condiment(monosodiumglutamate, chicken essence, granulated sugar) dry fruit (nuts), capsule,gran medicine, seed, feed etc.
3. Powder: condiment, monosodium gutamate, salt, glucose,narrowly sugar, milk powder, washing powder etc.
4. Lquid: yellow wine, soy sauce, noe ue, dmk, detergent etc.
5. Thick quid ketchup, peanut butter, sauce, chi saue, bean butter etc.
Click here for More Information!
Sample
Main Features
1) Wide application : various shapes, state and nature of products (such as rice, coarse grains, nuts, spicy snack, Chinese chestnut liquid, etc.)
2) Easy to operate: PLC controller, HMI system, fault indication on the touch screen.
3) Easy to adjust: Synchronously adjust machine clamp, and parameters for different products can be saved and available from database when changing products.
4) High Automation: Complete all actions by end cam, whose machining technology is more simple than grooved cam, thus cost lower. The highest speed can reach 60pcs/min
5) Perfect Prevention System: when the bag is not open or not opened enough, it will be non-filling and non-sealing, so the empty bags return to the first station to refill and not wasted and it will save the production cost.
6) Stainless steel/other materials ensure sanitation and safety, meet the GMP standard.
7) Oil-free vacuum pump: avoid production environment pollution.
8) Waterproof Design: direct water-washing the machine surface, easy to clean, prolong the useful life.
9) Premade bag packing: high sealing quality, upgrade the finished product.
10)Adopt concentrated oil-supplied lubrication device inside the grooved cam.
(Machine clamps are adjusted in one time, mechanical actions are controlled by grooved cam, empty bag cycling, product parameters can be saved)
Click here for More Information!
Station Process
Rotary Bag-Given Filling And Sealing Packing Machine For Dry Food |
||||||
Equipment model |
RZ8-200D |
|||||
Equipment material |
304 stainless steel |
|||||
Pneumatic component |
SMC,AirTAC |
|||||
Vacuum component |
Vacuum generator (SMC) |
|||||
Drive mode |
Frequency conversion motor drive |
|||||
Operation interface |
Touch screen(double language:Chinese and English) |
|||||
Bag materials |
Heat sealable film as PA/PE,PET/PE,AL film etc. |
|||||
Bag size |
W:70~200mm L:100~300mm (date coding requires≥140mm length) |
|||||
Filling range |
5~1500g |
|||||
Packing speed |
20~50bags/min (depended on the product and filling weight) |
|||||
Package accuracy |
Error≤±1% |
|||||
Weight |
1200KG |
|||||
Dimension |
1570mm*1440mm*1480mm(L,W,H) |
|||||
Total power |
3kw |
|||||
Power source |
380V/ 3P/ 5L/ 50HZ |
|||||
Compress air requirement |
≥0.6m³/min (compress air is provided by user) |
|||||
Click here for More Information!
More!
Unionpack Machinery RZ8 - 200C Rotary Pre-made Bag Packing Machine
Unionpack Machinery RZ8-200C Rotary Preformed Bag Packaging Machine
Unionpack Machinery RZ8-300C Liquid Powder Granule&Solid Packing Machine
RezPack Machinery Inc. is a specialist in automatic packaging equipment and services.
With experience of 20 years, a team of highly qualified professionals, and the most advanced design and manufacturing technologies, we offer innovating solutions in packaging equipment and systems with a main target, to contribute an additional value to customers.
We are a flexible packaging industry leader with an extensive product line, leading edge designs and the strongest commitment to customer service.
As an ISO9001 certified company, we constantly focus on the quality of our products, so we passed the CE certification.
Thousands of our machines are used in a variety of industries including food, beverage, hardware, electronics and pharmaceuticals.
Our customers are primarily in the USA, Canada and South America. Installations can also be found in many European countries, the Middle East, New Zealand and Australia.
