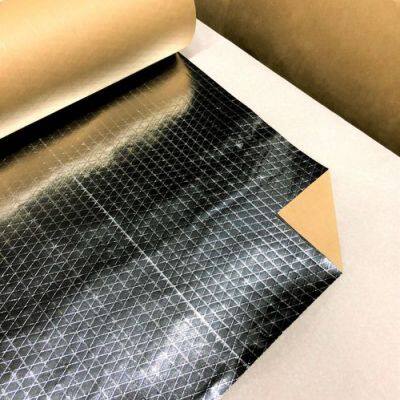

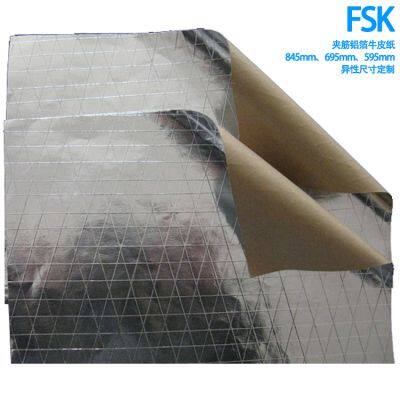

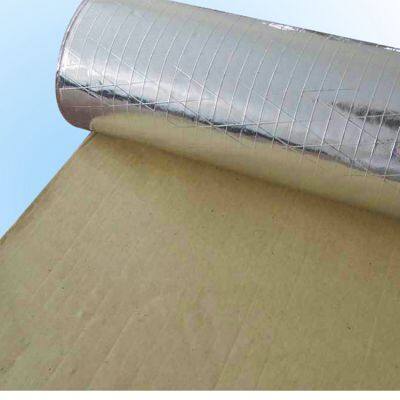

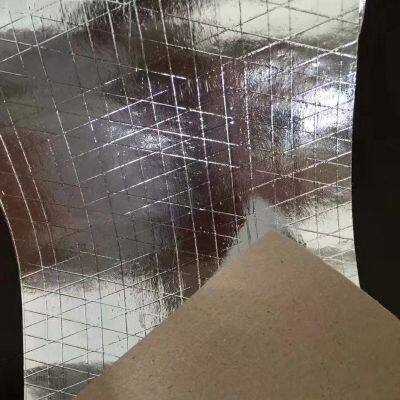

Foil Scrim Kraft Insulation Aluminium Foil

Application:

(foil-scrim-kraft facing)

1. mainly used as facing for glass wool insulation, rockwool ,mineral wool and so on.

2.under roof decking, under attic rafters, over existing attic thermal insulation, in floors, walls and crawl spaces.

3. in industrial and commercial buildings to block radiant heat coming into house through the roof during the summer and retain indoor heat generated during in winter.

4.Reinforced with Tri-way fiberglass scrim also used as a moisture vapor barrier in air conditioning ductworks and cold rooms

Features:
1) With high tensile strength and bursting strength
2) Used as jacket facing for glass wool, rock wool, PU foam and other insulation to
protect them against vapor moisture, in order to work more effectively

Specifications:
1) FSK40A

a) Foil: 7μm
b) 2-way scrim: 12.5 x 12.5mm space
c) Polyethylene
d) Kraft: 50gsm, natural
2) FSK716B:
a) Foil: 7μm
b) 2-way scrim: 12.5 x 12.5mm space
c) Polyethylene
d) Kraft: 60gsm, natural
3) Roll width: 1.0, 1.2, 1.25, 1.30m
4) Roll length: 60, 120, 300, 500, 1600, 2750m

Outer packing:
60m roll: plastic shrinking sleeve
120, 300, 500m rolls: kraft cardboard
1600, 2750m jumbo rolls: corrugated board + ply-wooden pallet
