FTTH drop Fiber Optic Splice Protect Sleeves

Product description:

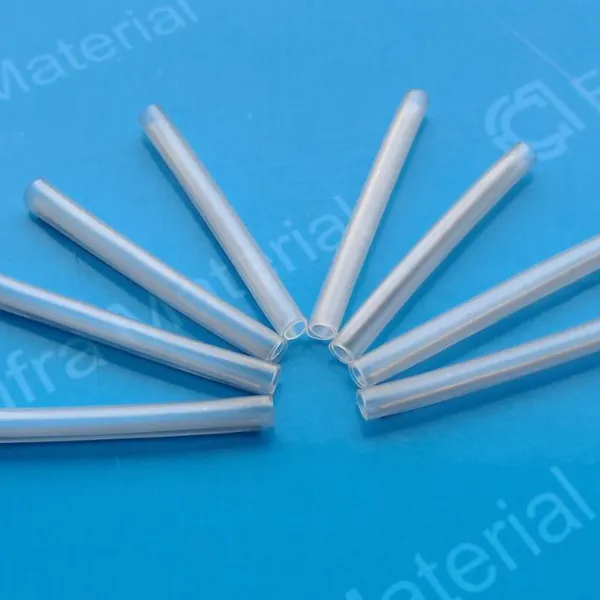

Heat shrinkable fiber optic fusion splice protection sleeve, also called heat shrink protections sleeve,fiber optic protection sleeve, fiber splice protector,with a steel rod (ceramic rod for ribbon fiber) for mechanical protection and a hot fusion insert for sealing.

This fiber optic splice protector sleeve provides mechanical reinforcement at the joint point and maintains the optic transmission properties of the fiber optic cable.

Features:

• -Reinforces and protects fiber optic splice

• -Stainless Steel Rod


• -Clear sleeve for easy inspection and minimizing damage during installation

• -One piece design with hot fusion insert for sealing against moisture and other contaminants

• -Different colors of hot fusion insert for labeling and identification

• -RoHS compliant halogen free, environmentally friendly

Parameters:

-Color Sleeve: Transparent

-Length:  60mm

-Stainless Rod: 1.2mm

-Retains optic transmission properties of optical fiber

Temperature Range:

-Operating Temperature: 55C to 100C

-Shrink Temperature: 120C
