Product Description

EPS205 common rail injector tester in diagnostic tools diesel fuel injectors testing bench injector tester in testing equipment

Product Description

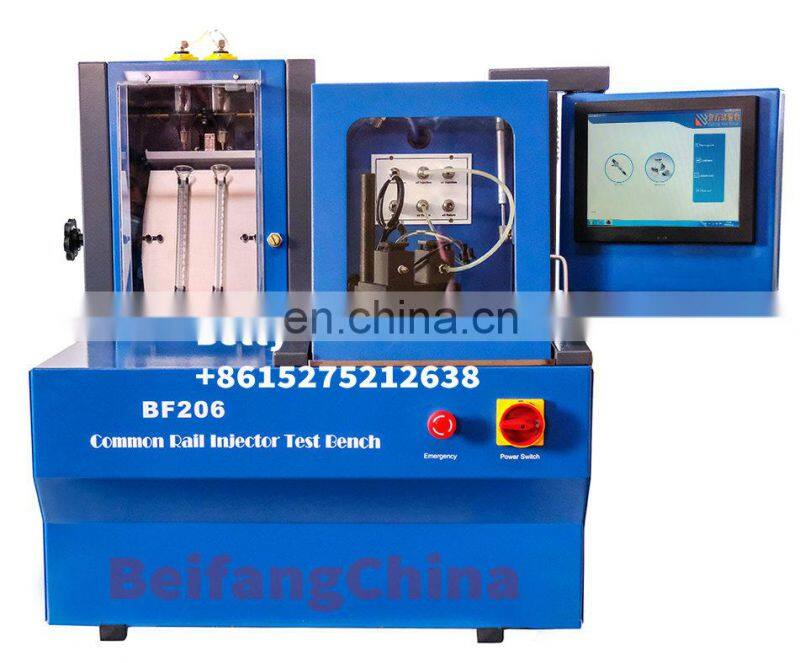

BF206 Common rail injector test bench

BF206 Common rail injector test bench is used to test the performance of high-pressure common rail injectors , like Bossh, Siemens, Delphi, Denso and so on...

It's controlled by industrial computer, embedded operating system . The testing is measured by flow meter automatically and
displayed on computer screen .

Flow meter & measuring cups two measuring methods.

Specification

Model	BF206
Power	3.6Kw
Power supply	220v/50Hz
Speed of the test bench	0~1500r/min
The continuous injection time	0~1000times
Rail pressure	0~2300bar
Pulse width	100~3000μs
Fuel oil temperature	38±2°C
The test oil filtration rating	less than 5μ
Oil tank capacity	20L
Overall size	1225890925mm
Weight	200kg

Feature

1. Real-time controlled by industrial computers,embedded operating system.
2. Fuel quantity is measured by sensor and measuring cup.
3. More than 2700 kinds of injectors data can be searched and used,online update.
4. It is installed original CP1 pump to provide 0-2300 bar.
5. With server and pump connected directly instead of connected with belt,which can extend machine life.
6. Fuel tank cooling system makes the tester can work long time.

Function

1. Test injector brands:BOSCH, SIEMENS, DELPHI, DENSO and Piezo injectors.
2. Test 1 piece of injector.
3. Test the pre-injection oil quantity of common rail injector.
4. Test the max. oil quantity of common rail injector.
5. Test the cranking oil quantity of common rail injector.
6. Test the back flow oil quantity of common rail injector.
7. Test the average oil quantity of common rail injector.
8. Test the seal performance of common rail injector.
9. Data can be searched and saved.

Product display

Company Profile

Taian North Test Equipment Factory is appointed by the country as the professional manufacturer of oil injection pump test bench.It gets the technique support from Tianjin university, Tianjin University of technology, Shandong University of science and technology, With more than 10 years export experience, and get high reputation from our customers.

Recommend Products

BF209A Common rail injector test bench

BF209A is designed with the future in mind with its new measurement system that has the ability to test the latest common rail injector technologies for all car and commercial vehicle systems.

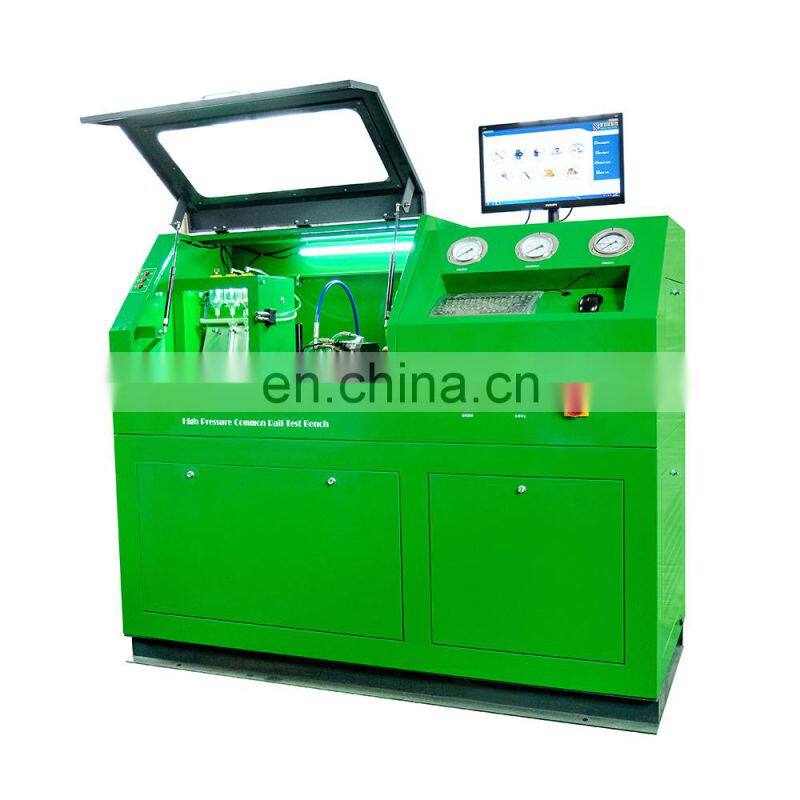

BF1178 CRDI and pump test bench

The BF1178 Common rail test bench is one updated equipment which is used to test electronic high pressure common rail pumps, common rail pipes and common rail injectors

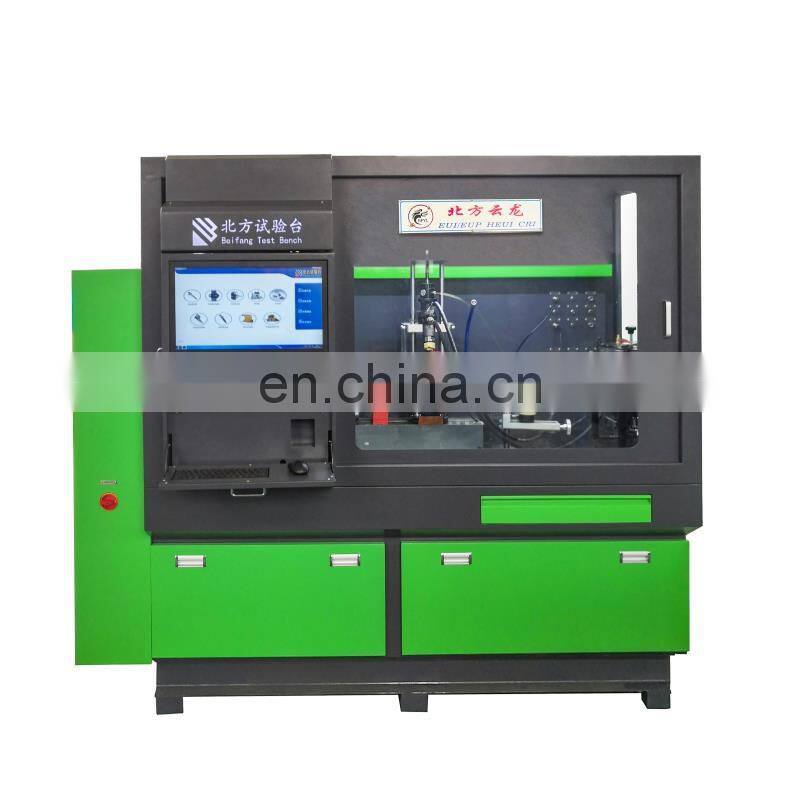

BF-YL CRDI, PUMP EUI EUP and HEUI test bench

BF-YL Muti-function Test Bench is the universal test equipment that integrates electronic control high pressure common rail pumps, common rail, diesel injectors, HEUI injectors and EUI/EUP

FAQ

1.Are you a manufacturer or trade company?
We are direct manufacturer with more than 10 years experience

2.What certification do you have ?
We have CE, ISO SGS Certification etc

3.How about the delivery time?
10 days after getting deposit

4.Do you also sell related accessories and repair tools?
Yes, except test bench,we also produce spare parts and repair or measuring tools, also offer factory price for you

5.Do you have foreign agent ?
Sure, we have built some several agents in the world and you can also be our agent.

6.Which port near your factory?
Our factory near the Qingdao port ,so we can ship goods to Qingdao port within one day
