Beifang-YL Multipurpose Diesel Injectors and Pumps Tester CAT C7 C9 Tester HEUI Tester With Cam Box

FOB Price

Negotiable

1 (Min. Order)

Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Description

Beifang-YL multipurpose diesel injectors and pumps tester CAT C7 C9 tester HEUI tester with cam box

Product Description

YunLong multi-function test bench

YunLong High Pressure Common Rail Muti-function Test Bench is the universal test equipment that integrates electronic control
high pressure common rail pumps, common rail, diesel injectors, HEUI injectors and EUI/EUP. It can test the electric high pressure
common rail system, HEUI such as C7C9, and EUI/EUP such. The equipment adopt a humanity control interface to control parameters such as injection pressure, pulse width, frequency, and metering valve duty cycle etc. The equipment uses an industrial computersystem for better stability and longer life.

Specification

Model	YUNLONG
The rated output power	18.5Kw
The main power supply	380V/50HZ 3Phase
The speed of the test bench	0~3000r/min
The spindle steering	forward/backward (can be adjusted)
Continuous fuel injection times	0~1000times
Pulse width	100~3000μs
Overall size	230013001950mm
Weight	2800kgs

Function

1) Test EUI/EUP, including Detroit 60 series N2/N3, Caterpillar C12/C13/C15/C18, Cummins N14/M11, Delphi E1/E3 etc
2) Test CAT HEUI injector,C7, C9, C-9, C3126B
3) Test CAT HEUI pump
4) Test common rail pump
5) Test common rail injector, solenoid and piezo

Feature

1. Real-time controlled by industrial computers, embedded operating system
2.The rail pressure, pulse width, rotate speed, temperature will be displayed by 21 inch True color display screens
3. Built-in more than 3000 kinds of injector data, more than 800 kinds of common rail pump data, more than 400 kinds of EUI EUP HEUI data are available for checking.
4. The test bench can be networked, the control system software can be upgraded online with one key, and remote ssistance can solve customers' worries

5. Can customize parameters such as rail pressure, pulse width, speed, and oil measurement times
6. Intelligent algorithm, open-loop/closed-loop switching control, installation of HPV valve, rail pressure control is more accurate, pressure is more stable, and has ultra-high pressure protection function
7. Two-stage filter for oil supply, in line with Euro III standards
8. Short circuit protection function of test bench
9. Automatic control of test oil temperature
10. Provided with two oil supply motors for diesel and engine oil and two oil tanks to control the oil circuit separately
11. Test data report printing function
12.Provided with special fixtures for testing common rail pumps and injectors
13. Provided with new cam box and matching adapter
14. Provided with special fixtures for Caterpillar medium pressure injectors
15. Chinese, English and other language interface switching
16. Safety protection design, safe and easy to operate

Recommend Products

BF1178

Common rail injectors and pumps test bench

BF209A

Common rail injectors test bench

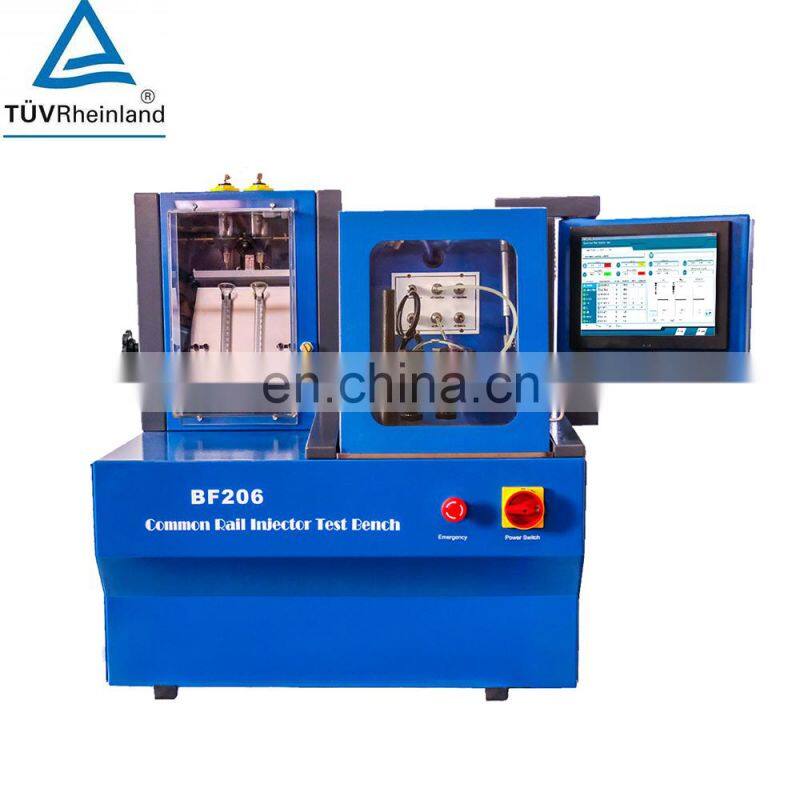

BF206

Mini common rail injectors test bench

Company Profile

Taian North Test Equipment Factory founded in 2003. It is the top manufacturer of diesel fuel injection system testing equipment and diagnostic tools in China. It is also one of the first factories in mainland China to develop and manufacture diesel fuel injection system testing equipment and diagnostic tools. The factory has always attached importance to customer needs and product quality. The factory follows the development of theindustry and develops and manufactures a range of products, such as injection pump test bench, common rail injector test bench, diesel injector tester, ultrasonic cleaner etc. We have a large number of customers at home and abroad and won the praise of them.The factory head quarter located in Taian city which is the most well known manufacturing base of diesel fuel injection system testing equipment and diagnostic tools in China.

FAQ

1.Are you a manufacturer or trade company?
We are direct manufacturer with more than 20 years experience

2.What certification do you have ?
We have CE, ISO SGS Certification etc

3.How about the delivery time?
7 days after getting deposit

4.Do you also sell related accessories and repair tools?
Yes, except test bench,we also produce spare parts and repair or measuring tools, also offer factory price for you

5.Do you have foreign agent ?
Sure, we have built some several agents in the world and you can also be our agent.

6.Which port near your factory?
Our factory near the Qingdao port ,so we can ship goods to Qingdao port within one day
