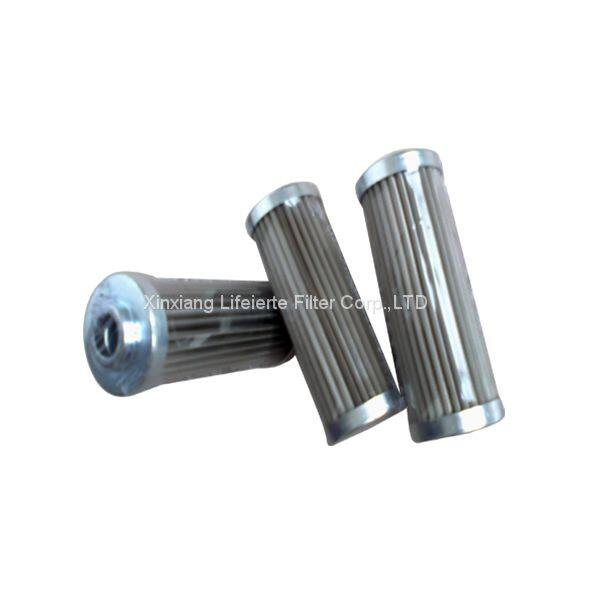

Hydac 0500R010BNHC D Series Pressure Hydraulic Oil Filter

Hydac 0500R010BNHC D series pressure hydraulic oil filter

Product introduction:

The 3-stage structure of 0160D010BN4HC filter elements ensures the maximum  contamination retention and

separation capacity. Integration of an additional drainage layer directs the fluid flow in an optimum way, achieving particularly favourable Δp/Q characteristics. An innovative bonding process used for the longitudinal seam guarantees that the cut ends of the mesh pack remain completely sealed even under high load variations. This eliminates the possibility of particles crossing from the contaminated to the clean side.

To prevent the formation of zinc soap, which occurs mainly in conjunction with water-based fluids (HFA/HFC) and bio oils, no components containing zinc are utilized.The metal tube which forms a stable core inside the element is constructed as a spiral lock seam tube. This provides consistent stability and a significant reduction in element weight.The pleated filter mesh pack is encased in a stable outer wrap. This wrap distributes the incoming fluid evenly over the mesh pack. In addition the mesh pack is not directly exposed to the flow, and this protects it from pulsating flows. In this way, the element achieves extremely high fatigue strength values. Moreover, the mesh pack is protected from mechanical damage.

Specifications:

A:69mm

B:34.20mm

C:115mm

Media:INORGAI

Micron:10μm

Pressure:30bar

Seal:NBR

By-pass:no

Temp. Min.:-20℃

Temp. Max.:100℃

Flow direction:From outside to inside

Category of filter element:Single use element
