High precision Single row Thrust spherical roller bearing 29318
A part of our products:

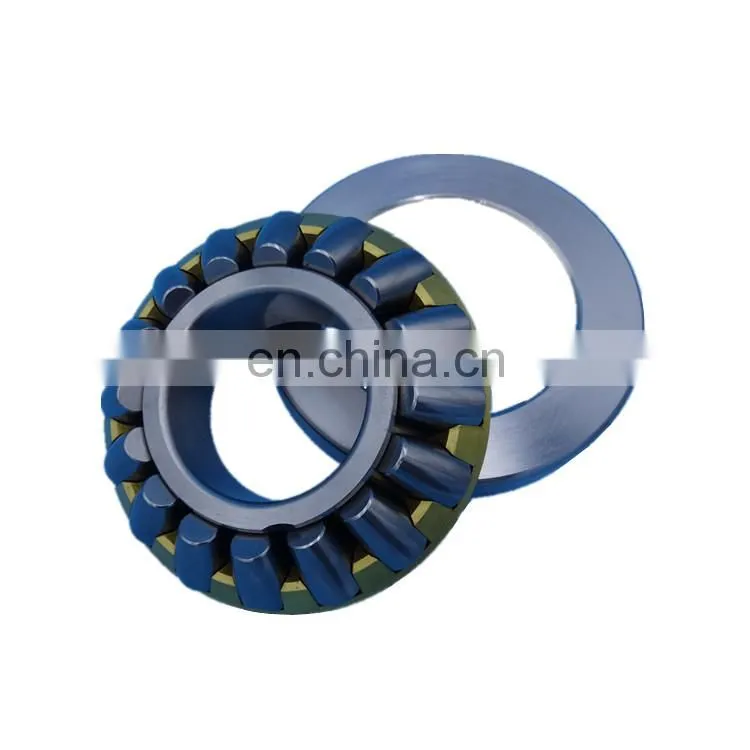

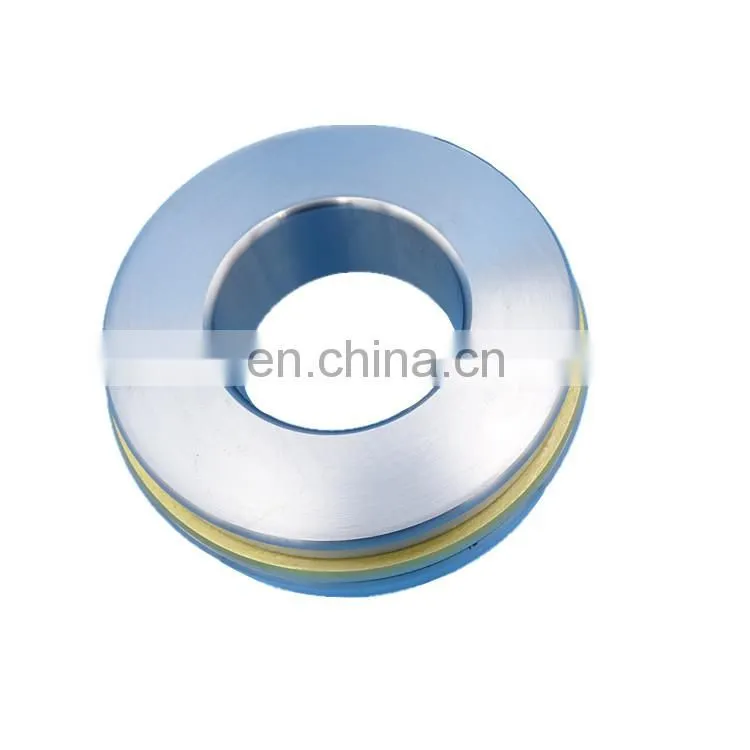

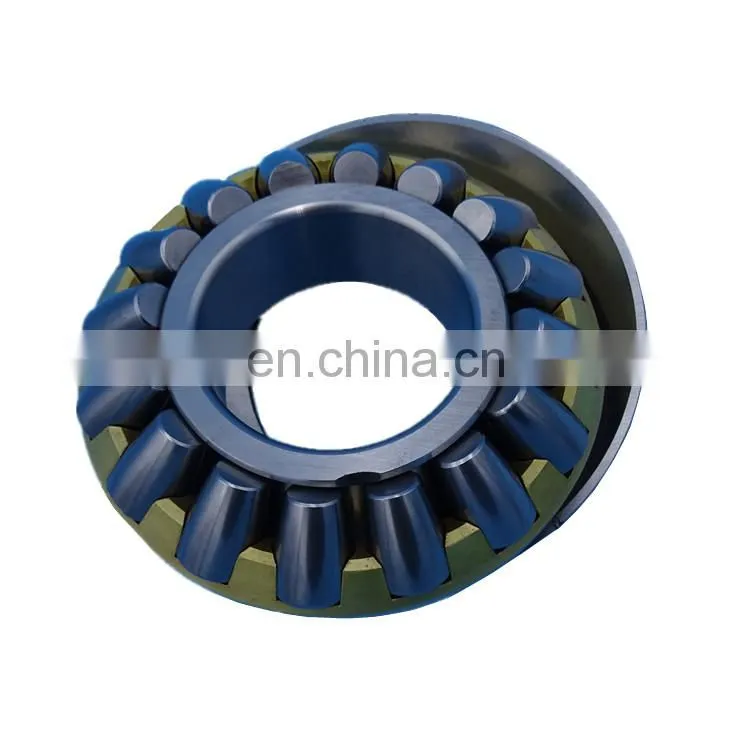

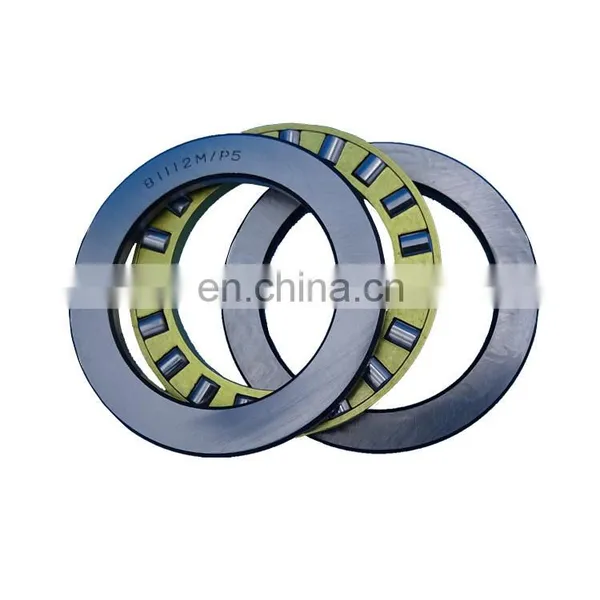

Pictures show

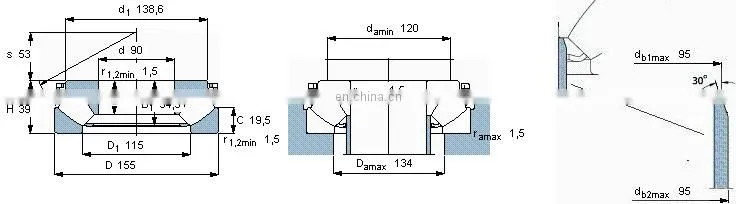

Drawing
Description of thrust roller bearing:
Thrust roller bearing assembly way:
Spherical roller thrust bearings are single row, self-aligning roller bearings. They comprise
solid shaft and housing washers and asymmetrical barrel rollers with cages. The cage holds
the roller and cage assembly together with the shaft locating washer. The bearings can be
dismantled. The parts of the bearings can be fitted separately.
Spherical roller thrust bearings can support very high axial loads and permit relatively high
speeds. Since the raceways are at an angle to the bearing axis, the bearings can also support
radial loads.
Due to thrust roller bearing is high precision product,if improper assembly is easy to harm to
thrust roller bearing structure,lead to thrust roller bearing damage.When assembly thrust
roller bearing must have special mold,can't optional knock.When pressed into the shaft only
small circle stress, Pressure big lap can only big circle stress. When the assembly required
by air pressure or hydraulic pressure.
Feature:
1.it included seat ring,bearing gaskers,steel ball and retainer.
2.high rigidity,resistant to impact
3.low revolutions
4.it can just be subjected by axial load
5.the bearing gaskers and seat ring can't slope
Details:
Thrust roller bearings is a separated-type bearings, shaft ring 'seat ring can be `just the
ball and cage component separation. Axis loop is compatible with the ring axis, sitting circle
is compatible with the bearing hole ring, and the gap between shaft.
Type:
1)One-way thrust ball bearings can withstand axial load in one direction, one-way limit axial
displacement of shaft.
2)Thrust ball bearings can withstand axial load in both directions to limit axial displacement
of the two-way.
Related models and specifications
Boundary dimensions(mm) |
Basic load ratings(kN) |
Bearing Number |
||||
d |
D |
T |
rs min |
Ca |
Coa |
TCR |
85 |
150 |
39 |
1.5 |
265 |
820 |
29317 |
90 |
155 |
39 |
1.5 |
285 |
915 |
29318 |
100 |
170 |
42 |
1.5 |
345 |
1,160 |
29320 |
110 |
190 |
48 |
2 |
445 |
1,500 |
29322 |
120 |
210 |
54 |
2.1 |
535 |
1,770 |
29324 |
130 |
225 |
58 |
2.1 |
615 |
2,100 |
29326 |
140 |
240 |
60 |
2.1 |
685 |
2,360 |
29328 |
150 |
250 |
60 |
2.1 |
675 |
2,390 |
29330 |
160 |
270 |
67 |
3 |
820 |
2,860 |
29332 |
170 |
280 |
67 |
3 |
855 |
3,050 |
29334 |
180 |
300 |
73 |
3 |
995 |
3,600 |
29336 |
190 |
320 |
78 |
4 |
1,150 |
4,250 |
29338 |
200 |
340 |
85 |
4 |
1,280 |
4,600 |
29340 |
Company Introdurction
Jinan Sheng Lei bearing Co., Ltd. is located in the "Spring City" Jinan. We Insist the integrity and pragmatic, win-win business philosophy, adhere to the people-oriented, advancing enterprise spirit and regard "quality first, customers utmost" as enterprise concept. Our company has established a professional sales network to help customers get products information at the first time. Our products are exported to many countries now, we have won good reputation and feedbacks from our customer. We offer high quality products with reasonable price and short delivery time.
Company Show
Factory:

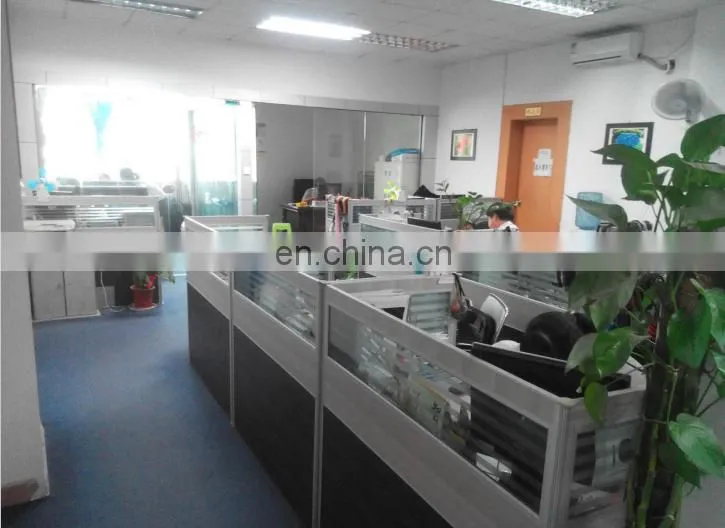

Office:
Certificate: ISO 9001:2008
Participate in the exhibition:
Customer visition:

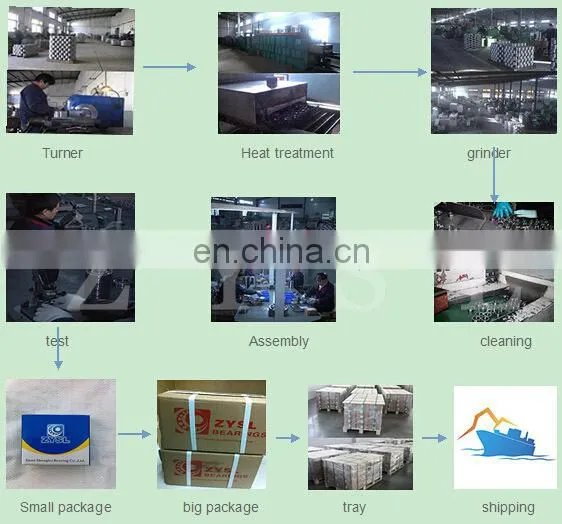

The production process and package:
A.tube package + outer carton + pallets
B.single box + outer carton + pallets
C.tube package + middle box + outer carton + pallets
D.According to your request.
A: 30% T/T in advance .70% against copy of B/L
B.30% T/T in advance .70% against L/C at sight
C.Western union
D.Paypal
E.Offial Bank Account
F:50% in advance,the balance should be paid after seeing the picture of total goods.
Why us
1.High speed, High Precision, Low Noise, Long Service Life
2.Wide Array of Applications
3.Large Inventories
4.Small order accept
5.Competitive Prices and High Quality
6.Various Brands
7.Require little maintenance
8. OEM is supported
9. Our company insists on the "quality first, credit first" business ideas and our product specification is well-founded. We have a good reputation in the international market by our perfect service and sufficient supply.
1. I couldn’t find a design to fit my application in your catalog.
Can you help me design a bearing?
Yes, technical expertise is available to assist you with engineering design
for custom products. Available options include, but are not limited to,
custom rings, retainers, balls, shields, lubricants, and packaging.
We look forward to working with you to satisfy your rotary motion
requirements.
2. What causes bearing noise?
Bearing noise is a function of both the bearing and the way it is used.
Some external factors that affect bearing noise include lubricant type,
excessive bearing load, and improper installation. Once the abnormal
noise occurred, you can contact our engineers, we will help you find
the reasons and provide the appropriate solutions.
3. How long is your delivery term?
Our standard product delivery term is normally 30 days. A new product
development cycle is 60 days in normal. Under normal circumstances, there
are standing stock for regular types. You can email us to learn more details.
4. Where is your port of shipment located?
Our main port of shipment is Guangzhou port, and we may operate at other
ports if required by the customer.
