Bearing RNA 49/28 Needle Roller Bearing

Bearing RNA 49/28 Needle Roller Bearing thumbnail-1
Bearing RNA 49/28 Needle Roller Bearing thumbnail-2
Bearing RNA 49/28 Needle Roller Bearing thumbnail-3
Bearing RNA 49/28 Needle Roller Bearing thumbnail-4
Bearing RNA 49/28 Needle Roller Bearing thumbnail-5
Bearing RNA 49/28 Needle Roller Bearing thumbnail-6
Bearing RNA 49/28 Needle Roller Bearing photo-1

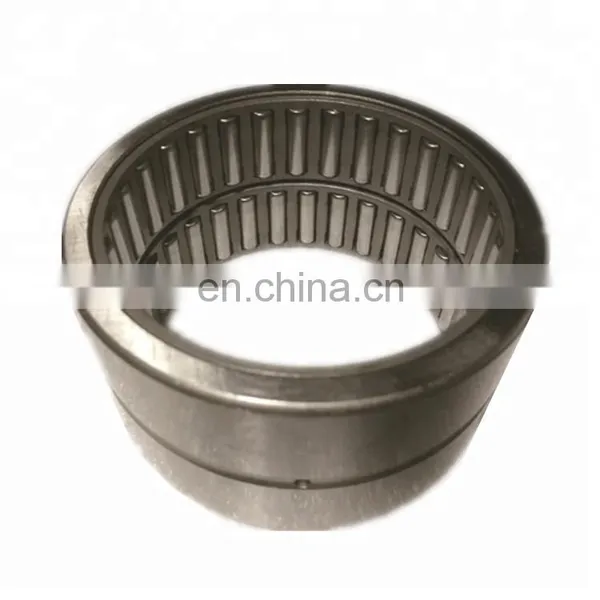

Bearing RNA 49/28 Needle Roller Bearing photo-2
Bearing RNA 49/28 Needle Roller Bearing photo-3
Bearing RNA 49/28 Needle Roller Bearing photo-4
Bearing RNA 49/28 Needle Roller Bearing photo-5
Bearing RNA 49/28 Needle Roller Bearing photo-6
US$ 1.02 - 1.5 MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
ZYSL
Place of Origin:
Shandong, China
Model Number:
RNA 49/28
Contact Supplier Request Quote Chat Now
Jinan Shenglei Bearing Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai Guangzhou Ningbo Shenzhen Hongkong
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name ZYSL
Place of Origin Shandong, China
Model Number RNA 49/28
Number of Row Single Row
Seals Type Open
Precision Rating P0 P6 P5 P4 P2
Outside Diameter 1, 45
Bore Size 1, 32
Product Description

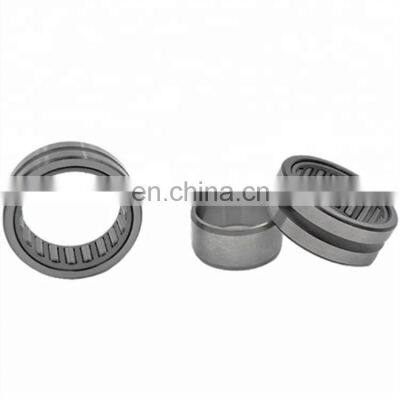

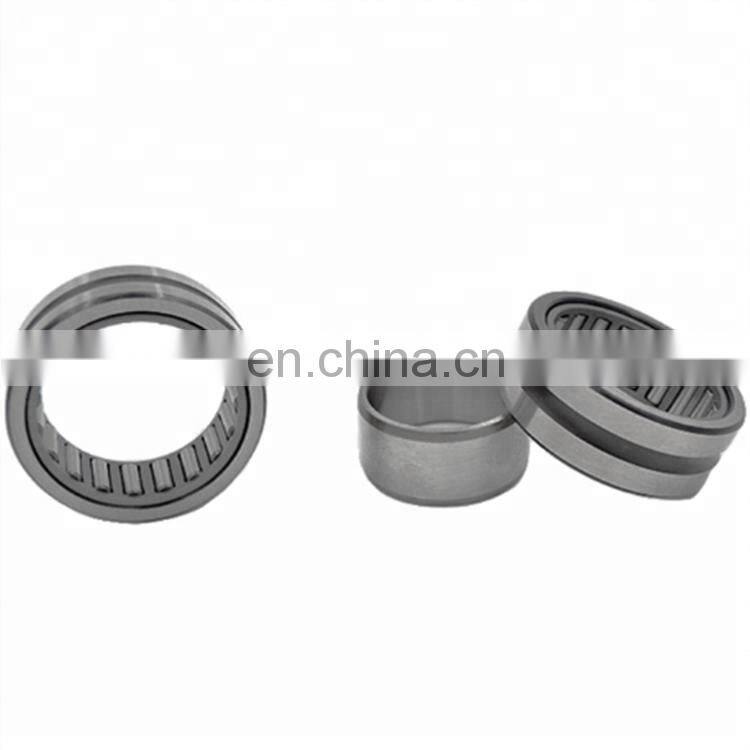

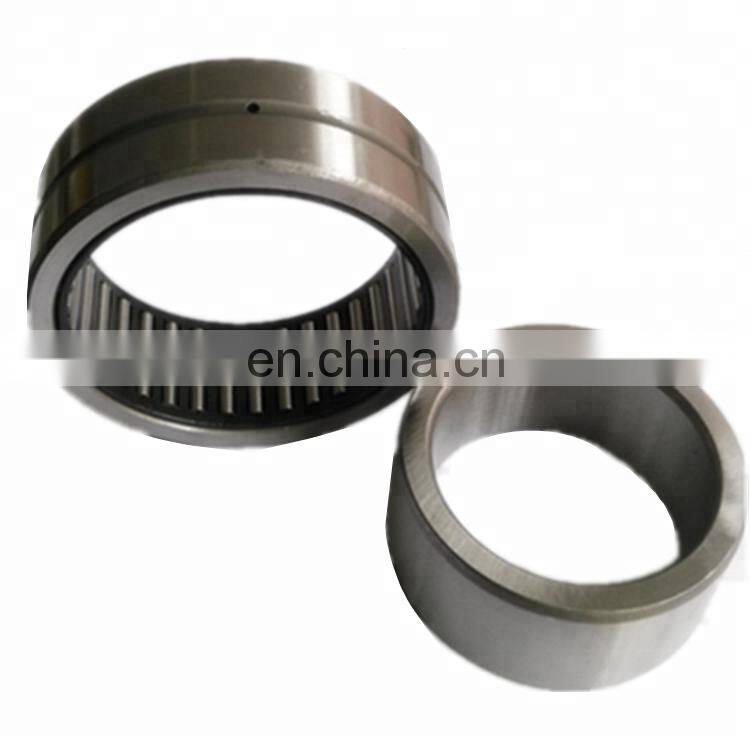

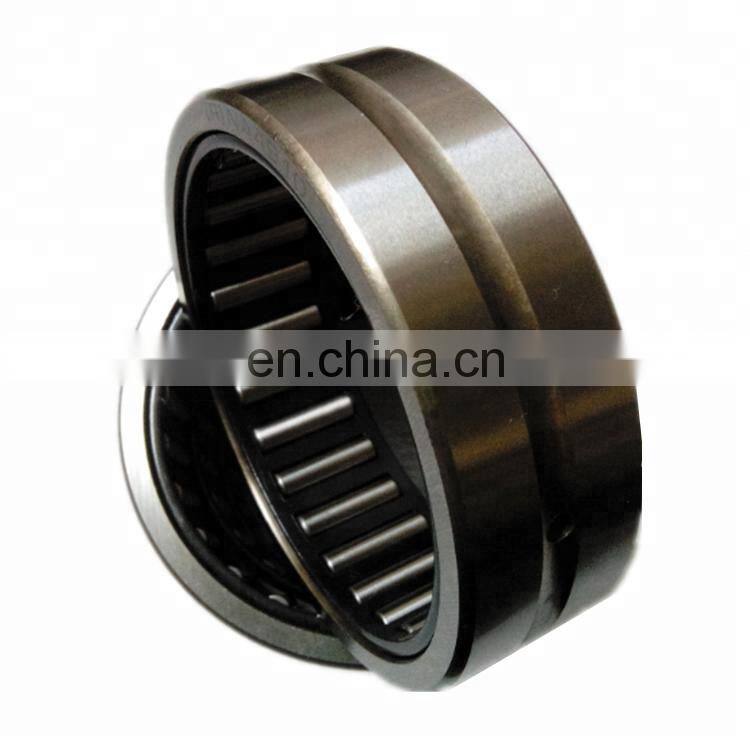

bearing RNA 49/28 Needle Roller Bearing

 A part of our products:

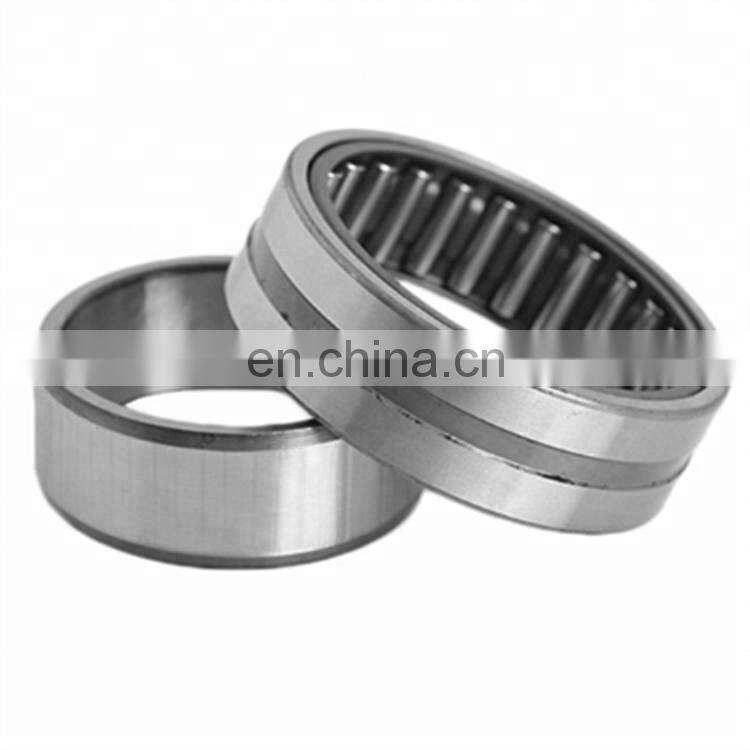

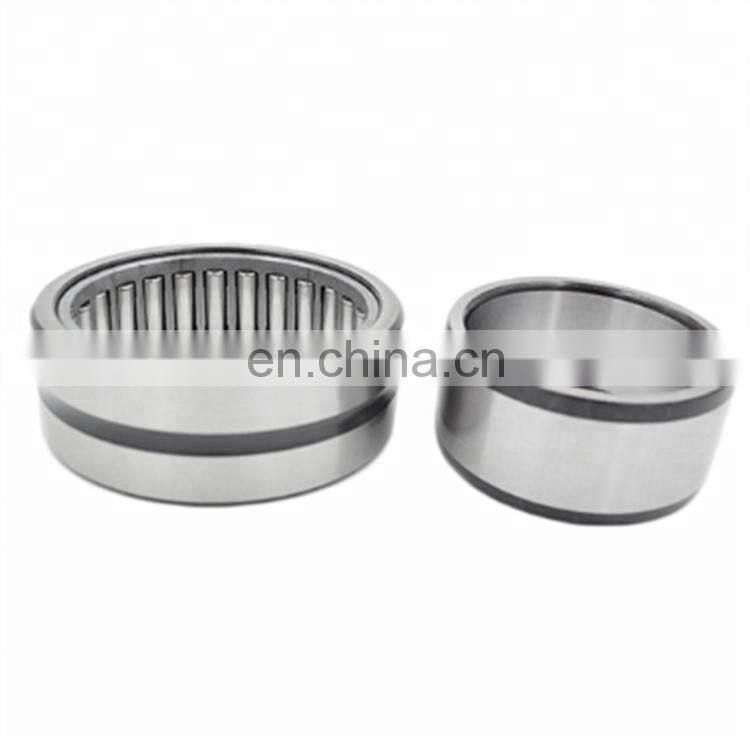

Pictures show:

bearing RNA 49/28 Needle Roller Bearingbearing RNA 49/28 Needle Roller Bearingbearing RNA 49/28 Needle Roller Bearingbearing RNA 49/28 Needle Roller Bearingbearing RNA 49/28 Needle Roller Bearing

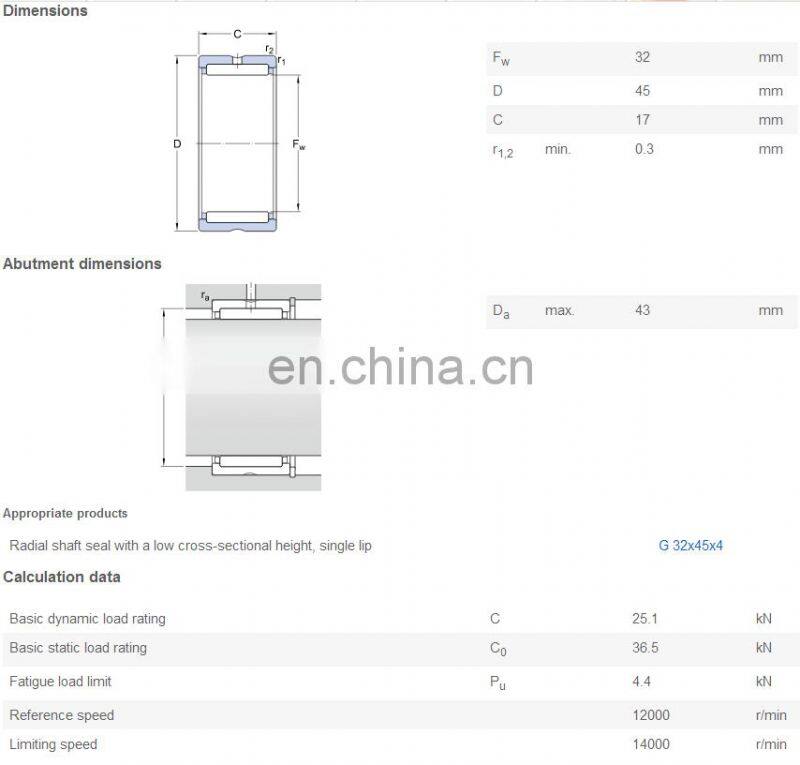

Drawing

Descriptions



Needle roller bearing is a bearing unit composed of machined outer ring & inner ring,cage and

needle roller assembly featuring small section height,big load capacity & rigidity,compact

structure and small size,high rotating accuracy with the structure of disposed inner ring.



Needle roller bearing is characterized by multiple structures,broad adaptability and easy

installation.



It is widely used in automobile,machine toll,lathe,metallurgical,textile,printing industry and

etc. Various machinery equipment. With this kind of bearing,machine design can realize the

goal of small-scale & light weight.



Types of Designs:



   This kind of bearing has multiple structural styles for the choice of customers,such as

narrow & broad series,with or without inner rings,cages,rib or sealings. It can be designed

according to the special structural requirements of customers as well.



Product Precision Accuracy:



Dimensional tolerance and geometrical accuracy is based on GB/T5801.

Mutual difference of needle roller diameter is 2 um,and the precision grade is class

G2(ISO GB/T309)

The diameter of inscribed circle conforms to tolerance grade F6 before the fitting of outer

ring with cage and roller assembly.

Bearing radial running clearance conforms to the value defined by class 0 group of GB/T4604

Special precision grade in based on GB/T307.1

For fuller information on the special requirement of bearing running clearance, inscribed circle

and precision grade,please contact our company.



Material:



Material for needle roller is GCr15 bearing steel,quench-hardening HRC60-65

Material for inner and outer rings is GCr15 bearing steel,quench-hardening HRC60-65

Material for cages is quality low-carbon steel or reinforced nylon.



Special Directions:



Bearing running clearance and inner-cutting roundness should be regulated according to different

conditions.



Machine tolls should be used for press-in fitting or thermal fitting when install the bearing.

Limited by plastic cages(suffixed with TN) and sealing-element material ,operating temperature

is -30℃--+100℃



For general-disposition design of bearings,refer to the relevant recommendation in the applied

technology of roller bearings.



Related models and specifications



RNA4910 4644910 58 72 22 35.6 70.2 8100 0.184
RNA4911 4644911 63 80 25 44.4 87.2 7500 0.287
RNA4912 4644912 68 85 25 45.8 93.3 6900 0.306
RNA4913 4644913 72 90 25 66.1 114 6400 0.307
RNA4914 4644914 80 100 30 86.4 157 5700 0.465
RNA4915 4644915 855 105 30 88.0 164 5400 0.487
RNA4916 4644916 90 110 30 91.6 176 5100 0.515
RNA4917 4644917 100 120 35 110 230 4600 0.669
RNA4918 4644918 105 125 35 111 238 4400 0.695
RNA4919 4644919 110 130 35 115 253 4200 0.728
RNA4920 4644920 115 140 40 144 296 4000 1.09
RNA4922 4644922 125 150 40 149 317 3700 1.17
RNA4924 4644924 135 165 45 192 398 3400 1.75
RNA4926 4644926 150 180 50 225 508 3000 2.16
RNA4928 4644928 160 190 50 232 540 2800 2.29
RNA69/22 63549/22 22 39 30 36.8 53.1 16000 0.100
RNA69/28 63549/28 28 45 30 - - - -
RNA69/32 63549/32 32 52 36 - - - -
RNA6901 6644901 12 24 22 16.3 21.7 27000 0.030
RNA6902 6644902 15 28 23 18.4 27.1 22000 0.038
RNA6903 6644903 17 30 23 18.9 29.0 20000 0.040
RNA6904 6644904 20 37 30 35.4 48.9 17000 0.096

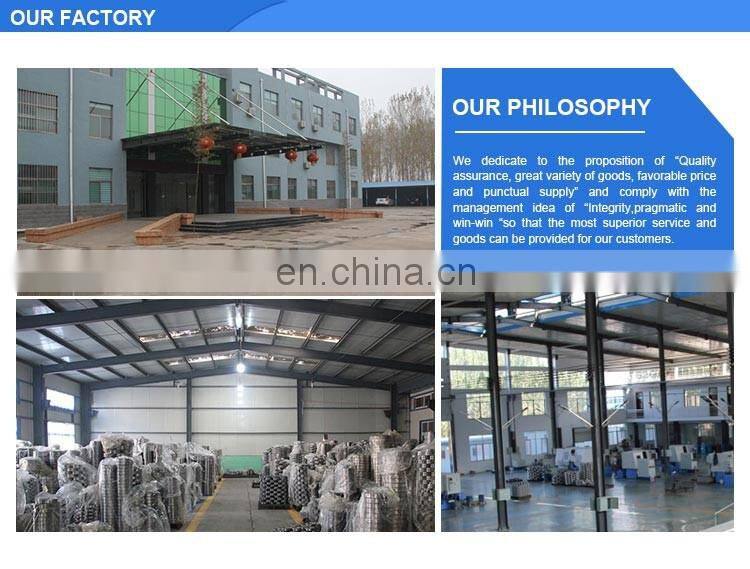

Company Information



bearing RNA 49/28 Needle Roller Bearingbearing RNA 49/28 Needle Roller Bearingbearing RNA 49/28 Needle Roller Bearingbearing RNA 49/28 Needle Roller Bearing

Trade Shows

bearing RNA 49/28 Needle Roller Bearing

Packaging & Shipping

bearing RNA 49/28 Needle Roller Bearing

payment

A: 30% T/T in advance .70% against copy of B/L

B.30% T/T in advance .70% against L/C at sight

C.Western union

D.Paypal

E:50% in advance,the balance should be paid after seeing the picture of total goods.

F:Offical Bank Account

Our Services

Why us

1.High speed, High Precision, Low Noise, Long Service Life
2.Wide Array of Applications
3.Large Inventories
4.Small order accept
5.Competitive Prices and High Quality
6.Various Brands
7.Require little maintenance
8. OEM is supported
9. Our company insists on the "quality first, credit first" business ideas and our product specification is well-founded. We have a good reputation in the international market by our perfect service and sufficient supply.

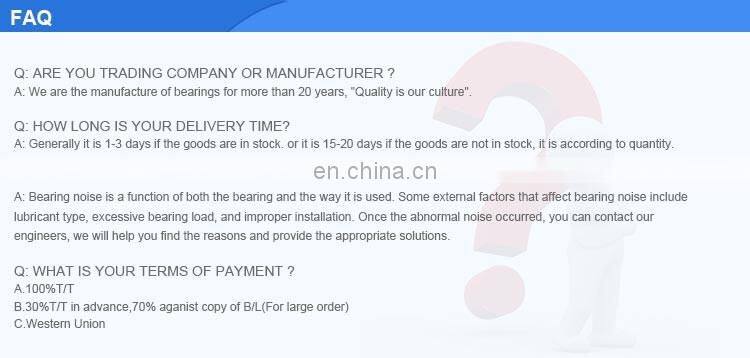

FAQ

bearing RNA 49/28 Needle Roller Bearing

Contact person:

bearing RNA 49/28 Needle Roller Bearing

Any questions, please don't hesitate to contact us!
