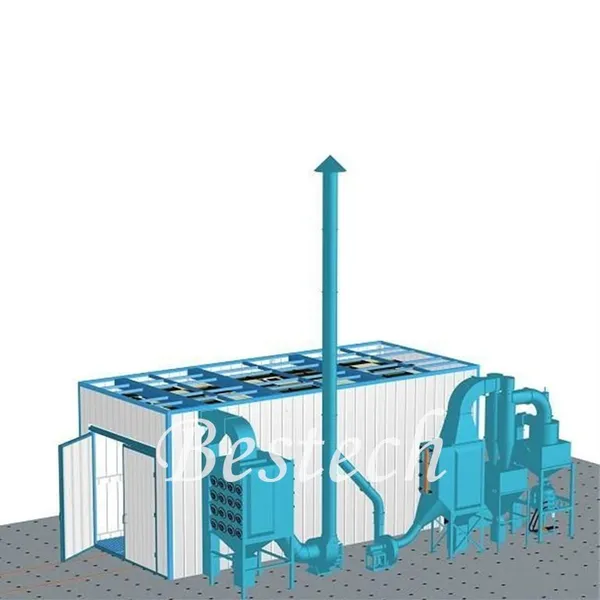

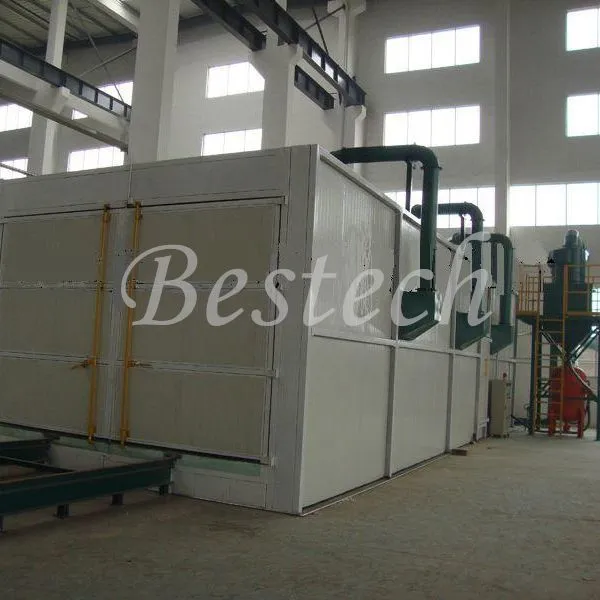

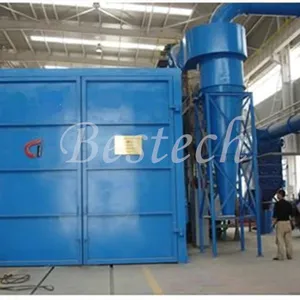

container sand blasting room chamber with mobile trailers
- 100 Set / Sets per Month
- Qingdao
- T/T L/C Other
- 15 days
- Q3210 auto loader tumble belt shot blasting machine
- Batch Type Tumblast Machine Shot Blasting Machine
- with pit type auto feeding belt shot blasting machine
- Q3210 rubber track shot blaster machine with auto feeding hopper
- Smaller pieces of Q326 rubber apron shot blasting grinding machine
- Auto Loading Tumble Belt Shot Blasting and Cleaning Machine for the Fittings
Product Details
Brand Name: | Bestech | Place of Origin: | China | Model Number: | Q26 |
Use: | Burnishing, Descaling / Stripping | Certification: | CE | After-sales Service Provided: | Engineers available to service machinery overseas |
Dimension(L*W*H): | 12500*3000*3000 | Feature: | Non-Ionic, Non-Toxic, Rust / Corrosion Inhibitor | Fuel: | Electric |
Condition: | New | Power(W): | - | Material: | Metal / Coil |
Industry Used: | Other, shot blasting | Cleaning Type: | Clean-In-Place (CIP) | Cleaning Process: | Other, steel abrasive material |
Product Description
1) Doors:
The service door is built in welded profiles and has a closing in steel plates, and is internally coated with abrasion resistant rubber. An exclusive sealing system prevents the loss of abrasive materials and makes the closing of the doors possible, without effort. Optionally, two doors can be supplied (tunnel type room) and one door for the operator. Sensors connected to the doors automatically interrupt the blasting operation when one of them is opened.
2) Luminaries:
Each LED lamps construction and positioning enable maximum utilization of the luminosity. The fastening system allows easy removal, for maintenance.

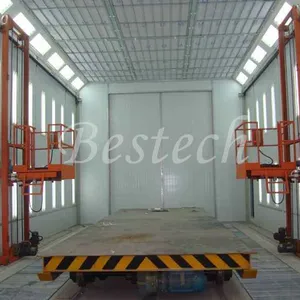

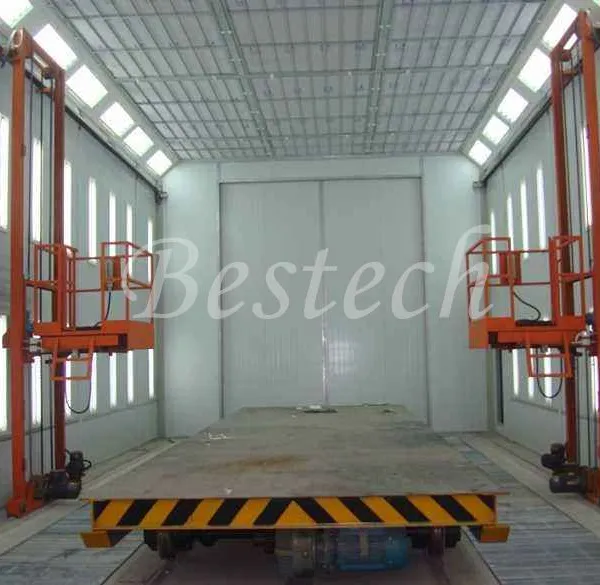

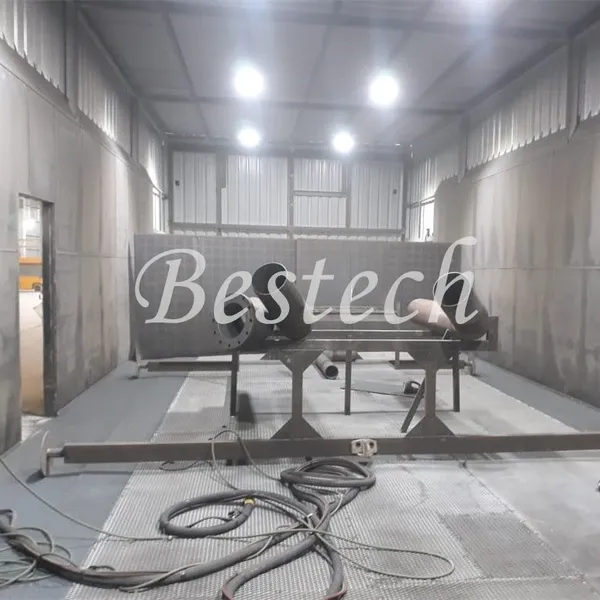

3) Working chambers:
Built in color steel tile, they are modulated in order to satisfy any dimension in height, width and length. Inside (except on the ceiling) there is a rubber coating that protects them against abrasion and helps in the acoustic insulation.
4) Horizontal transportation of abrasive material:
This system combines the drive of scraper carts that conduct the abrasive material to the center of the working chamber, where it is collected by a screw conveyor (in some cases by a belt conveyor) which conducts the abrasive material up to the foot of the bucket elevator (abrasive materials purifier). On the whole floor surface, there is a grid that is covered with a perforated plate, which retains larger impurities or even small parts which may drop accidentally on the floor. This unique system used by CMV requires a much smaller installed power that the other systems, thanks to the friction coefficient (wear), which is much smaller in this system.
5) Control panel:
Mounted on a shielded cabinet, it has thermal protection and interlocking for the motors, which makes it impossible to connect them in the incorrect order. Optionally, it is supplied with a PLC for the automatic control of the equipment. It meets the most important international standards, among which the 60204-1 of the EEC.
6) Blasting machine:
It has a pressure vessel built in accordance with the EU standard, which is hydrostatically tested to operate at a pressure of 8 Bar (116PSI), with and outlet for one or more operators, with a remote pneumatic command and a full kit for the protection of the operator(s), and an air filter that is appropriate for human breathing. The machine also has a high-efficiency pneumatic system and high-performance nozzle(s). Optionally, it can be equipped with a level sensor for automatic feeding of abrasive material.
7) Abrasive materials purifier / Bucket elevator:
The bucket elevator receives the abrasive in its hopper and lifts it to the purifier. The elevator features buckets in nodular cast iron that are highly resistant to abrasion and is driven by one gear motor. The abrasive materials purifier receives the abrasive material from the bucket elevator and, with a system that is adjustable through counterweights, forms a curtain with the abrasive material, through which an air stream passes, which is also adjustable, and which takes the dust and other residues that may be contaminating the abrasive material, to the exhaust system. The abrasive material, now free from impurities, drops into the silo that is located on the blasting machine. Optionally, the abrasive materials purifier can be supplied with a revolving screen.
8) Exhaust system:
The combination of deflectors for air intake / outlet ensures an excellent operational visibility, and, due to their construction, eliminates the waste of abrasive material. Our model BMF-H dust collectors have cartridge filters with elements in Viledon(r), which, besides ensuring an extremely low volume of residual dust (approximately 2mg/m3), have a considerably long useful life (approximately 15,000 h of work). The cleaning of the filter system is done automatically by an electronically controlled pulse-jet system. Optionally, among other items, it is possible to supply the equipment with a noise damper / rear HEPA type filter, thus obtaining a volume of residual dust of about 0.4mg/m3.
Size of workpiece (L*W*H)m | 3*2.6*2 | 4.5*3.5*2.5 | 7.5*5*3.8 | 26*3.1*4.6 |
Carrying capacity(t) | 3 | 5 | 20 | 80 |
Power(Kw) | 37 | 40 | 86 | 186 |
1. Reply your inquiry in 24 working hours.
2. Experienced staffs answer all your questions in fluent English.
3. Customized design is available. UEM&UBM are welcomed.
4. Exclusive and unique solution can be provided to our customer by our well-trained and professional engineers and staff.
5. Special discount and protection of sales are provided to our distributor.
6. Professional factory : We are manufacturer, specializing in producing all kinds of machinery for more than 20 years, competitive with good quantity.
7.Sample: We can send out sample for test in one week if the order quantity is big enough. But the shipment charges is usually paid by your side, the charges will be rebounded when we have formal order.
8.As an honest seller, we always use superior raw material, advanced machines, skilled technicians to ensure our products to be finished in high quality and stable feature. Welcome to contact us or visit our company.
Q:How many days will be used to produce this sand blasting machine?
A:Normally within 25 workdays or according to your requirement
Q:Can you provide installation and commissioning overseas?
A:We can supply oversea service if needed
Q:Are you manufacture or trading company?
A:We are manufacture,welcome to visit our factory
