8X100mm 200W 250W 25W Cartridge Heater 300mm Lead Wire Heating Element for Mould Heating

Yancheng Dezheng Technology Limited
US$ 6 - 8 MOQ: 10 Pieces
Key Specifications
Get Latest Price
Brand Name:
OEM/IOS
Place of Origin:
Jiangsu, China
Type:
Air Heater
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name OEM/IOS
Place of Origin Jiangsu, China
Type Air Heater
Certification CE
Warranty 1 Year
Weight according to quantity
Dimension(L*W*H) customized
Condition New
Voltage 24V or customized
Power Source Electric
Product Description
       Cartridge heaters are an extraordinarily versatile and durable product that is used to heat a myriad of different processes from heavy industrial – plastics and packaging applications to critical care medical devices and analytical test instruments to being used on aircrafts, railcars and trucks. Cartridge heaters are capable of operating at temperatures of up to 750℃ and achieving watt densities of up to 30 watts per square centimeter. Available from stock or custom manufactured to your individual application need, they are available in many different imperial and metric diameters and lengths with many different style terminations,wattage and voltage ratings.
Specification
Voltages available
380V,240V, 220V,110V,36V,24V or 12V
Resistance tolerance
+10%, -5%
Wattage Tolerance
+5%, -10%
Standard Cold Size
5-10mm
Internal thermocouple
type J or K
Thermocouple Location
Disc End, Sheath, Center of Heater
Diametre
from 3.0mm to 30mm
Outer Sheath Material
Stainless Steel 304, 321, 316; Incoloy 800; Incoloy 840




Cartridge heater
size：customized
Volt：220V,380V or customized
Wattage：50w or customized
Wire length：1m，300mm or customized
Application
*pellet stove
*3D printer
*Injection moulding-Internal heating of nozzies
*Hot runner systems-Heating of manifolds
*Packaging industry-Heating of cutting bars
*ackaging industry-Heating of hot stamps
*Laboratories-Heating of analytical equipment
*Food Service:Steamers,Dish Washers
*Industrial:Packaging Equipment,Hole Punches,Hot Stamp.

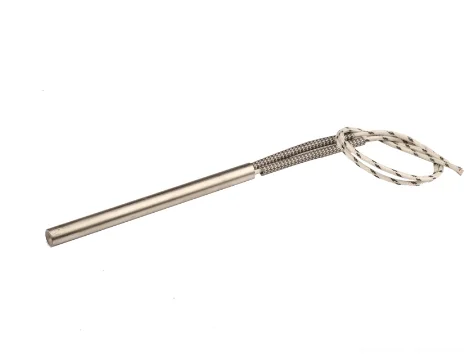

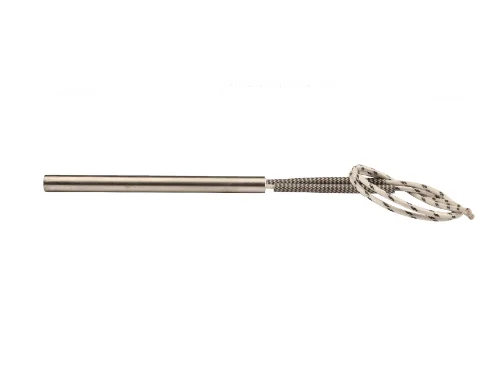

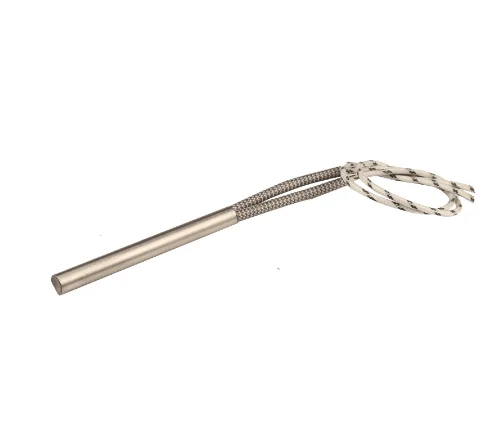

Products Show
Features
1.Fast heating and long service life
2.Power and voltage can be customized according to requirements.
3.Used in hot forming machinery，meachanical equipment，etc.
4.According to different use requirements，choose the grade of heating wire，magnesium rod and pipe.
Our Company

Factory

Our Factory

Workshop

Our Workshop

Warehouse

Our Warehouse

Team

Our Team

Our transportations

Express


Shipping


Air


Packing & Delivery

Packaging Details:   Carton or wooden cases
Port:   Shanghai,China
