Product introduce
EPS cement sandwich panel production line/sandwich panel from china is now totally new and hot in the world. But there are very few suppliers in the world. It is now replacing traditional building materials in the structure. We are specialized in this machine for over 10 years
Capacity | 20,000sqm~600,000sqm per year |
Thickness | 50-200mm thickness. Or customize the size you like |
Length | 2400~3000mm |
Width | 610mm |
Raw material | There are mainly two different types 1. Cement+fly ash/eps/ceramsite/sand, etc (optional, can choose to add or not add) 2. Fomed cement+additives |
Finished board type | 1. Composite board/sandwich board, with surface board 2. Lightweight solid panel, without furface board 3.Ceramsite wall panel 4.cement foaming wall panel |
Surface board types | 1. Calcium silicate board 2. Fiber cement board 3. Mgo board |
Unique advantage
1.Double -function mold car ,can produce panel with surface board and without surface board
2.Our machinery has a long service time and low failure rate ,no need repair often
3.We have a short machine testing time 10-15days to help you save raw materials cost
4.Perfect after-sale service systerm , skilled technical training and installation service .
5.Unique production technology formula to help you occupy more market
Raw material Automatic feeding and metering system
Machine part: Automatic Material feeding and metering system
Introduce :1.Cement ,flyash,EPS particels will be metering and feeding into the mixer automatically to save the labors and improve working efficiency also it is more environmentally .
2.Sand (or ceramsite /slag /pumice stone other agregate) and additives will be feeding into the mixer by lifting hopper
Machine parts :Platform
Platform type : 1.Metering platform,
2.Mixing platform (necessary),
3.Casting platform (necessary),
4.Electric control cabinet platform ,
5.Auxiliary Platform /Calcium Silicate Board installation platform
Besides necessary platform , other platform we can equip as client requirement .

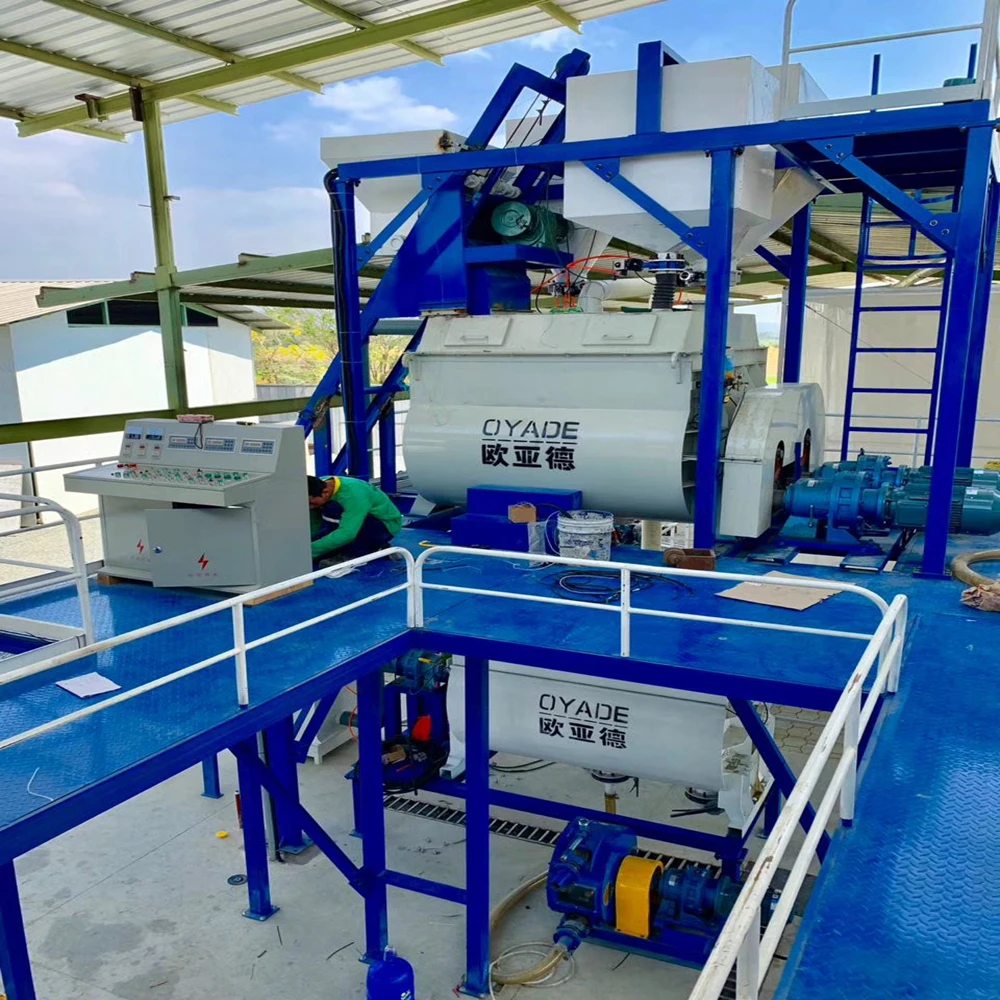

Raw material automatic mixing system
Machine part: Double-shaft mixer
Capacity available :1.2/1.5/2.0/2.5/3.0/3.5 sqm .
Machine part:Second mixing mixer
Unique feature :If the mould car quantity is more than 10 units ,then we will equip the second mixing mixer, so as to save the mixing time of the first mixer and improve working efficiency ,increase productivity .
Note: normally use one-shaft mixer ,only large capacity will equip second mixing if small capacity ,second storage hopper is enough .
Automatic forming system

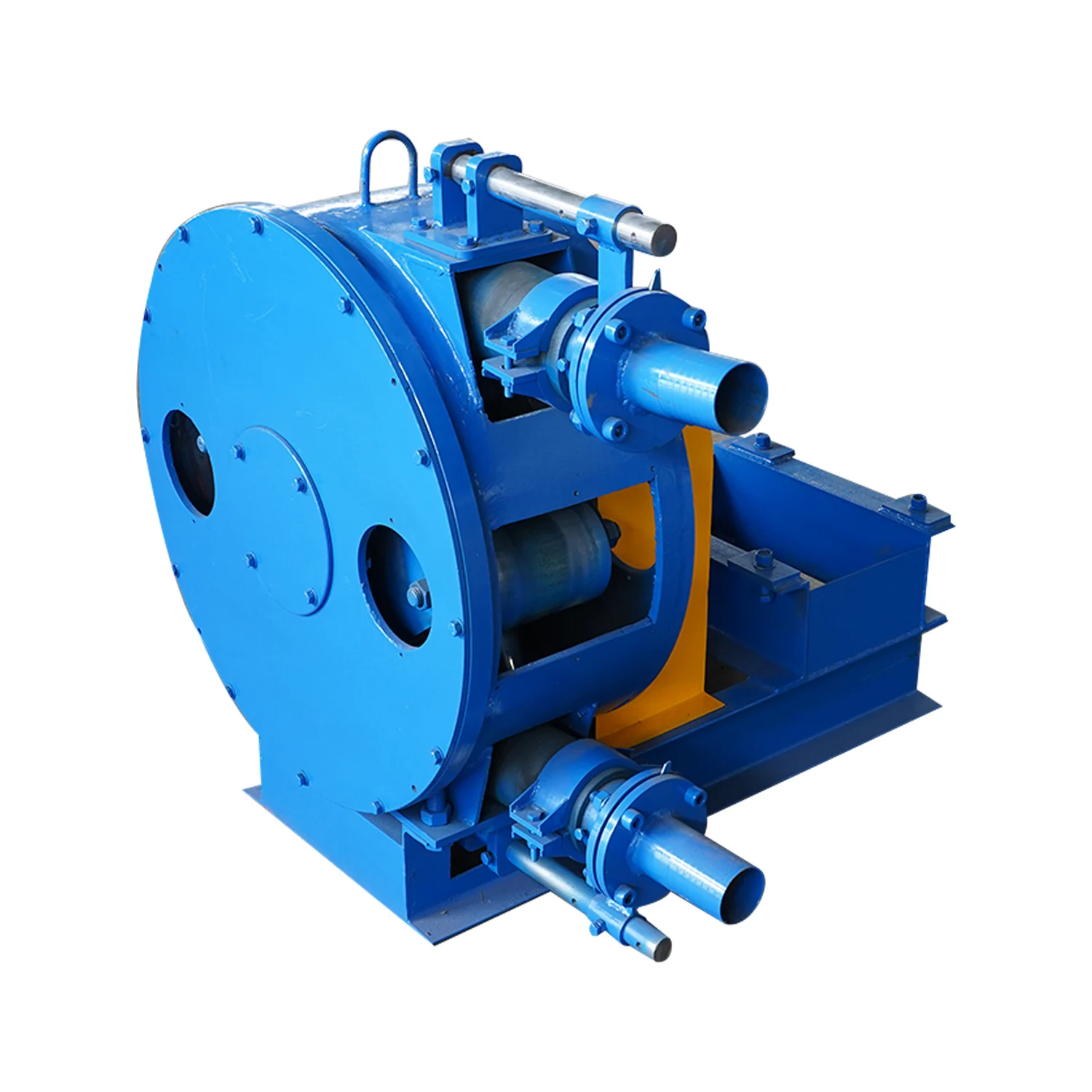

Machine part:Pump+pipe
Introduce : After the mixer mix the raw material well then the workers use the pump and pipe to cast the slurry into the mould car
Features:The pump is to make the pouring more even, no need to vibrate, and the working platform will be clean and the material will not be wasted.

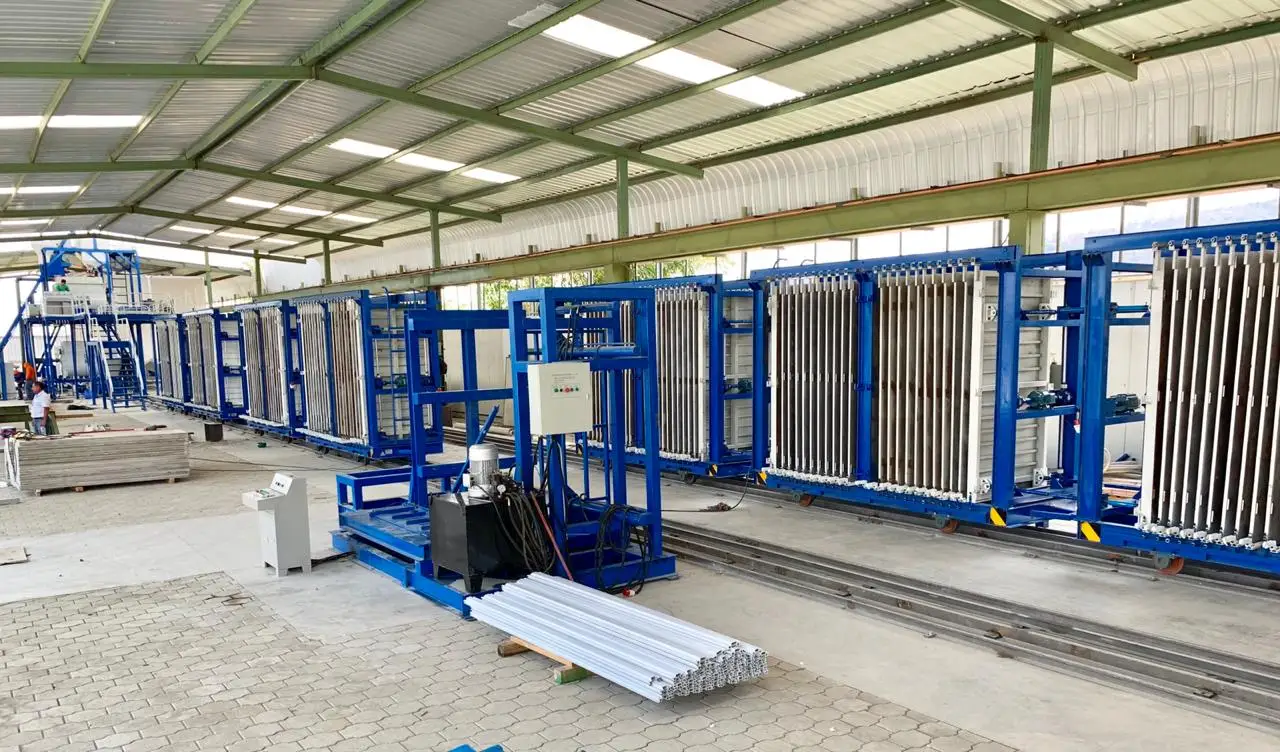

Machine part: Automatic mould car
Machine part:Automatic demould system
Introduce : it include two parts automatic opening and closing machine and automatic demoulding machine .
Process:Firstly use opening and closing machine to open the moulds then use the demoulding machine to pull out the panel then put them together and turnove them so as the forklist to move the panels
EPS forming system

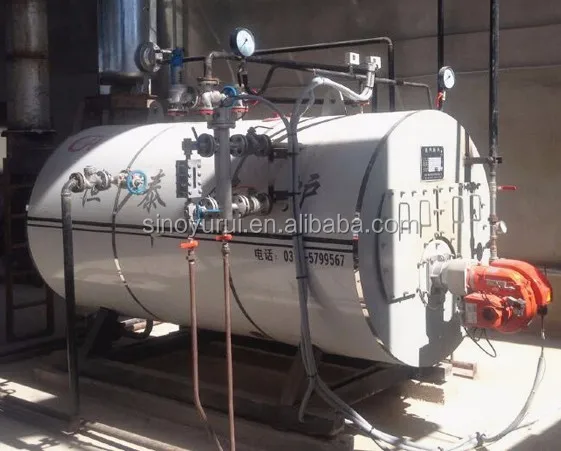

Machine part:The Boiler system
Introduce:The boiler will supply heat for EPS foam
Feul:coal (need burner),gas ,oil

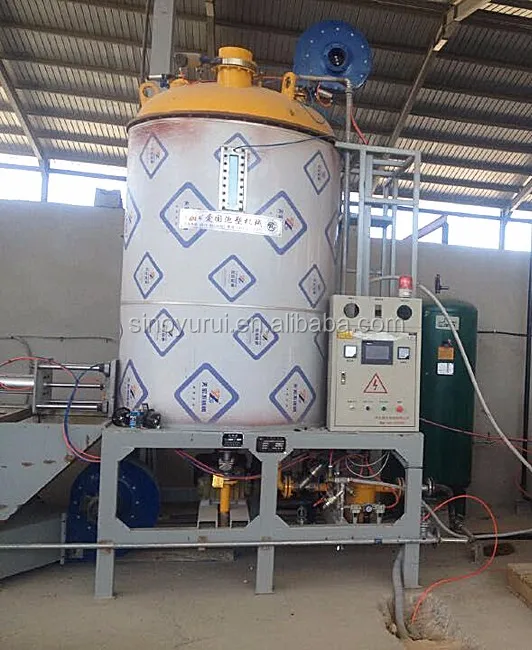

Machine part: EPS foaming machine

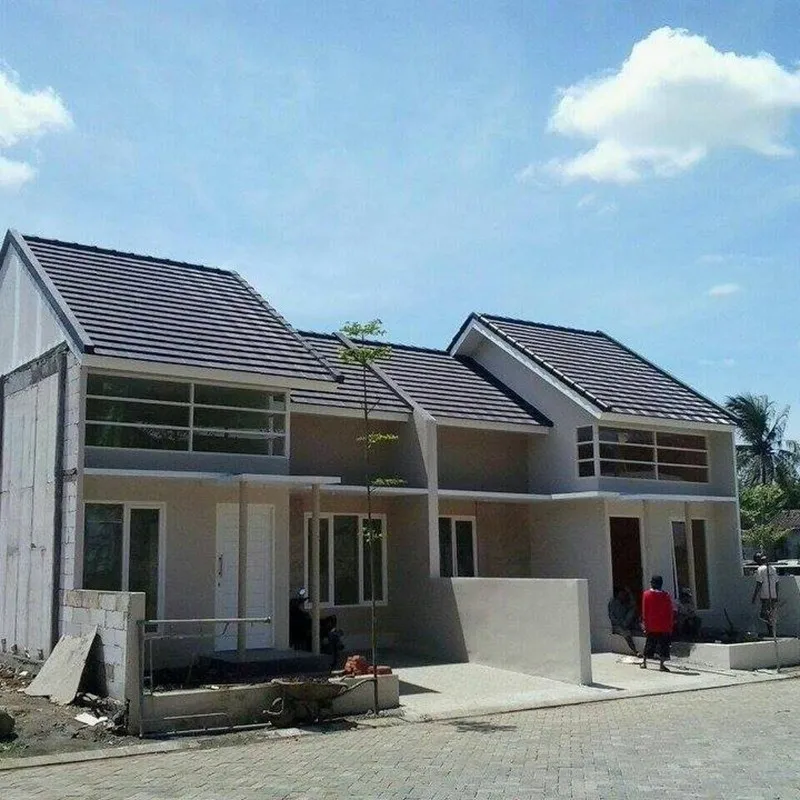

Finished wall panel type
ceramsite composite wall panel
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine.
lighweight wall panel with calcium silicate board
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine.
lighweight cement solid wall panel
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine.
