OYADE Brand Semi Automatic KN95 Mask Machine Manufacturer

FOB Price

US$ 109,000 - 123,760 / Set

1 Set(Min. Order)

Port Qingdao
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	OYD	Place of Origin	Shandong, China
Certification	CE
Warranty	1 Year	Weight	2tons
Dimension(LWH)	8700x1600x2200mm	Condition	New
Voltage	220V, 220V	Automatic Grade	Automatic

Product Description

Equipment Introduction
This is a fully automatic machine for the production of folding mask production lines. Using ultrasonic technology to weld 3 to 6 layers of PP non-woven fabric, melt-blown fabric, activated carbon and filter materials. It is an all-in-one fully automatic folding mask production line for welding, folding, edge sealing, rolling and cutting nonwoven fabrics. It can process 3M 9001/9002 and other folding masks. Depending on raw materials used, the masks produced can meet different standards such as FFP1/FFP2/KN95.
No manual operation is required during the whole process, which can minimize the waste of materials and effectively ensure the quality of the masks produced. All products are produced by mechanization.

Details Images

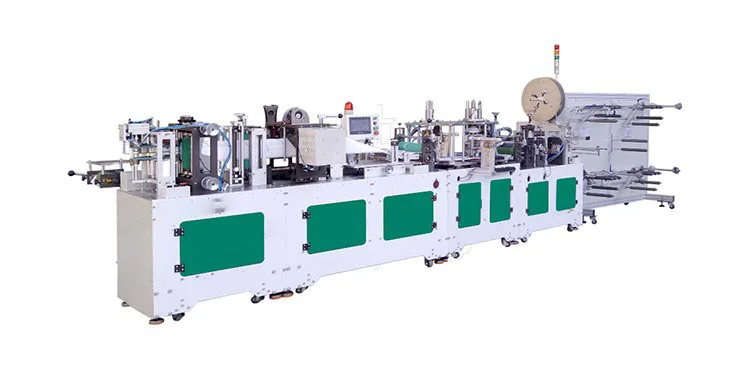

Product Name	KN95 Fully Automatic Mask Machine Production Line
Machine size	8700（L）x1600（W）x2200（H）mm
Voltage	220V

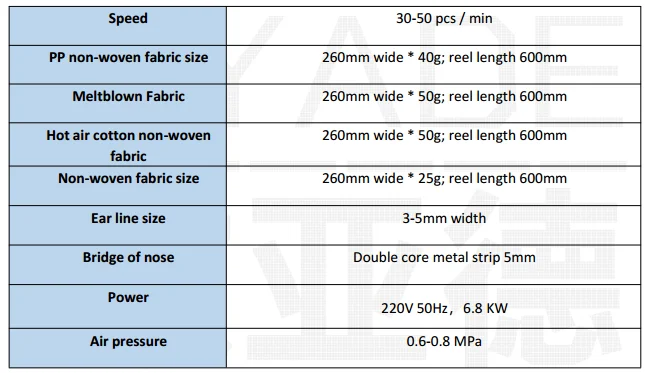

Equipment parameters

EQUIPMENT DETAILS DIAGRAM

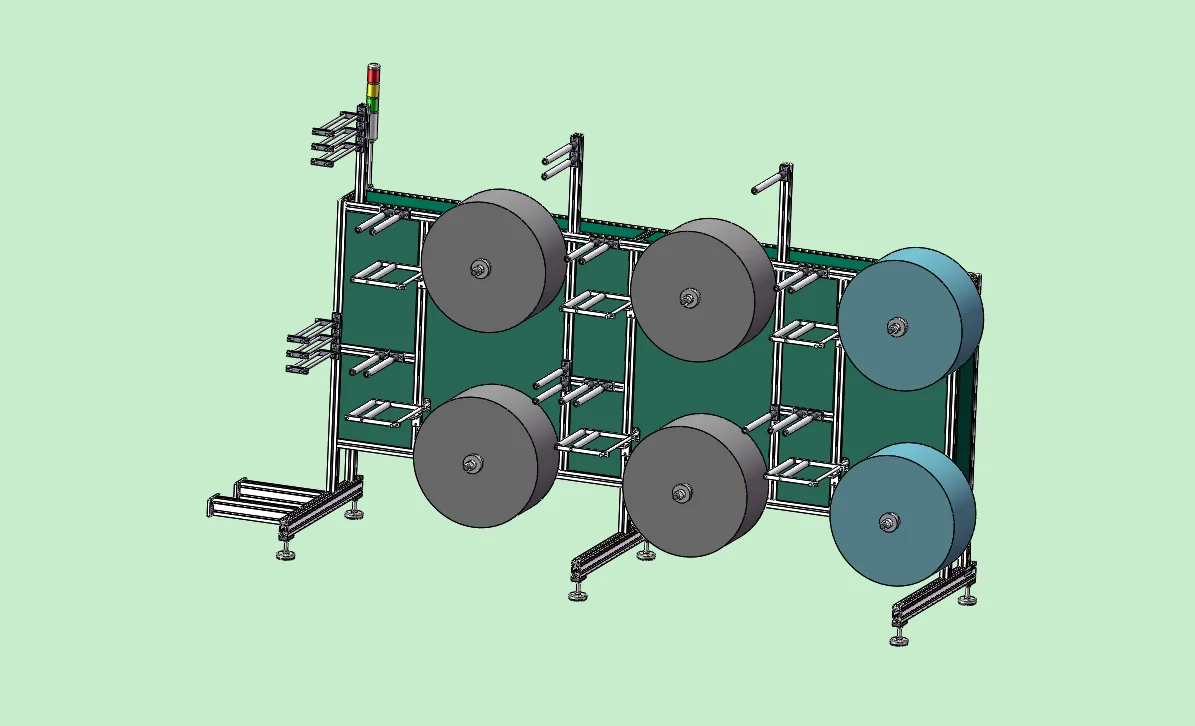

Feeding device

Adopt active unreeling, automatically unreeling according to the position of tension roller.

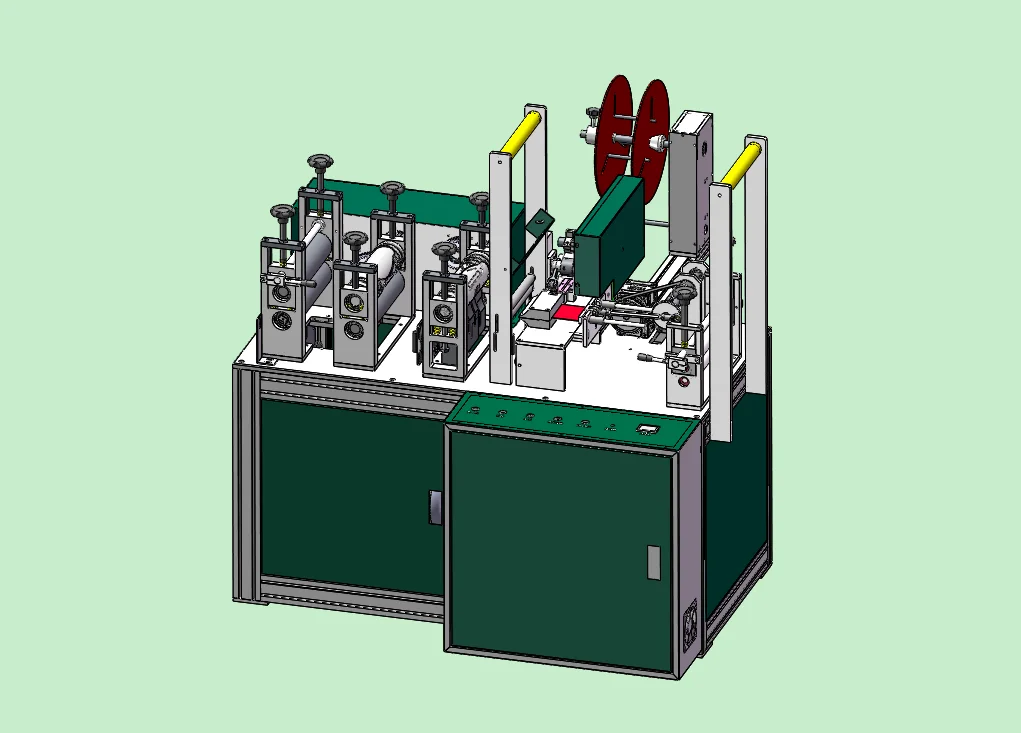

Nose bridge welding

Nose bridge welding module: Including nose bridge unreeling, nose bridge leveling, fixed-length conveying, cut, welding.

Fabric composite seam-weld: Adopt ultrasonic welding head and steel welding; the roller depth of parallelism and positional accuracy is adjustable, welding system has a cooling function.

Ear band welding

Adopt ear band (not headset), entire fabric feeding, after the control of drive and tension, fixed length cutting, adjustable length of the ear band, using ultrasonic welding

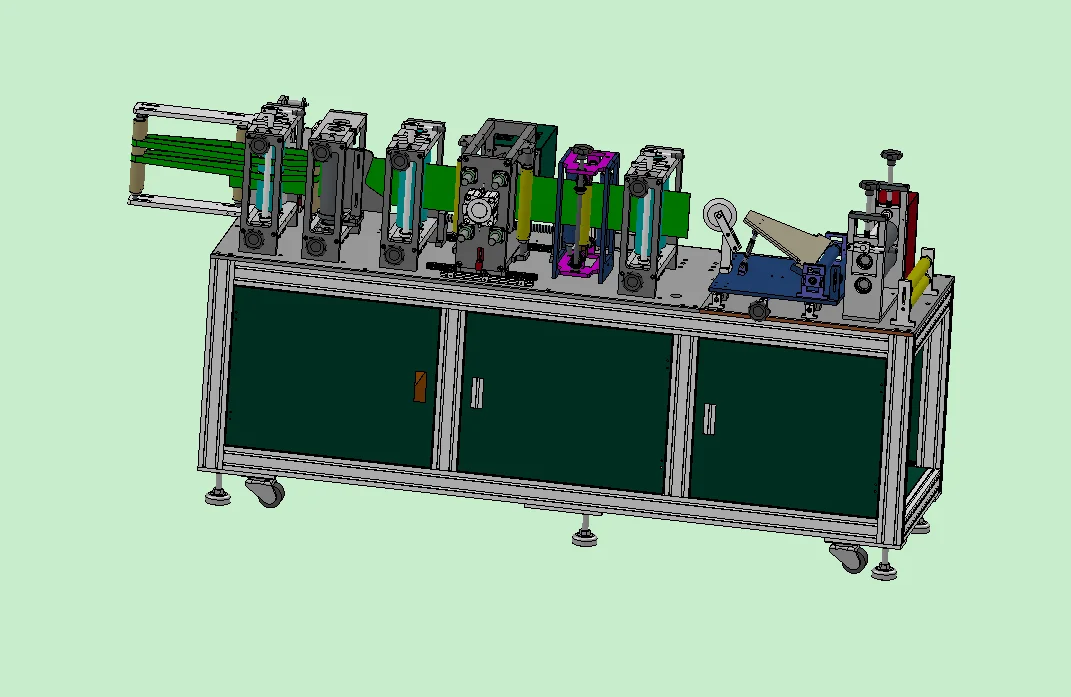

Molding machine

The molding machine includes folding unit, cutting unit, welding unit and puller drive unit. Folding unit: Adopt adjustable triangle plate, height and angle can be adjusted to ensure that the mask is folded and neutral. Cutting unit: knife pad, pressure can be adjusted; materials: high-speed steel. Molding welding unit: Using ultrasonic welding, the welding is firm and the pattern is clear; the pressure of the welding system is adjustable, it has a cooling device, and the technical parameters are adjustable.Puller drive unit: The servo motor is used to control the main driving roller to drive the cloth, which runs smoothly and the pressure is precisely adjustable.

Feature

1. The frame is made of aluminum alloy and bright chrome steel, which is light and beautiful
2. Automatic counting can effectively control production efficiency and production schedule.
3. PLC control system, simple and fast operation, stable and reliable operation
4. Pull the tube into the material and position more accurately, which can control the
width of the raw material to a minimum and save costs.
5. Uniform control of finished product length and size, deviation ± 1mm, can effectively
control finished product length.
6. High degree of equipment automation, low requirements for operating staff. Just
need to load and sort the finished product.
7. The automatic ultrasonic welding wheel is made of imported alloy steel Cr12, which
prolongs the service life of the mold and is durable

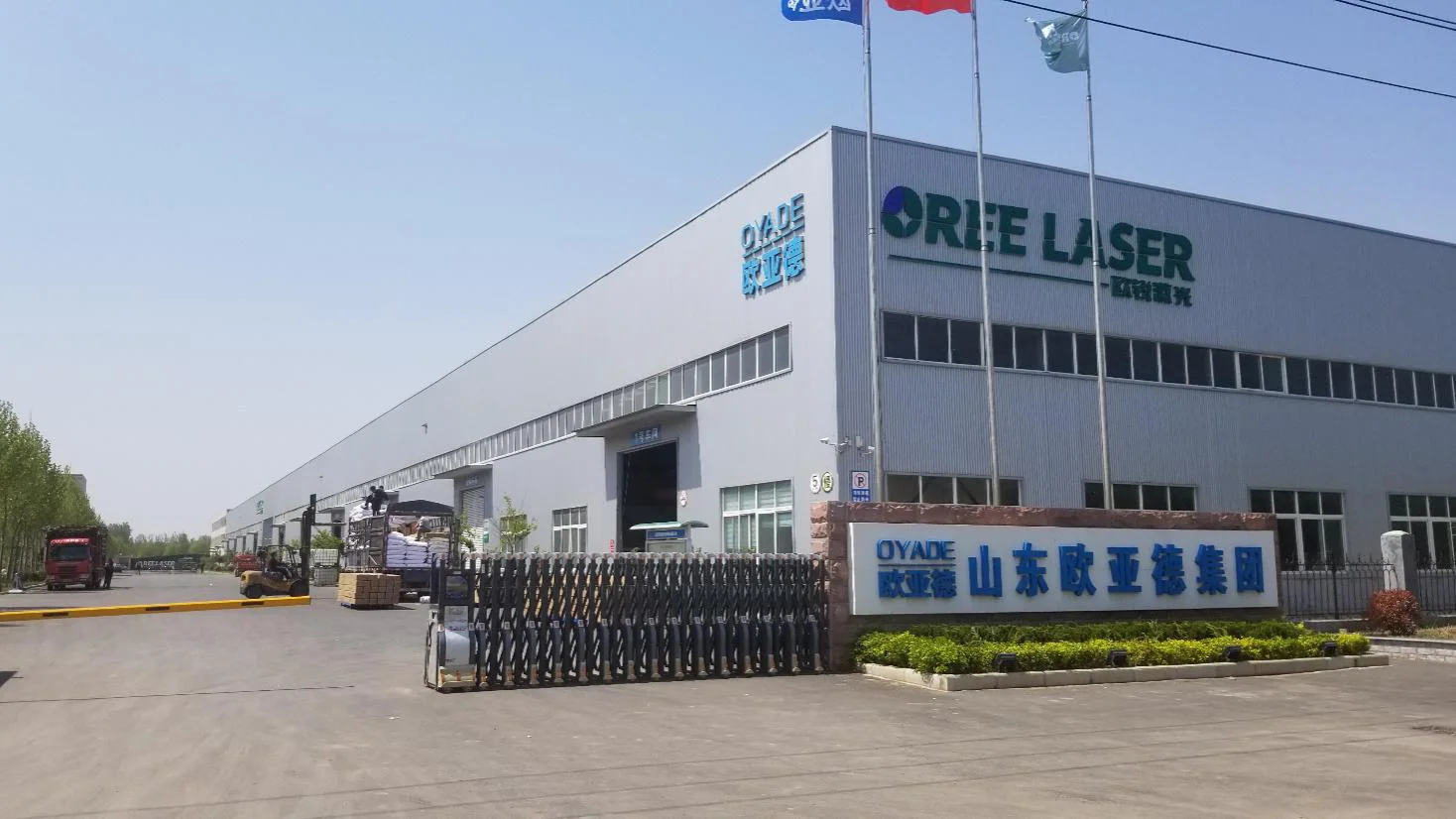

Our factory

We are a responsible manufacturer of machines in China since 2008. With 66000 sqm land and 500 workers in Jinan city Shandong Province. Now we are producing the machine by ourselves exactly. So both for the price and delivery time, we can be ensured for you. For 12 years' experience in the production of machines, we always put the quality and after-sales service at the top position.
