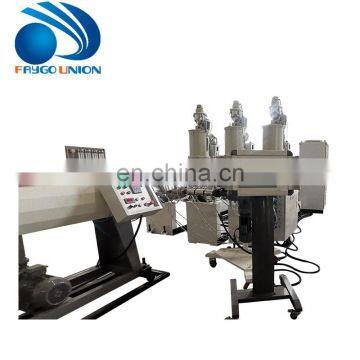

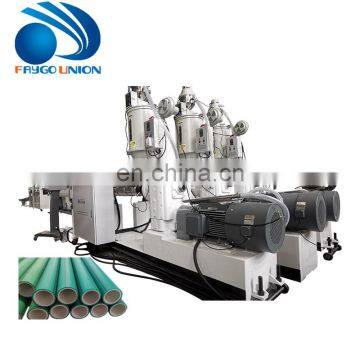

pp ppr plastic pipe making machine 20-63mm multi-layer extrusion production line for water supply

pp ppr plastic pipe making machine 20-63mm multi-layer extrusion production line for water supply

Product Application

PP-R Pipe machine is mainly used in the production of agricultural drainage, water supply and drainage, and cable laying,etc. purposes. The unit consists of single extruder machine, mold, vacuum forming tank, multi-claw haul-off machine, planetary(chipless/non-dust cutter) cutting machine, stacker and so on. And the line can be equipped with Comptroller thickening instrument or computer ink-jet printer, etc. to achieve the production and manufacture of high-grade tubing.

Main Features

Why we produce three-layer pipe instead of single layer:
1. Reduce the production cost. Ususally middle pipe layer will use recycled material, it will reduce your raw material cost, and will not affect the pipe quality.
2. Increase the pipe toughness. Some customer will use glass fiber material in the middle layer, it will be increase the pipe toughness.

Single screw extruder

Drive motor: Siemens Beide motor

Inverter: ABB

Temperature control: Omron

Contactor: Siemens

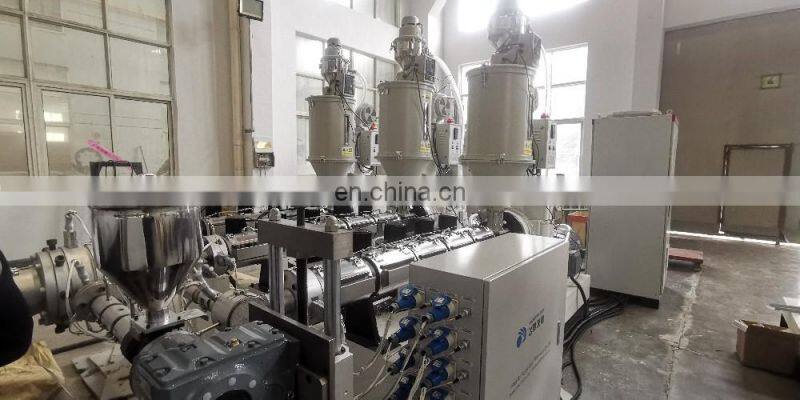

For 20-63mm three layer pipe machine, if you have specific requirement for each layer percentage, we suggest you use three extruder co-extrusion, otherwise 2 sets extruder coextrusion is enough.

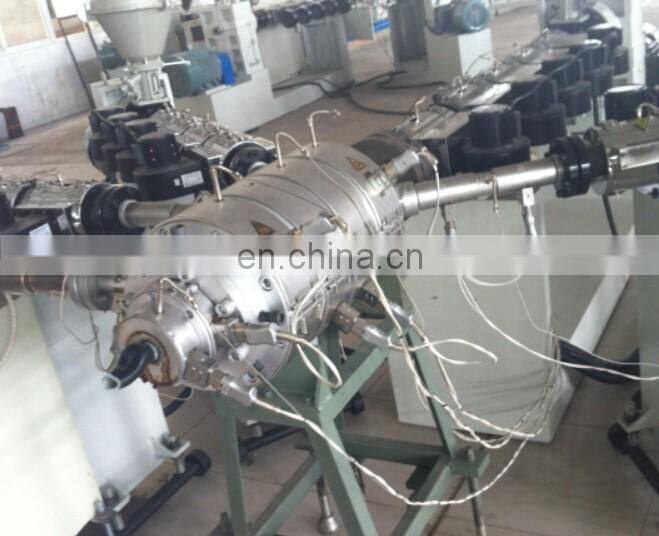

Extrusion mould

Material: 40Cr
Calibrator: Stainless steel
It will be much better if you can tell us the specific pipe size(pipe diameter & pipe thickness or pressure) you want to produce, then we can suggest you the most suitable machine based on your requirements.

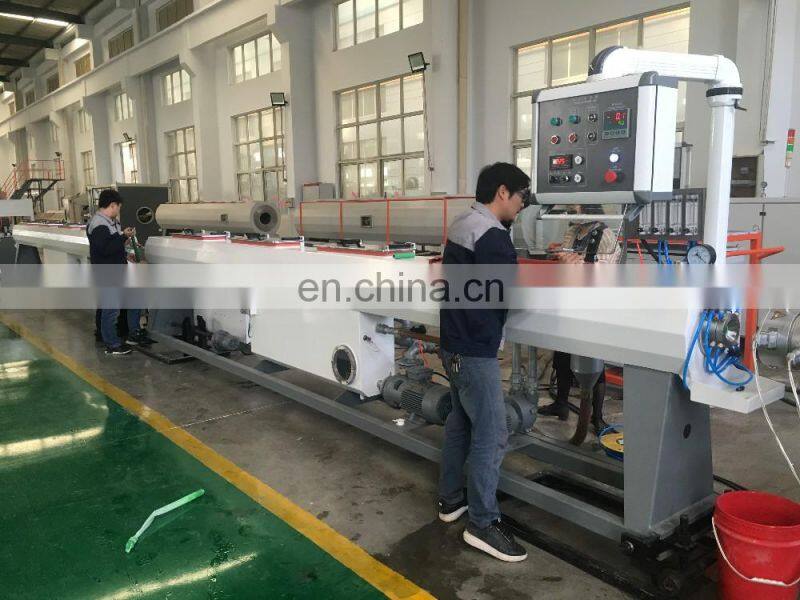

Calibration Tank

Material: Stainless steel
Tank Movement : Forth and back by motor driven Up and down by manual adjust

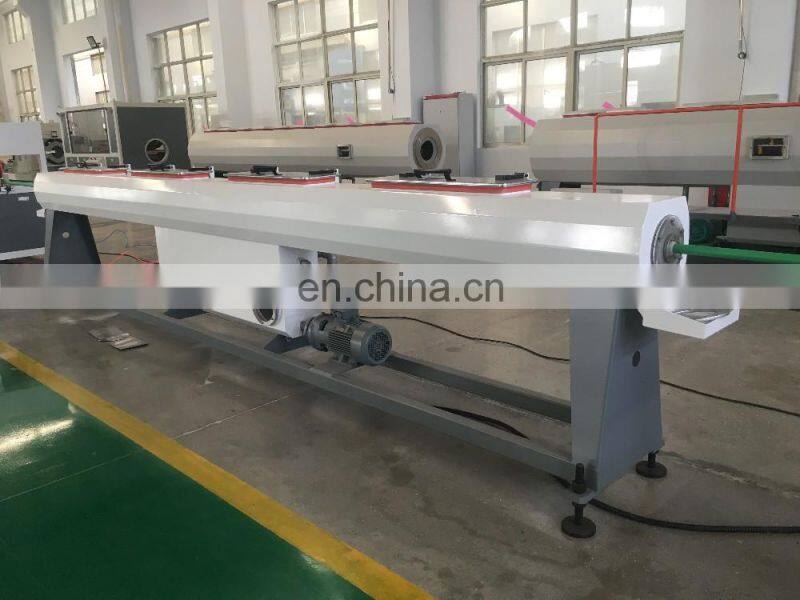

Spraying Cooling Tank

Material: Stainless steel
Length: 6m or customized

Haul-off Speed Adjustive: ABB inverter
Above Haul-off Bracket Compaction Mode: Adopt pneumatic gas cylinder

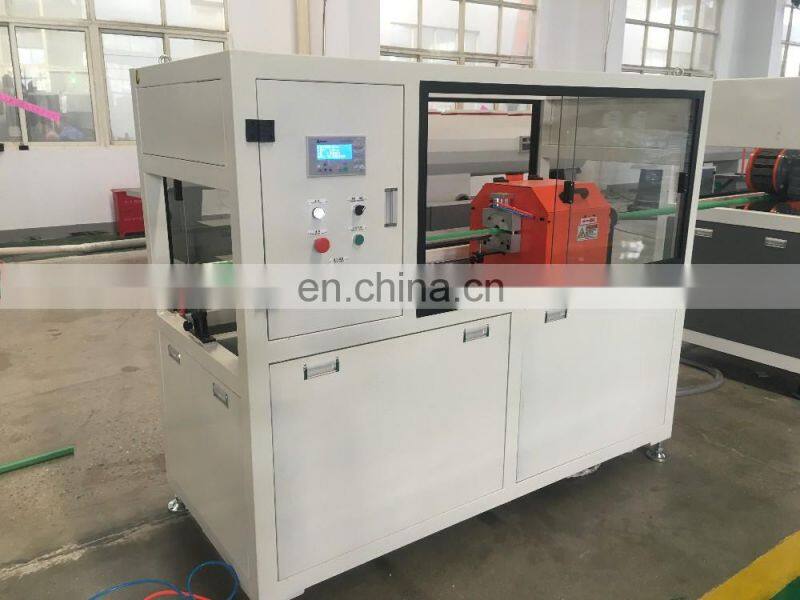

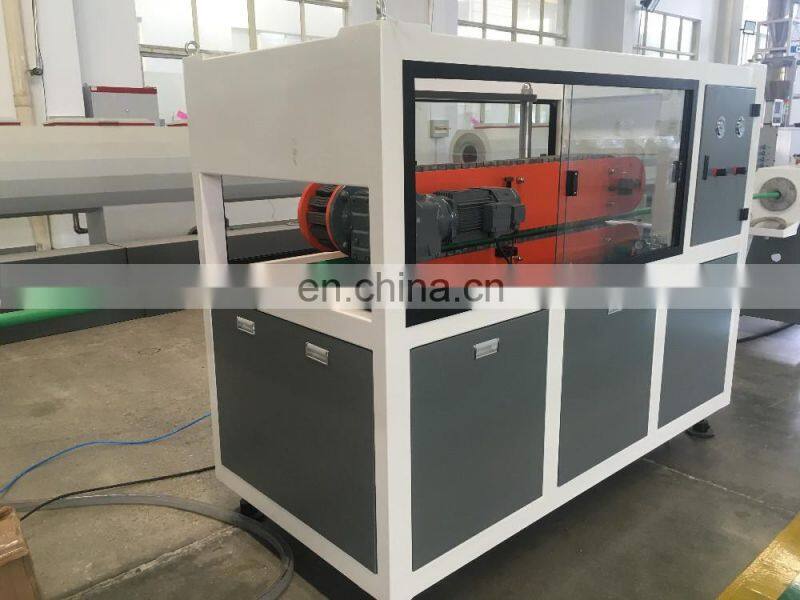

Cutting Machine

Cutting Saw: Adopt Alloy Steel Saw

Machine Type: No dust cutting machine

This type cutting machine can reduce the dust in your factory, and with lower norise.

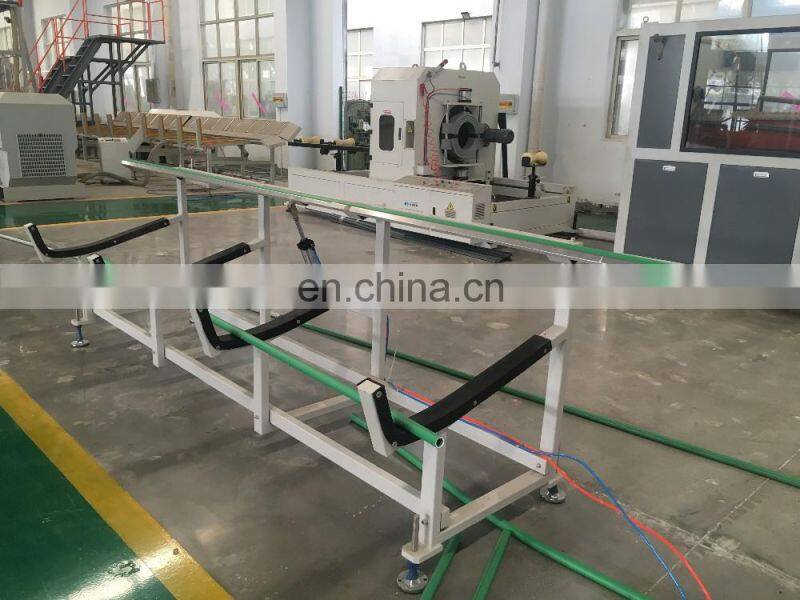

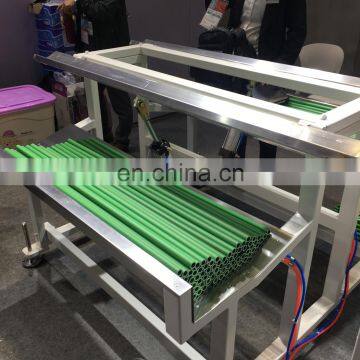

Stacker

Laying Board Material: 1.5mm Stainless Steel Board

Stacking Mode: Stacking by Gas Cylinder, adopt Limited Switch Send out Cutting Signal
