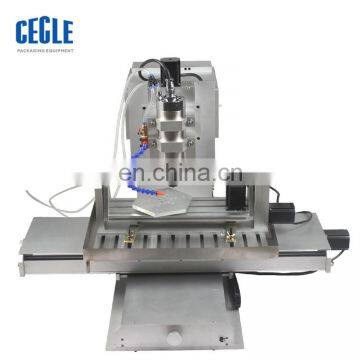

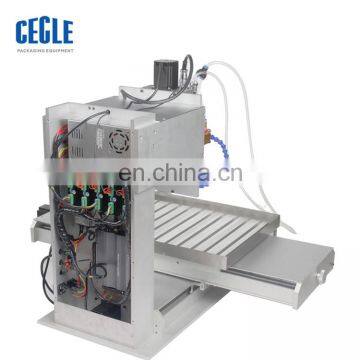

5axis Storm Cnc6040 Mini Cnc Metal Engraving Machine Price for Sale

Wenzhou T&d Packing Machinery Factory
5axis Storm Cnc6040 Mini Cnc Metal Engraving Machine Price for Sale thumbnail-1
5axis Storm Cnc6040 Mini Cnc Metal Engraving Machine Price for Sale thumbnail-2
5axis Storm Cnc6040 Mini Cnc Metal Engraving Machine Price for Sale thumbnail-3
5axis Storm Cnc6040 Mini Cnc Metal Engraving Machine Price for Sale thumbnail-4
5axis Storm Cnc6040 Mini Cnc Metal Engraving Machine Price for Sale thumbnail-5
5axis Storm Cnc6040 Mini Cnc Metal Engraving Machine Price for Sale thumbnail-6
5axis Storm Cnc6040 Mini Cnc Metal Engraving Machine Price for Sale photo-1
5axis Storm Cnc6040 Mini Cnc Metal Engraving Machine Price for Sale photo-2
5axis Storm Cnc6040 Mini Cnc Metal Engraving Machine Price for Sale photo-3
5axis Storm Cnc6040 Mini Cnc Metal Engraving Machine Price for Sale photo-4
5axis Storm Cnc6040 Mini Cnc Metal Engraving Machine Price for Sale photo-5
5axis Storm Cnc6040 Mini Cnc Metal Engraving Machine Price for Sale photo-6
US$ 2,799 - 2,799 MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
CECLE
Place of Origin:
Zhejiang, China
Certification:
CE
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name CECLE
Place of Origin Zhejiang, China
Certification CE
After-sales Service Provided Engineers available to service machinery overseas
Warranty 1 Year
Weight 114kg/122kg
Rated Power 2200W/1500W
Condition New
Engraving Speed 0-4000mm/min
Dimensions 855 *875 *600mm
Main Axle Rotational Speed 2400rpm
Related Products

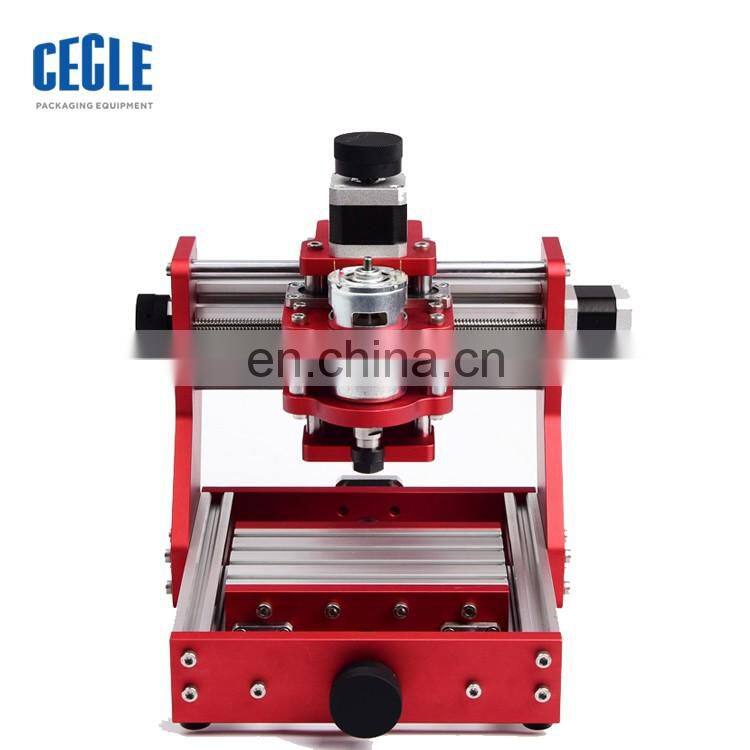

CNC1310 3-axis


CNC3040 5-axis


CNC3040 Steel structure

CNC3018 3-axis

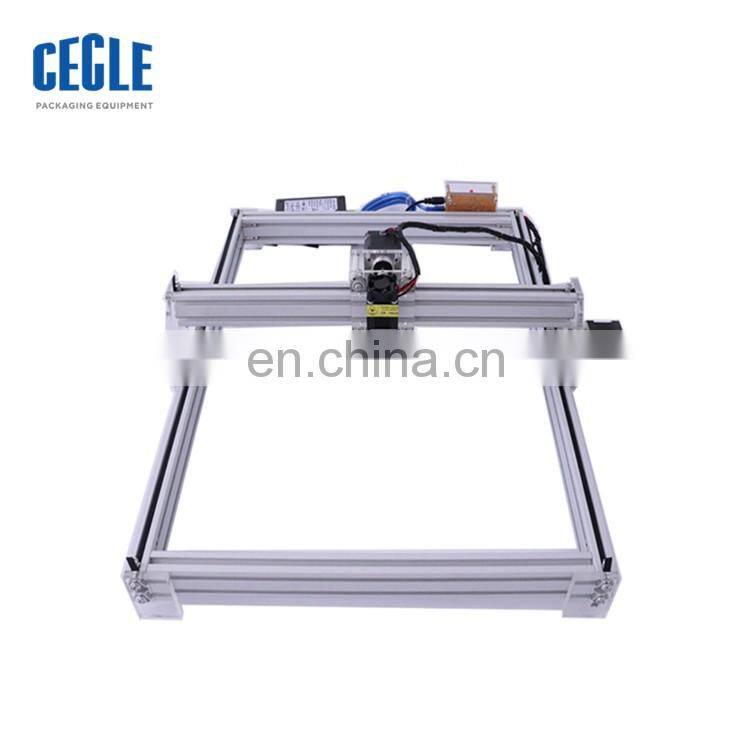

CNC1720 Desktop laser


CNC4050P Desktop laser


Product Description
Model
CNC6040
Working table size
742mm* 480mm
Effective journey
583 (X) mm*420(Y) mm*145 (Z) mm

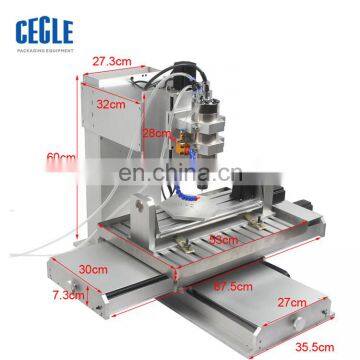

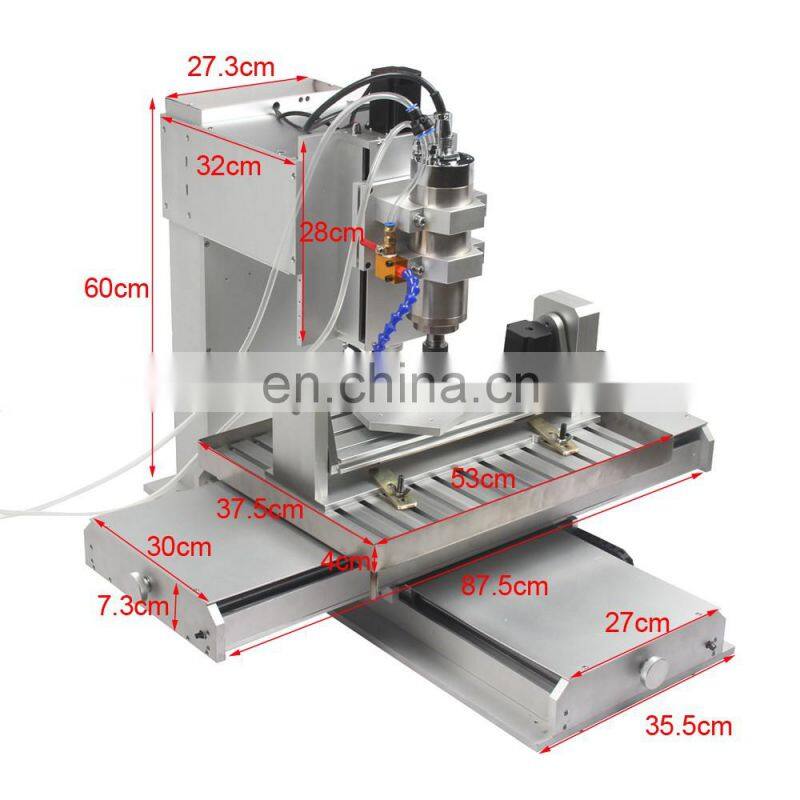

Machine size
855 *875 *600mm
Acceptable material size
≤150mm
Drive unit|X/Y/Z/A/B axis
SFUR1605 -DFC7-P0 ball screw
X-axis
diameter 20mm chrome plate shaft
Y-axis
16mm diameter chrome shaft
  Z-axis
chrome-plated shaft with a diameter of 13mm

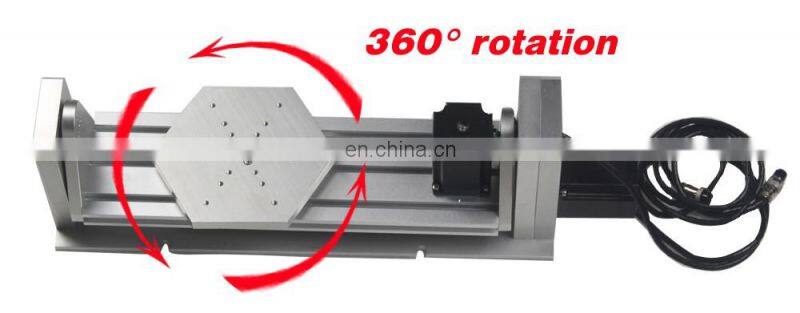

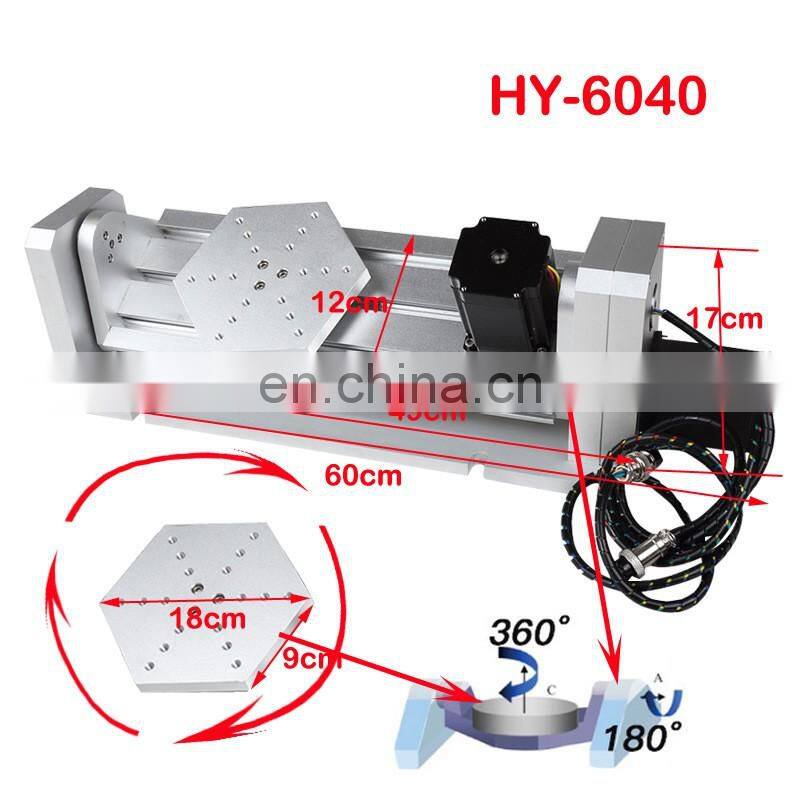

A-axis (rotary axis)
rotation angle is unlimited 360°
B axis (tilt axis)
rotation angle +30/-90

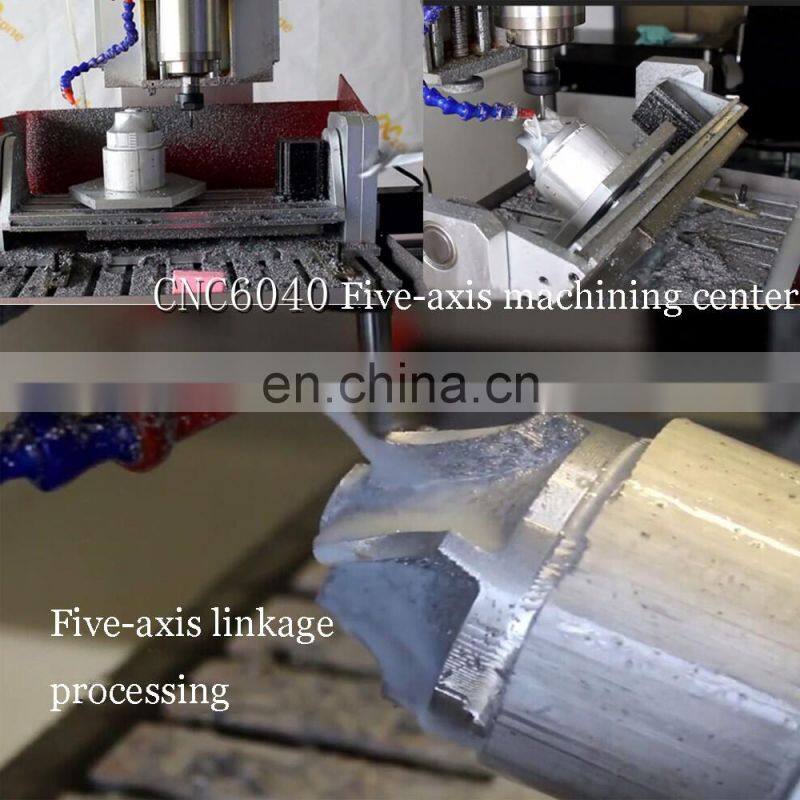

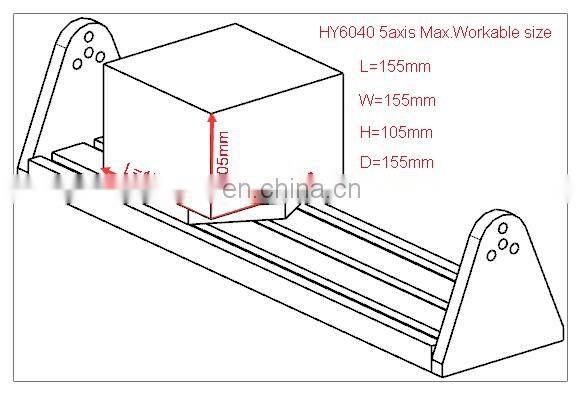

5-axis working stroke
155 (X) mmi*155 (Y)mm*105 (Z)mm 306° 30-90 ° Diameter 180mm

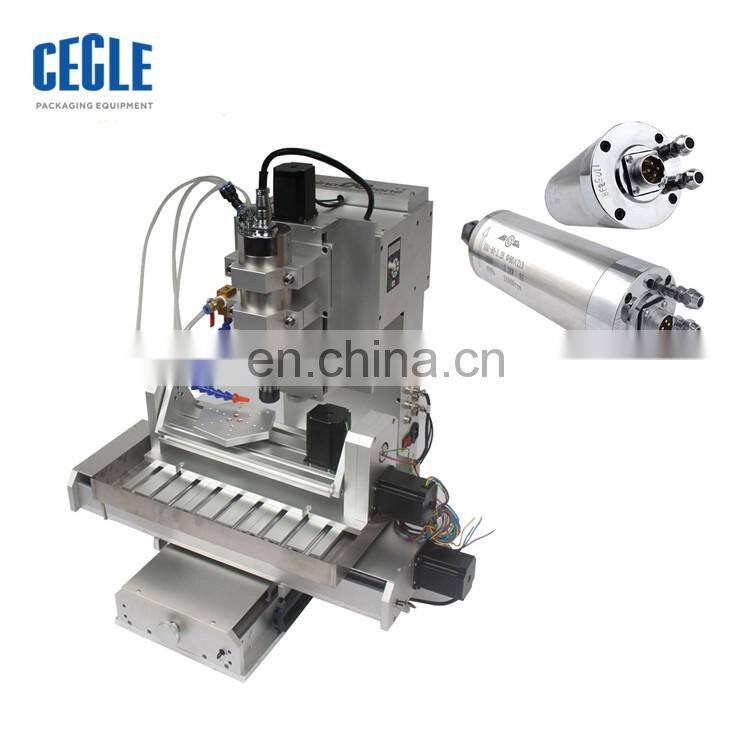

Spindle motor
water-cooled spindle, 2400RPM
Spindle chuck
 ER-20 1-13mm
Repeatability accuracy
0. 05mm
Spindle accuracy
 0.03mm
  Maximum speed
 0-4000mm / min
Computer connection
USB port
Code file format
 x_t /stp/ igs /catia/ prt/model format
Protection
emergency stop button
Working voltage
 AC220V / 110V
  warranty
one year

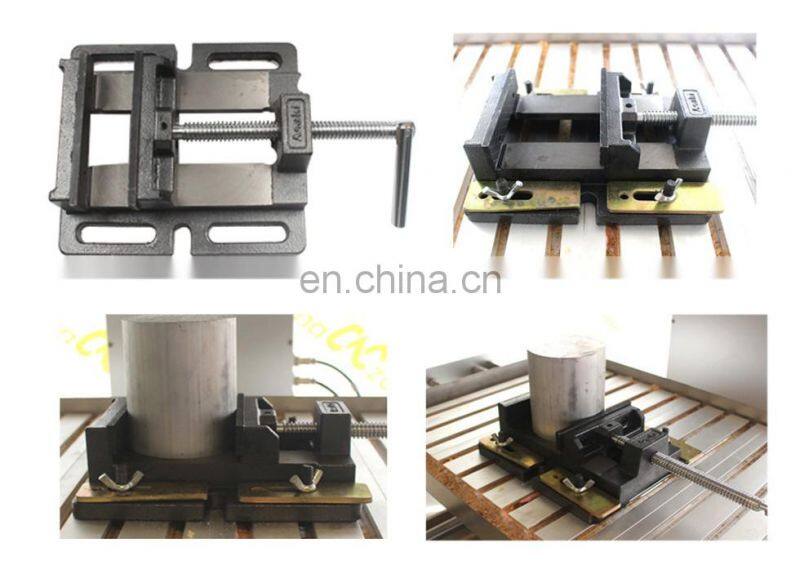

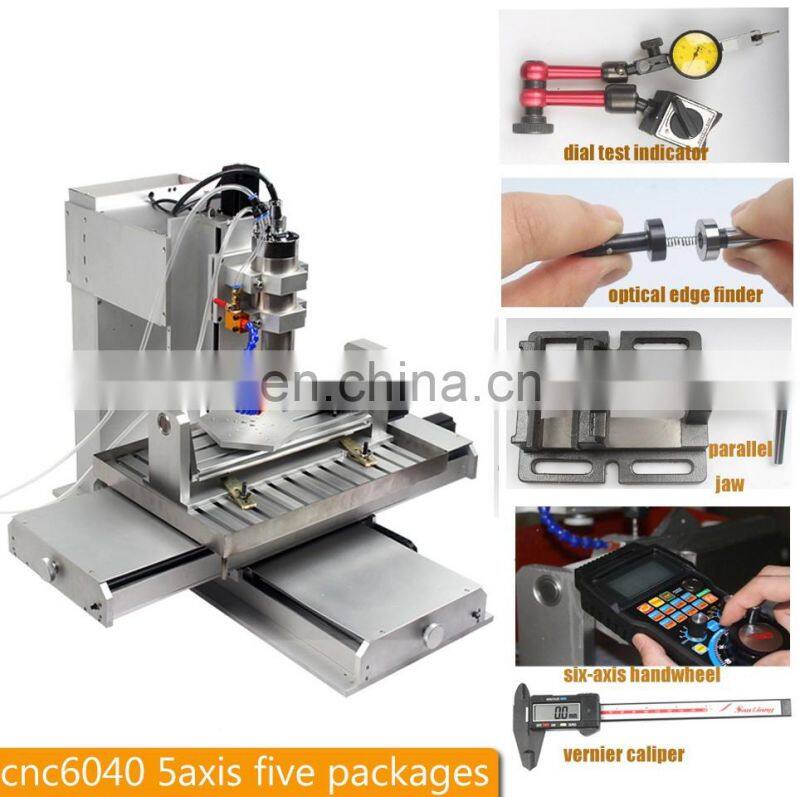

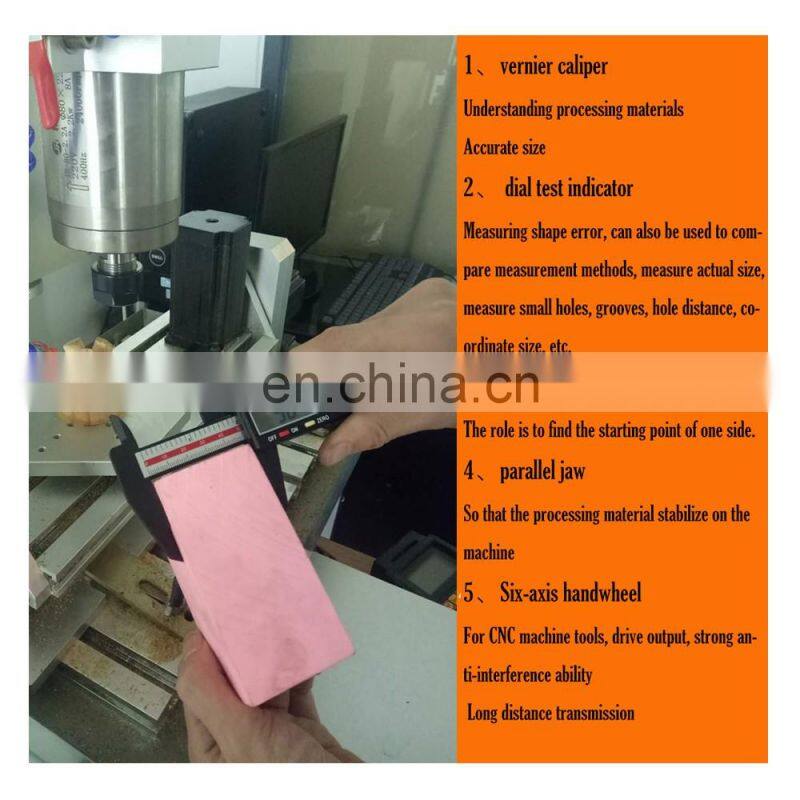

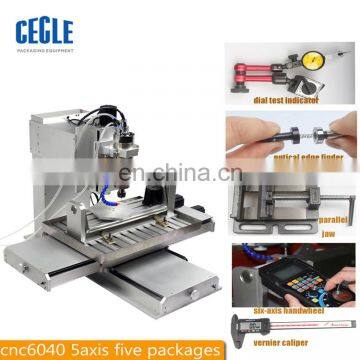

Accessories
cutters, pumps, etc.
  Packing size
wooden case, 109*91*56cm
Power
1500W/2200W
Gross weight
114kg/122kg(5 packages)

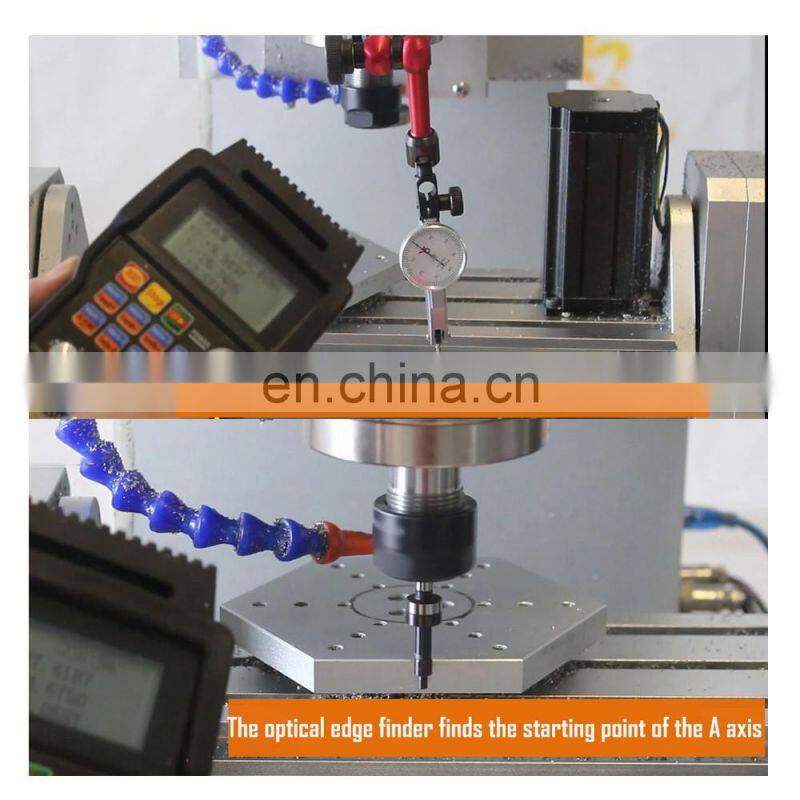

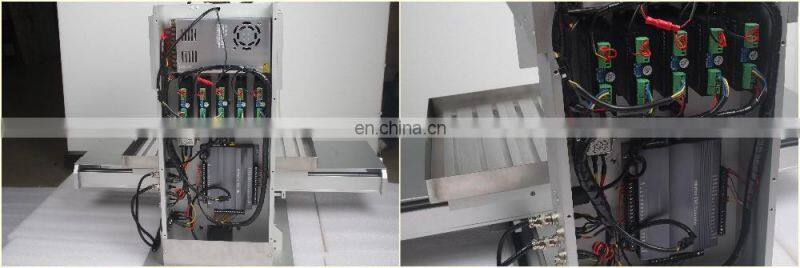

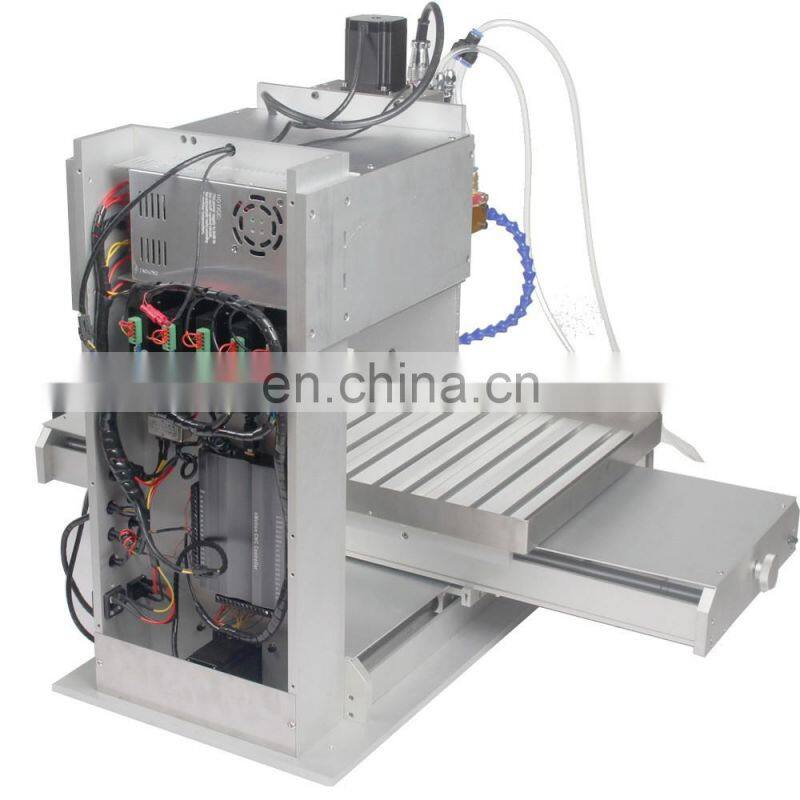

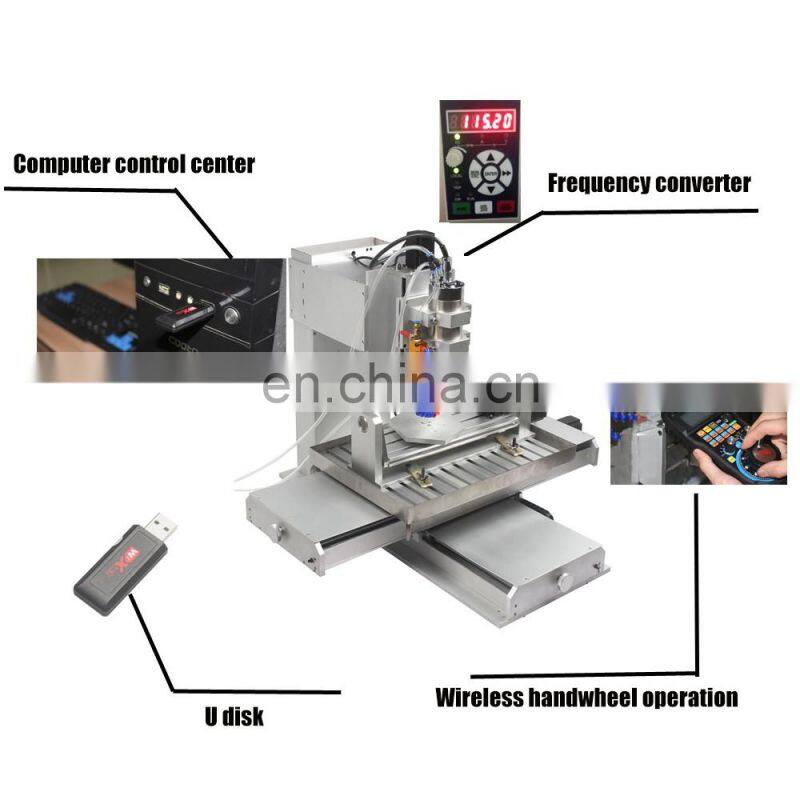

Detailed Image
Our Company
Certifications
Our Business
FAQ

Q: Are you a factory or a trading company?
A: We are factory manufacturing packaging machines and we provide perfect OEM and after-sale service.

Q: Can you send me the video to show how the machine works?
A: Certainly, we have made video of every machine and uploaded them to Youtube.

Q: How can I know your machine works well?
A: Before delivery, we shall test the machine working condition for you.

Q: How can I know your machine is designed for my product?
A: You can send us samples of your product and we test it on machine.

Q: How can I pay my order?
A: We accept T/T, Western Union paying methods. For those orders less than 500USD, we accept PayPal to pay.

Q: Do you have a CE certificate?
A: For every model of machine, it has a CE certificate.
