Home > Products > Ice rink products > XL Hockey Shooting Pad 30'' x 60'' | Off-Ice Training Board Ice Hockey Tile

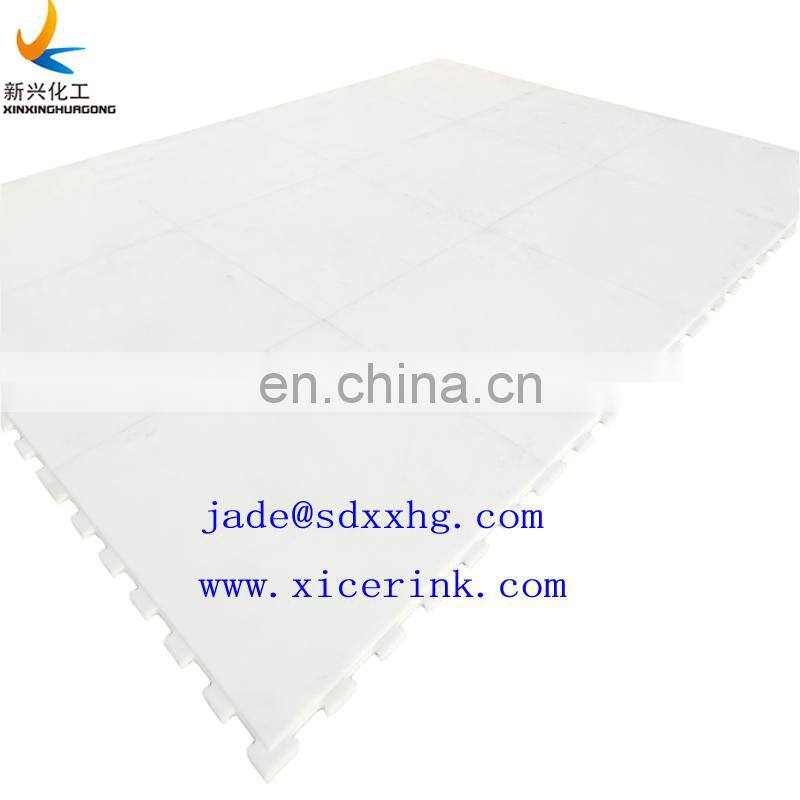

XL Hockey Shooting Pad 30'' x 60'' | Off-Ice Training Board Ice Hockey Tile

FOB Price

US$ 19 - 20 / Sheet

100 Sheets(Min. Order)

Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	XINXING,ice rink boards	Place of Origin	Shandong, China
Model Number	Xinxing, ice rink boards
Size	1500x750x4mm or cut to size	Thickness	10-250mm

Product Description

XL Hockey Shooting Pad 30'' x 60'' | Off-Ice Training Board ice hockey tile

synthetic ice arena,roller skating surface,hockey rink barrier,plastic barrier boards

roller skating court flooring,hockey roller skates flooring,PE board ice rink barrier

Xinxing is high tech manufacturer and installer of aluminum framed skating arena rink boards and dasher boards systems for hockey ice rinks, figure skating, inline skating, soccer, lacrosse, football and related accessories.

Available as either steel or aluminum construction, all of our dasher board systems are custom designed, manufactured and installed by us to your specifications. When you purchase a dasher board system from XINXING CHEMICAL you are guaranteed to get the best quality product at a competitive price.

Retrofit or new construction
Aluminum and steel dasherboard systems
Permanent and portable systems
Stainless steel hardware standard on all systems
Powder coated panels available any colour for both aluminum and steel frames
Prefabricated or on-site build
Demountable systems for easy conversion in multi-purpose facilities
Supported or seamless systems available
Contact us today to discuss your needs or to receive a quote based on your specific requirements.

Product Pictures

Product Description

Did you see the dasher boards? Its material is HDPE and UHMW-PE, it includes panel, steel frame, steel triangular support, handrail and screw. The detailed specification will be made according to your detailed

requirement.

Every piece is hand crafted by expert tradesmen with the highest quality materials to ensure quality and durability and comes with a 5 year warranty. Ideal for either indoor or outdoor backyard rinks, arenas, commercial or residential projects. Easily transported and assembled and stored in the off season. Comes with all required connection hardware. Constructed of 1/2" thick high density polyethylene facing, specially treated for UV protection and warping.

Comes in 48''H standard heights. Modular pieces allow for complete customization and scalability for any size rink.
Custom lengths available on request.

Colour Options:

Blue Cap Rail, Gold Kick Plate, White Facing Colour
Blue Cap Rail, Red Kick Plate, White Facing Colour
Any color you want

Application:

Our XINXING HDPE(High Density Polyethylene) dasher boards allows for indoor and outdoor soccer, inline hockey, football, ice skating and other sports to be programmed in your building or outdoor with little changeover required.

The properties of HDPE :

Property	Unit	Value
Density	g/cm3	0.93-0.96
Average molecular weight	g/mol	3million- 10 million
Tensile strength (23°C in air)	MPa	22
Breaking strength	MPa	42
Tensile strain at break	%	600
Charpy impact strength (notched)	mJ/mm2	No break
Ball indentation hardness	N/mm2	42
Shore D hardness	--	65-70
Abrasion	%	70-80, steel = 100
Static Friction Coefficient	--	≤0.16
Kinetic Friction Coefficient	--	≤0.10
Water Absorption	--	NIL
Elongation at break at 23 degress	%	≥300
Temperature resistance	°C	-269 to +85
Melt Temperature	°C	130-140

POLY FACING

High density polyethylene puckboard, sheets for surfacing existing or new dasherboards
Thickness: .220″, .250″, .375″, .500″
Standard Sizes: 48″ x 96″ , 42″ x 96″
Custom sizes available
Colours: White, Red, Blue, Light Blue, Yellow, Gold
Options: UV stabilized, pre-drilled, countersunk

CAP RAIL & KICK PLATE

High-density polyethylene
Thickness: .500”, x .750”, 1.0”
96” lengths cut to size; straight or radius
Colours: Red, Blue, Light Blue, Yellow, Gold

Indoor Aluminum Dasher Board System

For proven quality and durability choose an aluminum dasher board system by XINXING. Our aluminum rink is proven to be the very best quality. From professional to community levels, we are confident we can accommodate all of your requirements.

Features & Benefits:

Available in 5″ and 6″ wide panels
Designed to withstand years of abuse
Ideal for conversion facilities
Fully welded design
Panels can be powder coated any colour if desired
The shielding system can be supported or seamless
Our flush mounted shielding system can be installed on all of our aluminum dasher board designs

Indoor Steel Dasher Board Systems

Our steel dasher board rink is designed to withstand years of abuse. It is suitable for all levels of hockey and has been the design of choice for many community level rinks.

Features & Benefits:

Available in 5″ and 6″ wide panels
Designed to withstand years of abuse
Ideal for facilities where conversions are not an issue
Fully welded design
Hot dipped galvanized coated after welding, for corrosion resistance
The shielding system can be supported or seamless
Our flush mounted shielding system can be installed on all of our steel dasher board designs

Outdoor Dasher Board Systems

outdoor series of dasher boards are designed to satisfy customers with all types of requirements. Whether it’s for inline hockey or ice hockey, our outdoor rink boards will suit your needs.

XL Hockey Shooting Pad 30'' x 60'' | Off-Ice Training Board ice hockey tile

Features & Benefits:

Available in 2″, 3″, 4″, 5″ and 6″ wide panels
Aluminum or steel construction
Designed for outdoor use
Fully welded design
Panels can be powder coated any colour if desired
The upper containment options are fencing, acrylic, or tempered glass
Board cladding can be UV Stabilized polyethylene or fibreglass
Available for your backyard rink!

Sledge Hockey dasher board

We are proud to include sledge-accessible dashers to our dasherboard line up. Our sledge hockey systems swap out the section of dasher boards in front of player and penalty boxes replacing them with clear acrylic panels. The bench area for both the player and penalty boxes are flush with the ice, enabling players to skate on and off the rink while in their sleds.

ice rink boards

XL Hockey Shooting Pad 30'' x 60'' | Off-Ice Training Board ice hockey tile

Raw Material/Factory

Packaging & Shipping

General packaging is carton plus stretch film, Pallets, wood packaging. Of course, any packaging can be made according to customer requirements.

Our Services

Any inquiry and comments please let me know! Thanks in advance!

skype: sdxxhg

QQ: 2759863635

Ms.Jade Young
