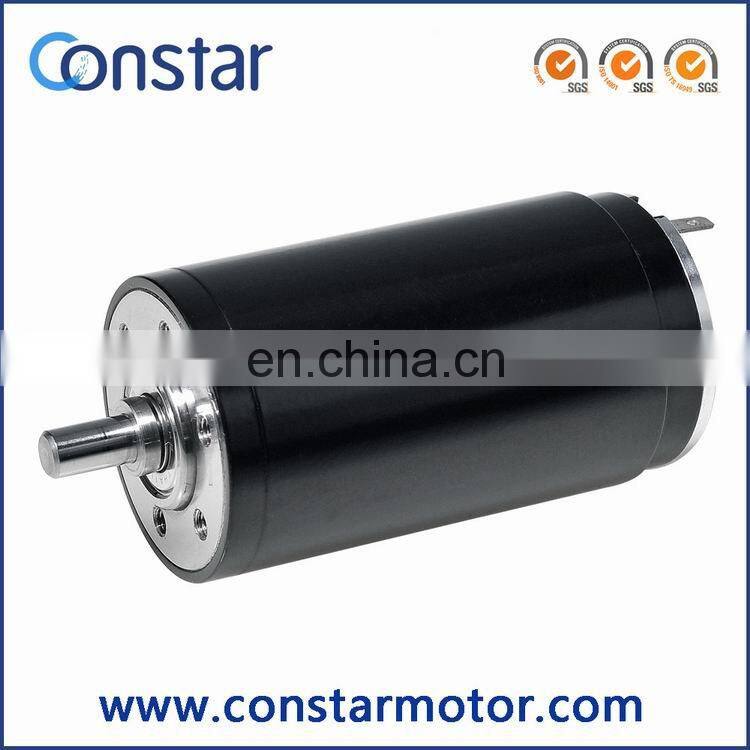

Shenzhen factory brush 12v dc motor 2000rpm high quality 24v 5000rpm motor
| CONSTAR MICROMOTOR | ||
| | |

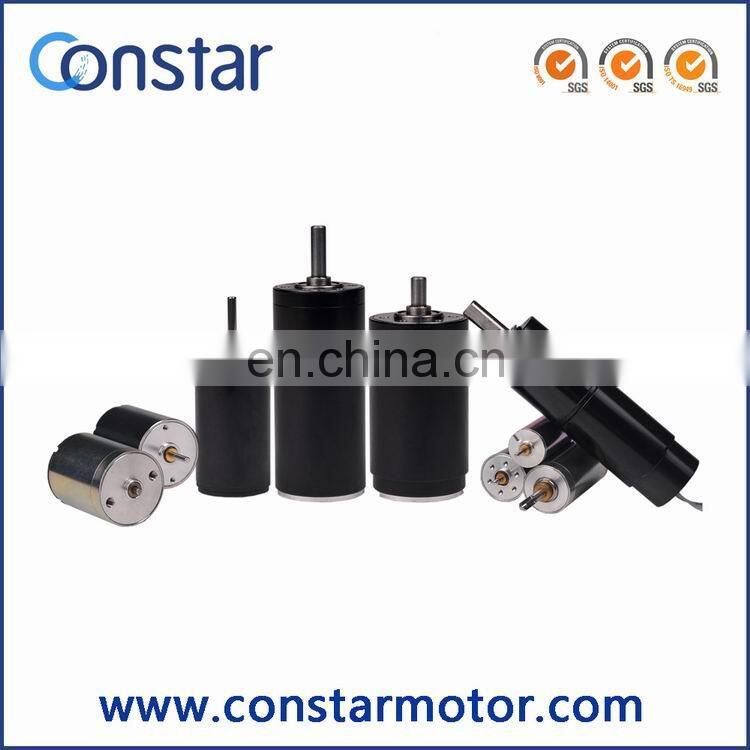

| PRECISION DC CORELESS MOTOR | BRUSHLESS DC MOTOR | SERVO MOTOR |
| | |
| GEARMOTOR | STEP MOTOR | MINI CORELESS MOTOR |
Precision driving field in medical, health care, automobile, industrial automation, etc.
The following are our standard products, we also provide customized products and service.
| -2-24.0 | |||
| 1 | Voltage | V | 24.0 |
| 2 | Rotor resistance | Ω | 2.2 |
| 3 | No-load speed | rpm | 5900 |
| 4 | No-load current | mA | 130 |
| 5 | Stall torque | mNm | 422.2 |
| 6 | Stall current | mA | 11000 |
| 7 | Nominal torque | mNm | 56.5 |
| 8 | Nominal speed | rpm | 5100 |
| 9 | Nominal current | mA | 1585 |
| 10 | Max. output power | W | 65 |
| 11 | Max. efficiency | % | 80 |
| 12 | Back-EMF constant | mV/rpm | 4.0 |
| 13 | Torque constant | mNm/A | 38.4 |
| 14 | Speed/torque gradient | rpm/mNm | 14.0 |
Lead wires length, Shaft length, Special coils, Gearheads, Encoder
| Series | Dimension (mm) | Voltage (V) | Termanal resistence (Ω) | No-load Speed (rpm) | No-Load Current (mA) | Torque Constant (mNm/A) |
|---|---|---|---|---|---|---|
| 1625RCG | Φ16*25 | 12 | 13 | 15000 | 25 | 7.4 |
| 1630RCG | Φ16*30 | 24 | 52.5 | 9500 | 15 | 23.5 |
| 1640RCG | Φ16*40 | 24 | 10.7 | 13700 | 60 | 16.3 |
| 2233RCG | Φ22*33 | 24 | 19.6 | 7600 | 20 | 29.7 |
| 2430RCG | Φ24*30 | 7.4 | 0.85 | 13700 | 180 | 5.1 |
| 2543RCG | Φ25*43 | 24 | 6.3 | 6300 | 25 | 36.1 |
| 3068RCG | Φ30*68 | 24 | 0.7 | 8500 | 150 | 26.9 |
| Φ30*68 | 36 | 1.5 | 8600 | 130 | 39.8 | |

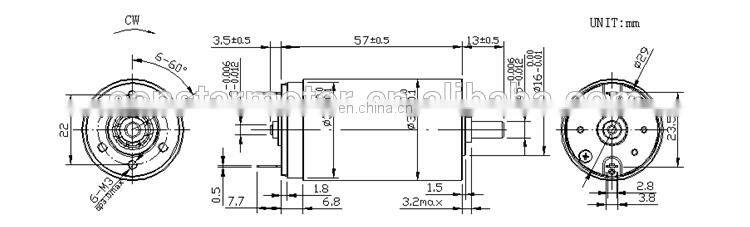

| 3257RCG | Φ32*57 | 24 | 2.2 | 5900 | 130 | 38.4 |
Customized Motor Solutions
CONSTAR MICROMOTOR specialize in design, custom and manufacture electric motors,including DC Coreless Motor, Sonic Motor, Brushless DC Motor, Gear Motor, Servo Motor, DC Core Motor and Mini Step Motor.All of them can be fully and easily customized . We committed to offer high quality, high performance, cost effective options to meet customers specific demands. Choosing to customize one of the motors in our Product Categories now!
