6v Smart lock motor N20 mini dc gear motor for clutch
USD $2.1 - $4.23
/ Piece
100 Pieces(Min.Order)
- 210000 Piece / Pieces per Month
- Shenzhen
- T/T Credit Card
You May Like
-
12v 37mm gear motor 60rpm dc electric motor with gear reduction 3530
-
3530 high torque 12v dc gear motor with 37mm gearbox
-
12 volt mini dc electric gear motors reductor 130VA for model trains
-
180SH electric brushed dc motor high torque low rpm Dia20mm gear motor
-
12v 180VA micro dc planetary motor hall sensor motor with Dia20mm gear box
-
M10 6v reduction toy motor 10mm diameter micro gear brushed dc motor home appliance
Product Details
| Brand Name | SFL | Place of Origin | Guangdong, China | |
| Model Number | 12GA298-N20VA-09180-9DK |
Product Description
Product Description
| MODEL | VOLTAGE | NO LOAD | AT MAX EFFICIENCY | STALL | ||||||
| OPERATING RANGE | Rated | SPEED | CURRENT | SPEED | CURRENT | TORQUE | OUTPUT | TORQUE | CURRENT | |
| r/min | mA | r/min | mA | g.cm | W | kg.cm | mA | |||
| 12GA298-N20VA-09180 | 1.5-6.0v | 6.0V | 65 | 55 | 53 | 166 | 780 | 0.426 | 3 | 830 |

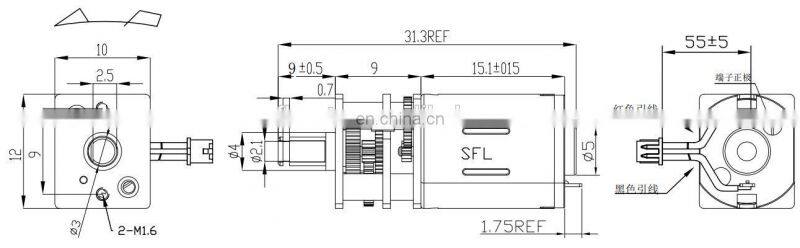

Appearance Size/mm
Production Process
Company Information
About us
- More than 50 sets automatic manufacturing equipment and detecting instruments.
- R&D engineer group with practised experience, and long-term customization
- Professional technical experience and reliable after-sale service
- Good cost control and high cost performance
- ISO9001 quality management system certification
- Up to 50,000 motors daily output
Our Services
Customization service as below are available
Packaging & Shipping
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 20-30 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: The sample fee is according to the stock and cost.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
