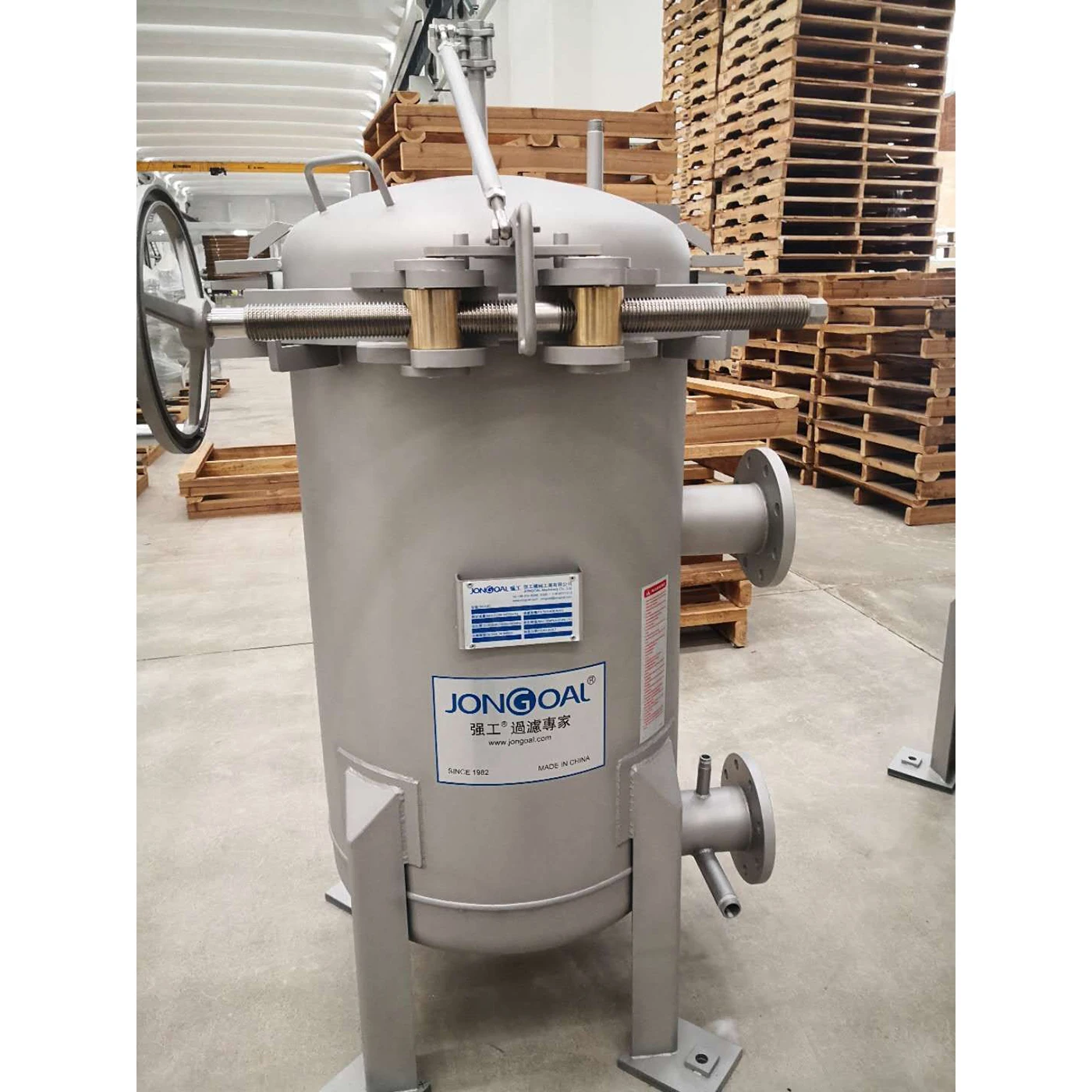

Stainless steel bag filter for chemical food industry juice water filtration housing

Name: Stainless steel bag filter for chemical food industry juice water filtration housing
Brand: JONGOAL
Availability: InStock

FOB Price

USD $3,000 - $3,000 / Set

1 Set(Min.Order)

Supply Ability 1 Set / Sets per Month
Port Shanghai Port
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name

JONGOAL

Place of Origin

Jiangsu, China

Product Description

Features

QIC-LOCK quick open and close construction design, quick open in 15s.

Spring assisted weight balanced open construction.

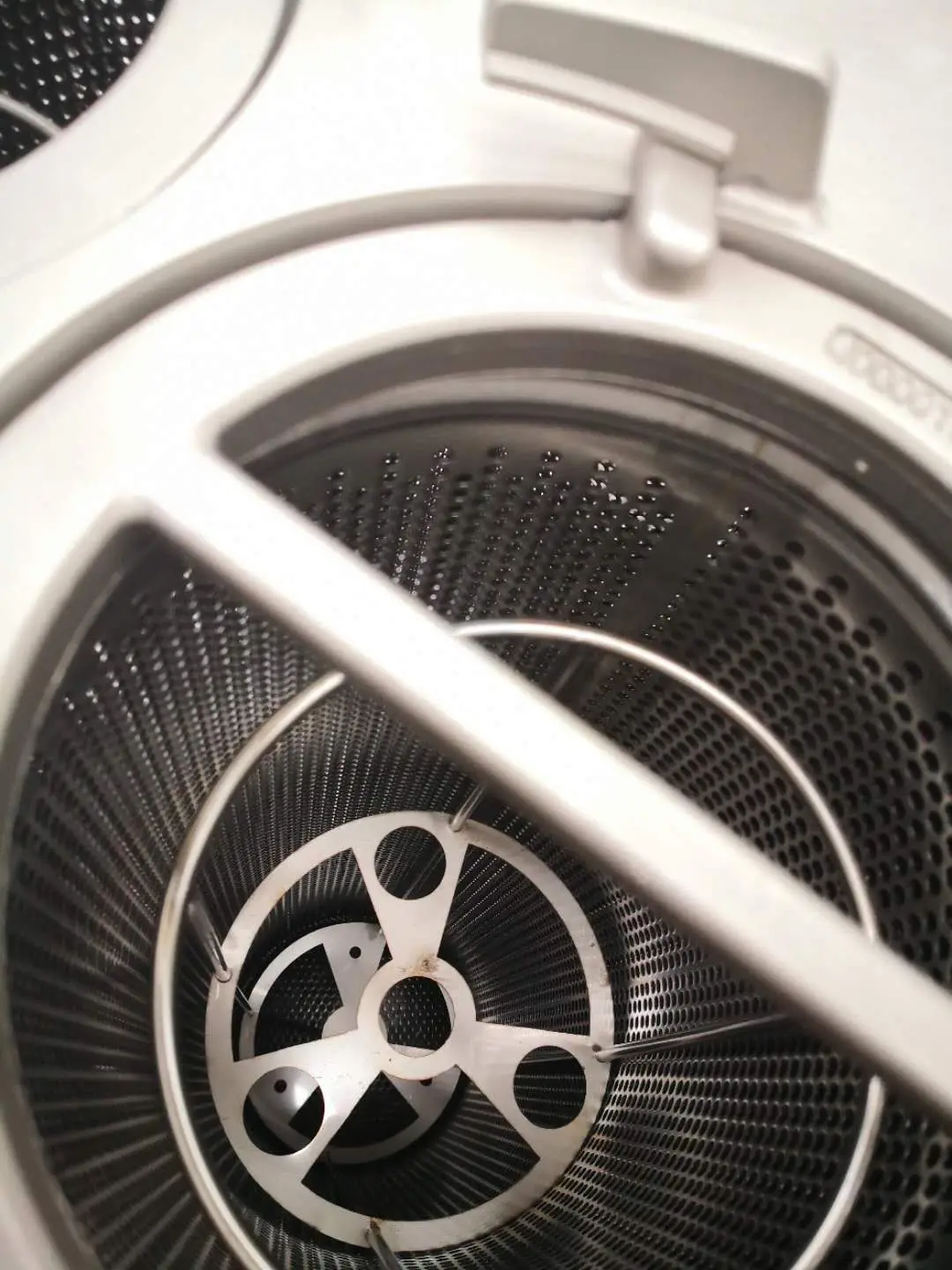

Basket holes is deployed by computer and produced by pressure(the material is laser boring high-strength stainless steel).

Replacement of O-style gasket rings are easy and safe.

External mounted foot stool.

Every groove include a basket for fitting filter bag.

SS304,SS316 or carbon steel.

Stainless helve hammer bolt.

Other options

Special alloy cylinder material.

The whole or part of the insulation sandwich.

Shot-blasting treatment in food grade/health grade.

Anticorrosive coating

Gasket ring of varies materials.

Pressure gauge

Custom tailored.

Technical specifications

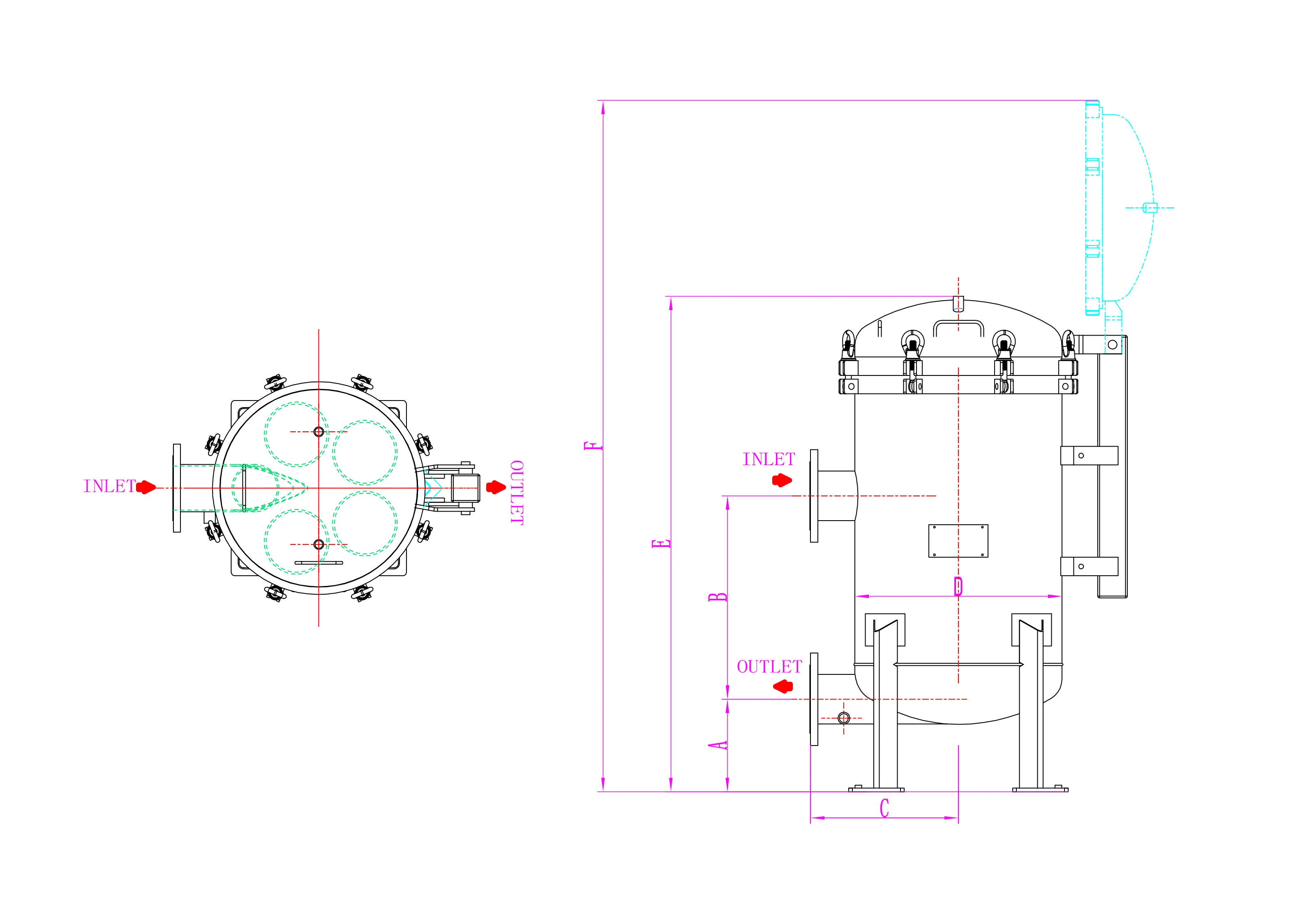

Chart following（Unit:mm）:

Model	Flow	A	B	C	D	E	F	Flange Connection
RBB-2AL	80m³/h	250	610	310	400	1300	1680	DN80
RBB-3AL	120m³/h	280	610	335	500	1310	1830	DN100
RBB-4AL	160m³/h	280	610	392	550	1320	1930	DN125
RBB-5AL	200m³/h	280	600	445	650	1340	2040	DN150
RBB-6AL	240m³/h	280	600	445	650	1340	2040	DN150
RBB-8AL	320m³/h	280	590	520	800	1380	2240	DN200
RBB-10AL	400m³/h	280	580	590	900	1440	2300	DN225
RBB-12AL	480m³/h	280	580	620	1000	1460	2400	DN250

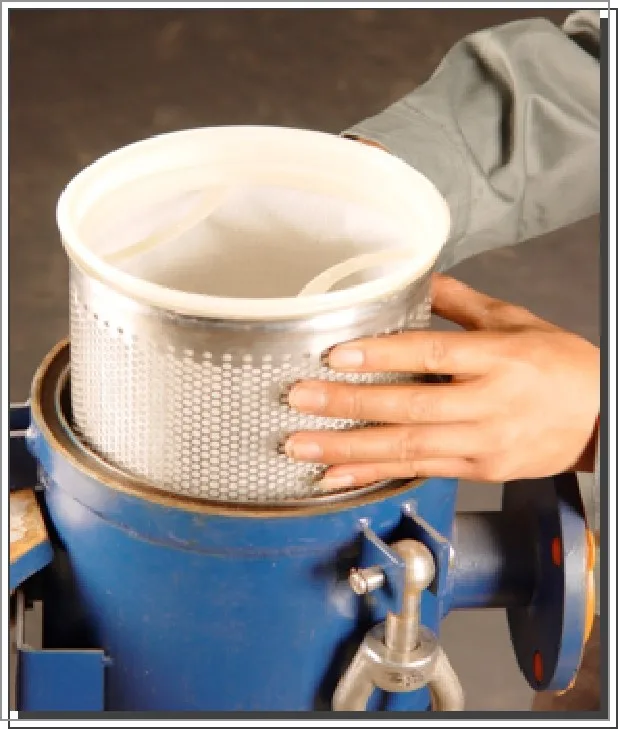

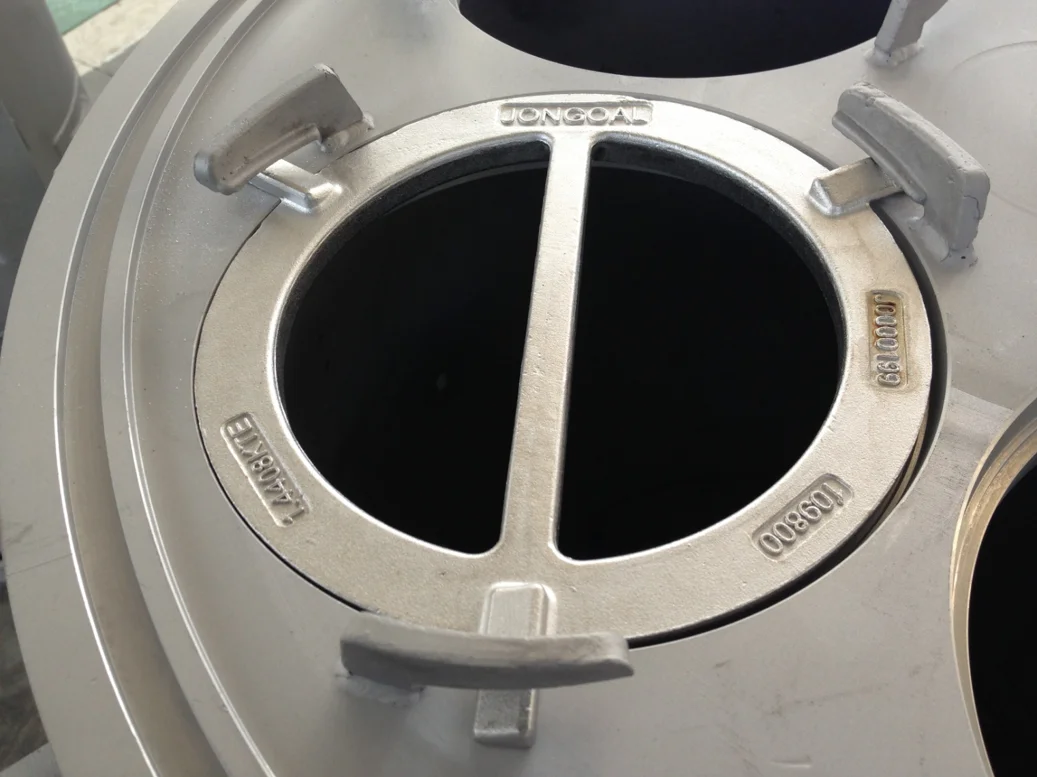

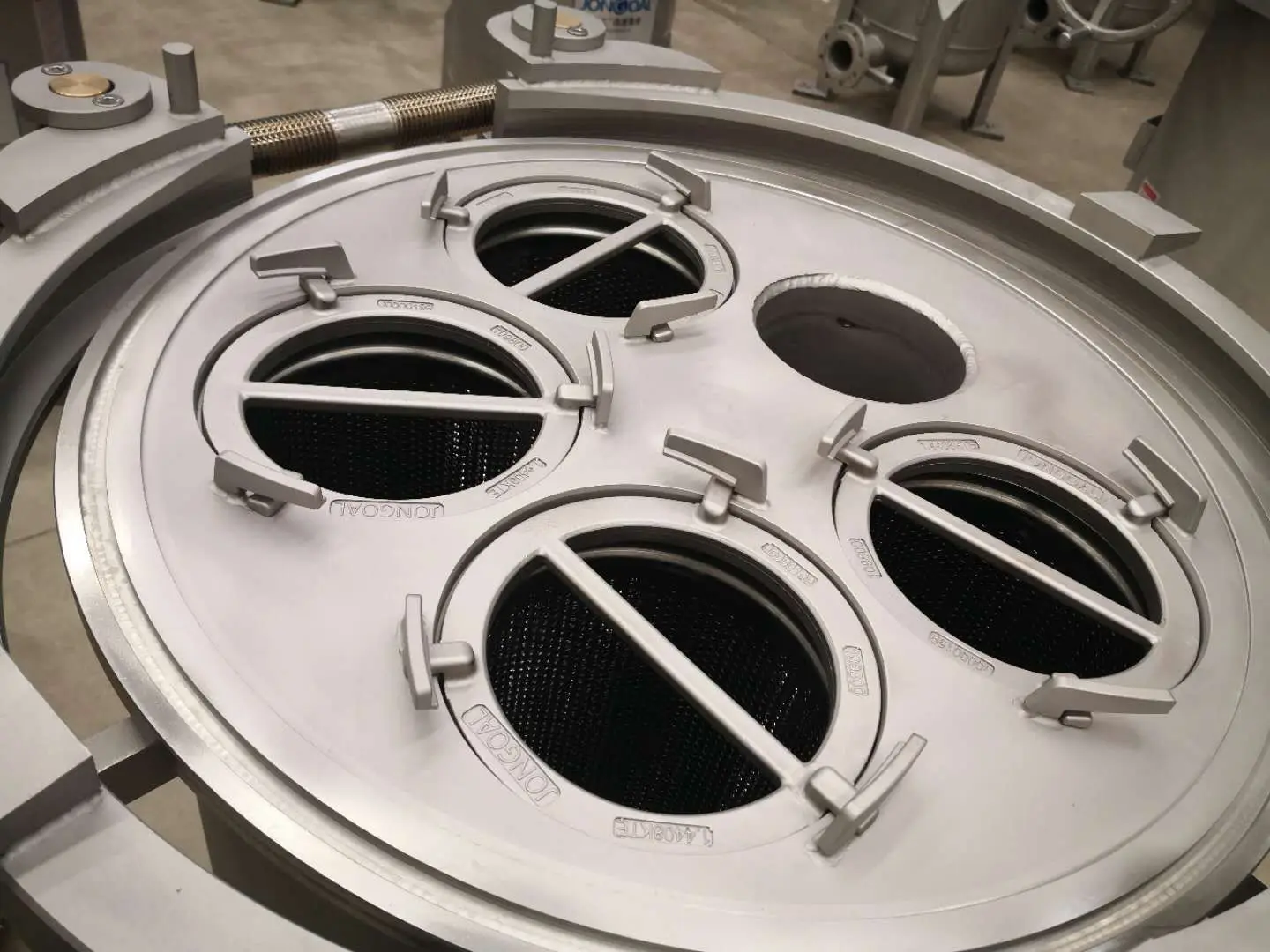

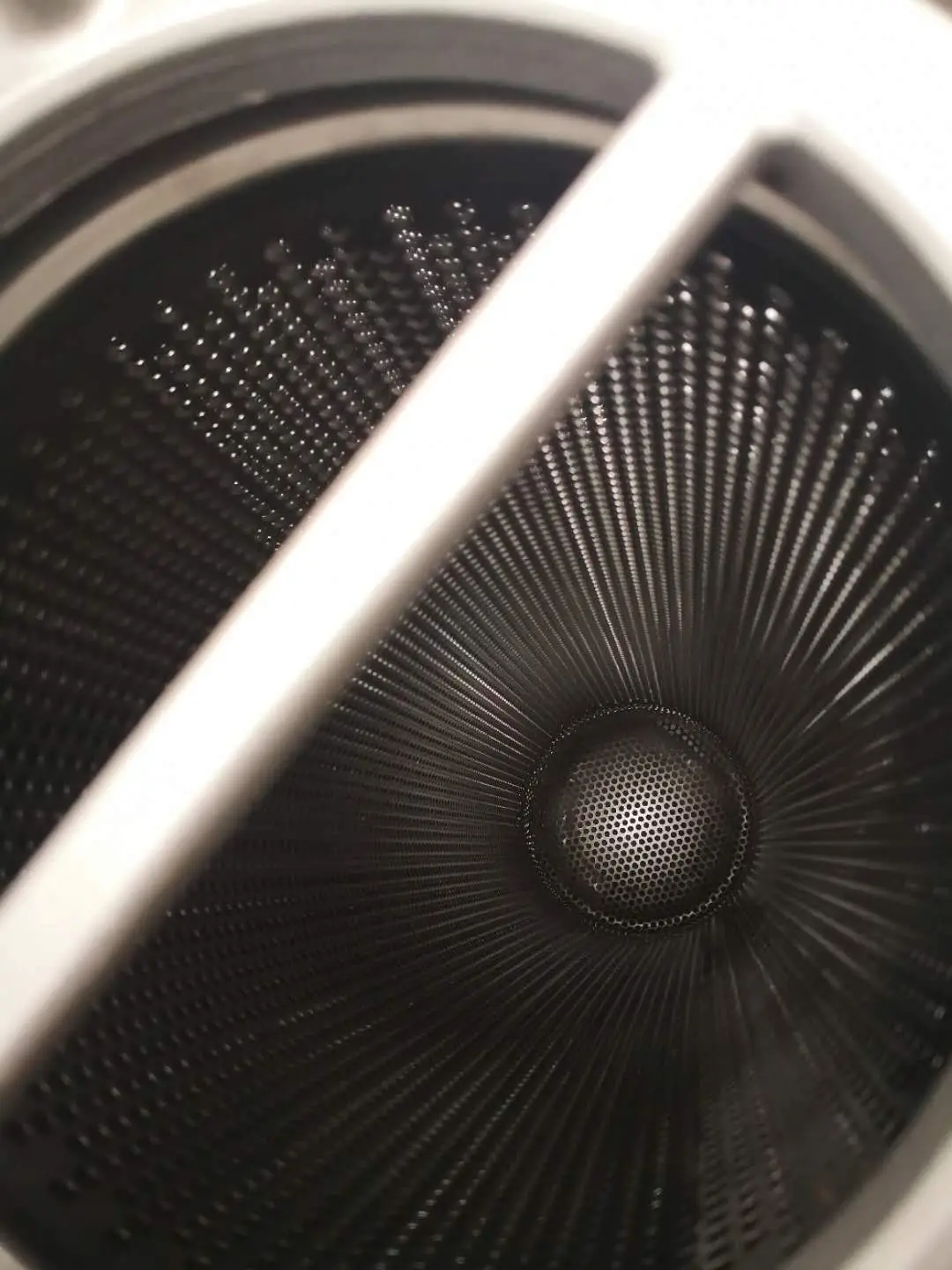

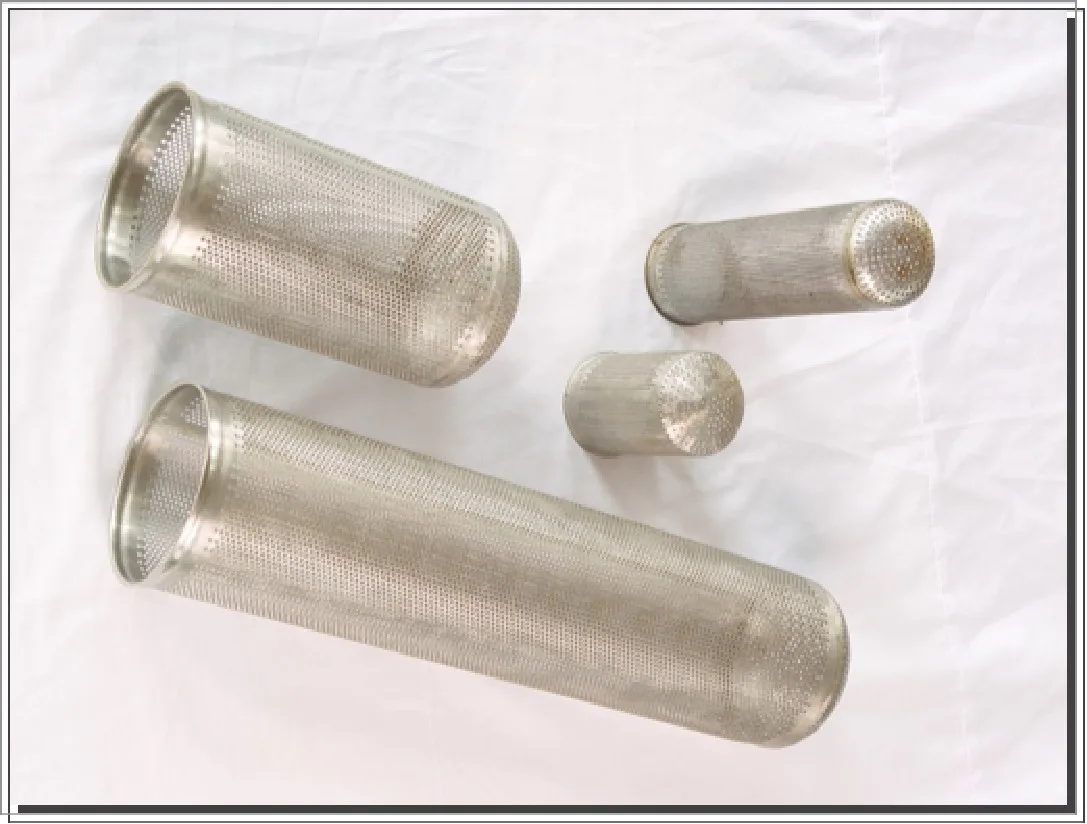

Filter bag basket

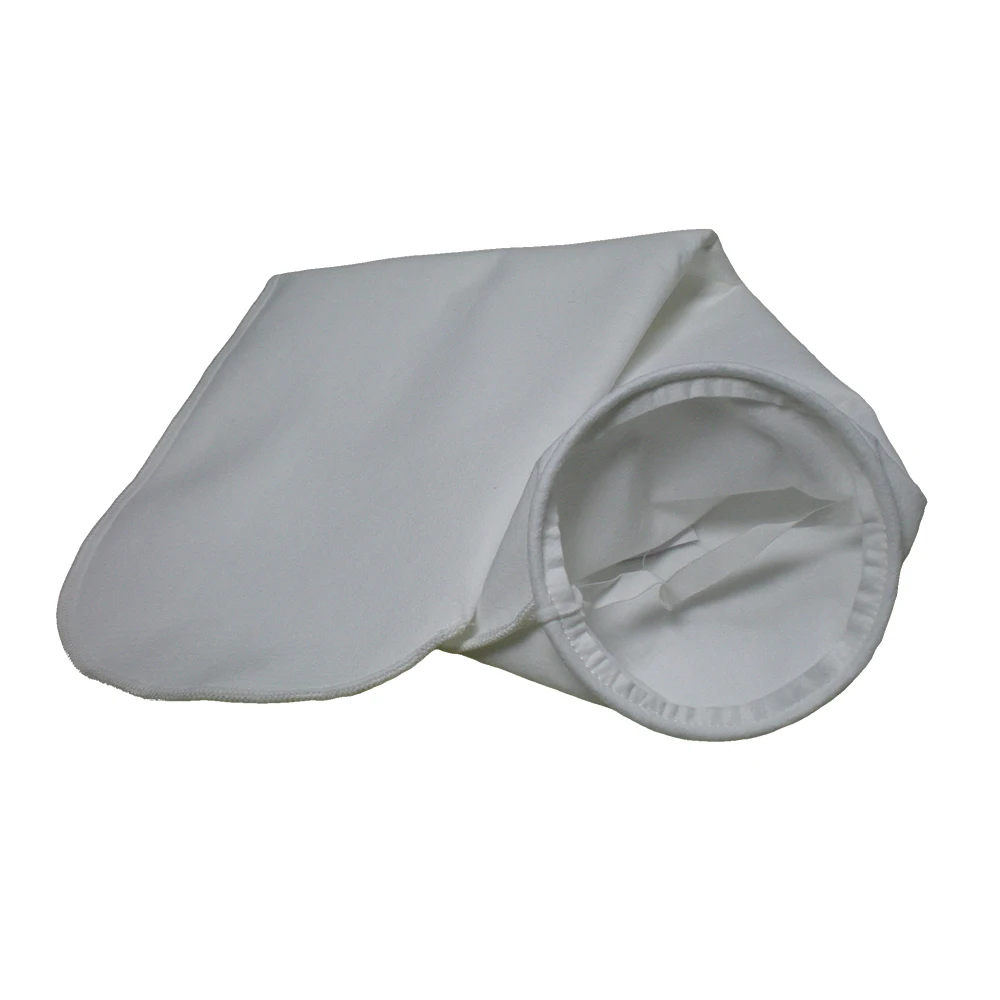

Filter bag

Install on filter bags.

Magnetic bar holes, can insert 4 pcs bars.

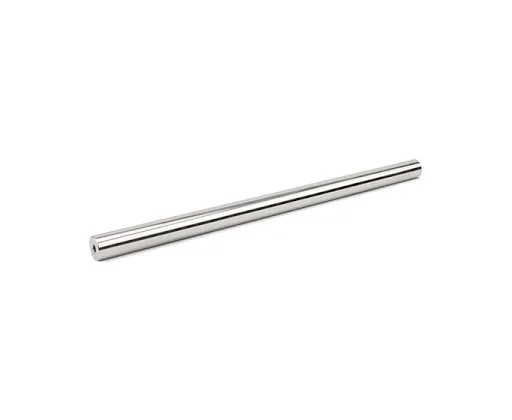

Magnetic bar, can attract rust and other particles of iron. Reduce load of filter bag.

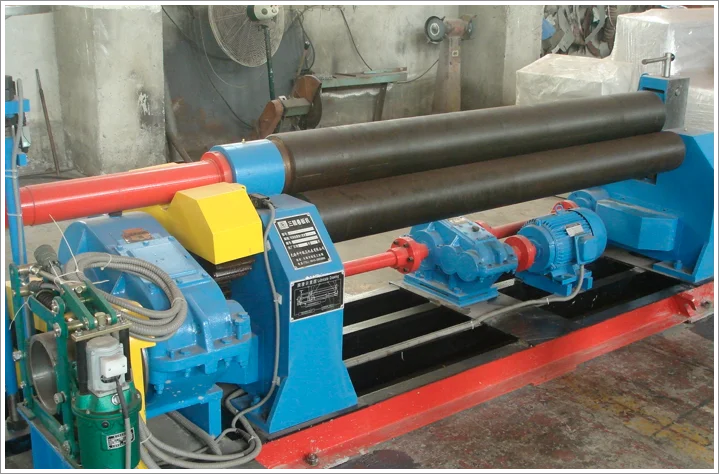

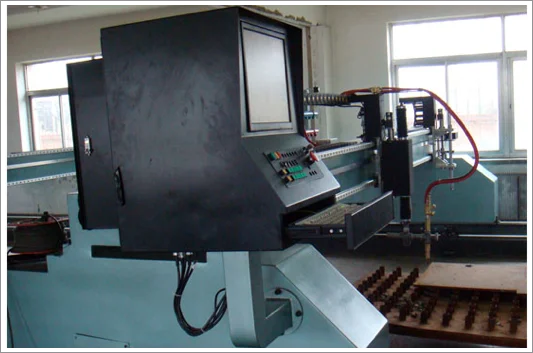

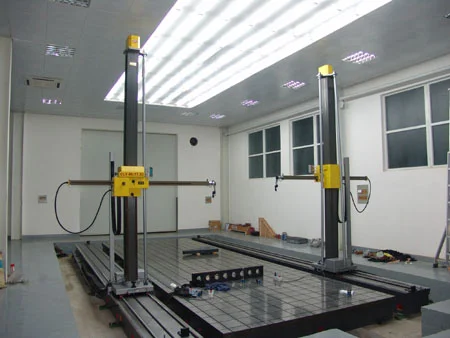

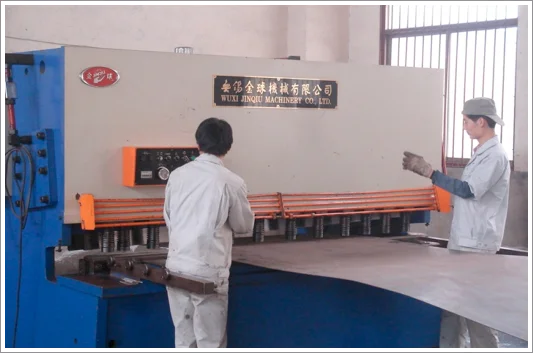

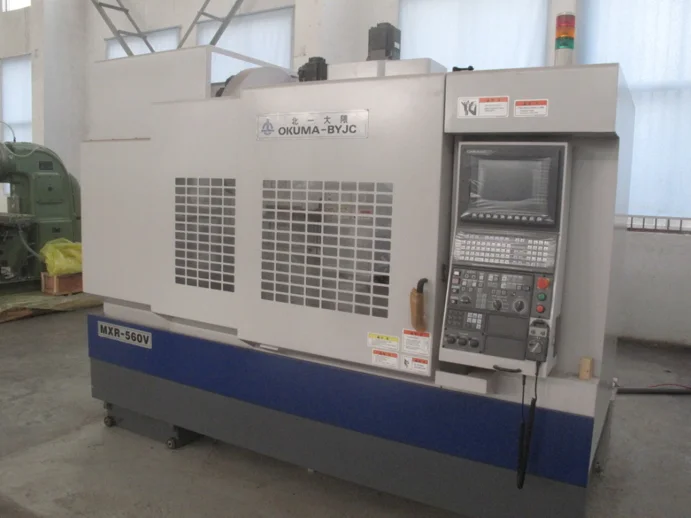

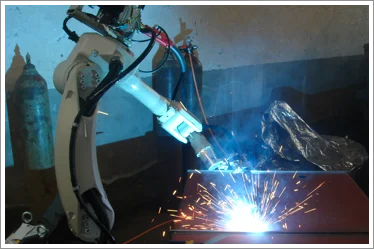

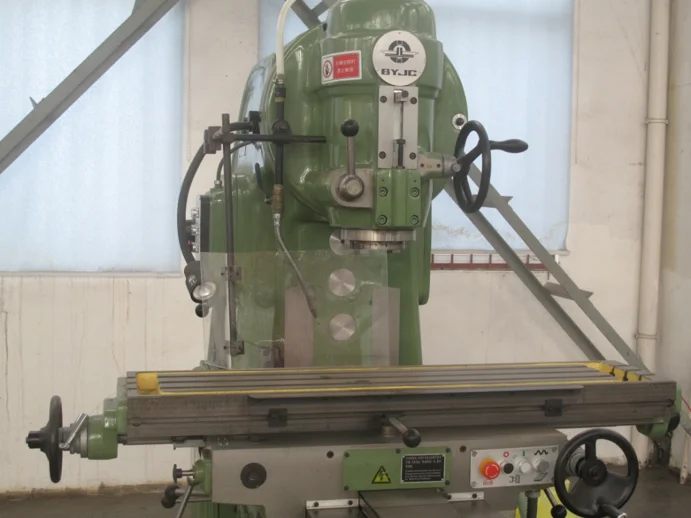

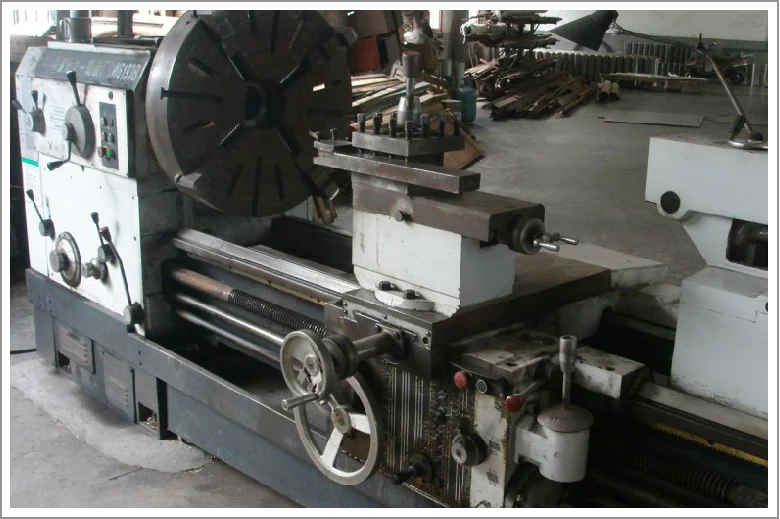

Production Equipments
