Ingersoll Rand Evolution Filter Element -Replacment F108I F108Ix 85565588 85565596 85565604 85565612

FOB Price

US$ 7 - 7 / Piece

20 Pieces(Min. Order)

Port Shanghai Port
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin

China

Product Description

We are the real factory which produced filter element

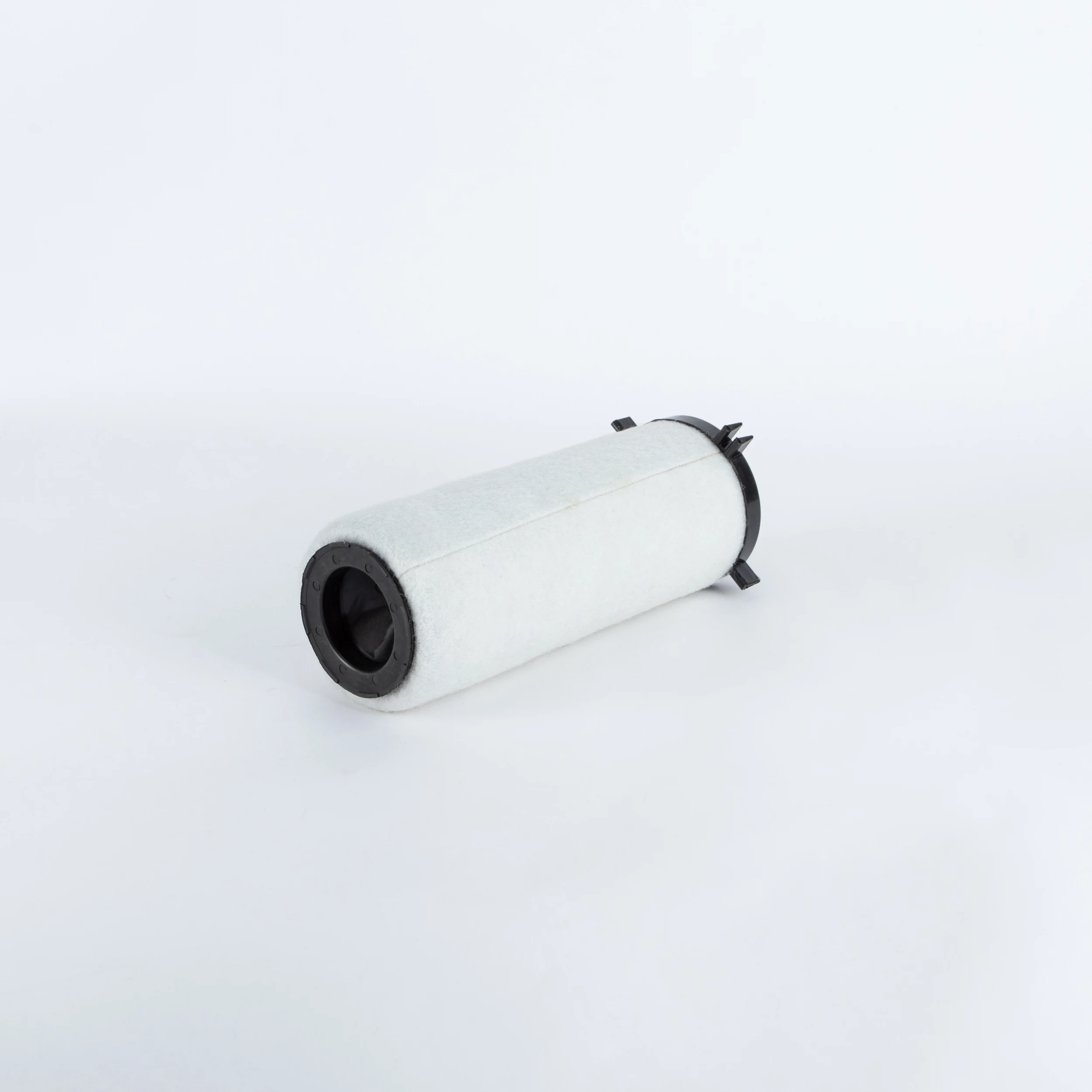

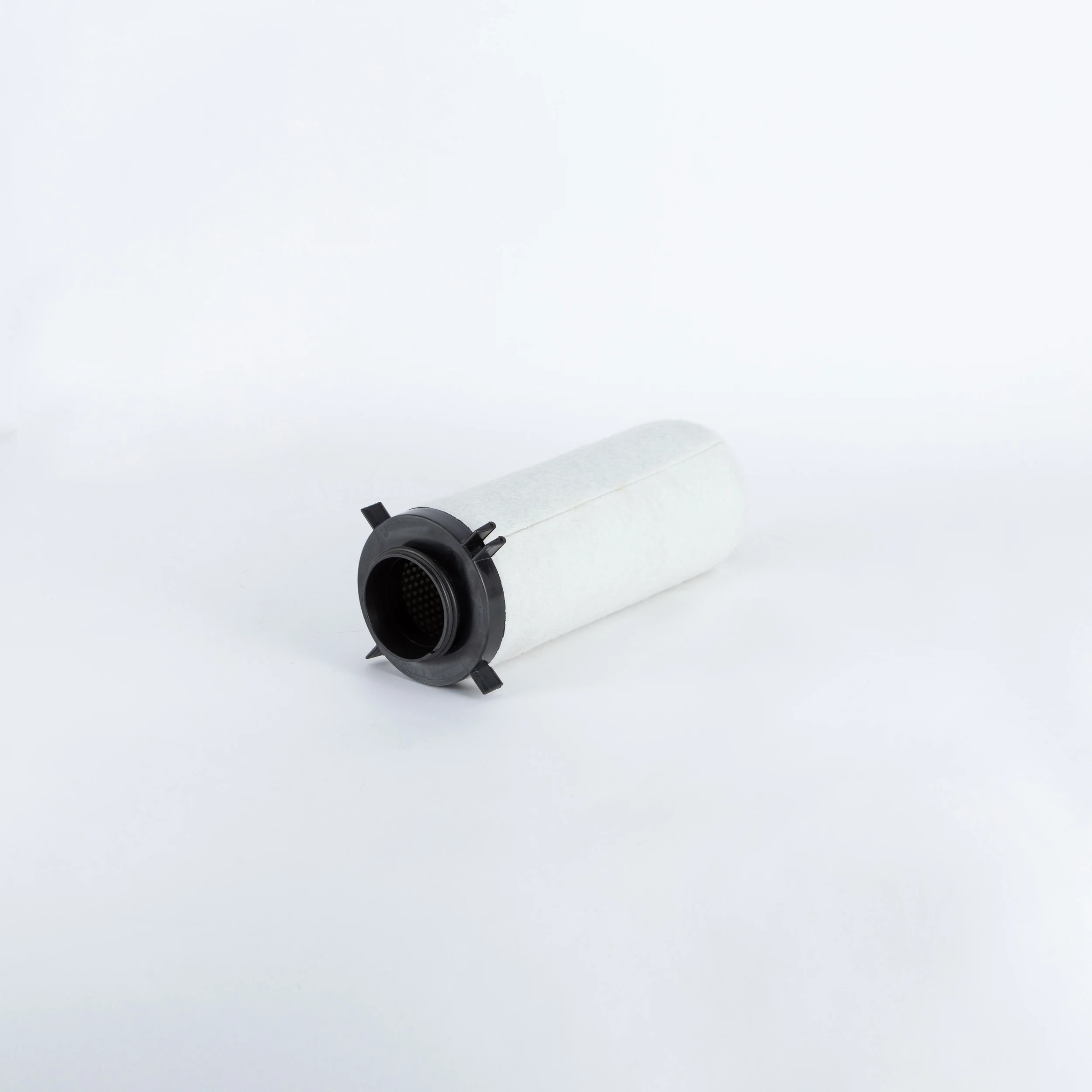

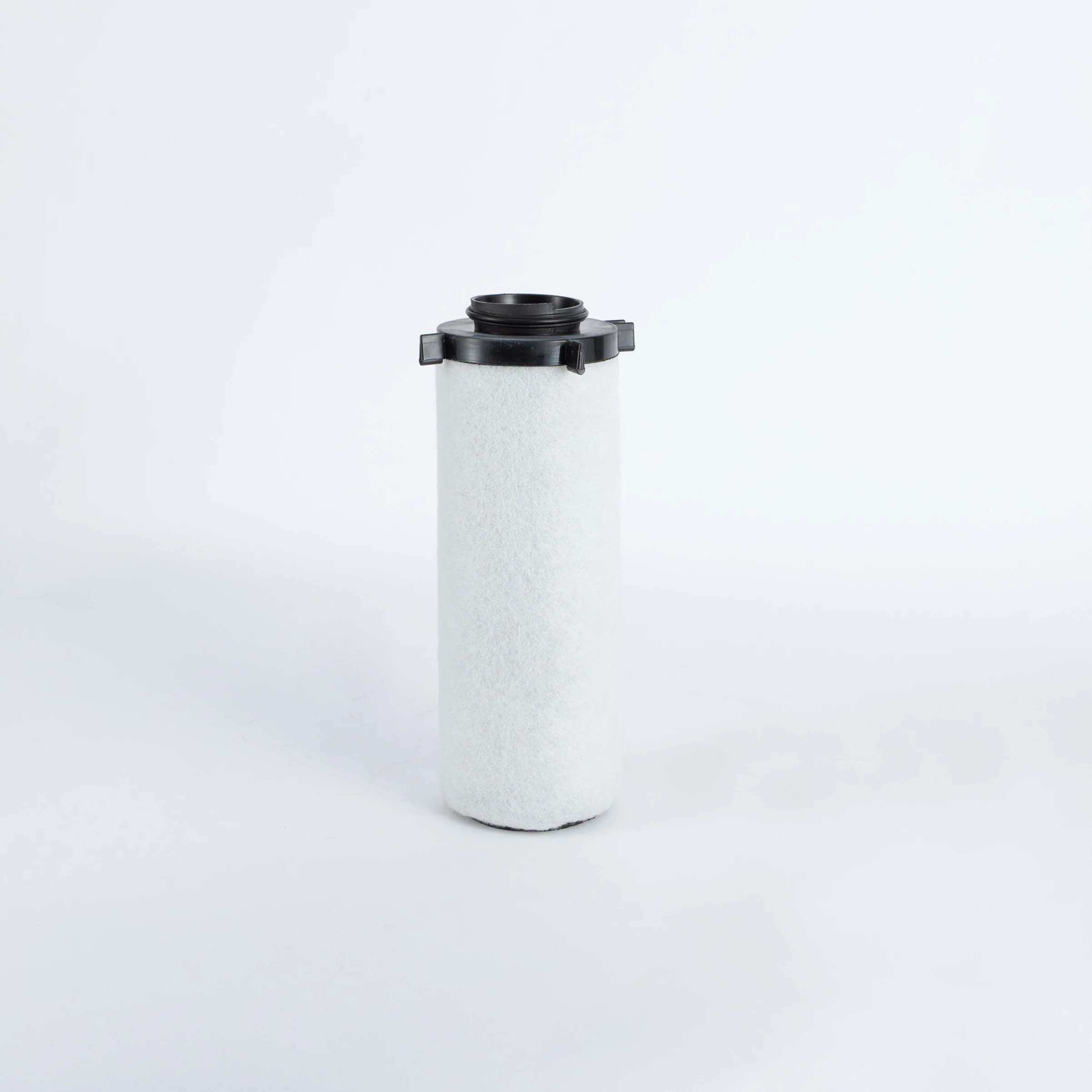

Please provide Ingersoll Rand Evolution Filter element Kit Model, eight digit, such as 85565174 to us, then we can produce chinese replacement. The photos following are our real products, they are perfect.

Ingersoll Rand F Series

Ingersoll Rand F Series Filter Element have Four Grades:

Grade G

General Purpose Protection.

Grade H

High Efficiency Oil Removal Filtration.

Grade A

Activated Carbon Filtration.

Grade D

General Purpose Dust Filtration.

Designed and Built for Exceptional Performance.

Ingersoll Rand’s advanced F-Series compressed air filters reduce contamination in your air stream to help protect your critical processes and valuable equipment. Our filters are rigorously tested and engineered with superior components to provide years of reliable performance and consistently high-quality air.

Complete Filtration Solution

F-Series filters are engineered to be a complete filtration solution, incorporating features that addresciency and ease of maintenance.Please check Replacement Element Part Selection Chart following:

Better Quality.

Without effective filtration, products and processes that depend on compressed air are subject to increased scrap, poor quality and additional maintenance. Ingersoll Rand F-Series filters address these issues, helping to assure your compressed air system delivers clean, high-quality air throughout your facility.

Better Effificiency.

Maintaining a low pressure drop on all compressed air components is critical for an energy-efficient system. Ingersoll Rand F-Series filters have been engineered to deliver low pressure drop throughout the life of the filter element and to provide a unique dual indicator that illustrates the true cost of pressure drop on the system.

Better Choices.

Every compressed air system has unique filtration requirements. F-Series filters are available in four different filtration grades, providing complete filtration solutions for all critical compressed air processes.

Model	Grade G					Grade H
		Filter			Element	Filter		Element
		BSPT	NPT		Element	BSPT	NPT	Element
F35I□	85564466	85564987	85565505	85564474	85564995	85565513
F71I□	85564508	85565026	85565547	85564516	85565034	85565554
F108I□	85564540	85565067	85565588	85564557	85565075	85565596
F144I□	85564581	85565109	85565620	85564599	85565117	85565638
F178I□	85564623	85565141	85565661	85564631	85565158	85565679
F212I□	85564664	85565182	85565703	85564672	85565190	85565711
F395I□	85564706	85565224	85565745	85564714	85565232	85565752
F424I□	85564748	85565265	85565786	85564855	85565273	85565794
F577I□	85564789	85565307	85565828	85564797	85565315	85565836
F791I□	85564821	85565349	85565869	85564839	85565356	85565877
F985I□	85564862	85565380	85565901	85564870	85565398	85565919
F1155I□	85564904	85565422	85565943	85564912	85565430	85565950
F1529I□	85564946	85565463	85565984	85564853	85565471	85565992
F1817I□	85566057	85566073	85566214	85566099	85566115	85566230
F2124I□	X	X	X	85566107	85566123	85566248
F2378I□	85566065	85566081	85566222	X	X	X

Model	Grade A					Grade D
		Filter			Element	Filter		Element
		BSPT	NPT		Element	BSPT	NPT	Element
F35I□	85564482	85565000	85565521	85564490	85565018	85565539
F71I□	85564524	85565042	85565562	85564532	85565059	85565570
F108I□	85564565	85565083	85565604	85564573	85565091	85565612
F144I□	85564607	85565125	85565646	85564615	85565133	85565653
F178I□	85564649	85565166	85565687	85564656	85565174	85565695
F212I□	85564680	85565208	85565729	85564698	85565216	85565737
F395I□	85564722	85565240	85565760	85564730	85565257	85565778
F424I□	85564763	85565281	85565802	85564771	85565299	85565810
F577I□	85564805	85565323	85565844	85564813	85565331	85565851
F791I□	85564847	85565364	85565885	85564854	85565372	85565893
F985I□	85564888	85565406	85565927	85564896	85565414	85565935
F1155I□	85564920	85565448	85565968	85564938	85565455	85565976
F1529I□	85564961	85565489	85566008	85564979	85565497	85566016
F1817I□	855666131	85566156	85566255	85566172	85566198	85566271
F2124I□	X	X	X	X	X	X
F2378I□	85566149	85566164	85566263	85566180	85566206	85566289

Model	Grade G					Grade H
		Filter			Element	Filter		Element
		BSPT	NPT		Element	BSPT	NPT	Element
F35I□x	85566487	85567089	85565505	85566495	85567097	85565513
F71I□x	85566529	85567121	85565547	85566537	85567139	85565554
F108I□x	85566560	85567162	85565588	85566578	85567170	85565596
F144I□x	85566602	85567204	85565620	85566610	85567212	85565638
F178I□x	85566644	85567246	85565661	85566651	88867253	85565679
F212I□x	85566685	85567287	85565703	85566693	85567295	85565711
F395I□x	85566727	85567329	85565745	85566735	85567337	85565752
F424I□x	85566768	85567360	85565786	85566776	85567378	85565794
F577I□x	85566800	85567402	85565828	85566818	85567410	85565836
F791I□x	85566842	85567444	85565869	85566859	85567451	85565877
F985I□x	85566883	85568947	85565901	85566891	85568954	85565919
F1155I□x	85566925	85568988	85565943	85566933	85568996	85565950
F1529I□x	85566966	85569028	85565984	85566974	85569036	85565992
F1817I□x	85567006	85569069	85566214	85567014	85569077	85566230
F2124I□x	X	X	X	85567055	85569119	85566248
F2378I□x	85567048	85569101	85566222	X	X	X

Model	Grade A					GradeD
		Filter			Element	Filter		Element
		BSPT	NPT		Element	BSPT	NPT	Element
F35I□x	85566503	85567105	85565521	85566511	85567113	85565539
F71I□x	85564508	85565026	85565562	85564516	85565034	85565570
F108I□x	85564540	85565067	85565604	85564557	85565075	85565612
F144I□x	85564581	85565109	85565646	85564599	85565117	85565653
F178I□x	85564623	85565141	85565687	85564631	85565158	85565695
F212I□x	85564664	85565182	85565729	85564672	85565190	85565737
F395I□x	85564706	85565224	85565760	85564714	85565232	85565778
F424I□x	85564748	85565265	85565802	85564855	85565273	85565810
F577I□x	85564789	85565307	85565844	85564797	85565315	85565851
F791I□x	85564821	85565349	85565885	85564839	85565356	85565893
F985I□x	85564862	85565380	85565927	85564870	85565398	85565935
F1155I□x	85564904	85565422	85565968	85564912	85565430	85565976
F1529I□x	85564946	85565463	85566008	85564853	85565471	85566016
F1817I□x	85566057	85566073	85566255	85566099	85566115	85566271
F2124I□x	X	X	X	85566107	85566123	85566289
F2378I□x	85566065	85566081	85566263	X	X	X
