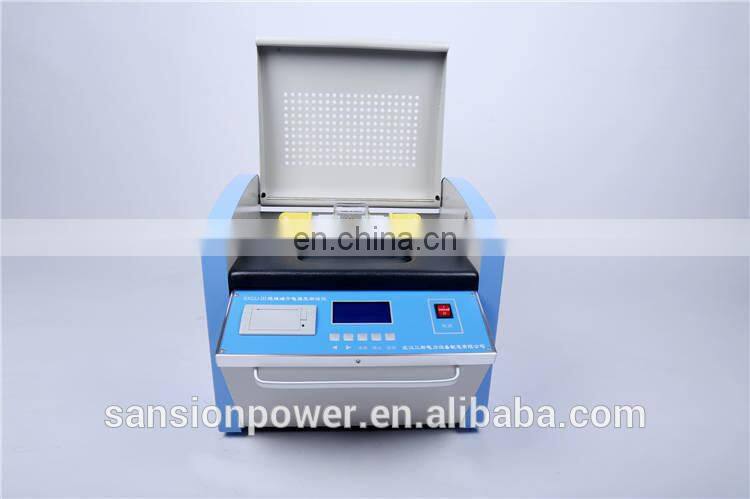

Transformer Oil Dielectric Strength Insulation Oil Test Equipment

General Information:
Keywords: Oil Dielectric Strength Tester
Oil Breakdown Tester
Transformer Oil Dielectric Strength Tester
SXOT-II conforms to international standard IEC-156 and national standard GB507-86, can be used for power frequency dielectric break down test on the transformer oil, capacitor oil, electric device, insulation tool, electric manufacturer and etc. It's widely used in the fields of power system, petroleum, chemical industry, railway station, power station, electric manufacturer and etc.

Features:
√  Self detecting function. The regulator could return to zero start automatically.
√  Controlled by micro computer, easy to operate.
√  Build-in printer.
√  Automatic magnetic bar stir, to eliminate uneven and bubble of oil.
√  The user could select the test times, static stirring time, sound/light alarm continuously printing or stop printing.
The equipment to match the standard IEC 156, and the instrument is fully automatic type.

Specification:
Power supply: AC 200V-240V ,50HZ ±5%
Test voltage: : AC 0~100KV
Limitation current: 5mA
Test precision: 1%
Voltage boosting rate:  2KV/s±10%
Presetting: 1-9 times
Stirring time: 0-1 minute 9 seconds
Static time: 0-10 minutes 39 seconds
Environmental temperature: 0-35ºC
Relative humidity: ≤75%RH
Power: 300VA
Electrodes Gap Size: 2.5mm
Volume: 420×320×325mm
Weight: 28KG

Wuhan Sansion Power Equipment Manufacturing Co., Ltd. is a modern company focusing on design and manufacturing of test and measurement instruments. Our company covers 5,000 square meters with 120 employees.

Sansion has more than 20 years’ experience of producing electrical test sets and solutions for transformers, circuit breakers, CT/PT, relay protection, cable and electric power systems to test and calibration equipment.

Sansion has obtained ISO 9001 quality certificate and all of our products are in conformity with the international standards.

With superior quality, reasonable price and perfect after-sales service, we are aiming to expand the markets in all countries of the world. We look forward to working with you.
