Guangzhou High Quality CE certified mini biosafety cabinet class 2/ small biological lab safety cabinet

Model

HOPUI-120/150/180

Speficication

0.8m

External size(L*W*H)mm

120015001800x800x2350mm

Inner size(L*W*H)mm

1200x760x900mm

Inner volume(m3 )

0.82(m3 )

Average face velocity(m/s)

0.5(m/s)

Air capacity(m 3/h)

1500(m 3/h)

High activated carbon filter organic and inorganic gas(universal type)

CORG

Gas tap

Wall remote control safety valve

operation table

physiochemical board/PP/stainless steel/epoxy resin/ceramic plate to meet the different demands

Application range

Application range:biological pharmaceutical, biological analysis, plant culture, environmental testing and electronic instrumentation scientific research and so on.

Structure

The structure of the fume hood is up and down, with a vent on the top and a fan.

There are some guide plate on the upper cabinet, circuit control touch switches, power sockets, etc., through the use of tempered glass, can be moved up and down for human operation.

The lower cabinet uses the experiment wall bench desk style, above the table, below is the cabinet body. The table can install small water cup and water tap.

Application range

Application range:biological pharmaceutical, biological analysis, plant culture, environmental testing and electronic instrumentation scientific research and so on.

Structure

The structure of the fume hood is up and down, with a vent on the top and a fan.

There are some guide plate on the upper cabinet, circuit control touch switches, power sockets, etc., through the use of tempered glass, can be moved up and down for human operation.

The lower cabinet uses the experiment wall bench desk style, above the table, below is the cabinet body. The table can install small water cup and water tap.

Feature

Local ventilation equipment is commonly used in laboratory experiment personnel's operation safety, for the experimental operation timely elimination of toxic and harmful gases, to prevent the spread of pollutants to the laboratory.

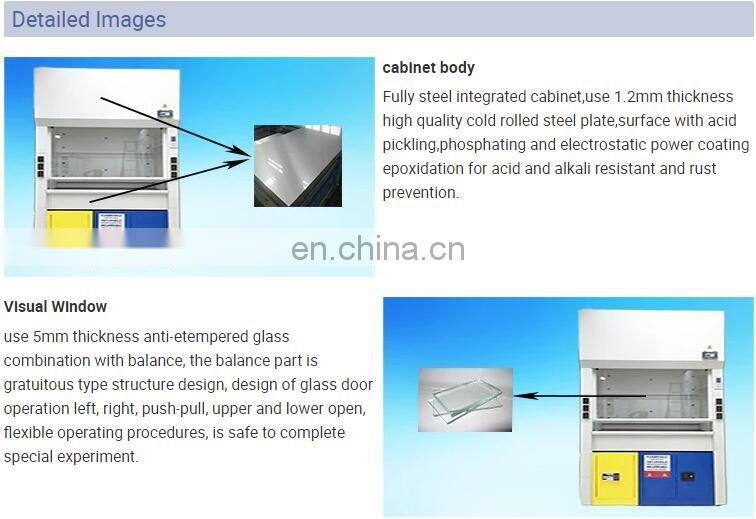

1.cabinet body:Fully steel integrated cabinet,use 1.2mm thickness high quality cold rolled steel plate,surface with acid pickling,phosphating and electrostatic power coating epoxidation for acid and alkali resistant and rust prevention.

2.operation table: can choose physiochemical board/PP/stainless steel/epoxy resin/ceramic plate to meet the different demands.

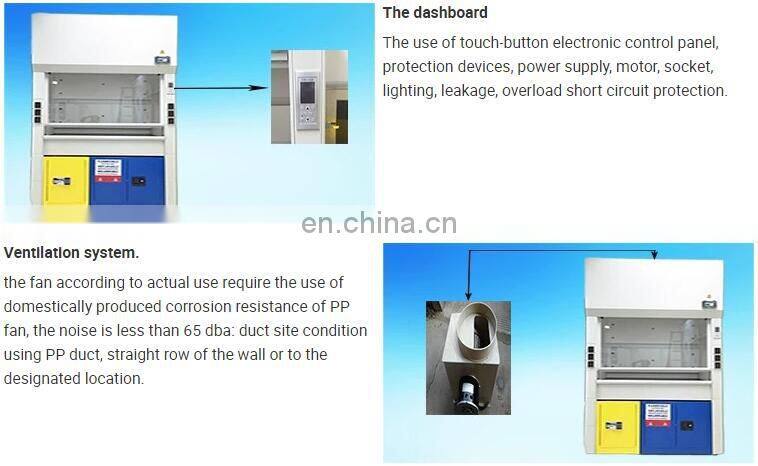

3.The dashboard:The use of touch-button electronic control panel, protection devices, power supply, motor, socket, lighting, leakage, overload short circuit protection.

4.Accessories: with a small faucet and PP small cup, you can also use remote control valve and water nozzle; at the same time according to the need to configure the remote control valve and gas nozzle.

5.Ventilation system: the fan according to actual use require the use of domestically produced corrosion resistance of PP fan, the noise is less than 65 dba: duct site condition using PP duct, straight row of the wall or to the designated location.

6.Lighting: 40W explosion-proof fluorescent one hidden in the panel (illumination of not less than 300LX), not with the ventilation cabinet air contact, easy to replace, and the top of the soft connection to the explosion relief effect.

7.Visual Window:use 5mm thickness anti-etempered glass combination with balance, the balance part is gratuitous type structure design, design of glass door operation left, right, push-pull, upper and lower open, flexible operating procedures, is safe to complete special experiment.
