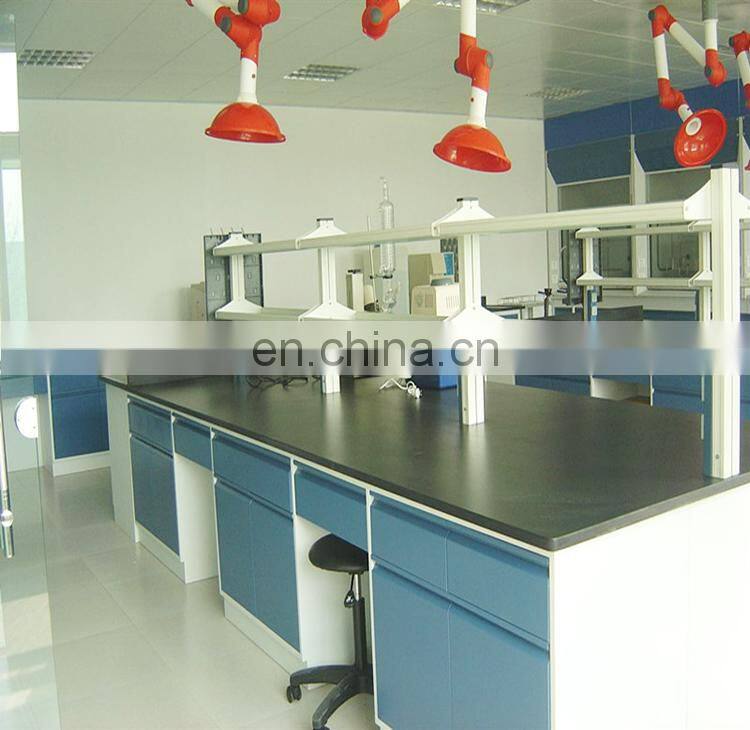

H-Frame Lab Office Side Desk / Metal Lab Table With Reagent Rack

BENCH SIZE

Length : customized ,it’s better as the site measurement

Width : 600-1500mm ( 23.62’’ - 60’’ )

Height :750-900mm (30’’-36’’ )

STRUCTURE

1. C frame

2. H frame

3. Pedestal (floor mounting )

WORKTOP

1. Phenolic resin top

2. epoxy resin top

3. Ceramic top

4. Stainless steel top

5. Marble top

6. Laminated top

CASEWORK MATERIALS

1. 18 gauge Cold rolled steel ,surface with laboratory grade powder coating .

Door and drawers are double skinned to reduce noise level

2.galvanized steel sheet ,surface with laboratory grade powder coating.

Cabinet Frame

C frame Steel structure,60 * 40 * 2mm rectangular square steel tube Spraying epoxy resin powder, all the steel parts will be treated to prevent corrosion and chemical effects. The surface will be able to easily clean and sterilize .have not any welding points.with the adjustable leveling feet.

CABINET HARDWARE

Handle : stainless steel C frame handle / aluminum alloy embedded handle /aluminum alloy long handle

Hinges : five knuckle-type barrel door hinges/self closing hinges

Slideway : self-closing three section slide rail, no noise ,for the drawers

Edge profile

The worktop edges have 3mm level or radius edge
