Benchtop Digital Conductivity Meter /electrical Conductivity Meter/ Online Conductivity Sensor

US$ 50.5 - 99.99 MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
SINOTESTER
Model Number:
SN-CR300
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai or Ningbo
Delivery Detail:
Delivery time depends on order quantity.
Brand Name SINOTESTER
Model Number SN-CR300

Benchtop Digital Conductivity Meter /electrical conductivity meter/ online conductivity sensor

Product Description

Benchtop Digital Conductivity Meter /electrical conductivity meter/ online conductivity sensor

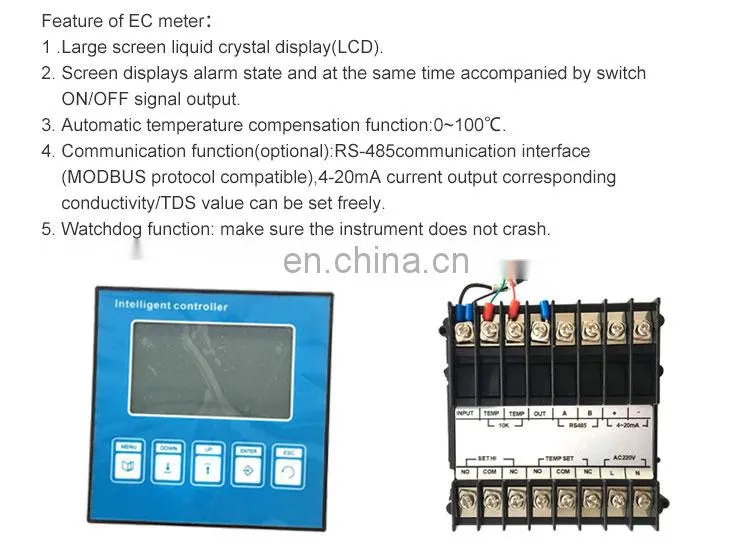

Feature of EC meter:
1 .Large screen liquid crystal display(LCD)
2. Screen displays alarm state and at the same time accompanied by switch ON/OFF signal output
3. Automatic temperature compensation function:0~100℃
4. Communication function(optional):RS-485communication interface(MODBUS protocol compatible),4-20mA current output corresponding conductivity/TDS value can be set freely.
5. Watchdog function: make sure the instrument does not crash
6. Can restore factory setting; power-fail protection>10 years

Model No. Test item Measuring range Resolution Accuracy Other Technical data
SN-CR300 EC K=0.01 0-20.00μS/cm;
K=0.1 0-200.00μS/cm;
K=1.0 0-2000μS/cm;
K=10.0 0-20.00 mS/cm
0.01μS/cm, 0.1μS/cm,
0.001mS/cm,
0.01 mS/cm
2.0 %(FS)

Automatic temperature compensation:0~100°C
Temperature compensation: NTC 10 k to 25°C as a benchmark,

removing coefficient can be corrected,
Control interface: two groups of ON/OFF relaycontacts
(not source port), divided into conductivity/TDS,
photoelectric isolation temperature control signal output.
Output signal isolation: photoelectric coupler isolation protection

4~20 mA output signal
Relay: relay offset set arbitrary
relay load 10A 220VAC
Working temperature:0~60°C
Relative humidity:90% or less
Output load: load < 500 Ω (0-10 ma)
Load < 750 Ω (4-20 ma)
Operating voltage: 220 VAC±10%, 50/60 HZ
Size:96x96x115 mm
Hole size: 91x91 mm
Weight: 0.8 Kg

TDS K=0.01 0-10ppm;
K=0.1 0-100ppm;
K=1.0 0-1000ppm;
K=10.0 0-10000ppm
0.01ppm, 0.1ppm,
1ppm,
10ppm
2.0 %(FS)

Benchtop Digital Conductivity Meter /electrical conductivity meter/ online conductivity sensor
