Home > Products > Universal testing machine > WEW-300D Micro Screen Universal Tensile Testing Machine+Bolts Stretch UTM Tester
WEW-300D Micro Screen Universal Tensile Testing Machine+Bolts Stretch UTM Tester
US$ 10,000 - 11,100
/ Set
1 Set(Min. Order)
- Qingdao Port
- T/T Credit Card
You May Like
-
1000KN Computer Controlled Hydraulic Universal Tensile Tester Utm Material Strength Testing Machine for Compression Bending
-
WAW-300D Hydraulic Testing Machine Manufacturers With 4 Columns 2 Screws Comply to ASTM ISO CE Certificates
-
Tensile Universal Testing Machine+Lab Tensile Tetser Price
-
WAW-200 Ton Universal Tensile Testing Machine With Hydraulic Computer Controlled Price
-
200 Ton Tensile Testing Machine WAW Model With PC Fully Controlled Price in Peaking Season
-
Cast Iron Tensile Testing Machine/Steel and Rebar Strength Elongation Tester Supplier and Yearly Promotions
Product Details
| Brand Name | Chuanbai | Place of Origin | Shandong, China | |
| Model Number | WAW-300D |
Product Description
Product Overview

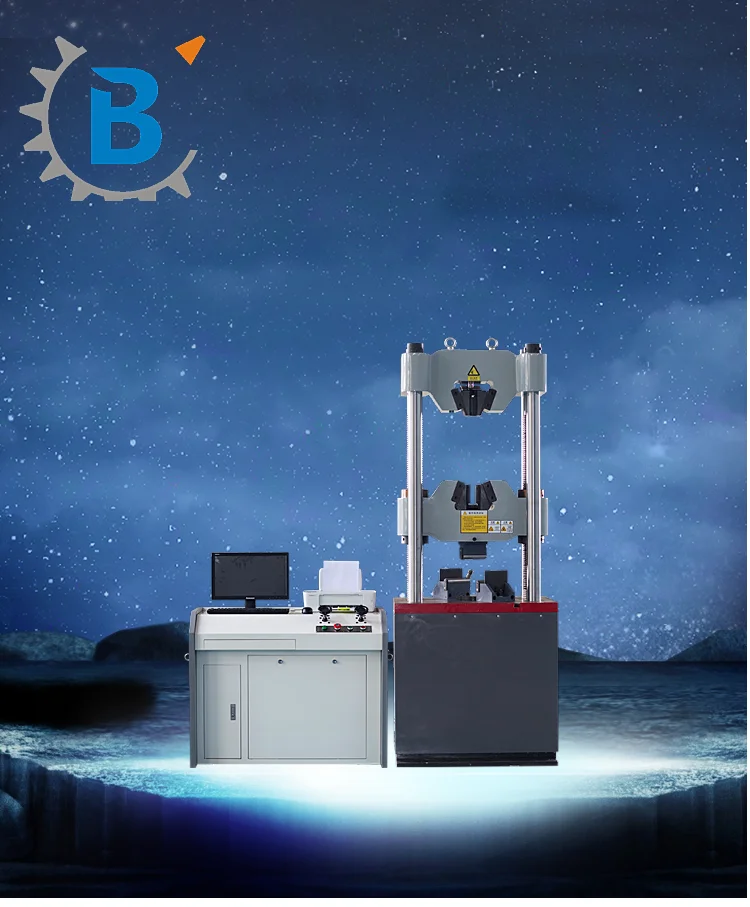

WES-300D electro-hydraulic universal testing machine is mainly used for mechanical properties testing of tensile, compression, bending and shearing of metal materials, adding simple accessories and devices, and testing concrete, concrete, rubber and their products.
It is widely used in material testing and analysis of aerospace, machinery manufacturing, building materials and other industries.
It is an ideal test equipment for research institutes, universities, industrial and mining enterprises, technical supervision, commodity inspection and arbitration departments.
It is widely used in material testing and analysis of aerospace, machinery manufacturing, building materials and other industries.
It is an ideal test equipment for research institutes, universities, industrial and mining enterprises, technical supervision, commodity inspection and arbitration departments.
Model | WEW-300D | WAW-600D | WAW-1000D | ||||||||
Max load (kN) | 300 | 600 | 1000 | ||||||||
Structure | 6 column | ||||||||||
Load accuracy | ≤±1% or ≤± 0.5% | ||||||||||
Load range | 2%-100%FS or 0.4%-100%FS | ||||||||||
Load resolution | 1/300000 | ||||||||||
Deformation Measurement Range | 2%~100%FS | ||||||||||
Deformation accuracy | ≤±1%/± 0.5% | ||||||||||
Displacement resolution | 0.01mm | ||||||||||
Displacement error | ≤±0.5% | ||||||||||
Max.piston stroke | 250mm | ||||||||||
Max. tension test space | 550mm | 550mm | 600mm | ||||||||
Max.Compression Test Space | 500mm | 500mm | 550mm | ||||||||
Oil cylinder moving speed | 140 | 90 | 50 | ||||||||
Crosshead moving speed | 200 | 150 | 120 | ||||||||
Effective space between columns | 430 | 475 | 525 | ||||||||
Round specimen clamping range | Φ4-Φ32mm | Φ6-Φ40mm | Φ13-Φ60mm | ||||||||
Flat specimen clamping range | 0-15mm | 0-30mm | 0-40mm | ||||||||
Clamping method | Hydraulic clamp | ||||||||||
Compression plate size | φ150mm | φ160mm | φ200mm | ||||||||
Power supply | As Customer Local | ||||||||||
Q: Does the product have CE and ISO certificates?
A: Our all products have passed CE and ISO certifications.
Q: What are the test forces of the hydraulic universal testing machine?
A: As long as the test force values of hydraulic universal testing machine are: 300 kn / 600 kn / 1000 kn / 2000 kn. Need to confirm the type and size of test products.
Q: Your company is a trading company or a factory?
A: Factory + trade (integration), 12 years of focus on the field of testing instruments.OEM is also acceptable for us.
Q: When will the order be delivered?
A: Usually about 10-28 days. If we have inventory, we can arrange the delivery within 3 days after the retest in the laboratory.Please note that our production delivery time depends on the specific equipment and the quantities.
Q: What about the warranty?
A: 12 months. In addition, we can help you feel free to fix your problem controller, even if it doesn't come from our factory.After the warranty, the professional after-sales service team will provide perfect technical support to help customers solve the problems encountered when using our products, and deal with customers' problems and complaints in a professional and timely manner.
Q: How about the service and quality of the products?
A: Each equipment must be 100% inspected and tested during transportation and delivery.Product use training, we can send you the video for training to show you how to install and operate.We can arrange engineers to train the operation of the equipment
