Hydraulic Universal Testing Machine Manufacturer, Material Testing Equipment Factory Supply

Name: Hydraulic Universal Testing Machine Manufacturer, Material Testing Equipment Factory Supply
Brand: chuanbai
Availability: InStock

FOB Price

US$ 9,800 - 11,000 / Set

1 Set(Min. Order)

Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	chuanbai		Place of Origin	Shandong, China
Model Number	WAW-600D		Power	Hydraulic

Product Description

Hydraulic universal testing machine manufacturer, material testing equipment factory supply

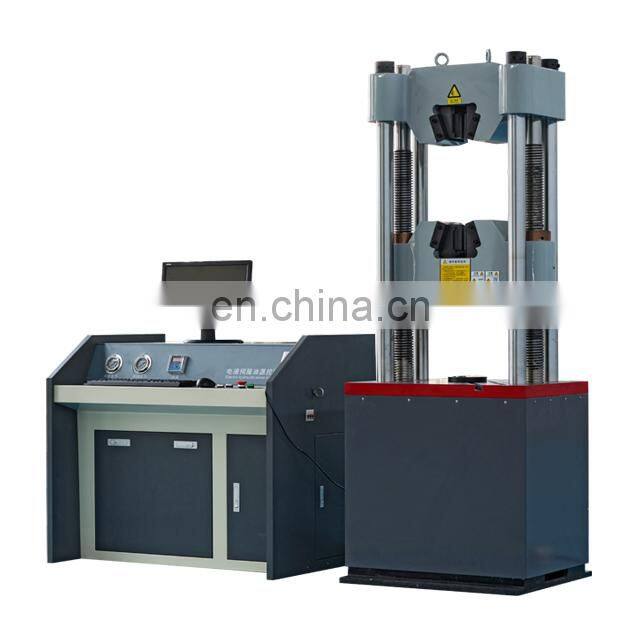

The WAW-600D microcomputer-controlled electro-hydraulic servo-hydraulic universal testing machine adopts a cylinder-mounted mainframe structure, which is mainly used for stretching, compression, bending, etc. of metal materials, non-metal materials, product parts, components, structural parts, standard parts. Mechanical properties test.
This series of testing machines can also be used for material stretching, compression and bending tests in this environment if the environmental device is added. For example: high temperature stretching, low temperature stretching, compression and other tests.
Applicable to iron and steel, metallurgy, building materials, quality inspection centers, water conservancy and hydropower, highway bridges, research institutes, colleges and universities mechanics and other factories and mines and testing and research institutions.

Product Description

Maximum test force kN	600KN
Test force relative error	±1% of the indicated value
Test force measurement range	2% to 100% of the maximum test force
Constant velocity stress control range (N/mm2·S-1)	2~60
Constant velocity control range	0.00025/s~0.0025/s
Constant velocity displacement control range (mm/min)	0.5~50
Clamping method	Hydraulic clamping
Round specimen clamping diameter range mm	Φ6～Φ40
Flat specimen clamping thickness range mm	0~30
Flat specimen clamping width mm	75
Maximum tensile test space mm	580
Maximum compression test space mm	550

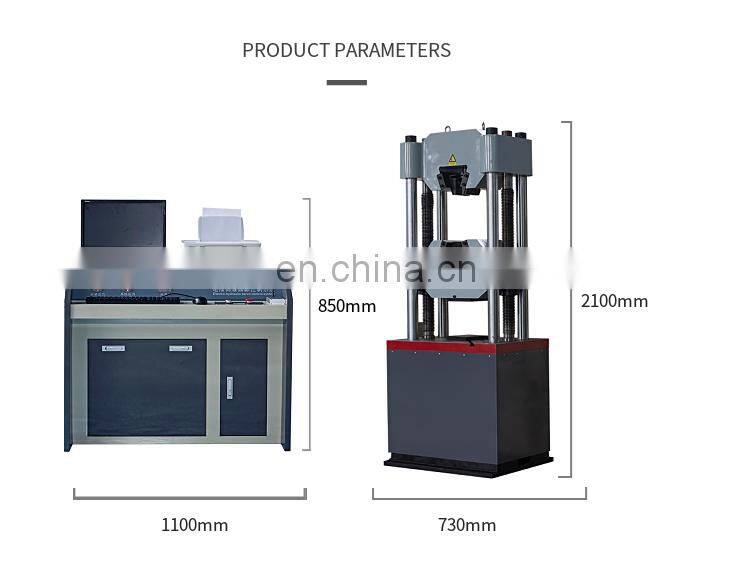

Control cabinet dimensions mm	1100×620×850
Mainframe dimensions mm	760×660×2100
Motor power kW	2.3
Host quality kg	2500
Column clearance (mm)	450
Upper and lower platen size mm	Φ150
Curved stick spacing mm	400
Bending rod width mm	140
Allowable bending mm	100
Maximum piston stroke mm	200
Maximum moving speed of the piston mm/min	About 80
Test space adjustment speed mm/min	About 150

Grips Details

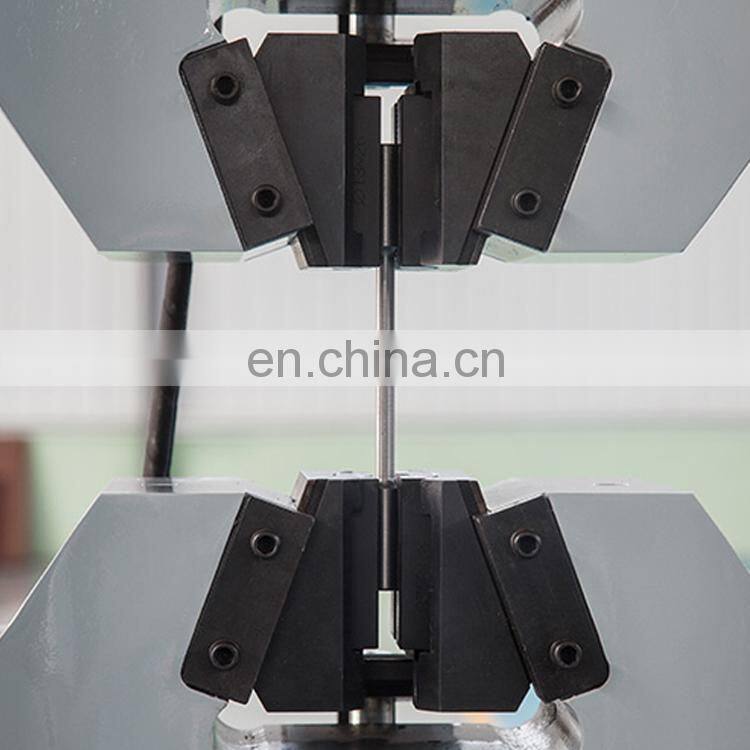

Grips size

The specifications of the clamping size for 600Kn as fellows : raw material diameter 6mm-13mm, 13mm-26mm, 26mm-40mm(optional)s, please confirm before delivery

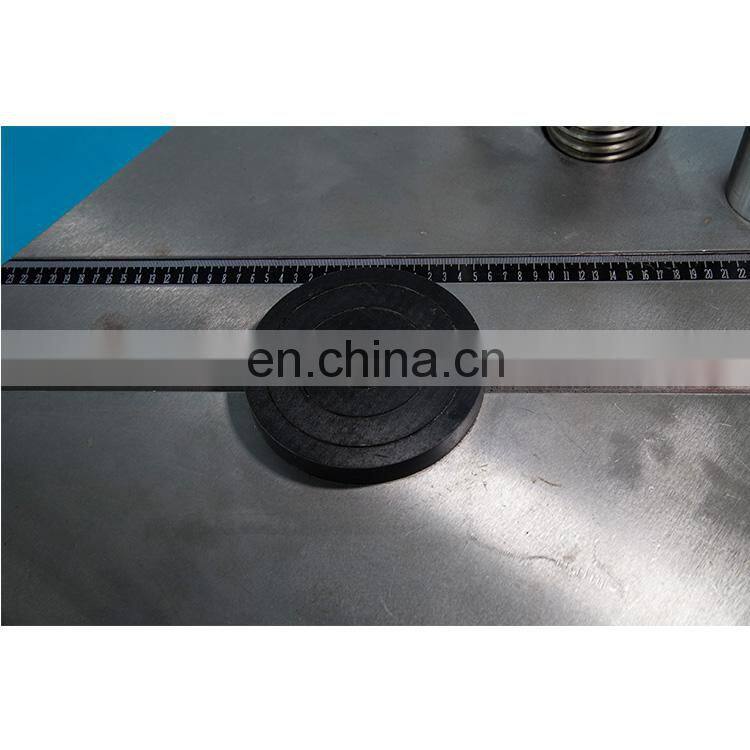

Compression plate size

The compression plate size is :150mm*150mm, can be customized according to  the special requirements, with which the maximum can be 400mm*400mm

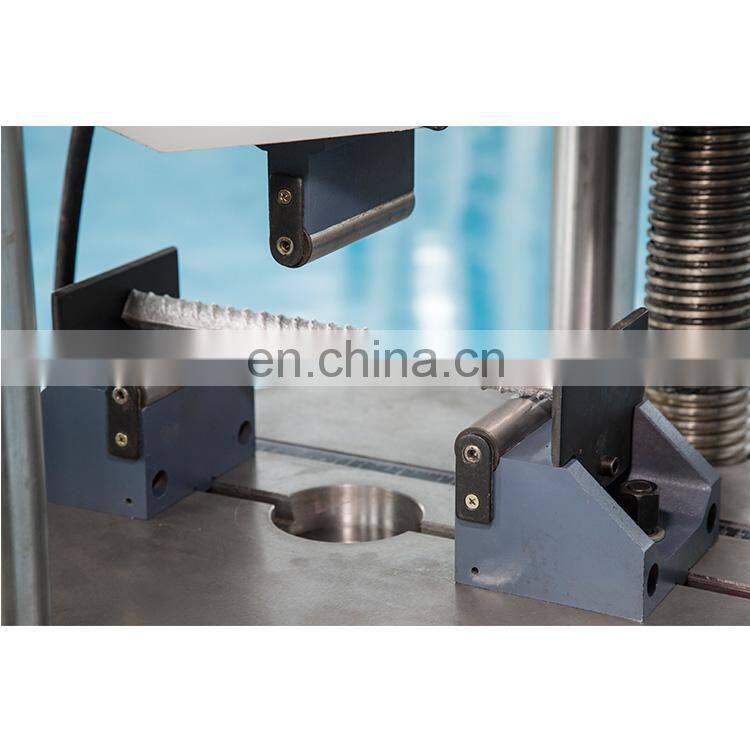

Three-point flexural bending

The size for Three-point flexural bending: the  roller diameter is 30mm, can be customized according to the special requirements

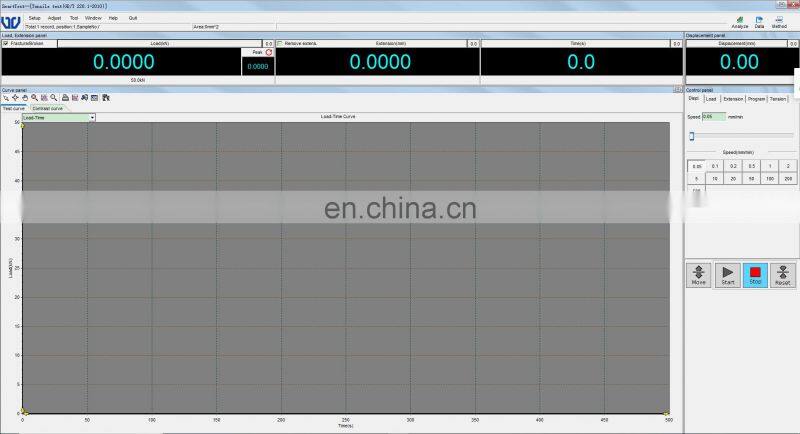

Software standards
1. It can realize force displacement, force time, force deformation, and realize closed-loop control. 2 Can achieve English, Chinese, Japanese and other language etc. 3. Setting as concrete demands for the speed(0.05-500mm);
4 Compare multiple curve data by translation or contrast; 5. There are multiple units of measurement, metric and imperial can be switched; 6. With automatic calibration function; 7. With user-defined test method function

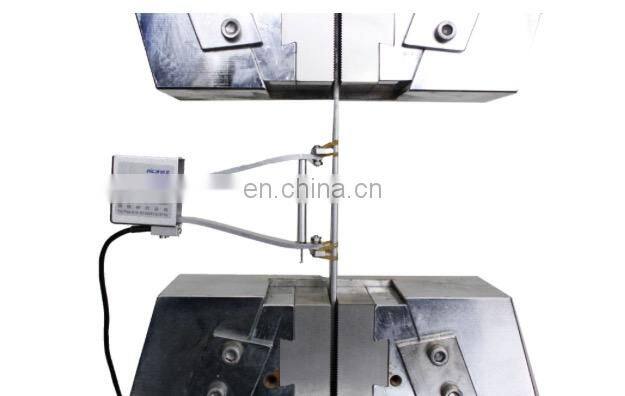

Metal extensometer
Metal extensometer can be selected to measure the deformation according to your requirements. There are two types of metal extension gauges: 5010 and 5025. The choice is based on gauge length 50 and deformation 10 or 25.

Corresponding standard

ASTM D903, F2258, GB/T 2790/2791/2792, CNS-11888, JIS K6854, GB/T 6329, BS EN 14410-2003, YY/T 0729, GOST 21751 and other standards.

Certification

Packaging and shipping

We can ship within 10-15 working days after placing the order, you can choose to air, sea!

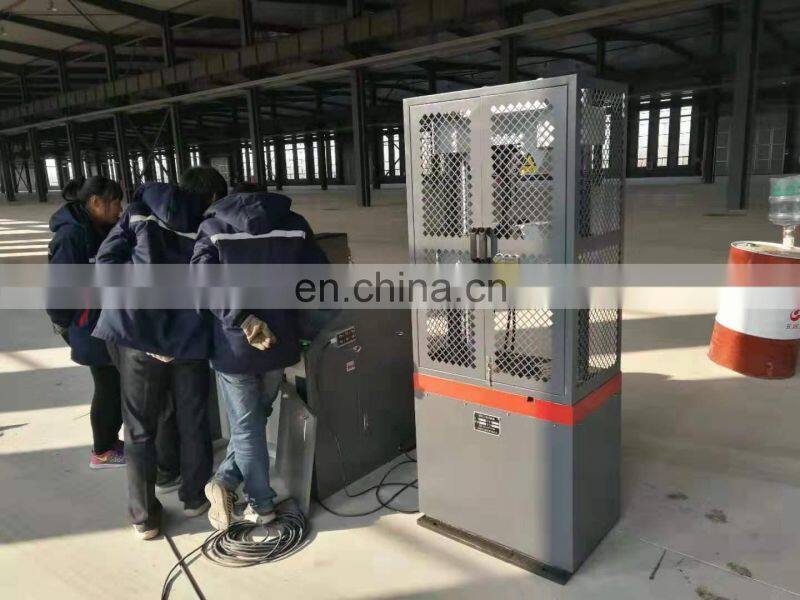

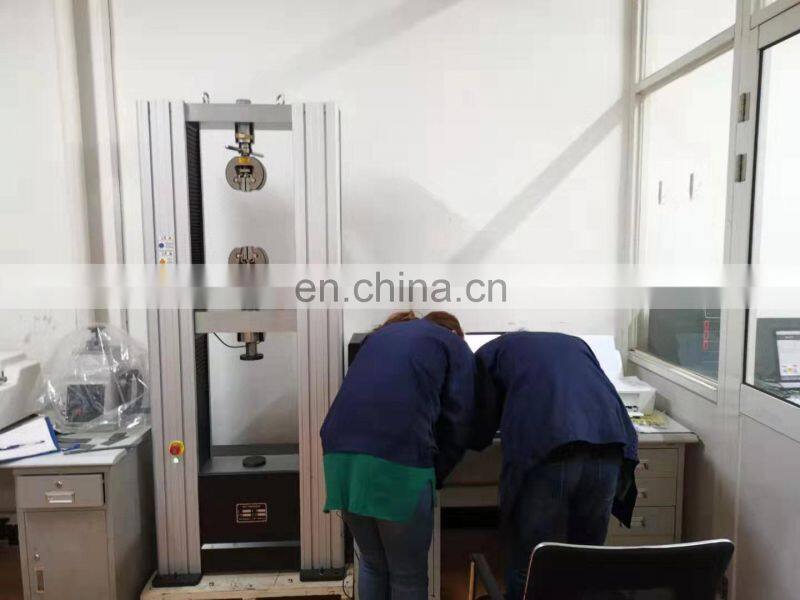

Our Clients

Jinan Chuanbai Instrument and Equipment Co.,Ltd

Jinan Chuanbaistrument Equipment Co., Ltd. is located in Jinan, Shandong, a national testing machine production base. It is a high-tech production enterprise that integrates scientific research, development and development. Since its establishment, the company has been devoting itself to the research and development of mechanical test instruments, and its leading products. Screen display type hydraulic universal testing machine, electro-hydraulic servo universal testing machine, electronic tensile testing machine, microcomputer controlled electronic universal testing machine, artificial board universal testing machine, semi-automatic (automatic) impact testing machine, plastic and rubber non-metal testing machine , Electronic spring tension and pressure testing machine, geogrid detection equipment and other types of products. In recent years, the company closely follows the development of international material testing machines and testing technology, boldly adopts high technology, attracts high-tech professionals, increases investment in technology research and development, and devotes itself to improving the intrinsic quality of the instrument, keeping improving, being honest and trustworthy, and enabling each series to be tested. The equipment has been greatly developed, and its product performance and use have occupied a leading position in the testing machine industry. Our company adheres to the tenet of "no fussy customers, only imperfect products", takes development as our responsibility, and serves our customers with the purpose of providing our customers with a full range of thoughtful services ranging from design, production to installation training.

FAQ

1. Are you a manufacturer?
Yes, we are the largest manufacturer of universal tensile testing machines and have a history of more than 11 years. In general, every machine shipped from our factory provides 12 months of free maintenance, taking into account shipping reasons. We can extend the maintenance period for our customers for 2 months.
2. Do you have after-sales service? How can I ask? What about warranty?
Before the delivery of the equipment, we will carry out the factory inspection and the equipment will be shipped after the inspection. If your machine does not work properly, you can contact us and we will try our best to communicate with you via email or skype video chat. We promise we will reply to you within 24 hours and with 3 Within a working day to provide solutions. After confirming that it is really necessary, we can send you new parts or on-site maintenance.
The service does not include mechanical failure due to the following reasons:
(1) Wrong operation;
(2) Privately modified;
(3) Failure caused by non-equipment itself
(4) Use environment that is not suitable for equipment operation. Such as high temperature, humidity, corrosive gas or vibration.
(5) Problems caused by movement or transportation.
(6) Consumable components.
(7) Natural disasters
3. What is the delivery deadline?
Most of the time, we have inventory at the factory. If not, the delivery time is usually 15 to 20 days after receiving the payment. If you need it urgently, we can consider making special arrangements for you.
4. What kind of packaging and transportation do you use?
Under normal circumstances, we will use ordinary orders such as DHL, Fedex, UPS TNT transport. Large orders will use aviation or shipping.
5. Can the device be customized? Can I customize my own design on the device?
We can not only provide standard machines, but we can also provide customized machines according to your needs.
At the same time, we can also place your trademark on the machine.
6. What kind of packaging do you use?
Plastic sealed and sturdy wooden box.
7. What payment methods do you support?
Paypal, T/T, Western Union and Escow, we recommend that you pay via Alibaba.
.
