Multi Color Flexo Printing Machine With Hot Stamping
- T/T Credit Card
You May Like
Product Details
| Brand Name | XUANHAI | Place of Origin | Zhejiang, China | |
| Condition | New |
Product Description

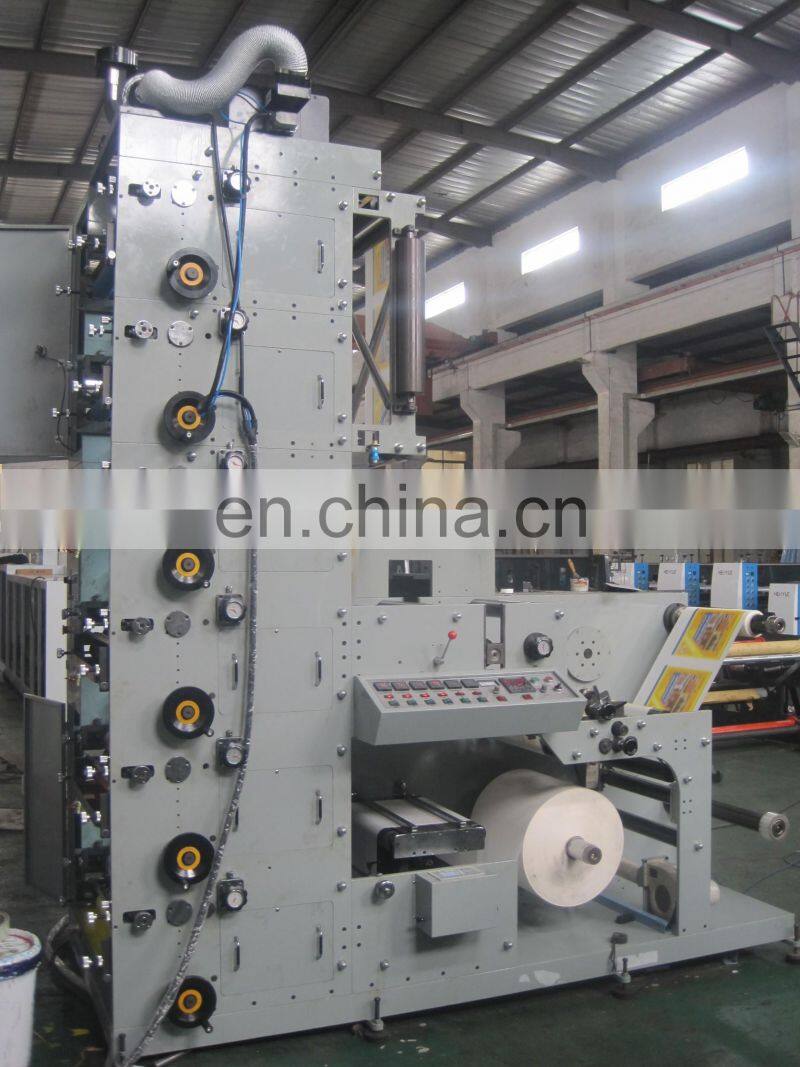

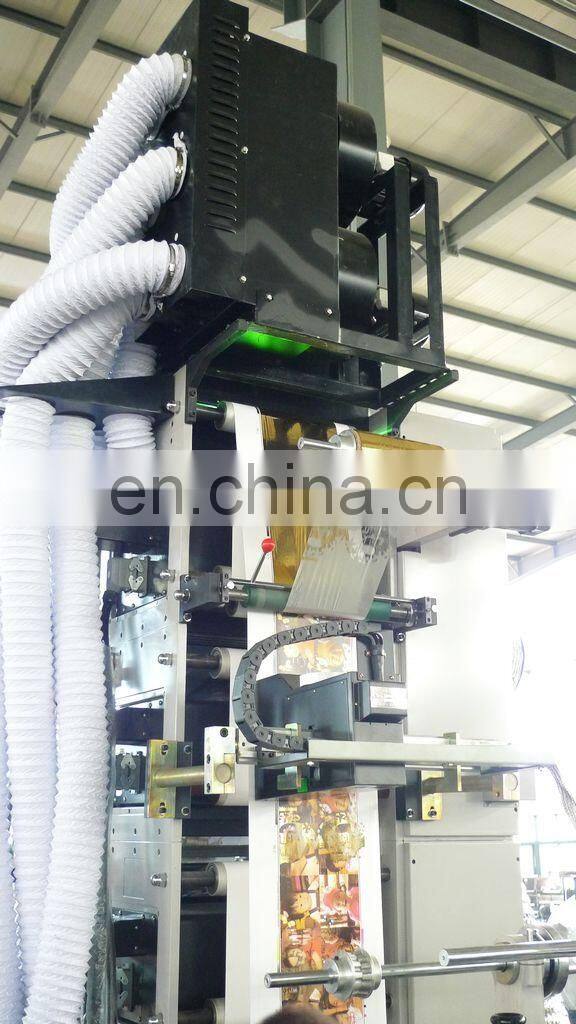

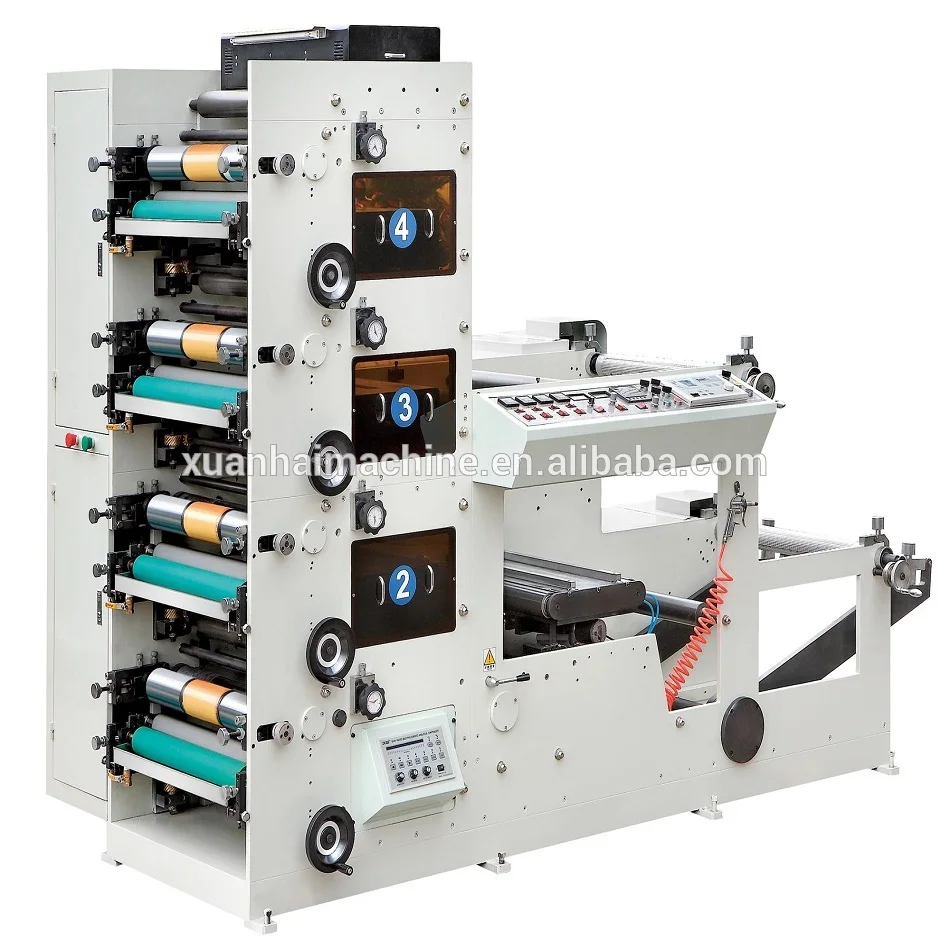

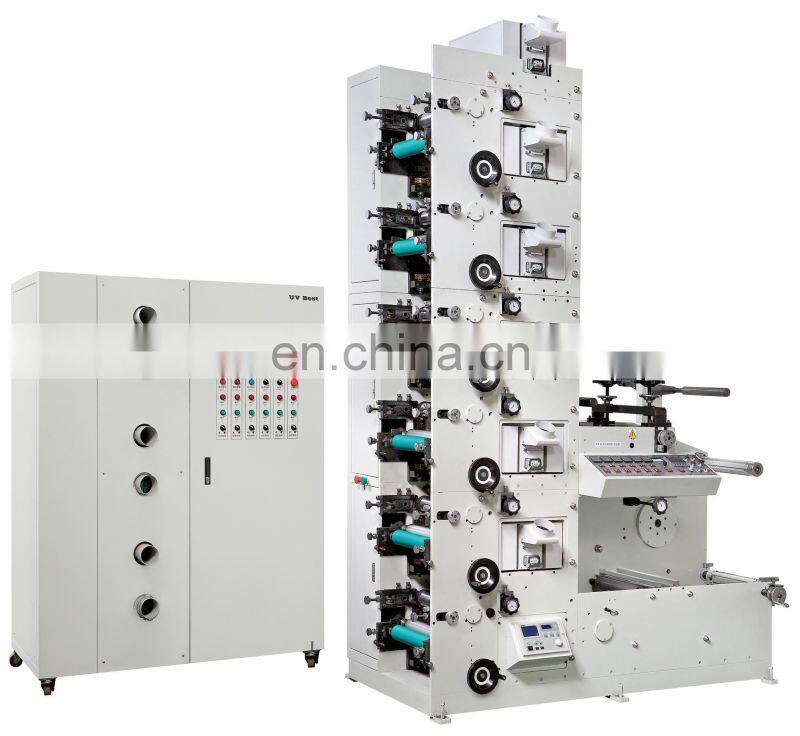

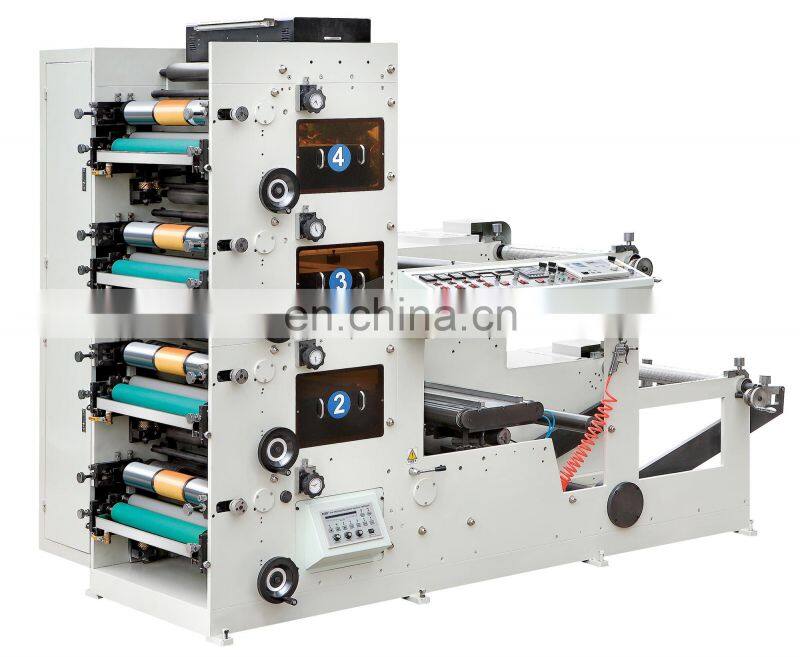

Multi Color Flexo Printing Machine with hot stamping
Flexo Printing Machine with hot stamping
Summaries：
1. The main motor adopts inverters.
2. Unwinder and rewinder are controlled by magnetic powder brake and clutch.
3. Unwinder system is controlled by auto-rectify sensor.

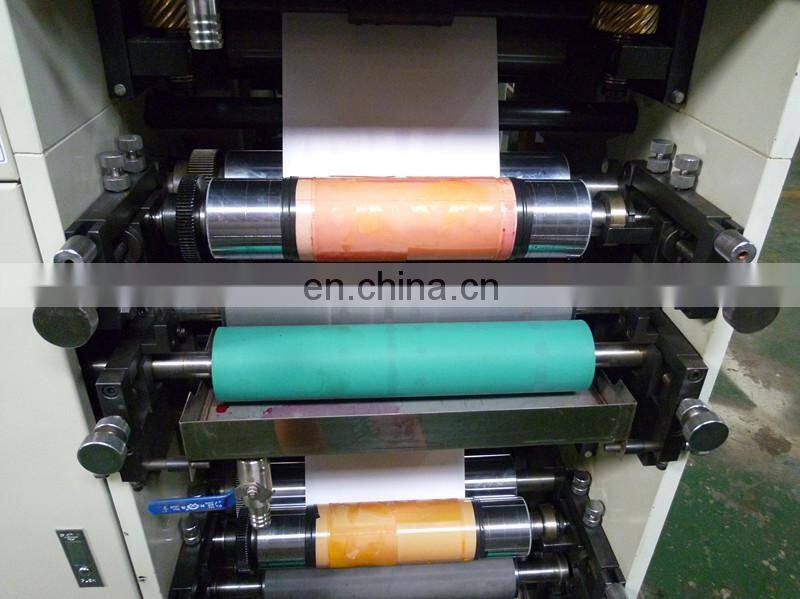

4. The machine adopts high quality ceramic anilox roller which is with long life and wear resisting and corrosion resistance.
5. The prining unit can register in 360 degrees.Each printing unit can independently gear and loosen,so other printing units can continue do printing.
6. The printing units are all equipped with a group of infrared dryers respectively .
7. Each IR dryer device of printing unit can interchange of UV dryer device.
8.The unwinder and rewinder all are with air shafts..
9. The inking roller can automatically fall off at stoppage and transfer at low speed in order to keep the ink from being dry and solid.
10. The roll feeding, printing, polising, auto infrared drying, lainating and rolling can be processed in one processing.
It is characterized by wide application, non-population of printing ink and fast drying, quick printing. So it is an ideal printing machine for the commercial bill to print high-Gradded free adhesive trademark.
Specification:
| Model No. |
RY-320 |
RY-450 |
| Colors |
4-6colors |
4-6colors |
| Web maximum width |
320mm |
450mm |
| Max printing width |
310mm |
440mm |
| Printing length |
175-320mm |
175-320mm |
| Thickness of printing plate |
1.7mm |
1.7mm |
| Double faced adhesive tape |
0.38mm |
0.38mm |
| Max printing speed |
10-60m/ min |
10-60m/ min |
| Unwinder diameter |
600mm |
600mm |
| Rewinder diameter |
550mm |
550mm |
| Machine weight |
2000kg |
2300kg |
| Machine dimension |
3000x1500x3000mm |
3000x1700x3000mm |
Company Profile
We are a Big Group specializing in making all kinds of printing and plastic machines, such as plastic bag whole line machines (film blowing machines, flexo and gravure printing machines, lamination machines, all kinds of bag making machines), disposable glove making machines, plastic cup and paper cup making whole line machines, drink straw making whole line machines, label whole line making machines, and paper cutting whole line machines.
