Video Web Camera Print Image Inspection System for Printing Machine

Wodden case/Seaworthy package for computer camera for flexo printing machine.

   ♣  Computer camera for flexo printing machine

♦ Line motor-move traverse
♦ RGB/CMYK VALUE DETECT
♦ Image Rotate
♦ Image Patrol Shooting
♦ Image Split and Freeze
♦ Image Sharpen with Gamma
♦ Image Roll and Slow Shot
♦ Printing Speed & length measure
♦ Optical multiple & zoom Saving

 Design under ergonomics

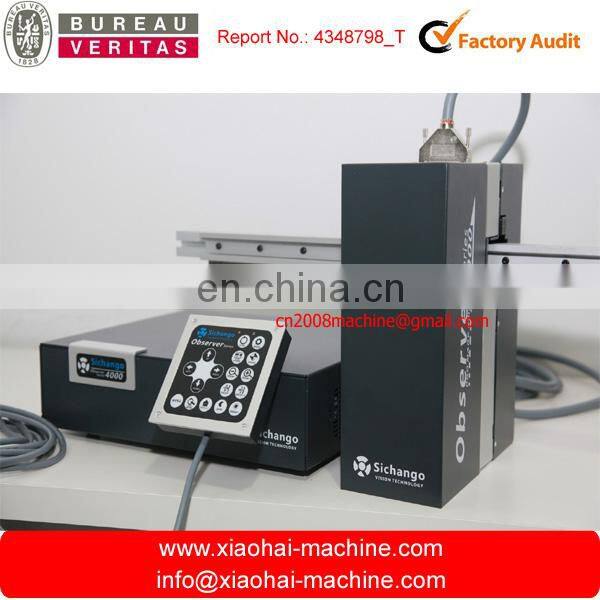

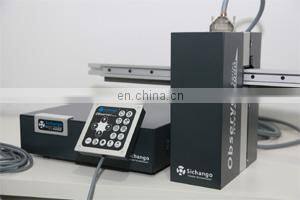

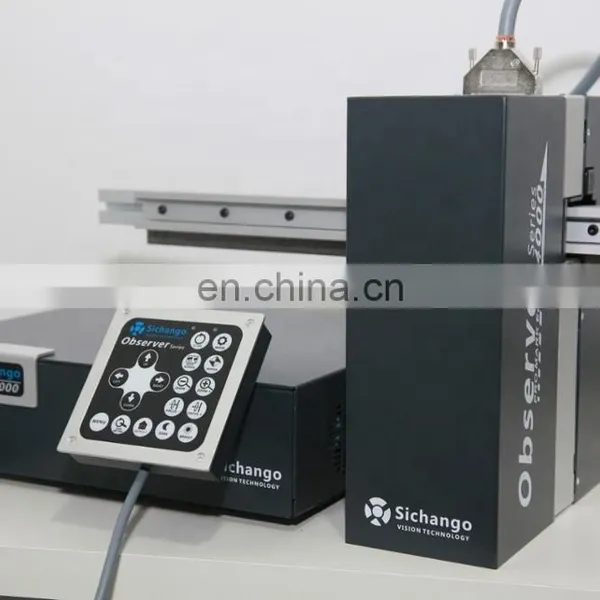

Observer series provide camera keyboard and remote keyboard for various rotary presses. Remote keyboard can be installed on camera unit, controller cabinet, or control panel of rotary press. Dual display is also provided. All these can make operation easier than before.

MOTOR DRIVE

It is suit for all kind of printing press with wide press material, or high position, and need camera to move frequently. Observer 4000M had been installed and applied on flexo and gravure press worldwide with hundreds sets.

CMOS high-speed industrial camera

Observer series is using high-speed CMOS industrial camera as the core unit with Sichango own intellectual property. It‘s small and stable with VLSI chip and provide clear, sharp and high-definition image.

Image patrol shooting

Observer 4000M (Motor drive) provides patrol shooting function which can shoot image while camera loops moving on traverse automatically to detect print quality easily. Traverse length up to 3 meters maximum.

Clear continuous 30X optical zoom

Observer series are all with 30X optical zoom. It providing fine adjustment from 1X to 64X with advanced digital image algorithms and give clearer image and detail than before.

Simple and easy function for end user

It refine various functions on market and requirements from end users, providing most simple and practical functions in Observer series with new features as CMYK value detect, strobo life protect, auto scan and give end user more ROI in one time purchase.

CMYK value detect

Observer series innovative integrating CMYK value detecting as standard function which can measure RGB and CMYK value and display on screen in real-time value and help user to find color change caused by ink consistency.

Function in Detail Highest response in industry

Observer series provide sensitive features up to 10 pics shoot speed per sec and maximum 400m/min defect running speed beyond other systems on market.

Image freeze and rotate

Providing image freeze and free rotate by X, Y and XY axis. Camera unit can rotate with customer requirements to fulfill web inspection in different angle.

Image split

Image can be split by left freezing one with right updating one in real time to help user to contrast printing result.

We introducing Gamma correct in image process to adjust color display in different monitor effectively, especially when printing business forms.

For all type rotary press

Observer series can fit for various of rotary press such as drum press,combination rotary press and gravure rotary press, etc.

Specification:
