Unit type six color flexo printing machine
1. Features:
Specifications
flexo machine
roll to roll
resin plate
to printi various material
2.Technical Parameters:
MODEL |
WIDE WEB SERIES |
||
|
YH810 |
YH1000 |
YH1200 |
Max.Web Width |
825mm |
1015mm |
1215mm |
Max.Printing Width |
810mm |
1000mm |
1200mm |
Max.Die-cut Width |
810mm |
1000mm |
1200mm |
Printing Repeat Length |
260-710mm |
260-710mm |
260-710mm |
Die-cut Repeat Length |
260-710mm |
260-710mm |
260-710mm |
Max. Unwinder Diameter |
1524mm |
1524mm |
1524mm |
Max. Rewinder Diameter |
1524mm |
1524mm |
1524mm |
Gearing Size |
1/8CP |
1/8CP |
1/8CP |
Max. Mechanical Speed |
152m/min |
152m/min |
152m/min |
OD of Web Roller |
100mm |
100mm |
100mm |
|
Main Drive Motor |
15-18kw |
20-30kw |
20-30kw |
Lubricating System |
auto |
auto |
auto |
Air Pressure |
0.6mp |
0.6mp |
0.6mp |
Power Required |
380v3ph50hz |
380v3ph50hz |
380v3ph50hz |

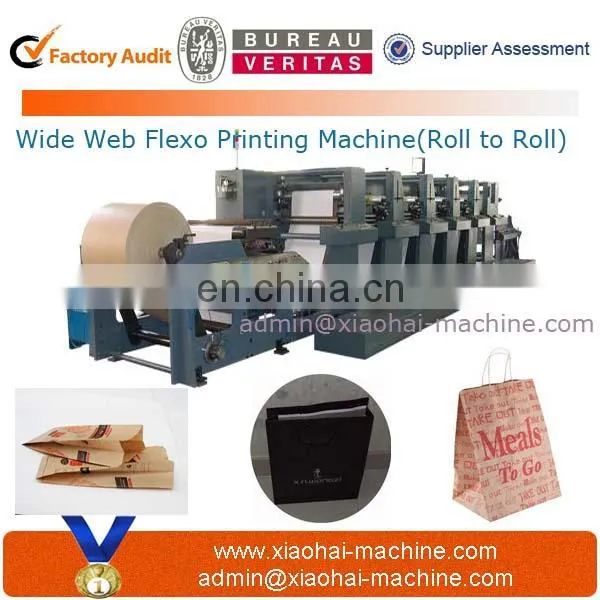

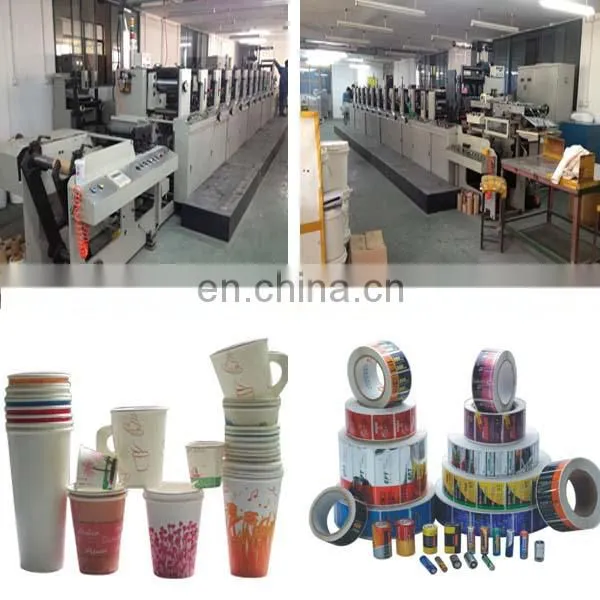

4.Machine Pictures:
6. Sample Pictures:

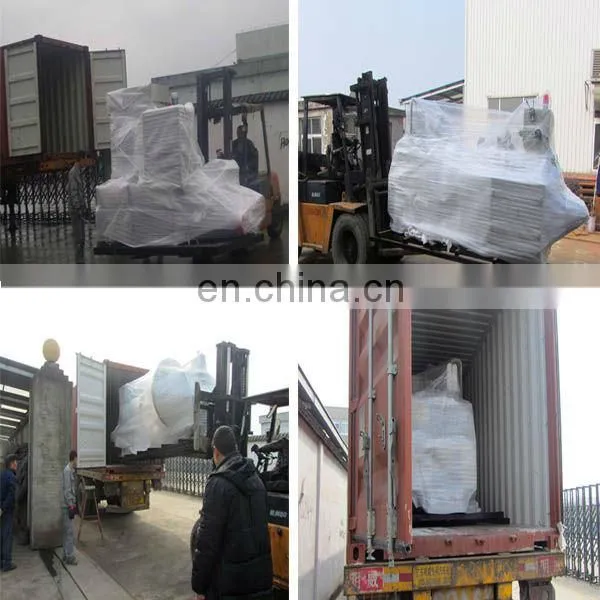

7. Machine Delivery Pictures:
We are specializing in making paper bag making production line, including paper bag making machine, flexo printing machine, rope making machine and handling making machine etc.
We have both paper bag making machine with roll feeder and sheet feeder.
1.Company Show
2. Certificates
3. Advantages&Service
1)We have several senior engineers service in many countries, all the year round with our after-sales office in multiple countries.
2)Machines with good quality in one year, life-long maintenance.
3)We have many machines can be monitored via the Internet, solve customer requirements in
a timely manner.
4)We have several senior,continuous innovation and reform, in order to ensure the quality of
mechanical stability.
5)Undertake various non-standard machinery, solve the customers' requirements.
4. Contact Information:
Contact Person: Tracy Wu
Mobile:+86-137777712080 Tel:+86-577-256933332
Add:Shangwang Industrial, Ruian city, Zhejiang province, China
Web:www.xiaohai-machin
