Machine to Print Vinyl Stickers

Machine to Print Vinyl Stickers thumbnail-1
Machine to Print Vinyl Stickers thumbnail-2
Machine to Print Vinyl Stickers photo-1
Machine to Print Vinyl Stickers photo-2
US$ 20,000 - 50,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
Xiaohai
Place of Origin:
Zhejiang, China
Model Number:
RY Machine to print vinyl stickers
Contact Supplier Request Quote Chat Now
Wenzhou Xiaohai Import And Export Co., Ltd
Gold Verified Supplier
5Yrs
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name Xiaohai
Place of Origin Zhejiang, China
Model Number RY Machine to print vinyl stickers
Material Paper
Feature Waterproof
Custom Order Accept

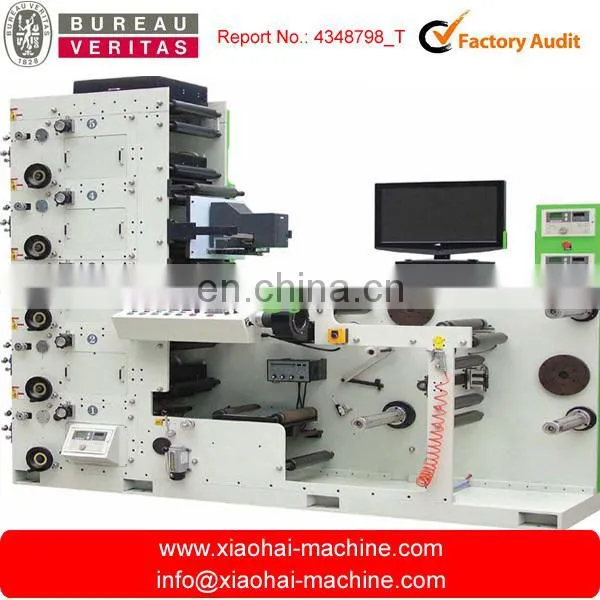

Machine to print vinyl stickers



NEW TYPE: one machine finish printing,die cutting,sliting in one process

Machine to print vinyl stickersMachine to print vinyl stickers



Usage:
1.It is used for printing various kinds of label with samll or middle or large order quanity printing service.
Also it is an ideal printing machine for the commercial bill,card paper,high grade adhesive tape trademark.

2.Performance and Features:
1. The main motor adopts inverters.
2. Unwinder and rewinder are controlled by magnetic powder brake and clutch(Japanese Mitsbish auto tension controller).
3. Unwinder system is controlled by auto-rectify sensor.
4. The machine adopts high quality ceramic anilox roller which is with long life and wear resisting and corrosion resistance.
5. The prining unit can register in 360 degrees.Each printing unit can independently gear and loosen,so other printing units can continue do printing.
6. The printing units are all equipped with a group of infrared dryers respectively .
7. Each IR dryer device of printing unit can interchange of UV dryer device.
8.The unwinder and rewinder all are with air shafts..
9. The inking roller can automatically fall off at stoppage and transfer at low speed in order to keep the ink from being dry and solid.
10. The roll feeding, printing, polising, auto infrared drying, lainating and rolling can be processed in one processing. It is characterized by wide application, non-population of printing ink and fast drying, quick printing. So it is an ideal printing machine for the commercial bill to print high-Gradded free adhesive trademark.



Specification:



Model No. RY-320 RY-450
Colors 4-6colors 4-6colors
Web maximum width 320mm 450mm
Max printing width  310mm 440mm
Printing length 175-320mm 175-320mm
Max printing speed 10-60m/ min 10-60m/ min
Unwinder diameter  600mm 600mm
Rewinder diameter

550mm

550mm
Machine weight 2000kg 2300kg
Machine dimension 3000x1500x3000mm 3000x1700x3000mm





Remark:The machine also can be equipped with UV,just inform us how many UV you want.Also you can let us your requirement on the machine,we will quote you on your demands.



label printing machinery/label(logo) flexo printing machinery/stack type flexographic printing machinery
