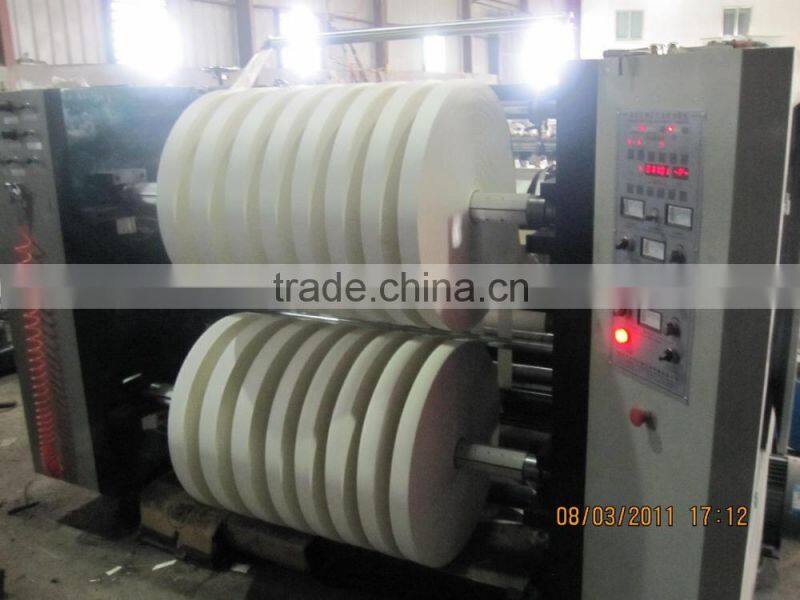

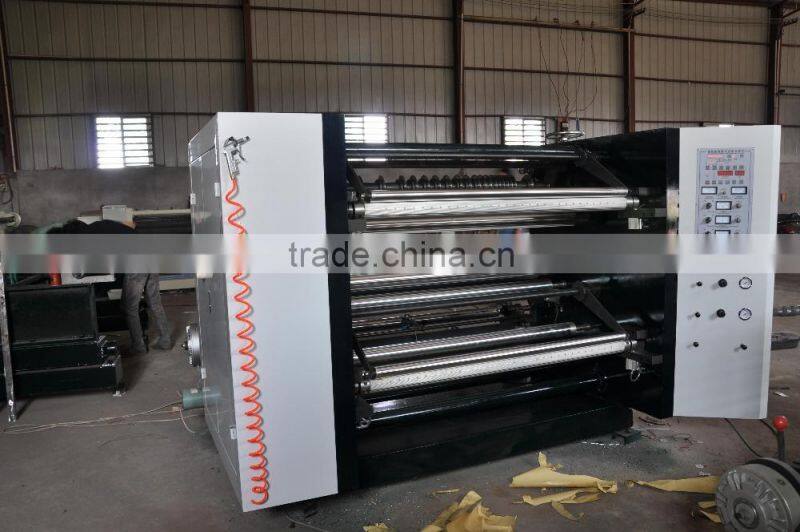

HAS VIDEO WFQ Horizontal 160meter Per Minute Slitting And Rewinding Machine For Paper Roll With Disc Knife
- 25 Set / Sets per Month
- NINGBO CHINA
- T/T Credit Card
You May Like
-
paper cup fan die cutting machine,only need USD16600 ,Size 900*250mm
-
Automatic ice cream cone paper sleeve machine
-
Automatic Pizza Box Making Machine
-
Has video roll to sheet Automatic paper Cup Fan , Paper Box die cutting machine
-
HAS VIDEO Roll Feeding Flexo Paper Bag Paper Cup Printing Machine
-
tulip cup machine
Product Details
| Brand Name | XIAOHAI | Place of Origin | Zhejiang, China | |
| Certification | ISO9001 | Type | Slitting Rewinder | |
| Warranty | 1 Year | |||
| Weight | 3300kg | Dimension(L*W*H) | 3300X2500X2200MM | |
| Condition | New | Voltage | 380v 220v | |
| Computerized | Yes |
Seaworthy packing
Product Description
Main Technical Parameter:
Main Technical Parameter:
1. Slitting Material: Film, Paper Roll etc
2. Slitting Width:25-1300mm
3. Machine Speed: 160m/min
4. Slitting Speed: 150m/min
5. Unwinding Diameter: 800mm Tension 100N.m 3” Air shaft
6. Rewinding Diameter:2x600mm Tension 100N.m 3” Air shaft
7. Main Motor:4.5KW frequency conversion motor
8. Cutting System: Adopt round blade/flat blade,slitting accuracy:±0.1mm,minimum slitting width:25mm
9. Transmission: Belt
10. Guide Roller: 80 Hard Aluminum Alloy
11. Machine Construction: Alloy Iron
12. Web guide scope:120mm Accuracy:±0.3mm
Configuration:
1. Main Control Part:It has the function of meter counting or length counting,automatic stopping, Speed Adjustment.
Unwinding Tension: Adopt Magnetic Powder control tension 100N.M
Rewinding Tension: Adopt Magnetic Powder control tension 100N.M
Main Motor: Adopt Three Phase AC 5.5KW Frequency Conversion Motor
2. Running and Locking:Pneumatic
3. Lower Voltage Apparatus:Adopt CHNT
4. Pneumatic Component:Adopt Domesitc Mingyou or Jingwei
5. Web Guide: Adopt photoelectric eye
6. Slitting Blade: Scaleplate Orientation,it’s easy to install,and accurate.
