Twisted Handle Paper Carrier Bags Making Machine
- 1000 Set / Sets per Month
- T/T Credit Card
- paper bag for shopping machine
- 2014 food paper bag machine, paper bag making machine price
- paper bag handle making machine
- HAS VIDEO Food Packaging Brown Kraft Paper Bag Making Machine
- HAS VIDEO Machines to make paper bread bags
- HAS Video Fully Automatic Paper Bag Making Machine for KFC Food French Fries Grease Proof 40---80gsm 0---80mm Mould(plate) 76mm
Product Details
Brand Name: | XIAOHAI | Place of Origin: | Zhejiang, China | Model Number: | CY290/460 Paper Bag Making Machine |
After-sales Service Provided: | Engineers available to service machinery overseas | Condition: | New |
Packaging Details
Seaworthy packing shipping cost: please contact us in details
Product Description
Twisted Handle Paper Carrier Bags Making Machine
Machine working video: http://youtu.be/RLuGjGLn0dc (please copy)
All paper bag making machine working video:
/playlist?list=PLnDMbEqgt27xor_FtBV1TrKtM_gbygOTT
(please copy)
1. Features:
Paper Bag Making machine can produce the square bottom paper bag in conjunction with overseas
advanced technology. The machine has many advantages such as high speed,high productive efficiency
and wide-rang adjustment.
It is an ideal machine for producing Square Bottom Shopping bags to pack gifts, cosmetic, etc.
2. Advantages:
1)Suited for 60-180gsm roll sheet paper.
2)Controls bag length through the human-machine interface.
3)PLC system for calculating parameters.
4)Equipped with an accurate photocell system.
5) Color mark error automatic alarming and stopping system
6)Automatic oil lubrication system and Automatic counting system
3.Technical Parameters:
MODEL | CY-290 | CY-460 |
Width of Paper roll | 320-930 mm | 600-1300 mm |
Length of Bag | 155-505 mm | 155-505 mm |
Width of Bag | 80-290 mm | 220-460 mm |
Width of Bag Bottom | 60-160 mm | 60-180 mm |
Paper weight | 60-180 g/m2 | 60-180 g/m2 |
Max. Diameter of Paper Roll | 1500 mm | 1500 mm |
Internal Diameter of Roll Core | 76 mm | 76 mm |
Max.Speed | 200 pcs/min | 200 pcs/min |
Total Power | 15Kw | 15Kw |
Weight of Machine | Approx 9000 kg | Approx 10000 kg |
Overall Dimension(L*W*H) | 8600 mm × 2500 mm × 1800 mm | 8600 mm × 3000 mm × 1800 mm |

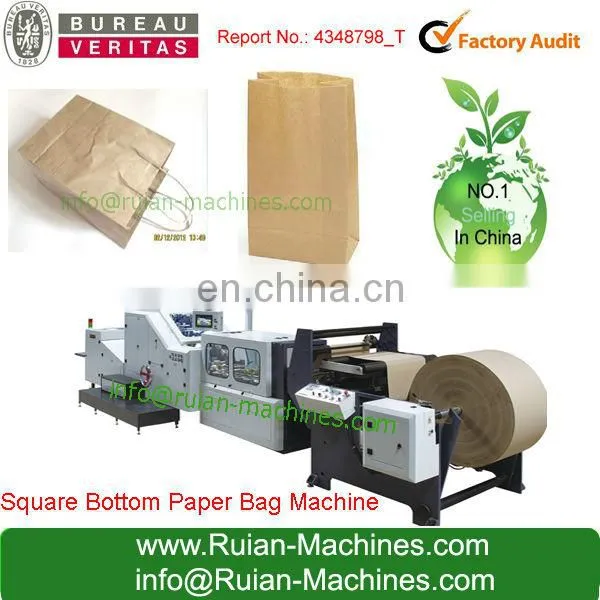

4.Machine Pictures:
5. Sample Pictures:
Our engineer can be available to service machinery overseas.
1)We have several senior engineers service in many countries, all the year round with our after-sales office in multiple countries.
2)Machines with good quality in one year, life-long maintenance.
3)We have many machines can be monitored via the Internet, solve customer requirements in
a timely manner.
4)We have several senior,continuous innovation and reform, in order to ensure the quality of
mechanical stability.
5)Undertake various non-standard machinery, solve the customers' requirements.
PAPER BAG MAKING MACHINE
We are specializing in making paper bag making production line, including paper bag making machine, flexo printing machine, rope making machine and handling making machine etc.
We have both paper bag making machine with roll feeder and sheet feeder.
1.Company Show
2. Certificates
4. Contact Information:
Contact Person: Tracy Wu SKYPE:XIAOHAIMACHINE
Mobile:+86-137777712080 Tel:+86-577-256933332
Add:Shangwang Industrial, Ruian city, Zhejiang province, China
Web:www.xiaohai-machin
Business Name Card of QR code:
Company Profile
We are a Big Group specializing in making all kinds of printing and plastic machines, such as plastic bag whole line machines (film blowing machines, flexo and gravure printing machines, lamination machines, all kinds of bag making machines), disposable glove making machines, plastic cup and paper cup making whole line machines, drink straw making whole line machines, label whole line making machines, and paper cutting whole line machines.
