Automatic Hot Drink Paper Cup Filling Sealing Machine

wooden case

Welcome to browse our products: 2014 hot sale automatic plastic cup filling and sealing machine for liquid or semi-liquid.

What is the details of  2014 hot sale automatic plastic cup filling and sealing machine for liquid or semi-liquid?

This machine is a multifunctional high-speed full automatic machine specially designed for liquid or semi-liquid(such as water, milk, yogurt, olive oil, fruit juice, tomato sauce, honey) to be filled and sealed. The machine applied with world famous electrical and pneumatic components. High quality, high stability, long service life. All the parts of machine are made of food grade #304 stainless steel.

1. Advanced design, reasonable structure, reliable performance;

2. Fully automatic operation, adjustable production speed, easy operation, safety, increase productivity, reduce labor costs;

3. Photoelectric sensor track ensure accurate sealing;

4. Twice sealing, sealing pressure can be adjusted according to customer requirements as easy or difficult to tear, reflecting greater humanization design;

5. Seal firmly and smooth flawless;

6. Customize equipment according to the customer requirements and other accessibility features;

7. Configuration: this machine uses the channel steel, welded together, after 3 times anti-rust treatment, outsourcing  #304 stainless steel. Exposed parts are made of rust-proof handle.

What is the structure  of  2014 hot sale automatic plastic cup filling and sealing machine for liquid or semi-liquid?

Aluminum mould: Aluminum Acid-resistant mould, with no deformation, corrosion-resistant features, high hardness, long service life;

Rack section: Made of high quality carbon steel welded together, spray paint, then covered with 304 stainless steel, touching the ground with strong bolts. Can also make the whole machine stainless steel;

Transmission system: Well-known brands of motor, reducer, transmission, cam-splitters, template chains, such as: Mitsubishi Electric;

Falling cups system: Machine automatically one by one fall cup, stable and efficient;

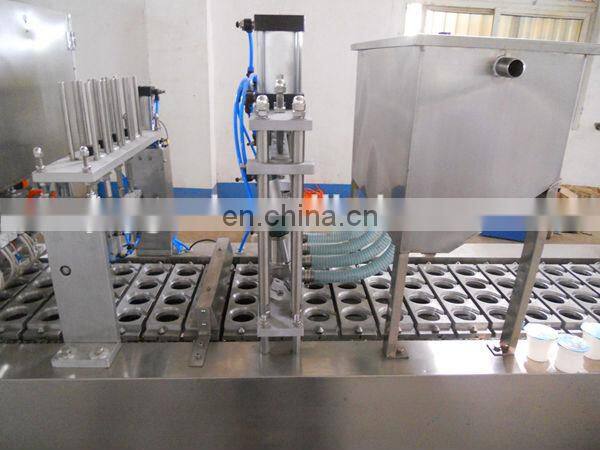

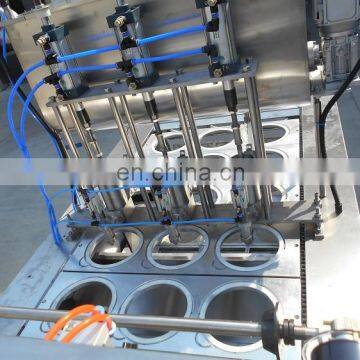

Filling system: Storage tanks made of #304 stainless steel, volume can be customized. Filling volume can be adjusted freely, accurate high precision, anti-leak, you can add mixing system insulation and heating systems;

Put on foils:  Automatic suck foils by vacuum then put above the cups, high accuracy, saving time and efficiency;

Sealing system: Constant temperature (intelligent temperature)  twice sealing, sealing heads made of copper, good thermal conductivity, strong;

Cutting film: Cold cutting, cut out the covering film easy opening;

Put out cups: Can be equipped with a vacuum suction cup arm system, external conveyor;

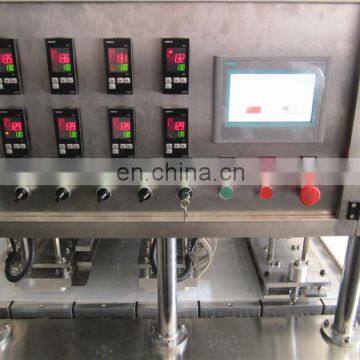

Control system: Using Omron and Siemens PLC programmable , relays, the main components fordomestic and international famous brands,Siemens touch screen.

BH series automatic filling and sealing machine, adopting chain step transmission mechanism. 24 hours of continuous work.  The electrical and pneumatic components are Germany, and France, and Japan and other international brands. Can be configured as required joint control system human-machine interface, PLC .

What is the  workflow of  2014 hot sale automatic plastic cup filling and sealing machine for liquid or semi-liquid?

Automatic loading cups one by one;

Automatic filling liquid or semi-liquid;

Sucking foils;

Sealing 1;

Sealing 2;

Put out cups.

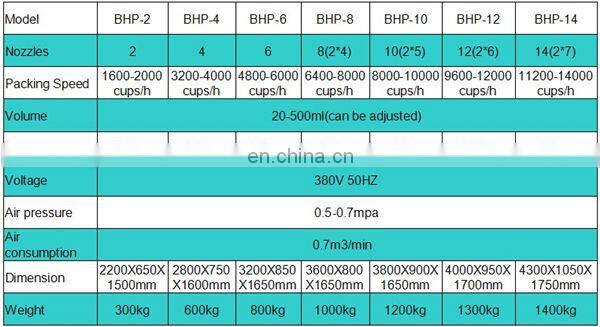

what is the Machine parameters of   2014 hot sale automatic plastic cup filling and sealing machine for liquid or semi-liquid ?

What is the advatage of  2014 hot sale automatic plastic cup filling and sealing machine for liquid or semi-liquid?

1# According to client's sepcial requirements, provides the special design, more than 10 years experience in cup  filling and sealing machines, professional designer and worker so serve you.

2# We are factory and manufacturer, direct sales with competive price.

3# Each machine with a strict inspection before out of storage, each machine is made of SUS304 or SUS316 and use world famous electrical and pneumatic components;

4# Within Warranty period, if under the usage of instruction sheet, any product broken or damage, we will offer the repair service.

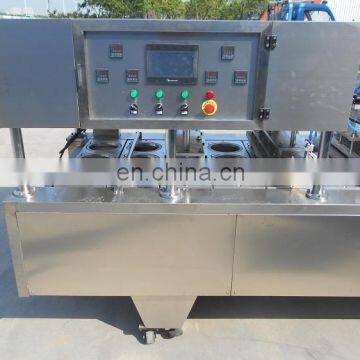

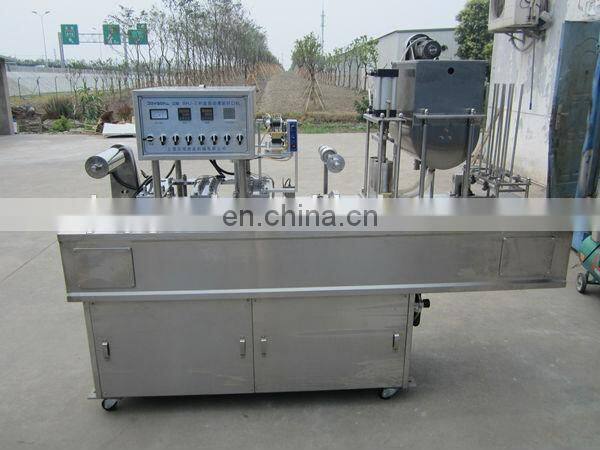

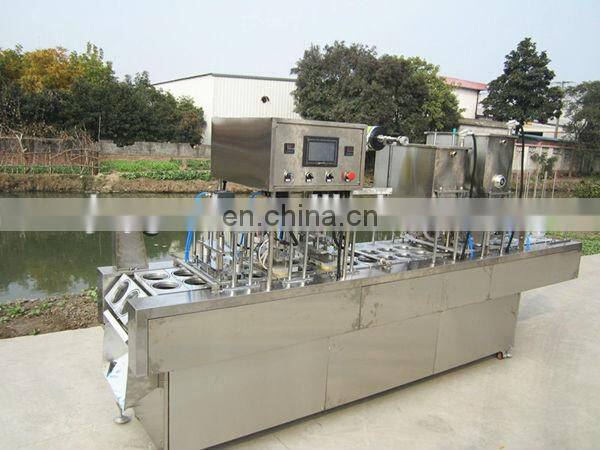

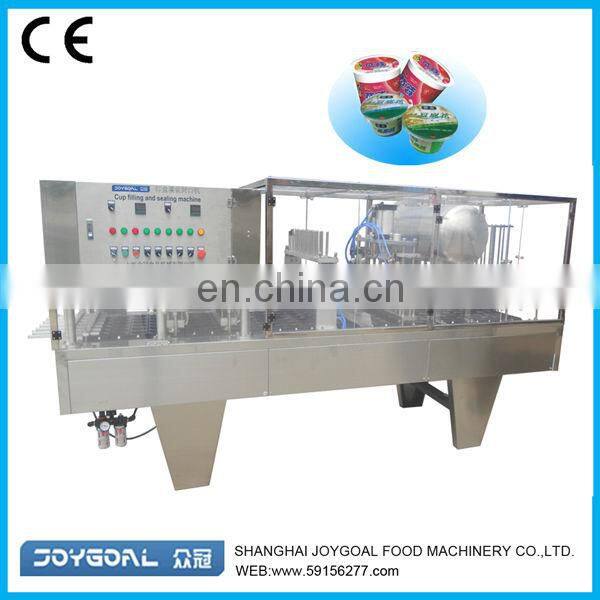

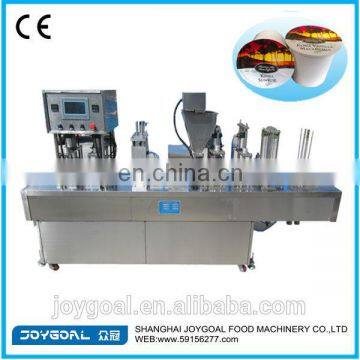

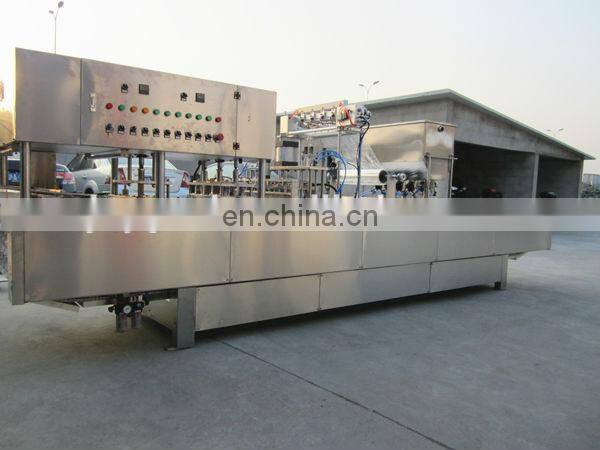

 Machine photoes
