Home > Products > Crack Gauge > F800 Concrete Crack Gauge
F800 Concrete Crack Gauge
- T/T Credit Card
You May Like
Product Details
| Brand Name | GTJ | Place of Origin | Hebei, China | |
| Model Number | F800 |
Product Description

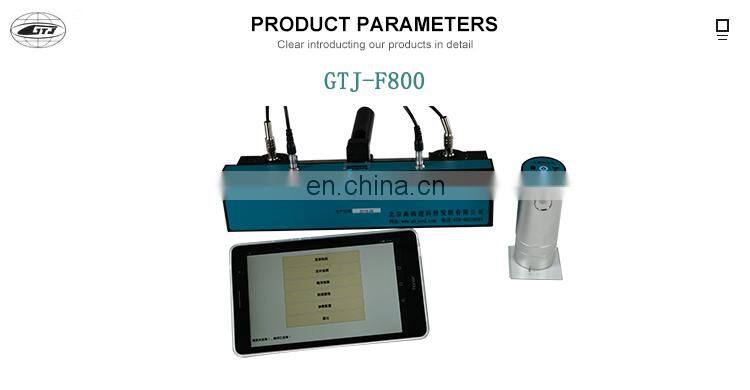

F800 concrete crack gauge
Used for automatic measurement of crack width and crack depth on structural surface, automatic interpretation and storage of data.
applicable standard:GJ125-99 House safety appraisal standard
CECS 21:2000 Technical specification for ultrasonic testing of concrete defects
specifications and models | GTJ-F800 | ||||
MCU(main control unit) | |||||
Wireless seam width gauge unit | Test range and accuracy | 0~10mm; 0.01mm | Wireless seam depth gauge unit | testing range | 5~500mm |
magnification times | Digital 60 times | measurement accuracy | 5mm or 2%~10% of actual depth | ||
operating mode | Touch screen + shortcut keys | operating mode | Touch screen + probe automatically triggered | ||
connection type | WIFI connection | placement | Bluetooth connection | ||
measurement mode | Automatic/manual interpretation | measurement mode | Fast/standard measurement | ||
power supply mode | built-in lithium battery | power supply mode | built-in lithium battery | ||
working hours | More than 10 hours | working hours | More than 10 hours | ||
work environment | -10℃~+40℃ <90%RH | package size | 420*140*335mm | ||
| |
Integrated design. Small size.
| 1 |
| 2 | Intelligent interpretation of oblique fractures, without vertical;The image can be zoomed in and out, and the scale displayed on the interface can be interpreted manually.
| |
|
Original wireless camera probe, quick shot button easy to operate;The host adopts Windows tablet, Chinese full touch operation
| 3 |
| 4 |
The data analysis and report form is provided in the host computer, which can be owned without transferring to the upper computer. |
|
| ||
| Features | |||
| 1 | Integrated design. Small size. | ||
| 2 | Original wireless camera probe, quick shot button easy to operate;The main machine adopts Windows tablet, Chinese full touch operation; | ||
| 3 | Intelligent interpretation of oblique fractures, without vertical;The image can be zoomed in and out, and the scale displayed on the interface can be interpreted manually. | ||
| 4 | No marking of sounding support, saving time and effort;Tablet and TF card storage, super-large capacity without limit, copy data convenient, fast; | ||
| 5 | The data analysis and report form is provided in the host computer, which can be owned without transferring to the upper computer | ||
Q: Are your company a trading one or a factory?
A: Factory+ trade (integration), More than 10 years focusing on test instruments field.
Q: After an order is placed, when to deliver?
A: Generally about 10-25days, If we have inventory, we can arrange shipment within 3 days Please be aware that our production lead times depend on specific items and item quantities.
Q: What about the warranty with after-sales services?
A: The testing machine is guaranteed for 12 months by gaotiejian, we can help you to repair your problem con troller freely, even it's not from our factory. After the warranty, the professional after-sale service team will provide perfect technical support and help guests solve problems encountered while using our product, handles guest problems and complaints in a professional and timely.
Q: What about the product' services and qualit?
A: Each instruments must be carried out 100% quality examination and test when shipping and delivery goods Product use training, each of our product provide video training to show you how to install operate We can arrange engineer to train the operation of equipment to customer s company when you need. products are widely recognized and trusted by users.
