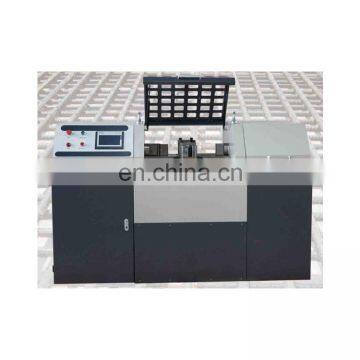

Fully automatic bending rebend test machine for reinforcement steel

   The bending equipment adopts horizontal structure design, compact structure and beautiful appearance. The bending angle is set numerically, and the touch screen operation is convenient and fast. The machine is loaded by two cylinders. The bending backup roll is driven by two-way lead screw driven by servo motor. The backup roll moves in and out synchronously so as to adjust the bending support spacing. The pressure roll is installed on the piston to carry out the positive bending and reverse bending test of the sample. PLC controls the direction of action and bending angle of the hydraulic cylinder, completes the forward and backward test process at one time. The bending operation is simple and convenient, the work efficiency is high, and the operation is stable. The test angle has high precision and fast speed.

Device Configuration

1. One host;
2. Siemens PLC control system
3. Bending core is equipped according to actual needs (see the bending core specification configuration table for details);
4. 1 set of hydraulic station;
5. 1 set of protective cover (installed on the host);
6. Product certificate, instruction manual, random tools, etc.

Features

• Hydraulic station: The hydraulic station is mainly composed of fuel tank, oil pump and valve. The main hydraulic components are all domestic famous brands, which fully guarantee the reliability and stability of the hydraulic system.
  Rack: The frame part of the frame is welded by angle steel, channel steel and other profiles. The structure is reasonable and conforms to the operator's habits. The panel and the like are made of sheet metal structure, which is convenient to disassemble and assemble, and the surface is sprayed and processed, and the appearance is neat and beautiful.

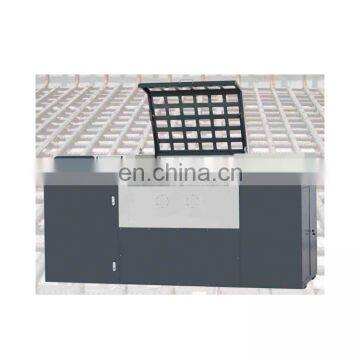

• Protective cover: This part is a very important safety protection measure for the equipment to prevent the steel from flying out during the test and injuring the operator. The part is mainly formed by sheet metal processing, and is hinged to the main frame for easy opening and closing. The observation hole is opened on the sheet metal, and the operator can clearly observe the progress of the test.

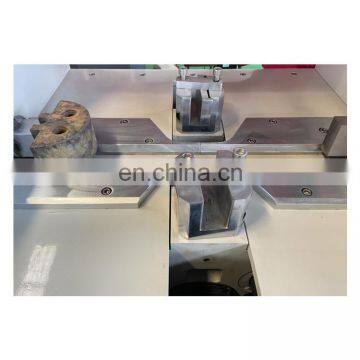

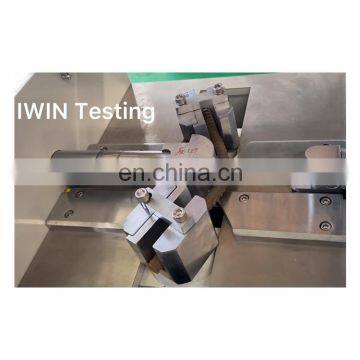

• Bending core and bending core seat: The bending core seat is mounted on the piston rod of the oil cylinder, and the bending core is fixed on the curved core seat. The curved core is made of high-strength material and after heat treatment, it is durable and not easily damaged.
• Hydraulic cylinder and control valve: The hydraulic cylinder is specially made, small in size and large in output. It provides sufficient force for bending steel bars, reliability is guaranteed, and operation is convenient.
• Electrical control system: The main electrical components are produced by well-known domestic enterprises, which ensures the reliability and stability of the equipment.
• After the angle is set, the experiment is completed in one-touch operation (no need to adjust the sample for reverse bending after the positive bend).
• The program is continuously bent to the specified angle to stop (do not need to manually hold the operation mode).
• The equipment is equipped with angle measuring and control devices to ensure that the test meets the requirements of national standard and British standard.

System display can be changed to English

Can be tested in batches.(less than φ28 includs φ28 can be test more than 3 at the same time, φ32-φ40 can be test 2 at the same time)

Set the sample specifications, PLC control automatically adjusts the span, automatically calculates the indenter diameter.

The test machine meets the long-term stable working condition.
