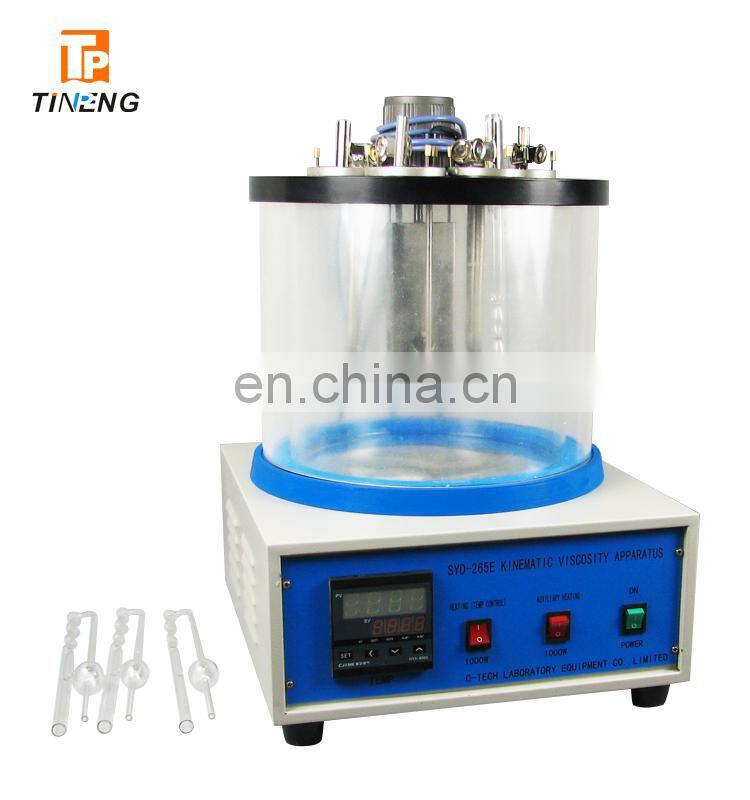

Kinematic Viscosity Testing Apparatus/ Oil Kinematic Viscosimeter/ Capillary Viscometer

 kinematic viscosity testing apparatus/ oil kinematic viscosimeter/ capillary viscometer

The instrument is designed and made as per the T0619 "Asphalt Kinematic Viscosity Test (Capillary Viscometer Methods". It is suitable to determine kinematic viscosity of asphalt at a certain temperature.

Power supply: AC 220V± 10%, 50 Hz;

Heating power: Two grades; 1000 W for auxiliary heating and 600 W for temperature controlling

Bath temperature:  Ambient temperature~180.0ºC

Temperature controlling accuracy:  ± 0.1ºC;

Mercury thermometer: 1) Rod type

                                              (2) Scale division: 0.1 ºC;
                                              (3) Measurement range: 100~150ºC or 150~200ºC;

Bath cubage: Not less than 23 L

Sample quantity: 3 piece at the same time

Stirring motor: 6 W, 1200 RPM

Ambient temperature: -10ºC~+35ºC

Relative humidity: <85%

Temperature sensor: Industrial platinum resistance, PT100

Total Power consumption: Not more than 1800 W

Capillary viscometer:  7 pieces of Cannon-Fenske reserveflow capillary viscometer tubes ina group;                                Their models are 200, 300, 350, 400, 450, 500, 600 respectively                                                (Corresponding diameters are 1.02, 1.26, 1.48, 1.88, 2.20, 3.10 and 4.00                                  mm). The users should prepare Ubbelohde type viscometer tubes by

                                      themselves.

 packing details: standdard shipping packaging

 shipping way: small packages using express , large packages using sea freight
