Thread Ends Plug Cock Valve Sleeve Soft Sealing Plug Valve
- tianjin ningbo shanghai
- T/T Credit Card
You May Like
-

                        X44W PN16 Flanged Cock Valve Cast Iron 3-way Plug Valve
-

                        X43W-10 PN10 Flanged Cast Iron 2-way Plug Valve
-

                        10 Inch Stainless Steel JIS 10k RF Flange Foot Valve Price
-

                        Tank Bottom Valve,tank Truck Bottom Valve
-

                        China Supplier With 2017 OEM Custom Cast Iron Foot Valve PN16 Price List
-

                        Cast Iron /grey Iron Lifting Bottom/foot Valve H42X-2.5
Product Details
| Brand Name | HBYS | Place of Origin | Hebei, China | |
| Model Number | X43W-16 | Material | Casting | |
| Structure | Plug | |||
| Standard or Nonstandard | Standard | Pressure | Low Pressure | |
| Power | Manual | Port Size | Standard | |
| Media | Water |
Product Description

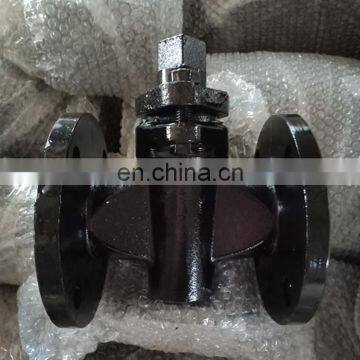

XThread Ends Plug Cock Valve Sleeve Soft Sealing Plug Valve
Plug valves are quick-acting, on-off valves that can also be used for media with suspended particulates, as the wiper seals move between wipers and fully prevent contact with the flow media when fully open. Another important feature is its ease of adaptation to multichannel structures, so that one valve can get two, three, or even four different flow paths. This simplifies the design of the piping system, reducing the amount of valves and some of the connections needed in the equipment.
♦ Product structure chart
♦ Main parts and materials
| Parts name | Material |
| Valve body Bonnet | Cast iron |
| seal | Cast iron |
♦ Function and specification
| Type | Nominal pressure | Testing pressure | Suitable temperature | Suitable medium | |
| X43W-16 | 1.0 | Strength(Water)(MPa) | Enclose(Water)(MPa) | ≤425 | WaterVapourOil |
| 2.4 | 1.8 | ||||
♦ Outline and connecting measurement
| Type | Nominal DN(mm) | Measurement(mm) | Reference Weight(kg) | ||||
| L | D | D¹ | D² | Z×Φd | |||
| X43W-16 | 25 | 110 | 115 | 85 | 65 | 4×Φ14 | 2.5 |
| 32 | 130 | 135 | 100 | 78 | 4×Φ18 | 3.5 | |
| 40 | 153 | 145 | 110 | 85 | 4×Φ18 | 5.5 | |
| 50 | 170 | 160 | 125 | 100 | 4×Φ18 | 7.5 | |
| 65 | 220 | 180 | 145 | 120 | 4×Φ18 | 9.5 | |
| 80 | 250 | 195 | 160 | 135 | 4×Φ18 | 12 | |
| 100 | 300 | 215 | 180 | 155 | 8×Φ18 | 18.5 | |

Hebei Yaosheng IM & EX Trading Co.,Ltd Locates in the B zone of Xushui Industrial Park of China Hebei province,which is Chinese largest corporation of High-middle-low Pressure Valve and flange.
Our corporation is the provincial-level high and new technology enterprise, which owns the power to engage in import and export trade, and the HBYS brand is rated as "the famous brand in Hebei Province", the HBYS series of products win the title of "the famous-brand product of Hebei", and it is the first class supplier of oil and gas group.
The company products has already explored the European and American, South Korean markets, most of the products also far sold to the Russia, Pakistan, Kazakhstan, Ukraine, Vietnam, Indonesia, Malaysia, Thailand, Dubai and other countries, and the products win the trust and good reputation of the customers.
OUR GATE VALVES FACTORY
(1)we usually use paking palletized to package Plug valve
(2)we also use plywood cases to package our Plug valve
(3)One 20' container can in bulk loaded on 20pcs plywood cases more or less.
(4)We can pack according to specific customer requests.
(5)Customers' logos are available on package of the Plug valve

CONTACT US
We are glad to provide you our best service and our best products,
Especially, if there is any requirement please feel free to tell us!
