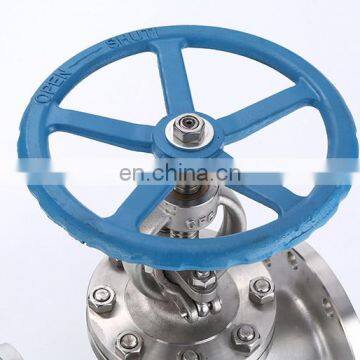

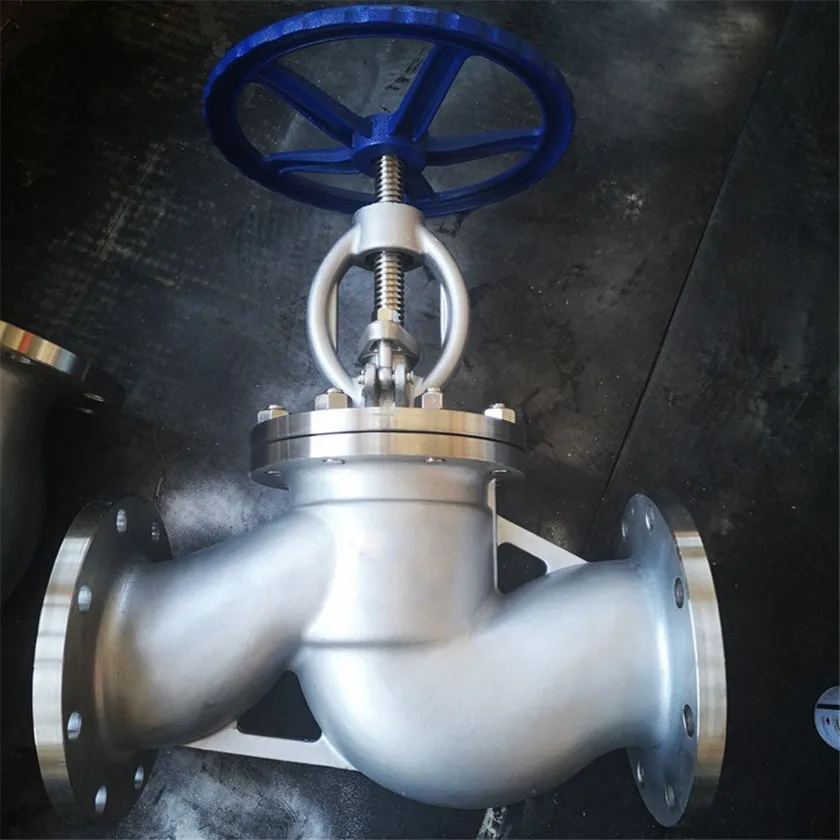

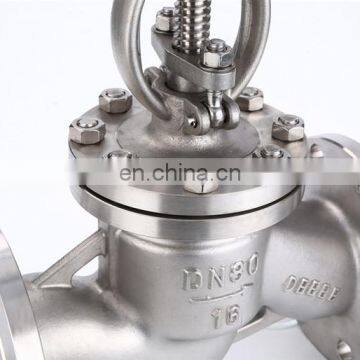

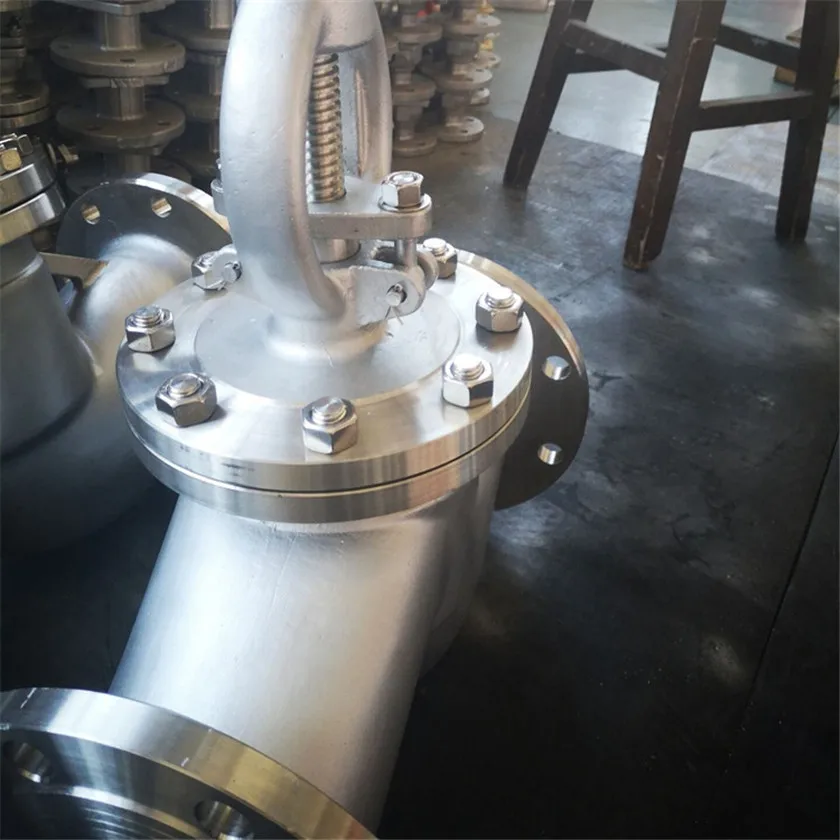

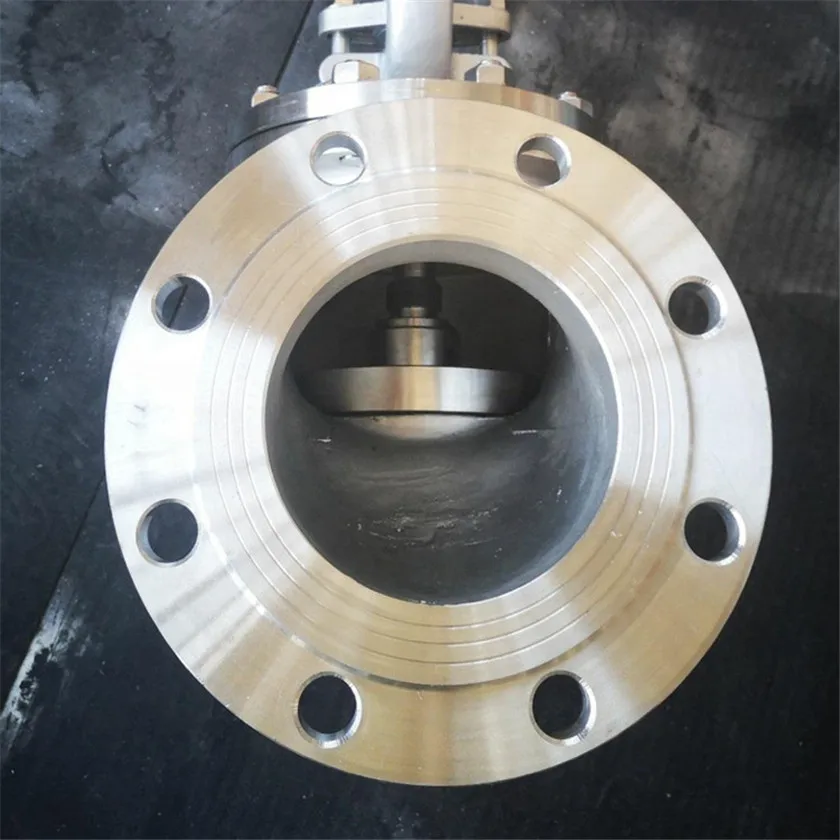

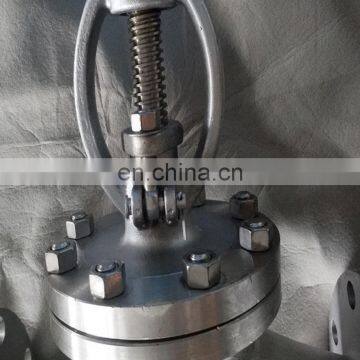

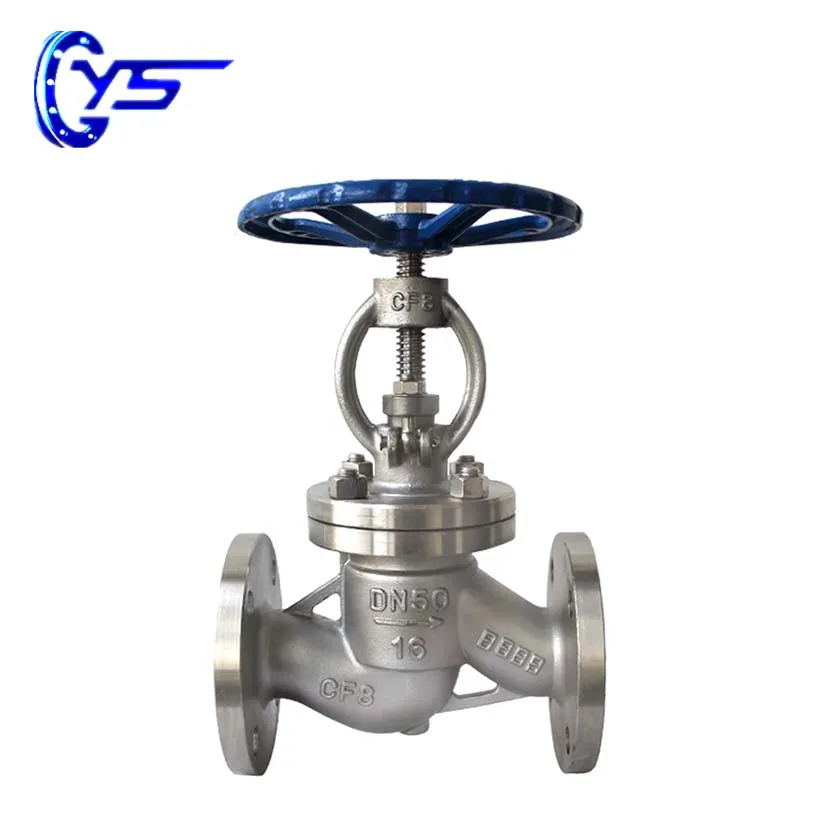

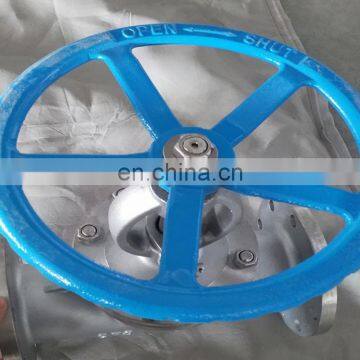

Angle Type Animation Pn16 Dn80 Cf8 Sanitary Specification Globe Valve
- Tianjin/Shanghai/Ningbo
- T/T Credit Card
You May Like
-
Jis 10k OEM And ODM Manufacture Ammonia Manual Globe Valve With Handwheel
-
High Quality WCB SS ANSI Cast Iron Rising Stem Marine Steam Globe Valve With Flange
-
Factory Direct Sale H41H-16C WCB Valve Body Unidirectional Flow Lifting Check Valve
-
Grey Iron Body and Bonnet Flanged Connection H41H-16 DIN Lift Check Valve
-
Maximum Demand Chemical Industry PN16 Flanged Flanged Swing Check Valve
-
SS304 Seal Ring Cast Iron Body SS304 Seal Ring Water Lift Check Valve
Product Details
| Brand Name | YaoSheng | Place of Origin | Hebei, China | |
| Model Number | DN15~DN250 | |||
| Power | Manual | Port Size | DN15~DN250 | |
| Media | Acid |
Product Description
Main parts and materials | ||||
No. | Main parts | Materials | ||
1 | Valve bady | Stainless Steel | ||
2 | Bonnet | Stainless Steel | ||
3 | Disc | Stainless Steel | ||
4 | Stem | Stainless steel | ||
5 | Yoke nut | Brass | ||
6 | Hand wheel | Stainless Steel | ||
Function and specification | ||||||||||
Type | PN(MPa) | Testing pressure (MPa) | Suitable temperature(℃) | Suitable medium | ||||||
Strength (water) | Enclose (water) | |||||||||
J41W-16P/R | 1.6 | 2.4 | 1.8 | ≤100℃ | Nitric Acid | |||||
Z45W-10/10Q | ||||||||||
J41W-25P/R | 2.5 | 3.8 | 2.8 | ≤100℃ | Nitric Acid | |||||
J41W-40P/R | 4.0 | 6.0 | 4.4 | ≤100℃ | Nitric Acid | |||||

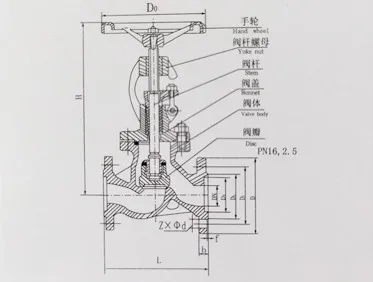

Outline and connecting measurement | ||||||||||||
Type | DN(mm) | Measurement(mm) | Reference Weight(kg) | |||||||||
L | D1 | H | Z-Фd | |||||||||
J41W-16P/R | 15 | 130 | 65 | 170 | 4-14 | 6.9 | ||||||
20 | 150 | 75 | 190 | 4-14 | 7.4 | |||||||
25 | 160 | 85 | 205 | 4-14 | 8.5 | |||||||
32 | 180 | 100 | 270 | 4-18 | 15.4 | |||||||
40 | 200 | 110 | 310 | 4-18 | 19.3 | |||||||
50 | 230 | 125 | 358 | 4-18 | 31.2 | |||||||
65 | 290 | 145 | 373 | 4-18 | 33.6 | |||||||
80 | 310 | 160 | 435 | 8-18 | 44.6 | |||||||
100 | 350 | 180 | 500 | 8-18 | 66.4 | |||||||
125 | 440 | 210 | 614 | 8-18 | 93.2 | |||||||
150 | 480 | 240 | 674 | 8-23 | 157.5 | |||||||
Tips:
2.The working distance is small and the opening and closing time is short.
3.Good sealing, low friction between sealing surfaces and long service life.
We also pack the valve by plywood cases
Hebei Yaosheng IM & EX Trading Co., Ltd located in B # industrial park, Xushui district, Baoding city, Hebei province, is a professional company integrating the research, development, manufacture and sales.
Standards such as GB, JB, US API, ANSI, British BS, German DIN, Japanese JIS, GOST, and French NF are mainly adopted. There are about 100 series of products, such as, gate valve, globe valve, check valve, ball valve, butterfly valve, bottom valve, drain valve, filter, and flange, which have been widely used in fields of petroleum, petrochemical, chemical, electric power, construction, medicine, water supply and drainage.
Products have been widely launched in the market of European and Middle East and Southeast AISA, mainly including the United States, Romania, Spain, Vietnam, Indonesia, Malaysia, Russia, Kazakhstan, Ukraine and other countries.1.We are a professional manufacturer with casting machining paint and delivery in one, and excellent technical team.
2. We are factory so that we can control the product quality. In addition,we can cast logo and change the valve parts as clients’ requirements.
3. All our workers own rich experience to ensure the export smoothly and make you satisfied.
4. We attend the Canton Fair and professional exhibition every year.
5. We have the specialized after-sales service to solve the quality problems in time.
6. Our company located in Xiongan New district which brings lasting development power. It can strengthen our cooperation .
